SKU: SKU: HKS32016-AT123
HKS Hi-Power Muffler SPEC-L ZN6
| Cert. No. | JQR40134159 |
|---|
| Vehicle | 86 |
|---|---|
| Model | ZN6 |
| Engine | FA20 |
| Model Year | 12/04 - 21/10 |
| Shape of muffler | HP (Hi-Power SPEC-L II) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 94 L&R | |
| Diameter of center pipe | 60-50 x 2 (*1) | |
| Close noise level | Stock | 86 |
| HKS | 90 | |
| About road clearance(*2) | Clearance | 130mm |
| Portion of the kit | Center pipe | |
| Remarks | ||
| Product Weight | ||

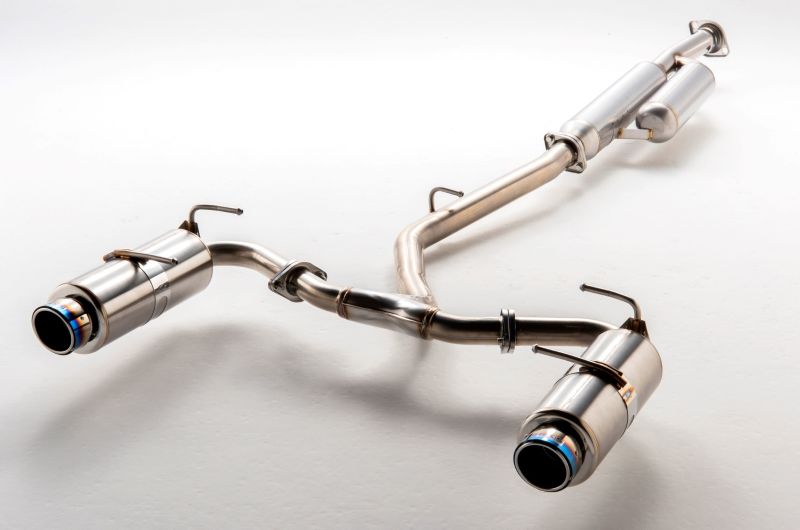

Includes Main pipe and Center pipe. * Weight: 10.0kg (44% lighter compared to stock)
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
Hi-Power SPEC-L II
Vehicle: BRZ
Application
Specifications
BRZ DBA-, 4BA-ZC6 Cert. No. JQR40134159 Vehicle BRZ Model ZC6 Engine FA20 Model Year 12/03 - 20/11 Shape of muffler HP (Hi-Power SPEC-L II) Main material S304 Diameter of tip 94 L&R Diameter of center pipe 60-50 x 2 (*1) Close noise level Stock 86 HKS 90 About road clearance(*2) Clearance 130mm Portion of the kit Center pipe Remarks Product Weight Remarks Tail:L&R Includes Main pipe and Center pipe. * Weight: 10.0kg (44% lighter compared to stock) About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]
Source: HKS Japan · Detail page
