SKU: SKU: HKS32016-AF101
Sporty sound and significant weight reduction enhances the BRZ's driving performance.
| Cert. No. | JQR40214118 |
|---|
| Vehicle | GR86 |
|---|---|
| Model | ZN8 |
| Engine | FA24 |
| Model Year | 21/10 - |
| Shape of muffler | HP (Hi-Power SPEC-L II) |
|
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 94 L&R | |
| Diameter of center pipe | 65 - 50.8 x 2 (*1) | |
| Close noise level | Stock | 82 L&R |
| HKS | 87/88 | |
| About road clearance(*2) | Clearance | |
| Portion of the kit | ||
| Remarks | ||
| Product Weight | ||
Tail cover size:φ94 L=48
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
Hi-Power SPEC-L II
Vehicle: GR86
Application
Specifications

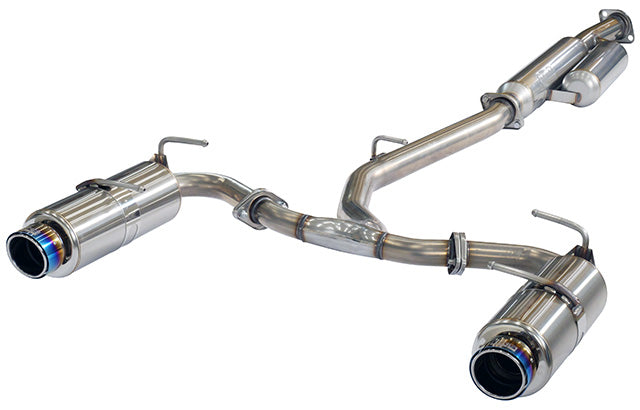

GR86 3BA-ZN8 Sporty sound and significant weight reduction enhances the BRZ’s driving performance. By using ultra-thin stainless steel material for pipes and silencers, the weight has been achieved to a level competitive with titanium exhausts. The sound characteristics of the exhaust system are emphasized by the bass sound, while the annoying exhaust drone is eliminated by the silent chamber. "It has a unique shape with equal length on each sides for producing a clear exhaust sound. This is a product that allows you to fully enjoy the pleasant HKS sound. The pipe diameter was selected to match the high output 2.4L engine for superior exhaust performance. By reducing weight and exhaust pressure, we have achieved a significant improvement in driving performance. Customization with optional tail tip covers is available in 3 types; titanium, carbon, and blue stainless steel. 32016-AF101 is designed to meet Japanese regulations and is quieter than 32016-BT004. Cert. No. JQR40214118 Vehicle GR86 Model ZN8 Engine FA24 Model Year 21/10 - Shape of muffler HP (Hi-Power SPEC-L II) Main material S304 Diameter of tip 94 L&R Diameter of center pipe 65 - 50.8 x 2 (*1) Close noise level Stock 82 L&R HKS 87/88 About road clearance(*2) Clearance 120mm Portion of the kit Mid pipe Remarks Product Weight 11.4kg Remarks • Tail: L&R • Compatible with Applied Model A-E. • CUP designate
Source: HKS Japan · Detail page
