SKU: SKU: HKS80250-AT003DC
MAX IV SP DRAG
Application
Specifications

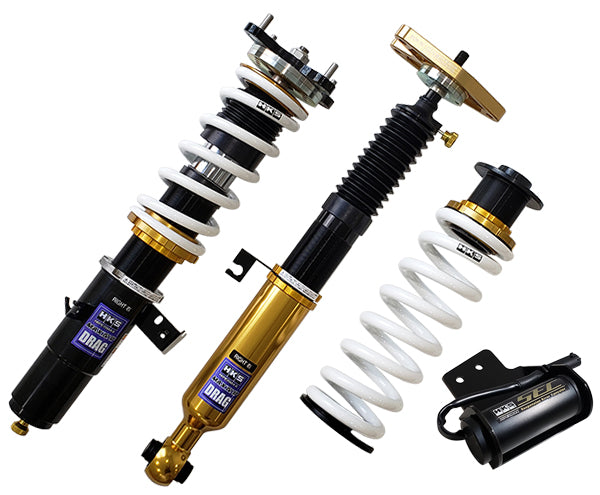

GR SUPRA DB42 Return of Drag Specification Dampers. Introducing the latest technologies to suit modern drag racing requirements. ⇒ Suspension Error Canceler ▲The above photo is an item for DB42. Application Engine B58 Model Year 19/05 - 20/09 Remarks *After lowering the vehicle height, the irradiation range of a radar and camera may become narrow that result in malfunction of TSS. Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket ○ ○ Upper mount Spherical bearing Spherical bearing Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory 〇 ○ Damping force adjustment with wire - ‐ Helper spring (Spring rate N/mm) - - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 665 ← 670 ～ 626 670 ～ 626 Against stock -22 ← -17 ～ -61 -17 ～ -61 REAR Ride height *1 678 ← 686 ～ 623 686 ～ 623 Against stock -20 ← -12 ～ -75 -12 ～ -75 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from
Source: HKS Japan · Detail page
