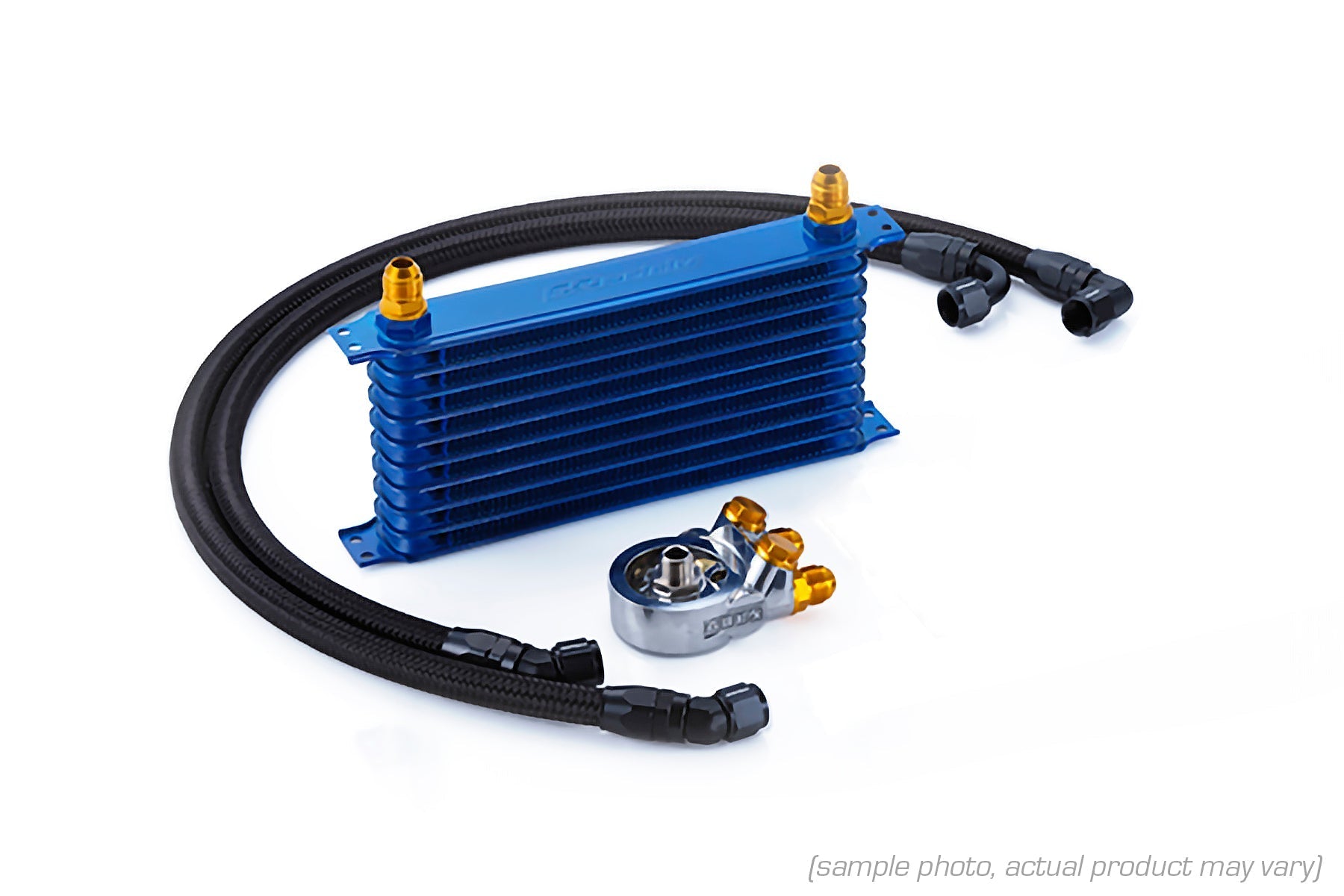

GReddy 2021+ Toyota GR Yaris (GXPA16) Standard 10 Row Oil Cooler Kit - 12014640

Oil cooler kit STD 10row for GXPA16 GR Yaris (G16E-GTS)

Product features

• This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Core type: NS1010G
• Thermostat: Built-in block
• Core installation location: In front of Radiator
• Center bolt size: 3/4-16UNF

Compatible models: GR Yaris

• Vehicle model: GXPA16
• E/G model: G16E-GTS
• Year: 2020 09 〜
• CODE:12014640

remarks:

• Reinforce requires cutting modification
• Radiator upper air guide plate requires modification.

• Engines with center bolt size 3/4-16 UNF (GReddy oil filtersOX-01, OX-02, and OX-03 are compatible).
