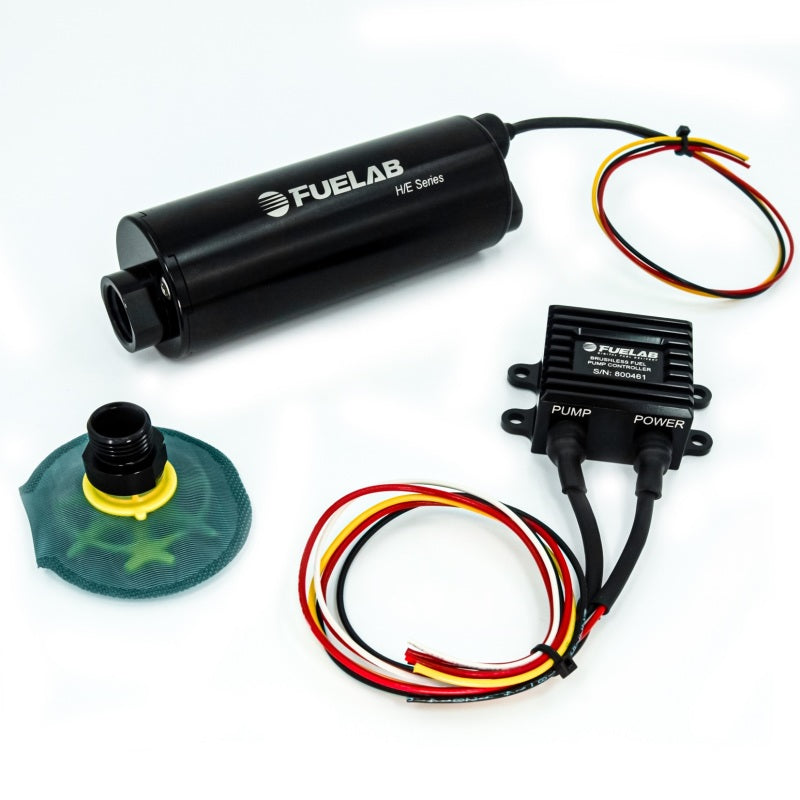

In-Tank Fuel Pump Kit - Contains 1100lph Twin Screw Brushless Pump, Remote Mount Brushless Controller and 65 Micron Straining Filter.
Pump Features:
- Compatible with gasoline, diesel, methanol, and ethanol
- Twin Screw Rotor Pumping Mechanism
- 125PSI Max Operating Pressure
- 2800HP power support at continuous speed (Pump Gas, Naturally Aspirated)
- Higher efficiency means less current draw and less noise
- Superior Priming Capabilities
- Greater resistance to cavitation (vapor lock)
- Backed by a limited lifetime warranty
Motor Features:
- Lightweight super-efficient DC brushless motor to minimize current draw
- Powerful high flux density Neodymium rare earth magnets
- No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
- Wet motor design, no dynamic shaft seals that can wear out
Controller Features:
- 12 to 16 volt vehicle electrical system compatibility
- Model 72005 Pump Controller included for Full Speed or PWM Input speed control
- Continuous duty motor speed
Construction Features:
- Compact, lightweight design, less than 3lbs
- Billet Aluminum Construction with anodize per MIL-A-8625, Type II
- Long Life, multi-fuel compatible Fluorosilicone static seals
- Accepts standard or port style -8AN fittings
Pulse Width Modulation Compatibility (PWM):
- AEM
- ECU Masters
- Fueltech
- Haltech
- Holley
- Link Engine Management
- Megasquirt
Specifications
-
Capacity: 1100LPH
-
Fuel Compatibility: Gas, Diesel, Methanol, Ethanol
-
Material: Billet Aluminum
-
Finish: Anodized
-
Colour: Black
-
Sold As: Kit
-
Warranty: Limited Lifetime Warranty
-
Country of Origin: US
-
Weight: 2.5 lb
