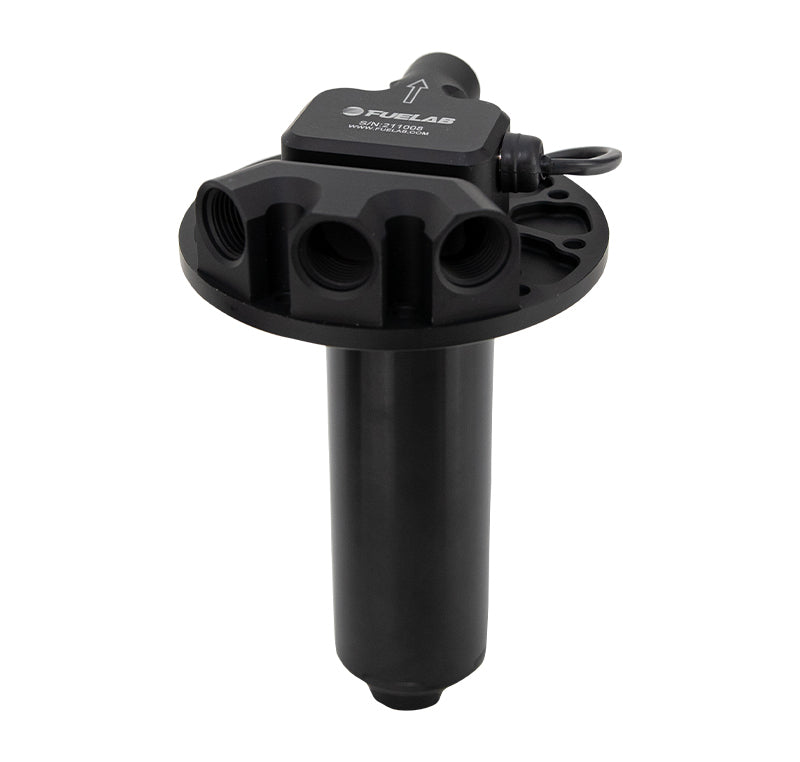

250 LPH at 45PSI, 125PSI Max - 13.5v Rated UP TO 625HP Reliable and efficient
Pump Feature
- Compatible with gasoline, diesel, methanol and ethanol
- Twin Screw Rotor Pumping Mechanism
- 125PSI Max Operating Pressure
- 625 HP power support
- Higher efficiency means less current draw and less noise
- Superior Priming Capabilities
- Greater resistance to cavitation (vapor lock)
- Backed by a limited lifetime warranty
Electronic Features
- 8 to 16 volt vehicle electrical system compatibility
- Variable duty motor speed
Motor Features
- Lightweight super-efficient DC brushless motor to minimize current draw
- Powerful high flux density Neodymium rare earth magnets
- No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
- Wet motor design, no dynamic shaft seals that can wear out
Construction Features
- Compact, lightweight design, less than 2.5lbs. Overall length 8 inch, pump diameter 2 inch
- Billet Aluminum Construction with anodize per MIL-A-8625 Type II
- Flange mounted SAE 10-Bolt pattern for easy use with fuel cells of fabricated reservoirs
- Long Life, multi-fuel compatible Fluorosilicone static seals
- Accepts standard or port style -8AN fittings
Specifications
-
Series: H/E Series
-
Capacity: 250LPH
-
Rated Horsepower: 625HP
-
Fuel Compatibility: Gas, Diesel, Ethanol, Methanol
-
Material: Billet Aluminum
-
Finish: Anodized
-
Colour: Black
-
Sold As: Each
-
Warranty: Limited Lifetime Warranty
-
Country of Origin: USA
-
Weight: 1.8 lb
