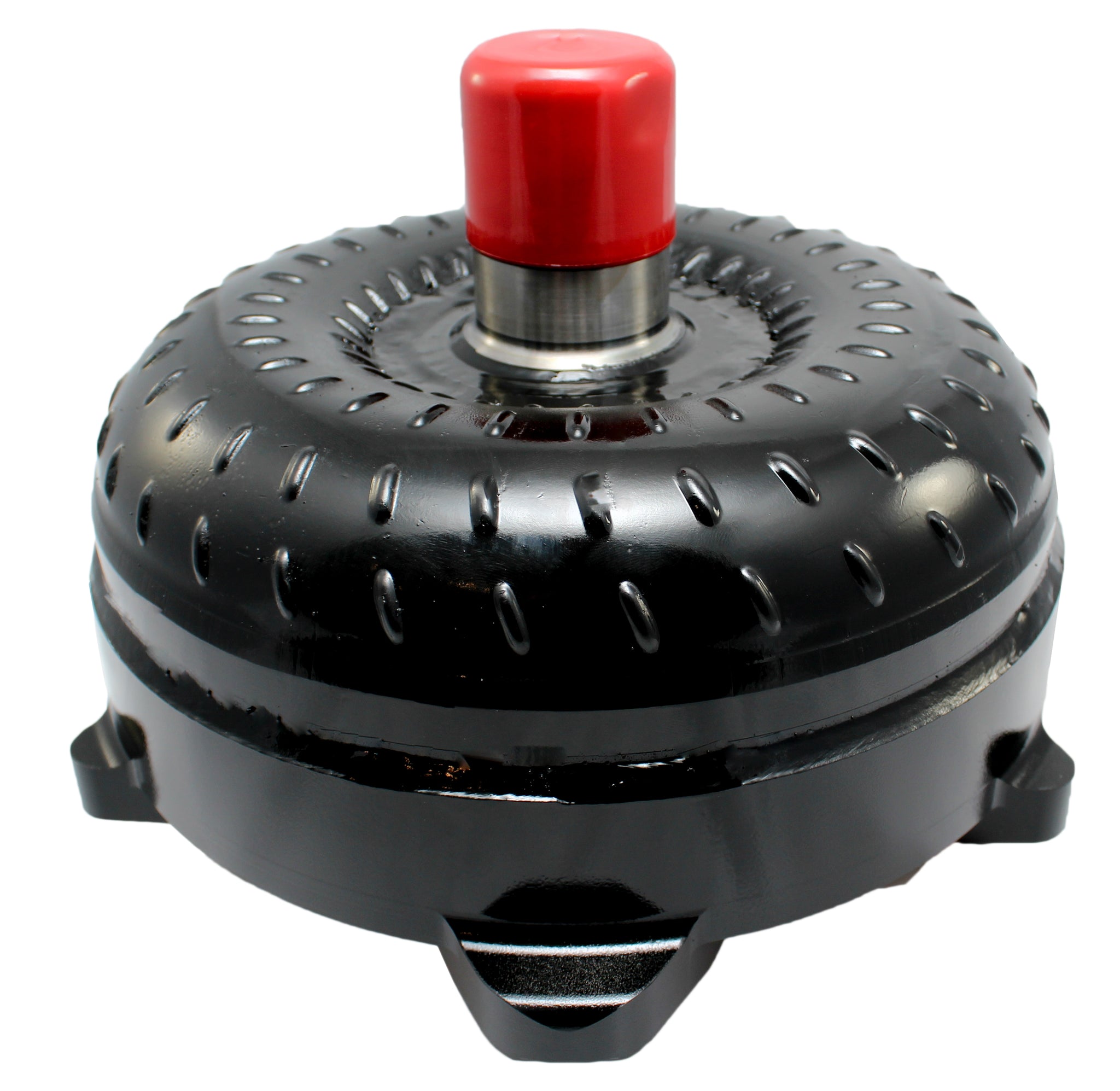

Billet Lock Up Street Racer Torque Converters by FTI Performance - FTI Performance 9.5" Billet Lock Up Street Racer Torque Converters offer Unbeatable Performance & Reliability for the Weekend Warrior.
SRLT4 Series for 4L80E behind LT flat style flexplate applications.
1000HP Rated
SRLT40082: 3200 Stall RPM, Single Clutch
Attributes:
- Diameter: 9.5in
- Crank Pilot Diameter: 1.703in
- Torque Converter Bolt Circle: 10.750/11.063/11.500
- Furnace Brazed: Yes
- Balanced: Yes
- Anti-Balooning Plate: No
- Input Spline Quantity: 35 Spline
- Lockup Compatible: Yes
- Mounting Hardware Included: Yes
FTI Performance SRL Series billet lockup torque converters feature a computer-designed, CNC-machined billet front cover and a billet lockup piston--making premature clutch wear a thing of the past. With custom stator designs and multiple blade angle pumps, stalls are available from 2,800-4,400 rpm. They are custom-built to your exact needs and driving style. With furnace-brazed and heli-welded fins, severe-duty sprague, and anti-ballooning flanged impeller hub, these torque converters are virtually indestructible. CONVERTER_TRANSMISSION Installation.pdf
Specifications
-
Stall Speed Rating: 3200RPM
-
Outside Diameter: 9.500 in
-
Anti-Ballooning Plate: Anti-ballooning flanged hub
-
torque Converter Use: Street/Strip
-
Lock Up Type: Yes
