FTI Performance Part # FTISRLS46391

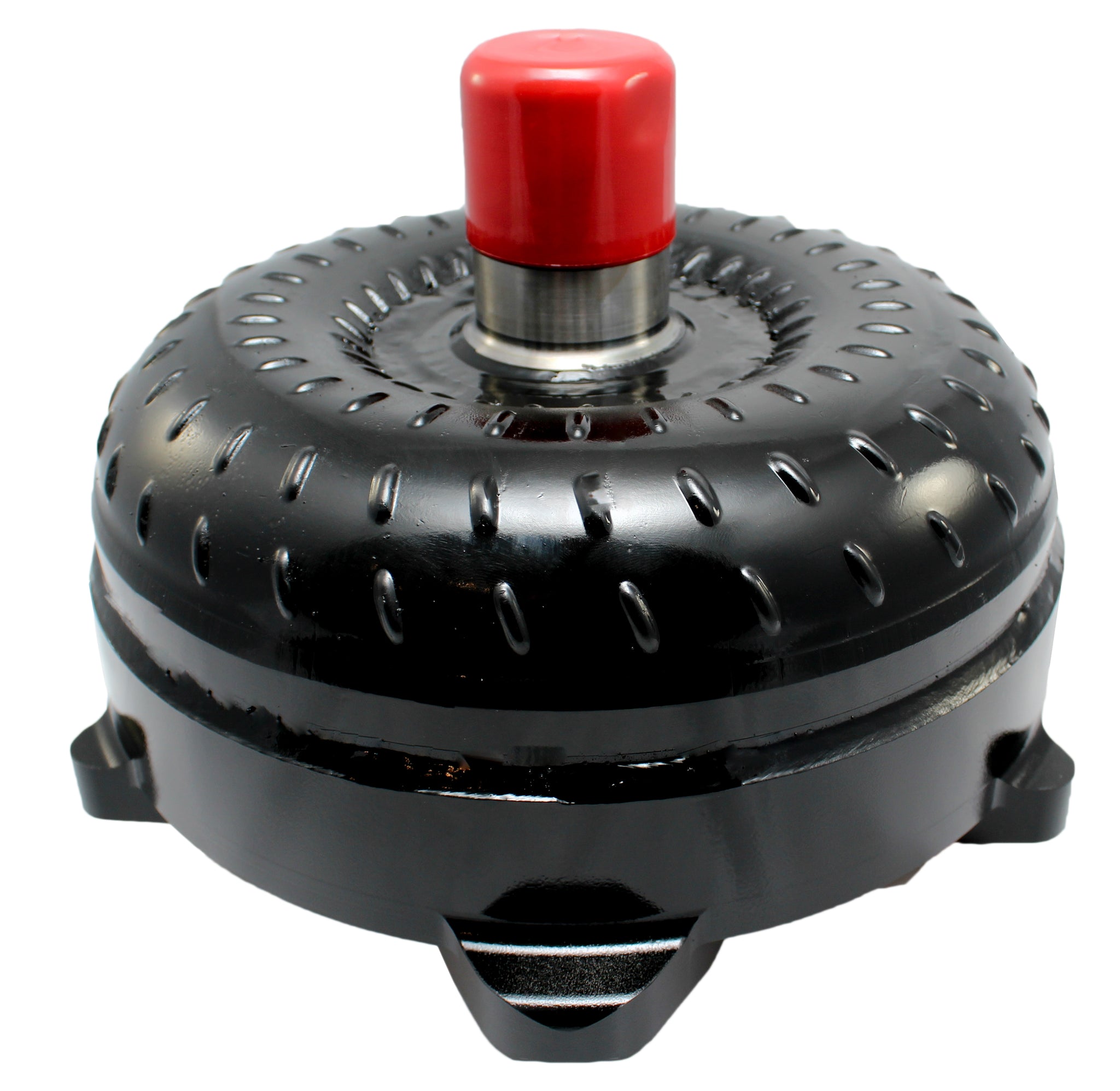

FTI 9.5in 4L80E/4L85E Billet Lock-Up Street Racer Series - LS - 3800 Stall - SRLS46391

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Billet Lock Up Street Racer Torque Converters by FTI Performance - FTI Performance 9.5" Billet Lock Up Street Racer Torque Converters offer Unbeatable Performance & Reliability for the Weekend Warrior.

SRLS4 Series for 4L80E behind LS1 dished style flexplate applications.
1000HP Rated

SRLS46391: 3800 Stall RPM, Single Clutch

Attributes:

  • Diameter: 9.5in
  • Crank Pilot Diameter: 1.703in
  • Torque Converter Bolt Circle: 10.75in, 11.5in, 11.062in
  • Furnace Brazed: Yes
  • Balanced: Yes
  • Anti-Balooning Flanged Hub: Yes
  • Input Spline Quantity: 35 Spline
  • Lockup Compatible: Yes
  • Mounting Hardware Included: Yes

FTI Performance SRL Series billet lockup torque converters feature a computer-designed, CNC-machined billet front cover and a billet lockup piston--making premature clutch wear a thing of the past. With custom stator designs and multiple blade angle pumps, stalls are available from 2,800-4,400 rpm. They are custom-built to your exact needs and driving style. With furnace-brazed and heli-welded fins, severe-duty sprague, and anti-ballooning flanged impeller hub, these torque converters are virtually indestructible. CONVERTER_TRANSMISSION Installation.pdf

  • Stall Speed Rating: 3800RPM
  • Outside Diameter: 9.500 in
  • Anti-Ballooning Plate: Anti-ballooning flanged hub
  • torque Converter Use: Street/Strip
  • Lock Up Type: Yes
