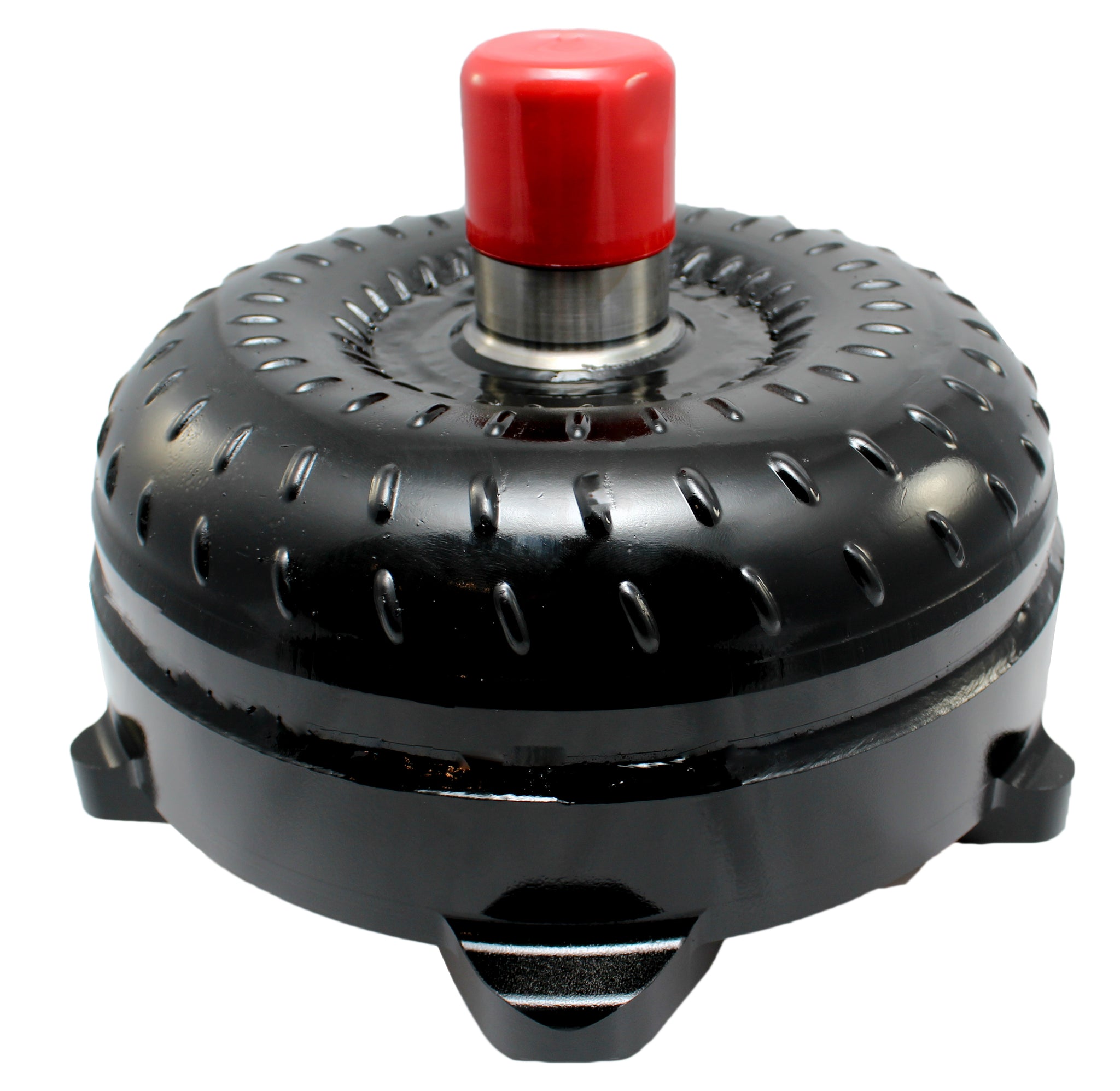

FTI 9.5in 4L80E/4L85E Billet Lock-Up Street Racer Series - LS - 3000 Stall - SRLS43082

Billet Lock Up Street Racer Torque Converters by FTI Performance - FTI Performance 9.5" Billet Lock Up Street Racer Torque Converters offer Unbeatable Performance & Reliability for the Weekend Warrior.

SRLS4 Series for 4L80E behind LS1 dished style flexplate applications.
1000HP Rated

SRLS43082: 3000 Stall RPM, Single Clutch

Attributes:

• Diameter: 9.5in
• Crank Pilot Diameter: 1.703in
• Torque Converter Bolt Circle: 10.75in, 11.5in, 11.062in
• Furnace Brazed: Yes
• Balanced: Yes
• Anti-Balooning Flanged Hub: Yes
• Input Spline Quantity: 35 Spline
• Lockup Compatible: Yes
• Mounting Hardware Included: Yes

FTI Performance SRL Series billet lockup torque converters feature a computer-designed, CNC-machined billet front cover and a billet lockup piston--making premature clutch wear a thing of the past. With custom stator designs and multiple blade angle pumps, stalls are available from 2,800-4,400 rpm. They are custom-built to your exact needs and driving style. With furnace-brazed and heli-welded fins, severe-duty sprague, and anti-ballooning flanged impeller hub, these torque converters are virtually indestructible. CONVERTER_TRANSMISSION Installation.pdf
