The C7 Corvette delivers speed from the factory and a strong aftermarket catalog making the chassis an ideal vehicle to configure into a dedicated track car or performance-oriented daily driver. FOX Performance Elite Series 2.0 dramatically improves the car’s handling and driver confidence.
TYPE III hard anodization prevents corrosion and wear of the 2.0-inch aluminum bodies. The Performance Elite Series kit accommodates 0-1.5” of lowering. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up.
Our ride engineers spent considerable time testing the Corvette. We tracked the car drove the C7 on the street then optimized the shock valving for various driving conditions. Fine-tune the vehicle’s damping with Low-Speed Compression (LSC) and Low-Speed Rebound (LSR). Dial-in steering response and provide stability through transitions with the LSC adjuster. Use the LSR adjuster for better handling feedback or to improve slow-speed driving comfort.
The C7 Corvette is powerful and track-capable. With FOX, you can transform its ride dynamics to deliver more comfort over rough surfaces while feeling planted and stable through different track layouts and topography.
Application specific valving to maximize performance
Features

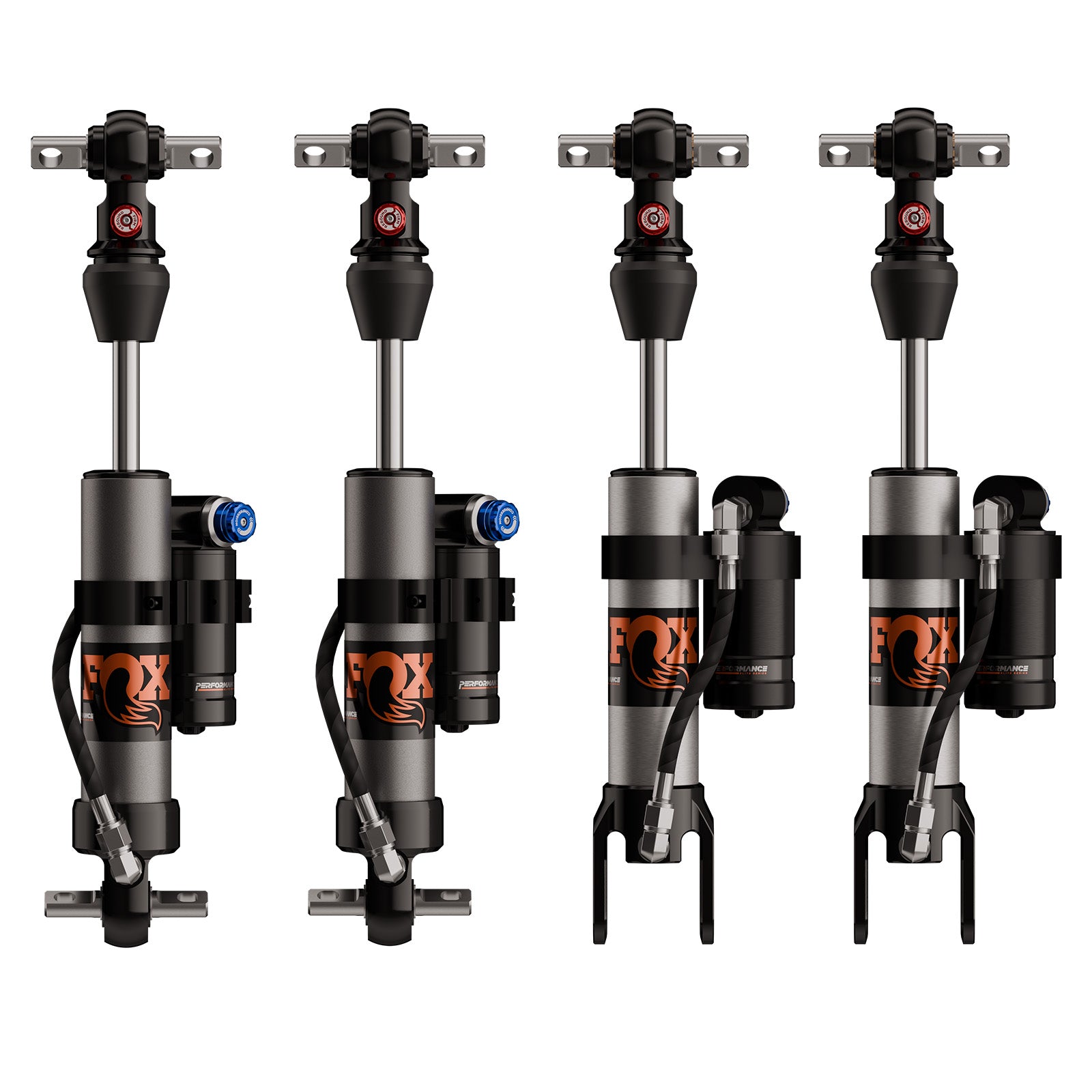

- 2.0” impact-extruded and CNC-machined 6061-T6 TYPE III anodized aluminum body
- 5/8” hard chromed steel shafts
- Vehicle-specific tuning maximizes performance
- Redundant sealing pack system: main seal, wiper seal, scraper seal
- External reservoir, with internal floating piston
Overview
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Specifications
| Top Mount | Bar Pin |
| Series | Performance Elite |
| Body Material | Aluminum |
| Type | Coil-Over |
| Reservoir Type | Remote |
| Compressed Length (in) | 12.99(F)/12.86(R) IN |
| Extended Length (in) | 17.90(F)/17.97(R) IN |
| Travel (in) | 3.98(F)/4.27(R) IN |
| Bottom Mount | Bar Pin(F)/Clevis(R) |
| Adjuster Type | LSC - Low-Speed Compression, LSR - Low-Speed Rebound |
| Body Diameter (in) | 2.0 |
| Vehicle Ride Height Drop | 0.75"-1.5" |
