SKU: SKU: FOX981-30-426-R

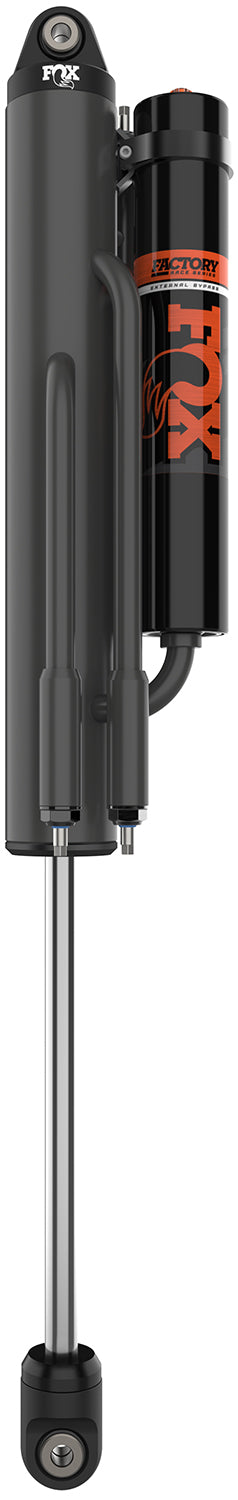

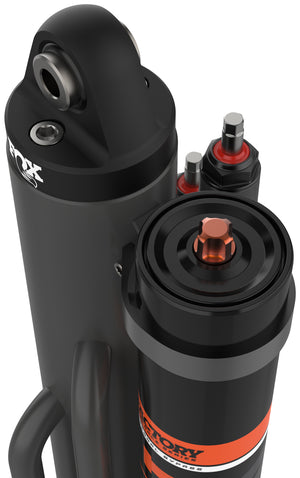

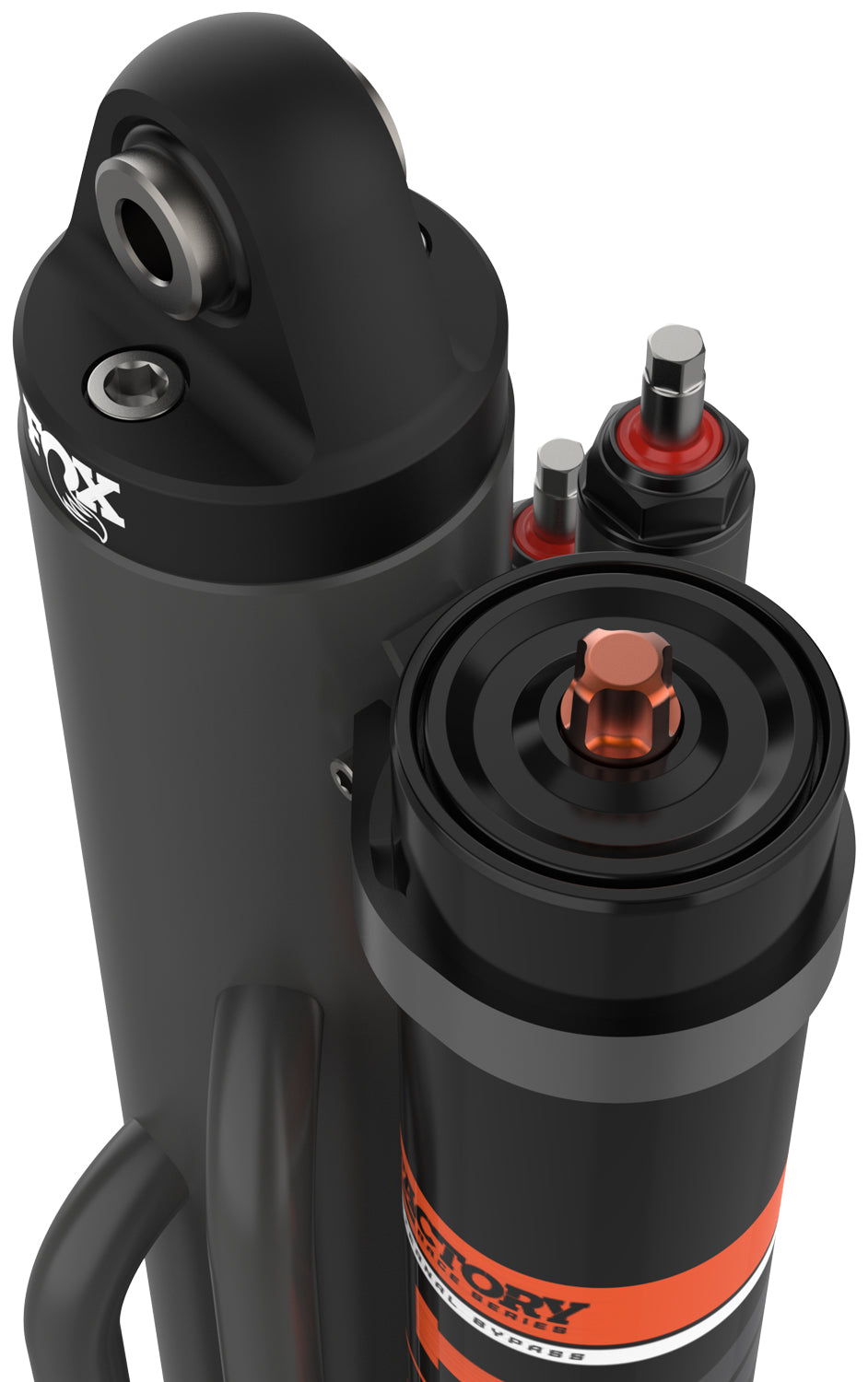

FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There's no questioning whether they're race proven, but in the words of Bob Fox, "we're never done." In that spirit, we've reitalized our tried-and-true externally, adjustable position sensitive damping archtecture to deliver all-new standards of performance and durability, all while streamlining the production process.
Rebuildable and serviceable. Custom valving options available.
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
| Series | Factory Race |
| Body Diameter (in) | 3 |
| Body Material | Steel |
| Bottom Mount | Eyelet |
| Top Mount | Eyelet |
| Bypass Tubes | 3 |
| Compressed Length (in) | 16.6 IN |
| Extended Length (in) | 24.46 IN |
| Mounting | 1/2 x 1-1/2 |
| Reservoir Dimensions | 2.55 x 8.00 |
| Reservoir Type | Remote |
| Shaft Size (in) | 7/8 IN |
| Travel (in) | 7.86 IN |
| Type | External Bypass |
| Eyelet Length (in) | 2 IN |
| Valving | 807-24-600 |
| Seal Kit | 803-04-025 |
| Hose | -10 x 28.00 |
| Adjuster Type | External Bypass Clicker - Gen 2 |
| Body Finish | FOX Grey Cerakote |
| Bypass Tube Size | 3/4 |
| Travel (rounded) | 8 |
