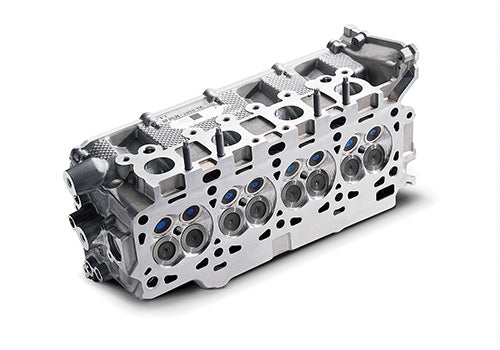

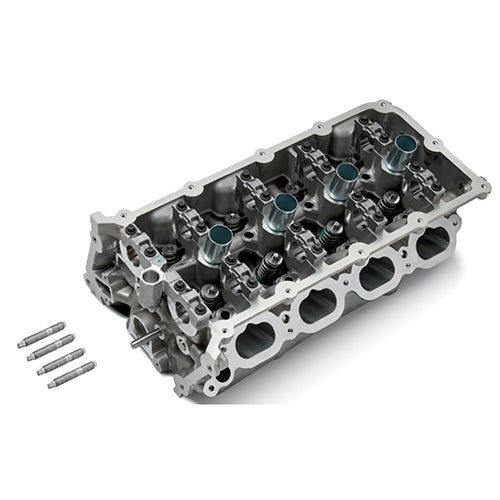

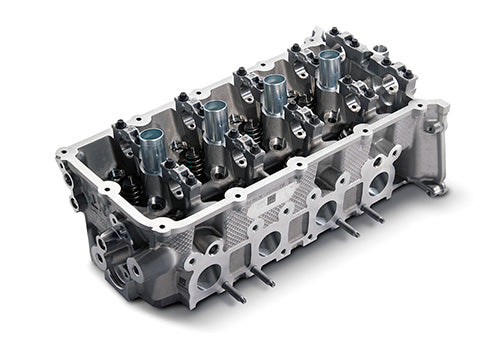

5.2L "GEN 3" RH CYLINDER HEAD — manufactured by Ford Performance Parts (Ford Motor Company).
- Upgraded version of Ford Performance M-6049-M52A 5.2L cylinder head
- Production 2021 GT500 RH cylinder head
- Improved high-performance 5.2L head castings provide added strength and increased size of central cooling passages, to support higher horsepower engine builds

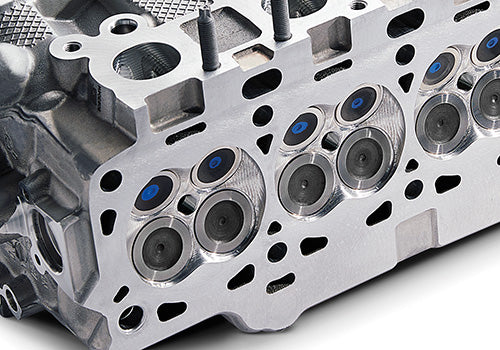

- Fully CNC ported intake ports, exhaust ports and combustion chamber
- Larger port sizing than the 2015-2017 5.0L Coyote cylinder heads
- 38.3mm intake valve and 32.5mm exhaust valve
- 2015-2017 5.0L Coyote valve sizes are 37.3mm intake, 31.8mm exhaust
- New valvetrain geometry allows for higher valve lift
- Lightweight hollow-stem intake valves and sodium-filled exhaust valves
- Stiffer exhaust valve springs
- Upgraded valve guides
- Upgraded exhaust valve seat
- Loaded head assembly minus camshafts, rocker arms and lash adjusters
- To use on 5.0L Coyote requires unique camshaft due to valvetrain geometry, see M-6550-M52 or M-6550-M52A
- Requires 5.2L rocker arms and lash adjusters, see M-6564-M52
- Requires M-6067-M52B head changing kit
- Installation of 5.2L heads on 5.0L engine requires piston modification for proper piston to valve clearance
- For LH cylinder head see M-6050-M52B
Specifications
| Part Type |
Engine: Cylinder Heads |
| Warranty Availability |
Available |
| Package Dimensions |
13" x 11" x 22" |
| Package Weight |
43 lb(s) |
| UPC Code |
756122015995 |
| Country of Origin |
Canada |
Genuine Ford Racing Parts — backed by Ford Motor Company's factory engineering and warranty.
