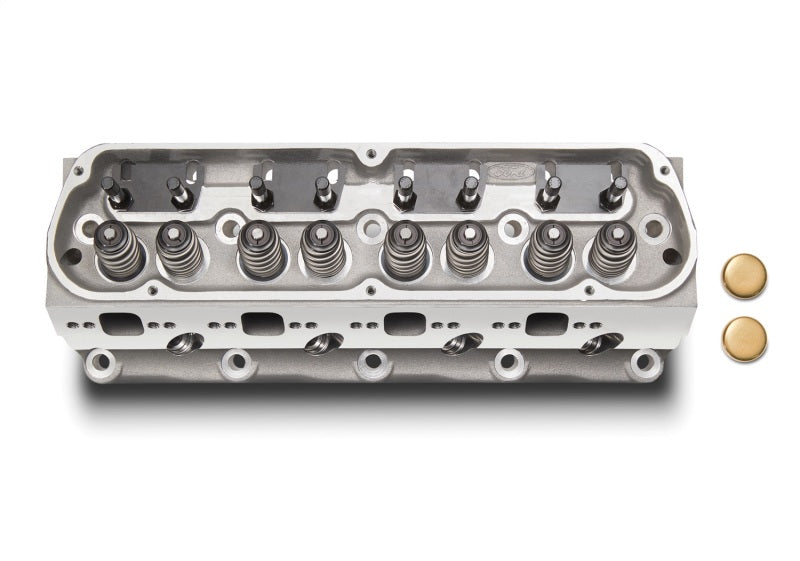

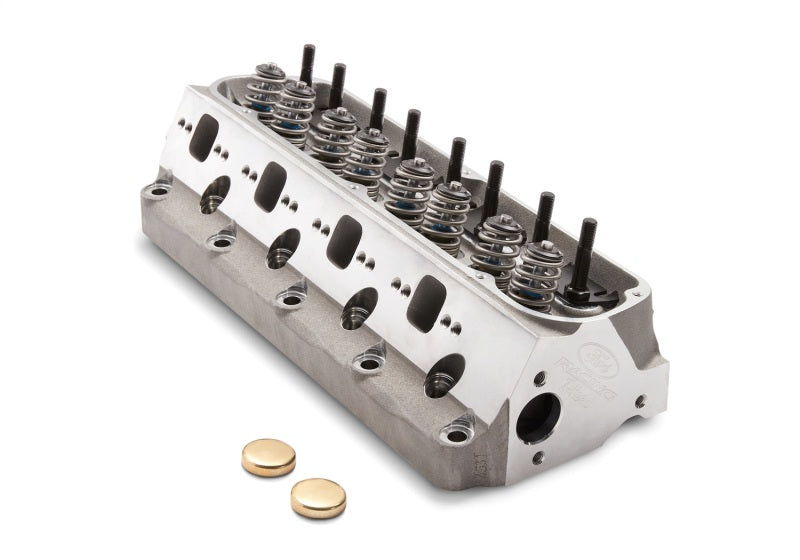

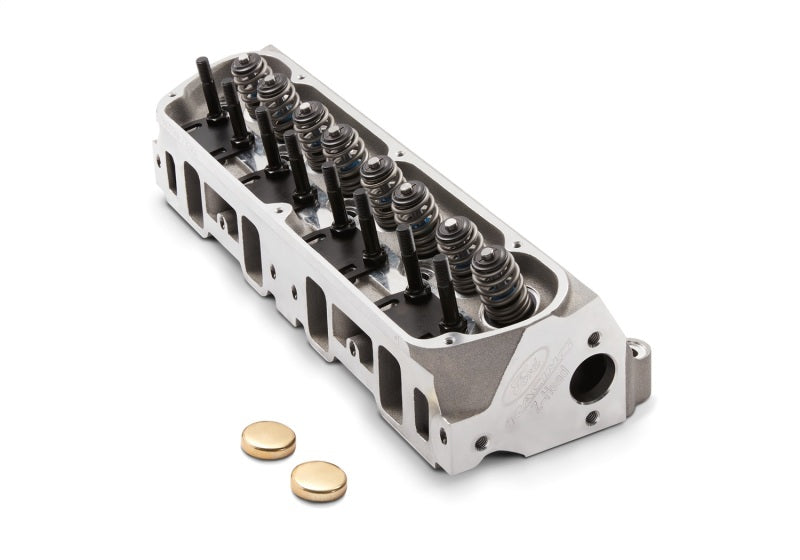

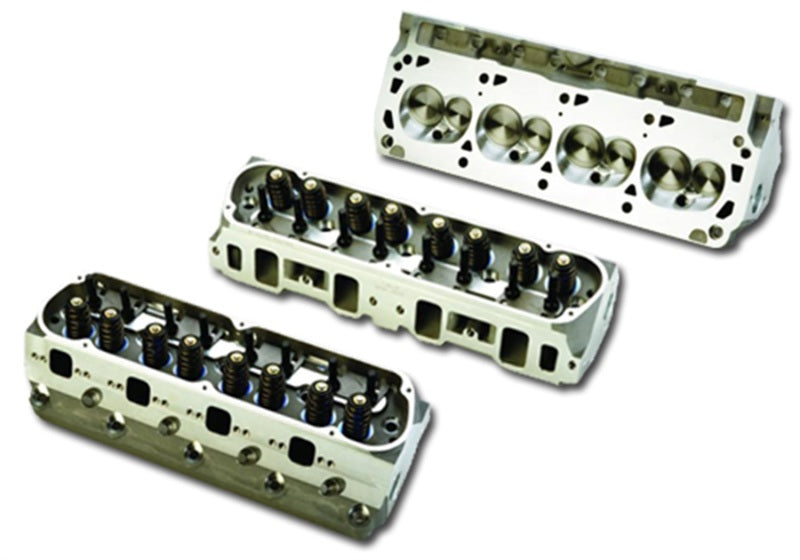

Ford Racing - 302/351w "z-head" Aluminum - Assembled 63cc - M-6049-Z304DA

• Fits 302/351 Windsor engines
• Cast from prime A356 T6 aluminum
• Heads are cast with high-flow ports
• 20 degree inline valves
• Premium stainless steel 2.02" intake M-6507-A304 and 1.60" M-6505-B304 exhaust valves
• Uses PAC 1219X conical style valve springs with machined retainers and machined valve locks. Most hydraulic cams can be used with these springs.
• Valve spring closed pressure - 145 lbs. @1.800"
• Valve spring open pressure - 358 lbs. @ 1.175"
• Includes laser cut guide plates M-6566-Z304D for use with 5/16" pushrods and 7/16" rocker studs (Rocker Stud PN is ARP DRP154)
• Steel alloy intake and exhaust valve seats
• Manganese-bronze valve guides

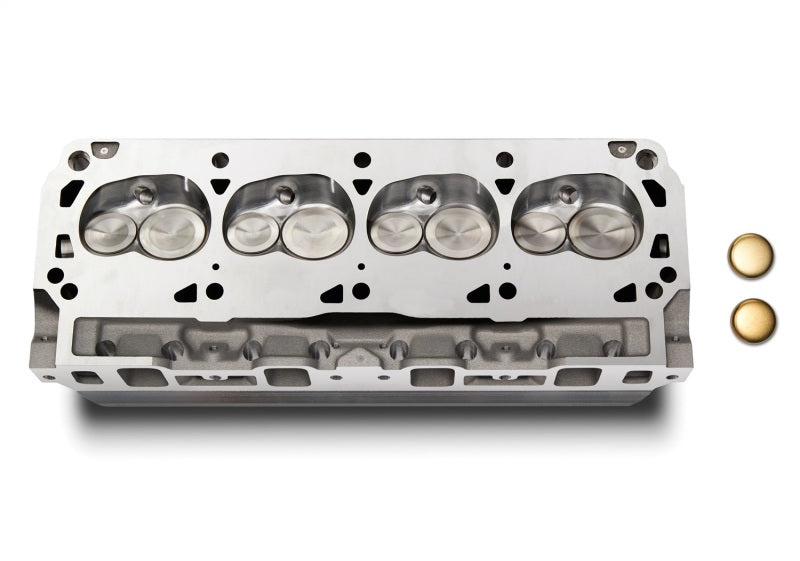

• 63cc CNC'd combustion chamber
• Intake port volume as cast: 204cc
• Exhaust port volume as cast: 85cc
• Accepts both tapered seat and gasket style 14mm spark plugs (Motorcraft AGSP-32-PP, Autolite 3924, 3925)
• Requires 1.65:1 or 1.5:1 ratio roller rocker arms with .150" offset intake pushrod cup (not included)
• Raised exhaust port exit, custom headers may be required
• Ford Performance M-9439-A50 intake manifold gasket recommended
• Uses Felpro® exhaust gasket part number 1487
• Felpro® VS13264T valve cover gasket recommended
• Check piston to valve clearance including radial valve clearance before installing these cylinder heads on your engine
