Control Pack 2015-2017 Coyote 5.0L With Automatic Transmission — manufactured by Ford Performance Parts (Ford Motor Company).
Take the complexity and mystery out of wiring a late model 5.0L Coyote engine!
Designed to run 2015-17 5.0L 4V Ti-VCT Coyote auto transmission engines, with 6R80 Mustang GT 6-speed auto transmission. Manual trans engines require engine harness GU5Z-12A581-EF available from your local Ford Dealer.

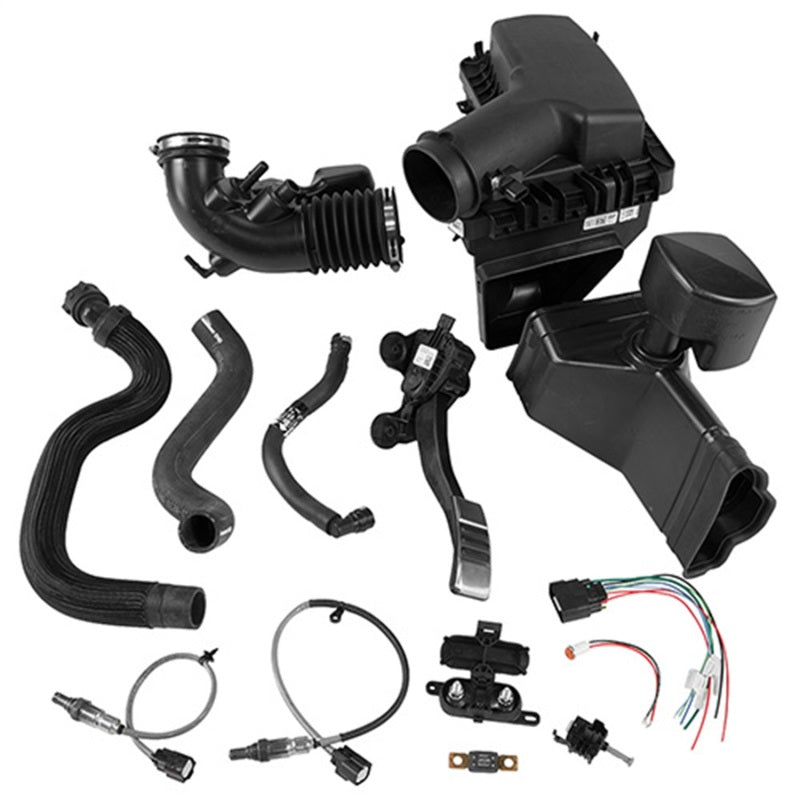

Includes: - PCM with Ford Performance calibration
- Electronic Throttle Control accelerator pedal, eliminating throttle cable routing problems

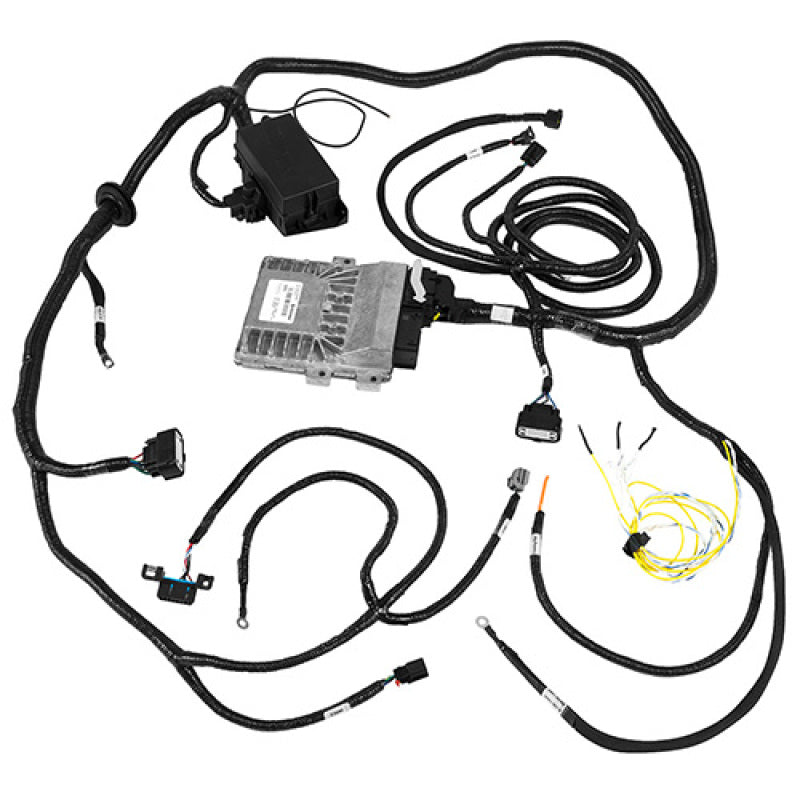

- Unique control pack harness, which replaces the stock body harness and is designed for custom vehicle builds
- OBD-II diagnostic port to assist in vehicle calibration upload and problem diagnosis
- Power distribution module
- Air box
- Air inlet tube
- MAF sensor
- Upper and lower radiator hoses
- HEGO sensors
- PCM with Ford Performance calibration requires return type fuel system, will not work with returnless fuel system
- NOTE: Installation of this PCM in a 2015-17 Mustang GT will result in a no-start condition.
- NOTE: Not for use with a 2015-2017 F150 5.0L Coyote engine.
Specifications
| Part Type |
Electrical: Microprocessors |
| Instruction Sheet |
Available (PDF) |
| Warranty Availability |
Available |
| Package Dimensions |
14" x 20" x 29" |
| Package Weight |
24.2 lb(s) |
| UPC Code |
756122005200 |
| Country of Origin |
United States |
Genuine Ford Racing Parts — backed by Ford Motor Company's factory engineering and warranty.
