Forced Performance Part # FPT2015040

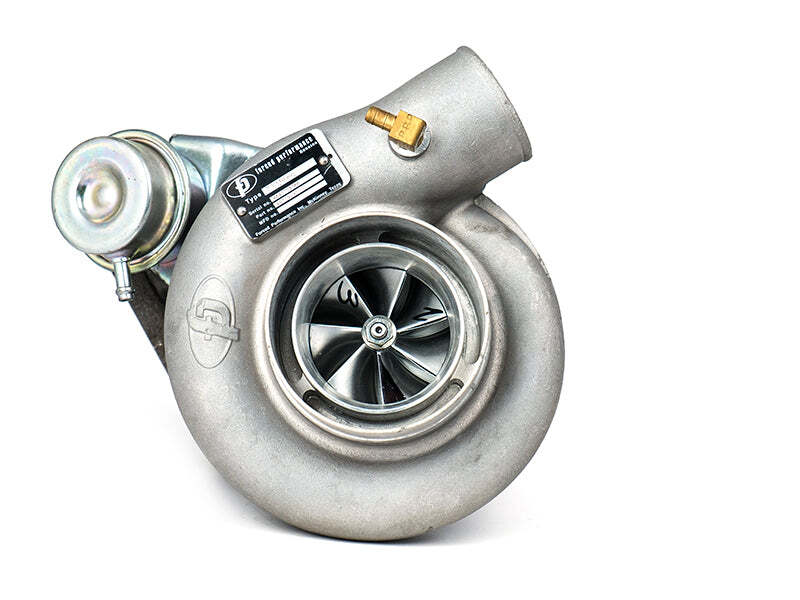

Forced Performance DSM Flanged Vehicle Red Turbocharger 84mm CH8CM Turbine Housing Internal WG - 2015040

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

DSM JB Red

  • Compressor wheel - 76HTZ
  • Flow rating - 61LB per minute
  • CW Measurements - 54.8MM Inducer / 76MM Exducer
  • TW Measurements - 67.3MM Inducer / 58.8MM Exducer
  • Compressor Housing - 84MM Flow Advancement Port Cover
  • Turbine Housing - FP 8CM
  • CHRA - FP Journal Bearing
  • Oil Line - Not Included

The FP Red features Forced Performance's 76MM HTZ wheel rated at 61LB a minute which can produce upwards of 550WHP. Spinning the compressor wheel is Forced Performance's clipped 67MM turbine wheel stuffed into an 8CM turbine housing. This turbo is available internally gated but if you have an O2 housing setup for external you can bolt it right up to this turbo no custom O2 housing required.

This turbo requires that oil be fed off the filter housing which can be accomplished by purchasing Forced Performance's 1G Oil Supply Line. For all of Forced Performance's journal bearing turbos Forced Performance recommends a high quality oil, see below for Forced Performance's oiling information sheet.

Forced Performance Recommendations for Motor Oil
