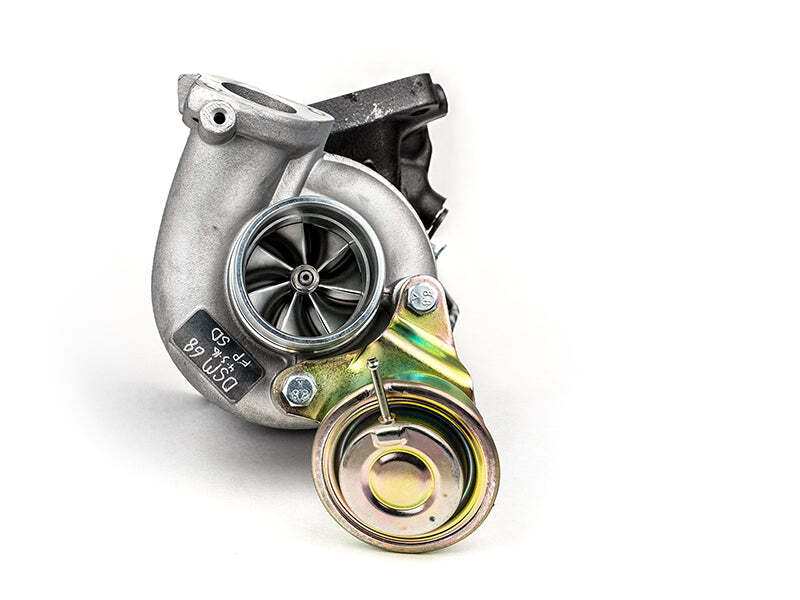

DSM 68HTA V2
- Compressor wheel - 68HTA
- Flow rating - 51LB per minute
- CW Measurements - 51.2MM Inducer / 68MM Exducer
- TW Measurements - 60.8MM Inducer / 54MM Exducer
- Compressor Housing - 16G TD05H (56mm)
- Turbine Housing - FP 8CM
- CHRA - FP Journal Bearing
- Oil Line - Not Included
The
FP 68HTA™
Turbocharger for DSM flanged vehicles out flows both the E3 16G and 18G wheels and allows for higher PR operation without increased compressor outlet temperatures like the existing 16G and 18G wheels. Mass flow is increased to a whopping 51lb/min which is several lb/min greater than either the E3 16G or the 18G wheels are capable. To maximize its power potential this turbo comes standard with a 8CM turbine housing.
