Brighten up your driving experience with this simple upgrade inside your underhood relay box. Simply install the All Lights On module to allow your high-beams, low-beams and fog lamps to simultaneously illuminate the road ahead. Once installed the All Lights On module will keep your fog lamps on when you turn ON your high-beams. When the high-beams are NOT turned on your low-beams and fog lights will function normally.
Installation
- Open the hood and remove the relay panel cover.
- Remove the relays labeled: FOG and DIM

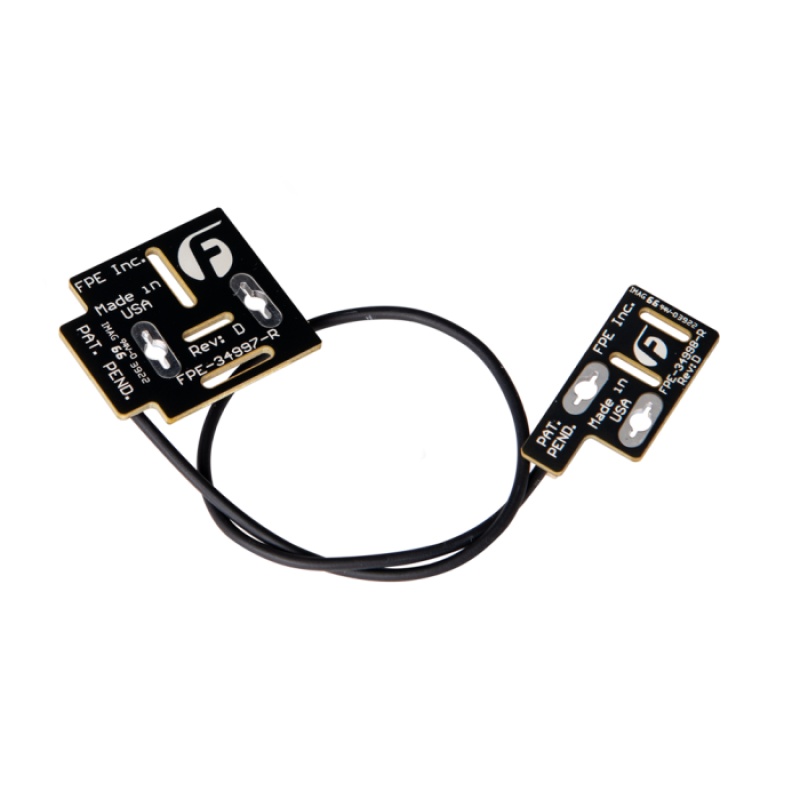

- Insert the relays through the All Lights On boards with the wire connection facing towards the top of the relay. The board will make a firm connection with the relay.
- Reinstall the two relays back into their original location and install the relay panel cover.
Operation
MY2007-2013 Tundra (Separate high and low bulbs): High beams, driving lights, and fog lights all on when high beams are enabled.
MY2014-2017 Tundra (Dual filament bulbs): High beams and fog lights on when high beams are enabled.
Application
Fits 2007-2017 Toyota Tundra with factory installed fog lamps
Fits 2008-2018 Toyota Sequoia with factory installed fog lamps
See Instructions tab on this page for a link to the detailed installated instructions.
* Protected under US Trademark Reg. No. 6068463, 6099979, and US Patents D995456, D995457, D1052544, and D1051866.
