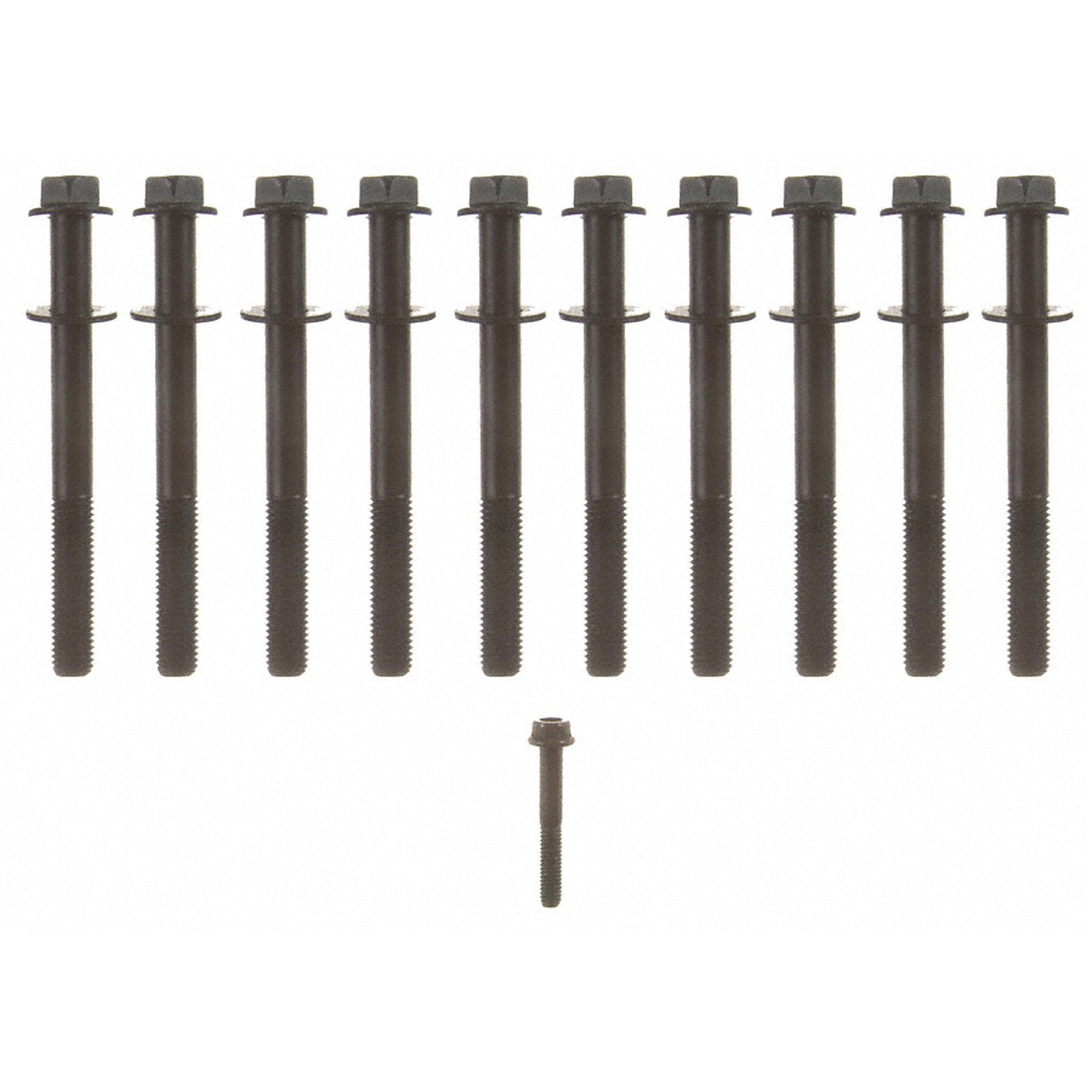

Fel-Pro Suzuki SX4 ES 72206 Engine Cylinder Head Bolt Set - ES72206

• Head Drive Type: Hex
• Thread Diameter: 11.0 MM, 6 MM, 6.0 MM
• Bolt Diameter: 11mm (Bolt 1); 6mm (Bolt 2) MM
• Reusable: No
• Grade Type: Premium
• Assembly Lubricant Included: No
• Bolt Thread Length: 42mm (Bolt 1); 20mm (Bolt 2) MM
• Bolt Thread Pitch: 1.50 (Bolt 1); 1.00 (Bolt 2)
• Bolt Critical Length: 116mm (Bolt 1); 40mm (Bolt 2) MM
• Bolt Head Size: 14mm (Bolt 1); 5mm (Bolt 2)
• Part Design Or Feature Or Use: Head bolts w/Washers; Replacement recommended

Application

• 2002-2007 Suzuki Aerio (Liter: 2.0, 2.3 & Engine(cc): 2000, 2290 & Engine(ci): 140 & Cylinder: 4 & Block: L & Bore(in): 3.31, 3.54 & Bore(mm): 84.1, 90.0 & Stroke(in): 3.54 & Stroke(mm): 90.0 / Qualifier: Head Bolts with Washers, Replacement recommended); 1999-2002 Suzuki Esteem (Liter: 1.8 & Engine(cc): 1790 & Cylinder: 4 & Block: L & Bore(in): 3.31 & Bore(mm): 84.0 & Stroke(in): 3.27 & Stroke(mm): 83.0 / Qualifier: Head Bolts with Washers, Replacement recommended); 1999-2008 Suzuki Grand Vitara (Liter: 2.5, 2.7 & Engine(cc): 2500, 2737 & Cylinder: 6 & Block: V & Bore(in): 3.31, 3.46 & Bore(mm): 84.0, 89.0 & Stroke(in): 2.95 & Stroke(mm): 75.0 / Qualifier: Head Bolts with Washers, Replacement recommended); 2007-2009 Suzuki SX4 (Liter: 2.0 & Engine(cc): 1997 & Engine(ci): 122 & Cylinder: 4 & Block: L & Bore(in): 3.30 & Bore(mm): 84.0 & Stroke(in): 3.54 & Stroke(mm): 90.0 / Qualifier: Head Bolts with Washers, Replacement recommended); 1996-1998 Suzuki Sidekick (Liter: 1.8 & Engine(cc): 1840 & Cylinder: 4 & Block: L & Bore(in): 3.07 & Bore(mm): 78.0 & Stroke(in): 3.70 & Stroke(mm): 94.0 / Qualifier: Head Bolts with Washers, Replacement recommended); 1999-2004 Suzuki Vitara (Liter: 2.0, 2.5 & Engine(cc): 2000, 2500 & Cylinder: 4, 6 & Block: L, V & Bore(in): 3.31 & Bore(mm): 84.1, 84.0 & Stroke(in): 3.54, 2.95 & Stroke(mm): 90.0, 75.0 / Qualifier: Head Bolts with Washers, Replacement recommended); 2002-2006 Suzuki XL-7 (Liter: 2.7 & Engine(cc): 2737 & Cylinder: 6 & Block: V & Bore(in): 3.46 & Bore(mm): 89.0 & Stroke(in): 2.95 & Stroke(mm): 75.0 / Qualifier: Head Bolts with Washers, Replacement recommended); 1999-2004 Chevrolet Tracker (Liter: 2.0, 2.5 & Engine(cc): 2500 & Engine(ci): 122 & Cylinder: 4, 6 & Block: L, V & Bore(in): 3.31 & Bore(mm): 84.1, 84.0 & Stroke(in): 3.54, 2.95 & Stroke(mm): 90.0, 75.0 / Qualifier: Head Bolts with Washers, Replacement recommended)
