Fel-Pro Nissan Frontier 26520 PT PermaTorque Engine Cylinder Head Gasket - 26520PT

FEL-PRO 26520 PT PermaTorque Engine Cylinder Head Gasket for Nissan Frontier

Features

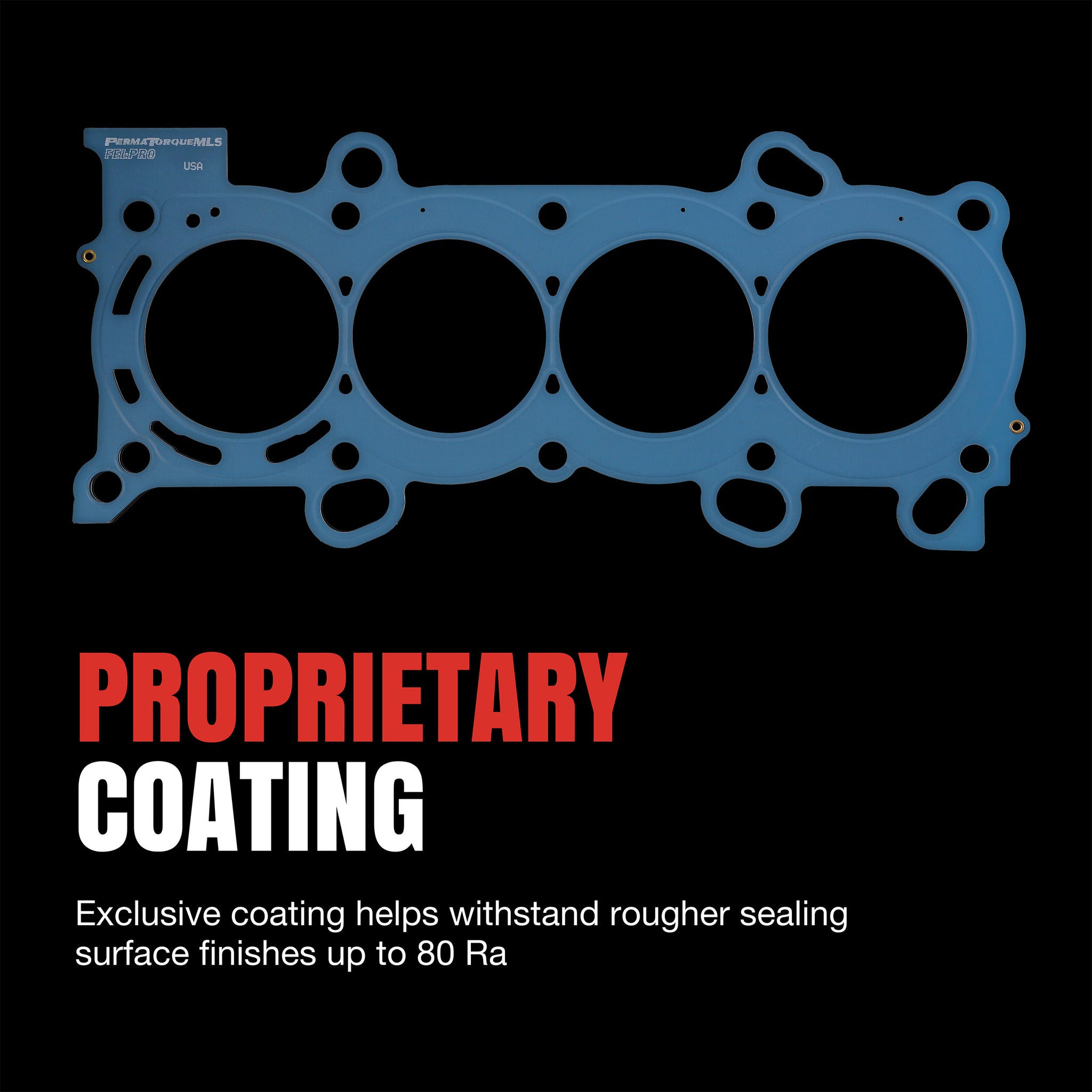

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra
• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift
• UNIQUE COMBUSTION SEAL -- Accommodates high cylinder pressures and head movement encountered with engines
• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: Steel
• Thickness: 66 MM
• Grade Type: Premium
• Cylinder Bore Diameter: 89.50 MM, 89.5 MM
• Gasket Sealant Included: No
• Head Gasket Bore: 89.50 MM

Application

• 2009-2012 Suzuki Equator (Liter: 2.5 & Engine(cc): 2488 & Engine(ci): 152 & Cylinder: 4 & Block: L & Bore(in): 3.50 & Bore(mm): 88.9 & Stroke(in): 3.94 & Stroke(mm): 100.1 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included); 2005-2019 Nissan Frontier (Liter: 2.5 & Engine(cc): 2488 & Engine(ci): 152 & Cylinder: 4 & Block: L & Bore(in): 3.50 & Bore(mm): 88.9 & Stroke(in): 3.94 & Stroke(mm): 100.1 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included)
