Fel-Pro Ford Fusion 26316 PT PermaTorque Engine Cylinder Head Gasket - 26316PT

FEL-PRO 26316 PT PermaTorque Engine Cylinder Head Gasket for Ford Fusion

Features

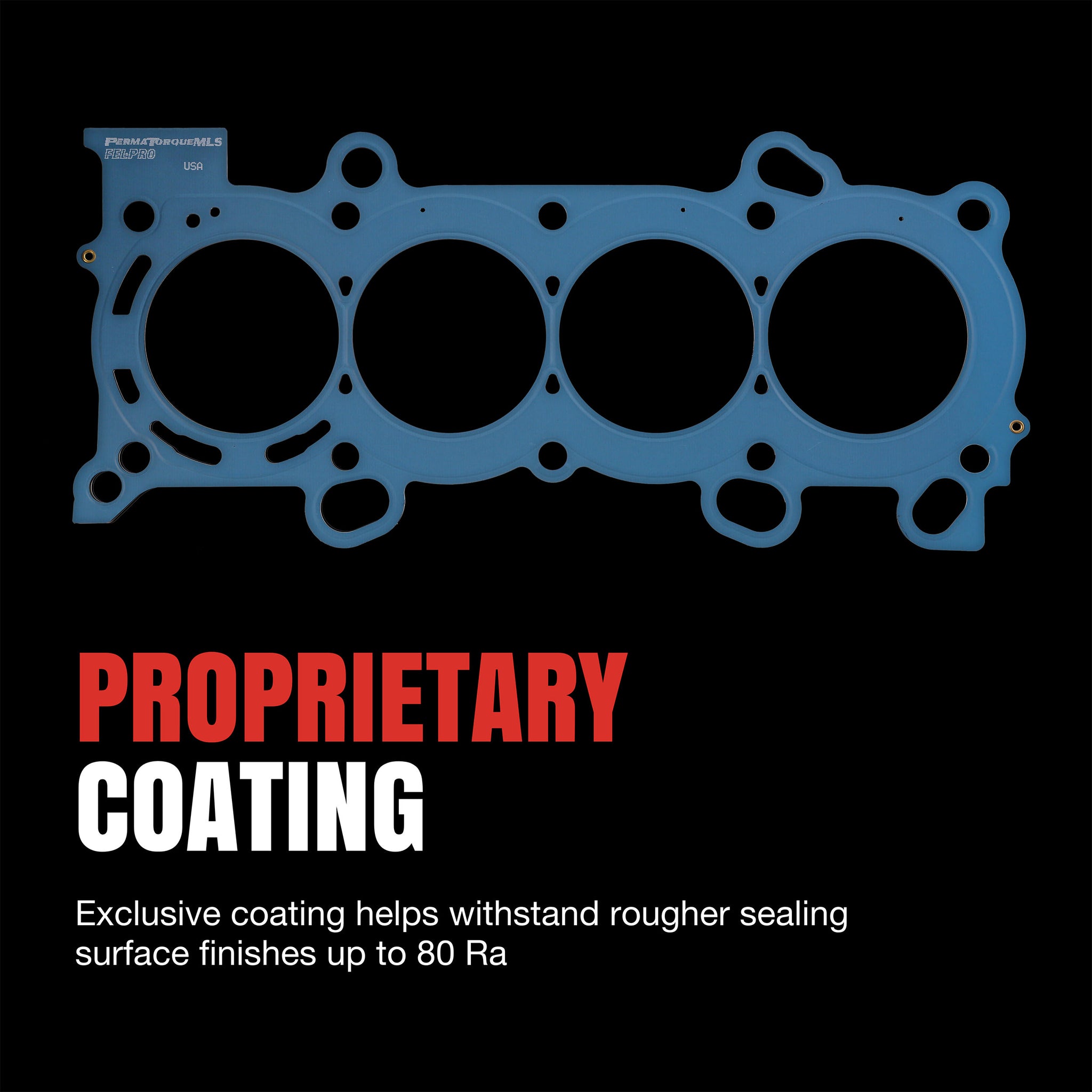

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra
• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift
• UNIQUE COMBUSTION SEAL -- Accommodates high cylinder pressures and head movement encountered with engines
• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: PermaTorque MLS
• Thickness: 0.0443 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 3.510 IN, 3.500 IN, 3.5 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.510 IN, 3.5 IN

Application

• 2006-2009 Ford Fusion (Liter: 2.3 & Engine(ci): 140 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included); 2006-2009 Mercury Milan (Liter: 2.3 & Engine(ci): 140 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0 / Qualifier: Head Bolts Not Included, Head Bolt Replacement Recommended, PermaTorqueMLS Head Gasket(s) Included)
