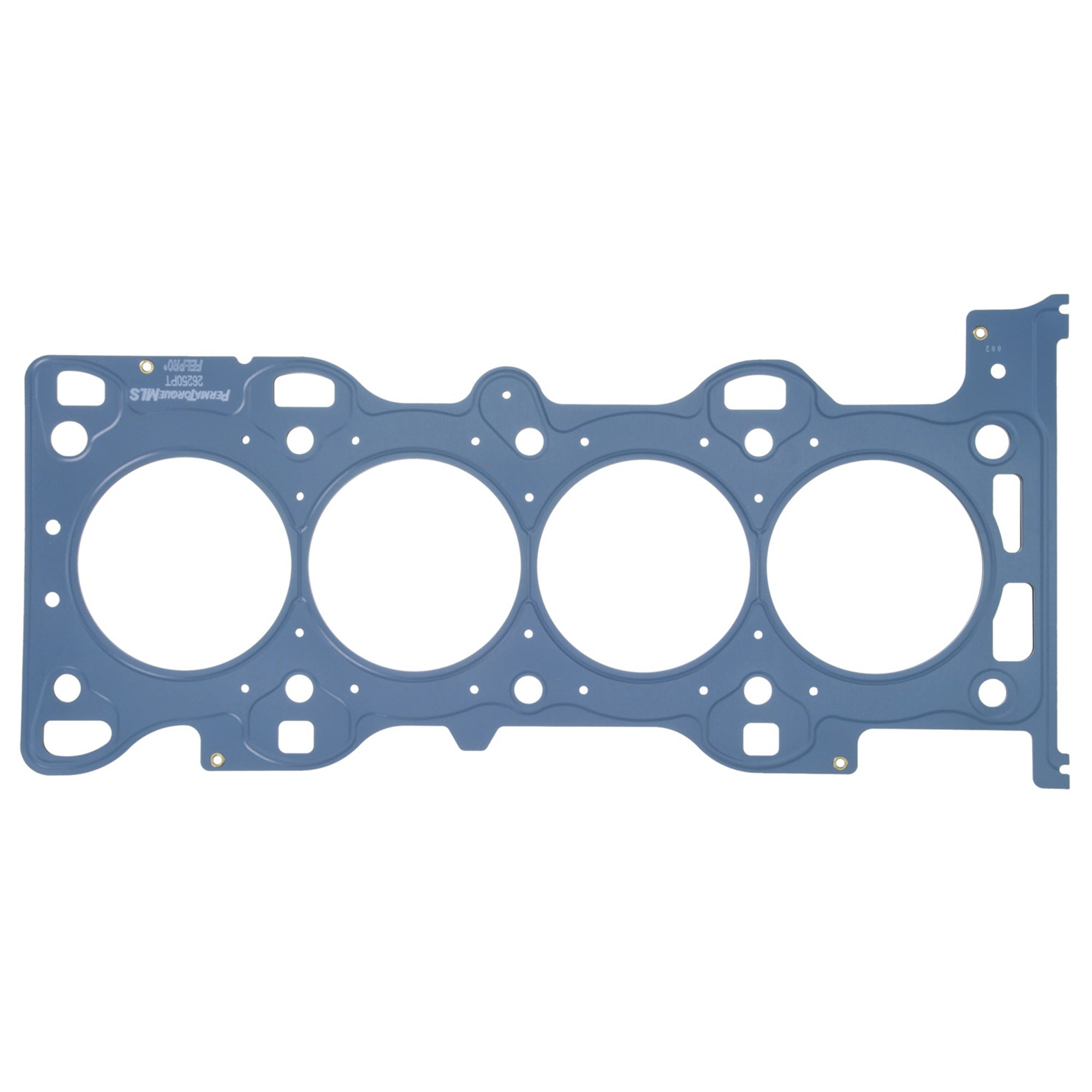

Fel-Pro Ford Focus 26250 PT PermaTorque Engine Cylinder Head Gasket - 26250PT

FEL-PRO 26250 PT PermaTorque Engine Cylinder Head Gasket for Ford Focus

Features

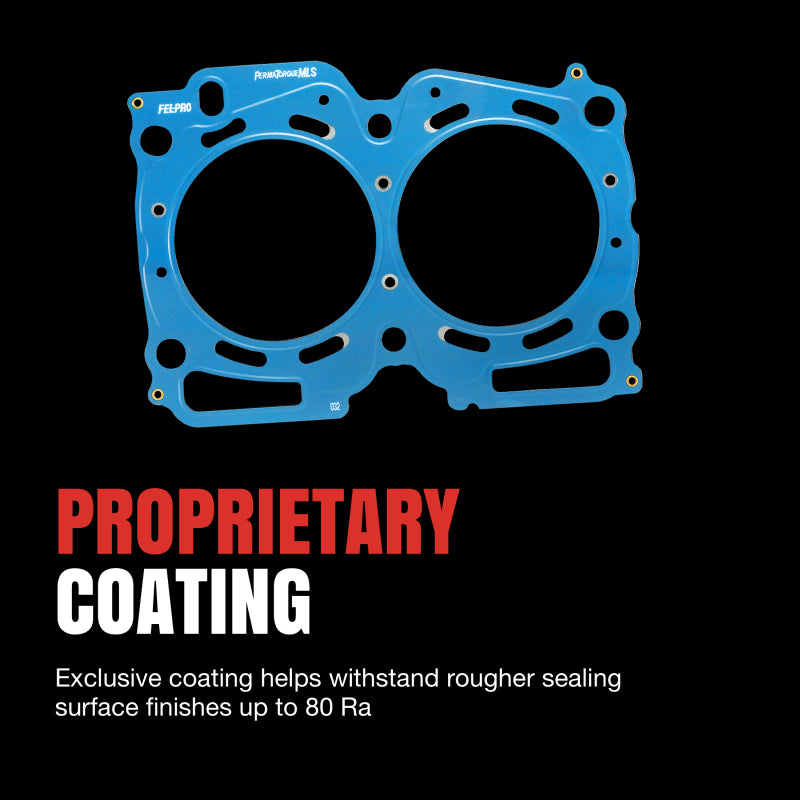

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra

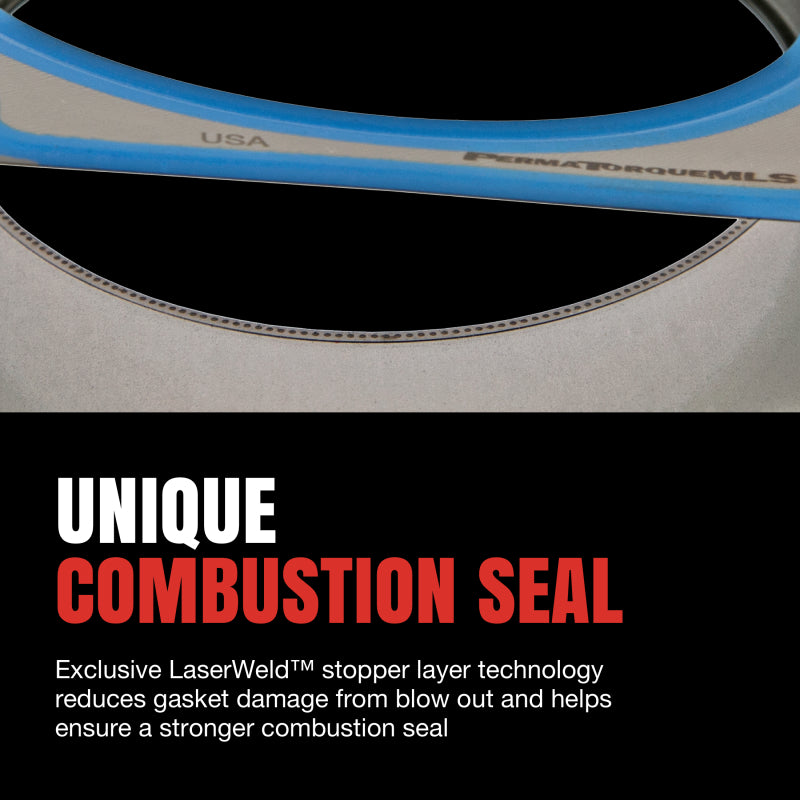

• UNIQUE COMBUSTION SEAL -- Exclusive LaserWeld stopper layer technology reduces gasket damage from blow out and helps ensure a stronger combustion seal
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift

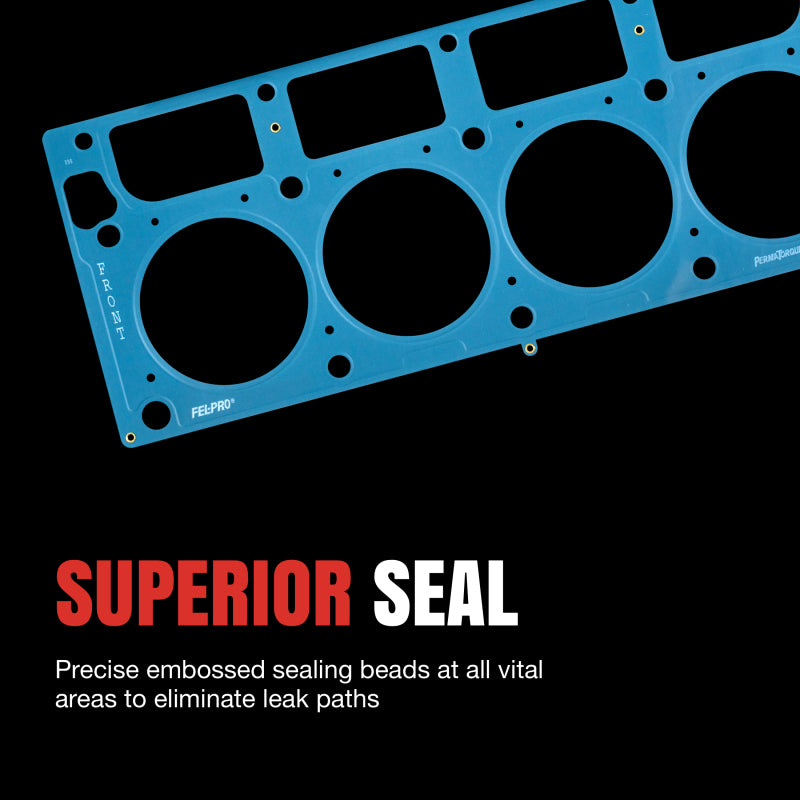

• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths
• HANDLES EXTREME ENGINE CONDITIONS -- Engineered and manufactured to inhibit over-compression of embossments to maintain a superior seal under peak combustion pressures and temperatures

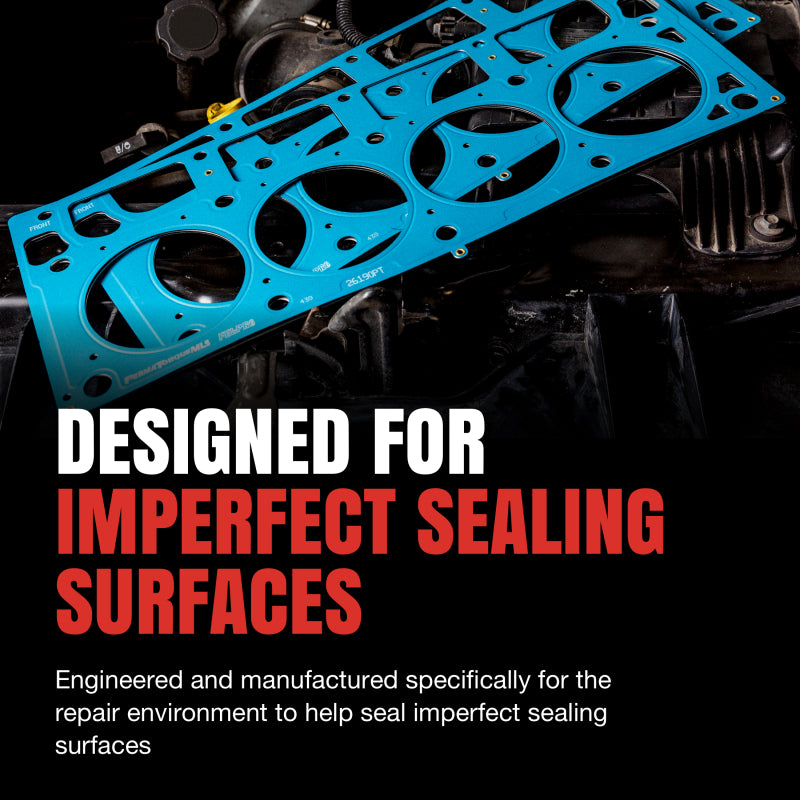

• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: PermaTorque MLS
• Thickness: 0.016 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 3.500 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.5 IN
• Head Gasket Manufactured Thickness: 0160"

Application

• 2010-2013 Ford Transit Connect (Liter: 2.0 & Engine(cc): 1999 & Engine(ci): 122 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.27 & Stroke(mm): 83.1); 2005-2008 Ford Escape (Liter: 2.3 & Engine(ci): 140 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0); 2003-2011 Ford Focus (Liter: 2.3, 2.0 & Engine(cc): 1999 & Engine(ci): 140, 122 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4, 87.5 & Stroke(in): 3.70, 3.27 & Stroke(mm): 94.0, 83.1); 2001-2011 Ford Ranger (Liter: 2.3 & Engine(ci): 140 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0); 2005-2008 Mercury Mariner (Liter: 2.3 & Engine(ci): 140 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0); 2005-2008 Mazda Tribute (Liter: 2.3 & Engine(ci): 140 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0); 2003-2005 Mazda 6 (Liter: 2.3 & Engine(cc): 2260 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0); 2001-2010 Mazda B2300 (Liter: 2.3 & Engine(ci): 140 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0); 2004-2005 Mazda 3 (Liter: 2.3, 2.0 & Engine(cc): 2260, 2000 & Engine(ci): 122 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4, 87.5 & Stroke(in): 3.70, 3.27 & Stroke(mm): 94.0, 83.1); 2006-2007 Mazda 5 (Liter: 2.3 & Engine(cc): 2260 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.4 & Stroke(in): 3.70 & Stroke(mm): 94.0)
