Fel-Pro Ford Focus 26174 PT PermaTorque Engine Cylinder Head Gasket - 26174PT

FEL-PRO 26174 PT PermaTorque Engine Cylinder Head Gasket for Ford Focus

Features

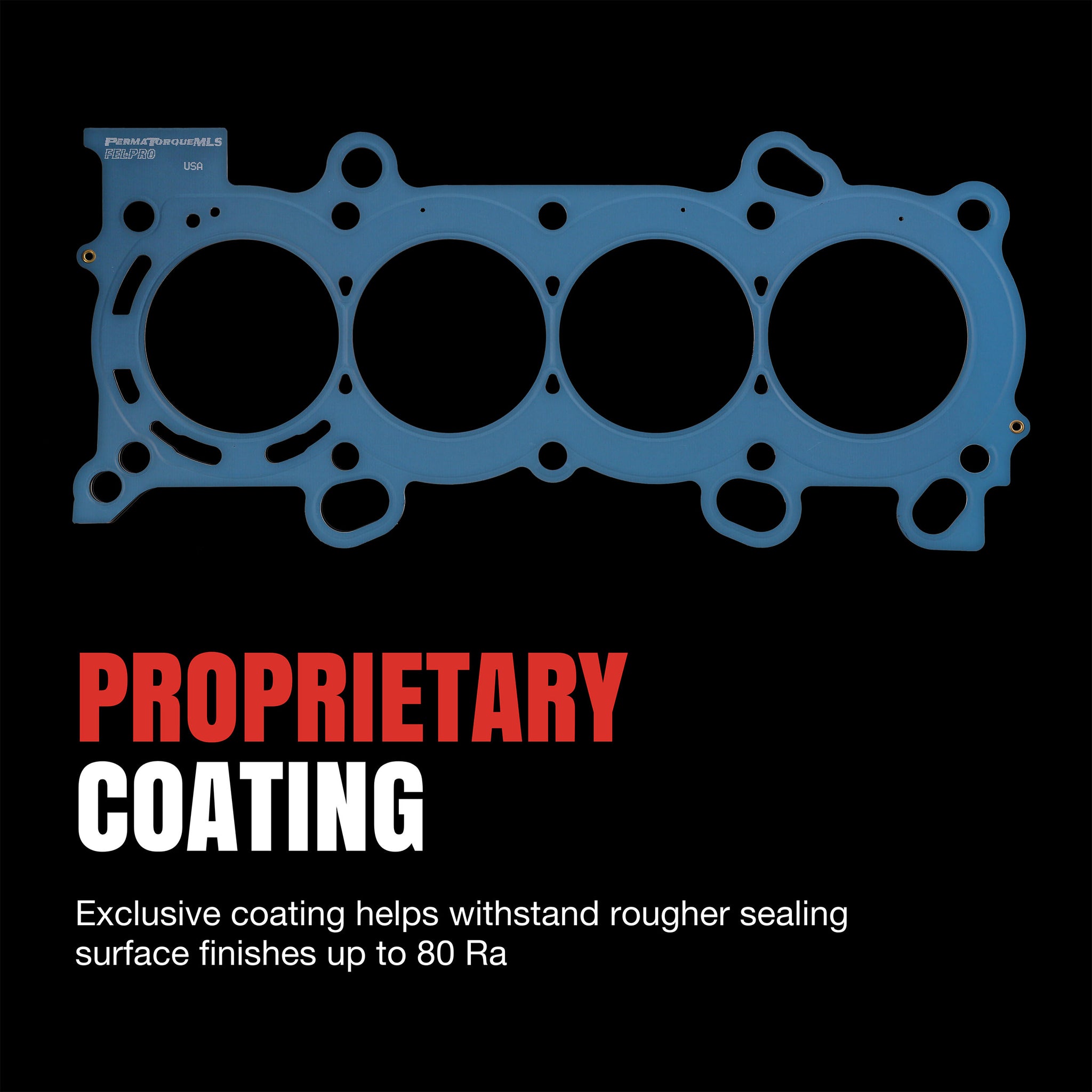

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra
• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift
• UNIQUE COMBUSTION SEAL -- Accommodates high cylinder pressures and head movement encountered with engines
• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: PermaTorque MLS
• Thickness: 0.021 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 3.390 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.382 IN
• Part Design Or Feature Or Use: Engineering No. XS7G-6051D1 stamped on OEM head gasket
• Head Gasket Manufactured Thickness: 0210"

Application

• 2000-2004 Ford Focus (Cylinder Head: DOHC & Liter: 2.0 & Engine(cc): 1989 & Engine(ci): 121 & Cylinder: 4 & Block: L & Bore(in): 3.34 & Bore(mm): 84.8 & Stroke(in): 3.46 & Stroke(mm): 88.0 & Engine VIN: 3 / Qualifier: Engineering Number XS7G-6051D1 Stamped on Head Gasket, Head Bolts Must be Replaced, Head Bolts Not Included, PermaTorqueMLS Head Gasket(s) Included)
