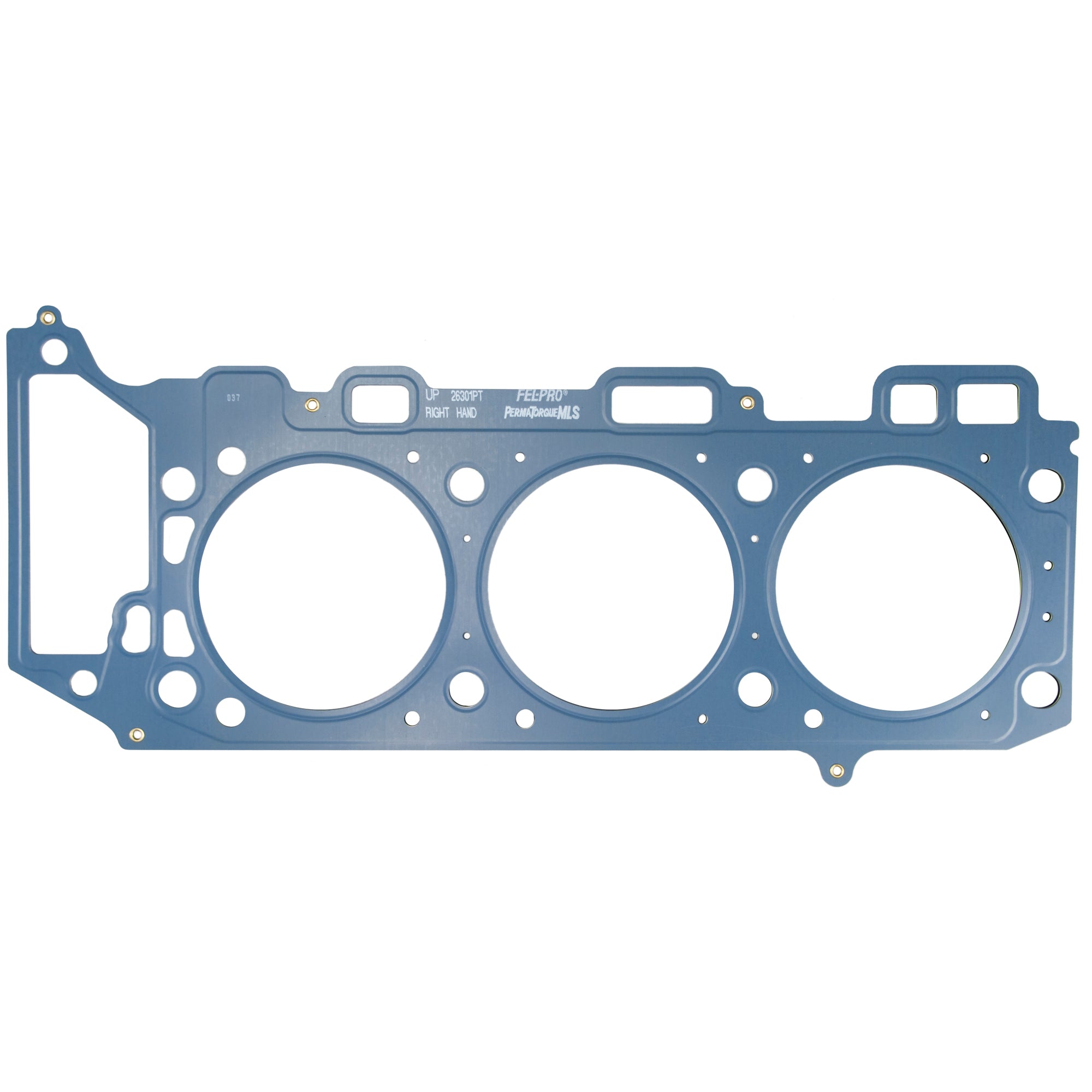

Fel-Pro Ford Explorer 26301 PT PermaTorque Engine Cylinder Head Gasket - 26301PT

FEL-PRO 26301 PT PermaTorque Engine Cylinder Head Gasket for Ford Explorer

Features

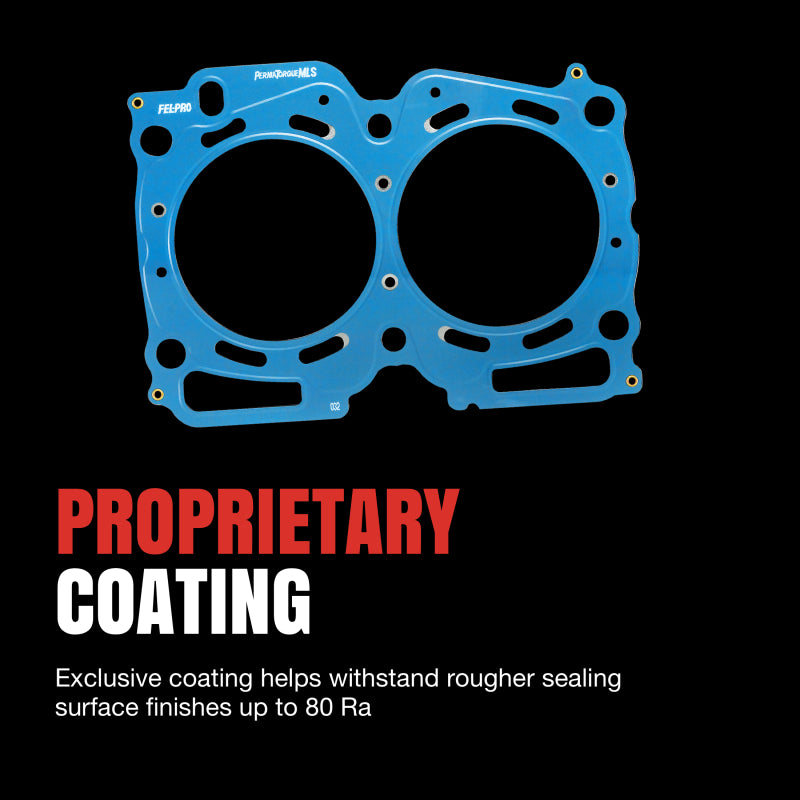

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra

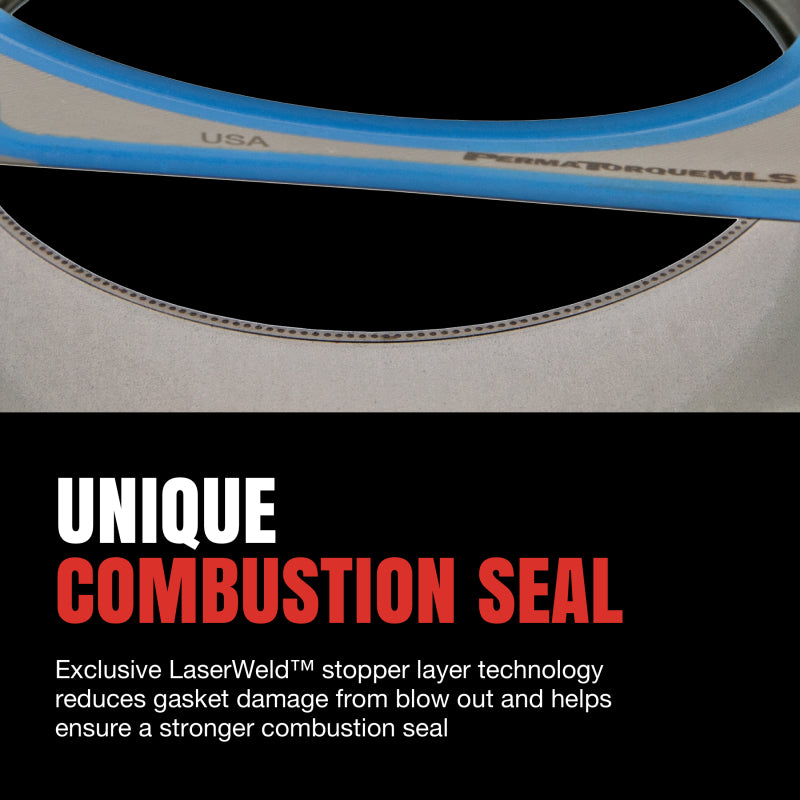

• UNIQUE COMBUSTION SEAL -- Exclusive LaserWeld stopper layer technology reduces gasket damage from blow out and helps ensure a stronger combustion seal
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift

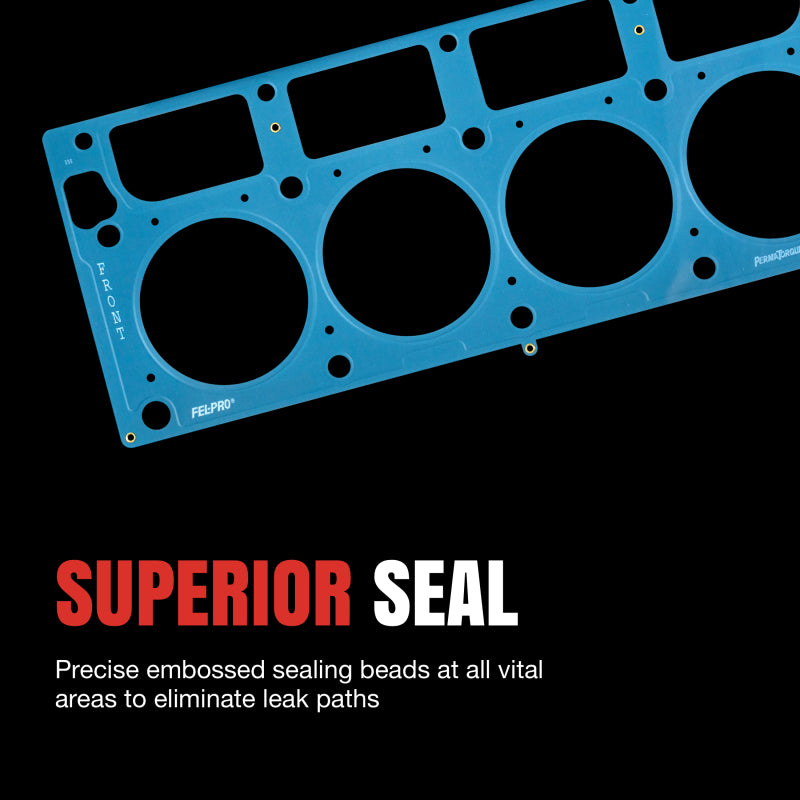

• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths
• HANDLES EXTREME ENGINE CONDITIONS -- Engineered and manufactured to inhibit over-compression of embossments to maintain a superior seal under peak combustion pressures and temperatures

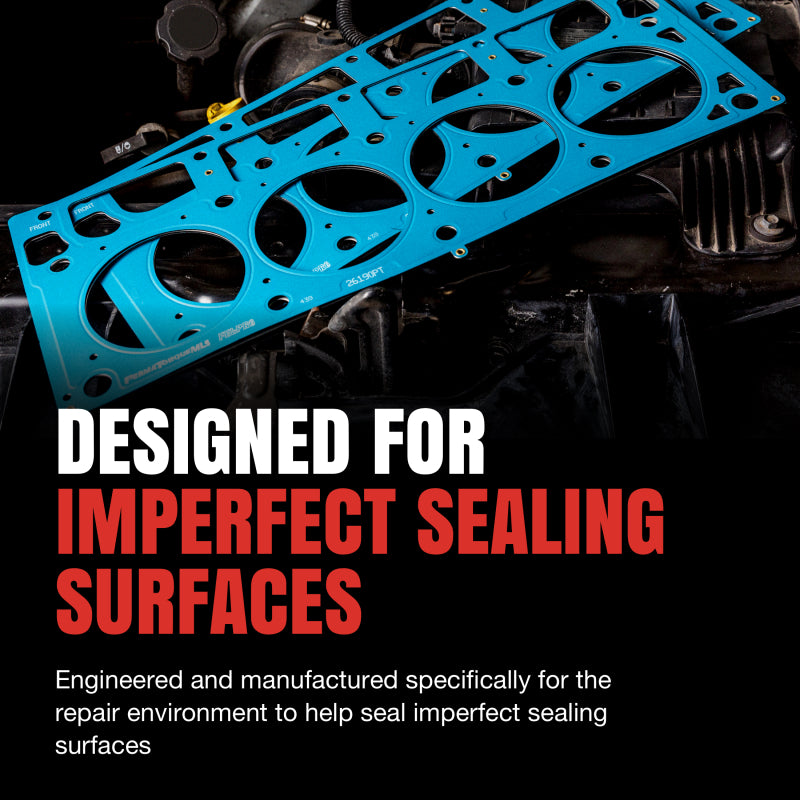

• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: PermaTorque MLS
• Thickness: 0.024 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 4.060 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 4.055 IN
• Head Gasket Manufactured Thickness: 0240"

Application

• 2005-2009 Land Rover LR3 (Right) (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3); 2001-2003 Ford Explorer Sport (Right) (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3); 2001-2010 Ford Explorer Sport Trac (Right) (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3); 1997-2010 Ford Explorer (Right) (Cylinder Head: SOHC & Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3 & Engine VIN: E); 2005-2010 Ford Mustang (Right) (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3); 2001-2011 Ford Ranger (Right) (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3); 1998-2010 Mercury Mountaineer (Right) (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3); 2001-2010 Mazda B4000 (Right) (Liter: 4.0 & Engine(ci): 245 & Cylinder: 6 & Block: V & Bore(in): 3.95 & Bore(mm): 100.3 & Stroke(in): 3.32 & Stroke(mm): 84.3)
