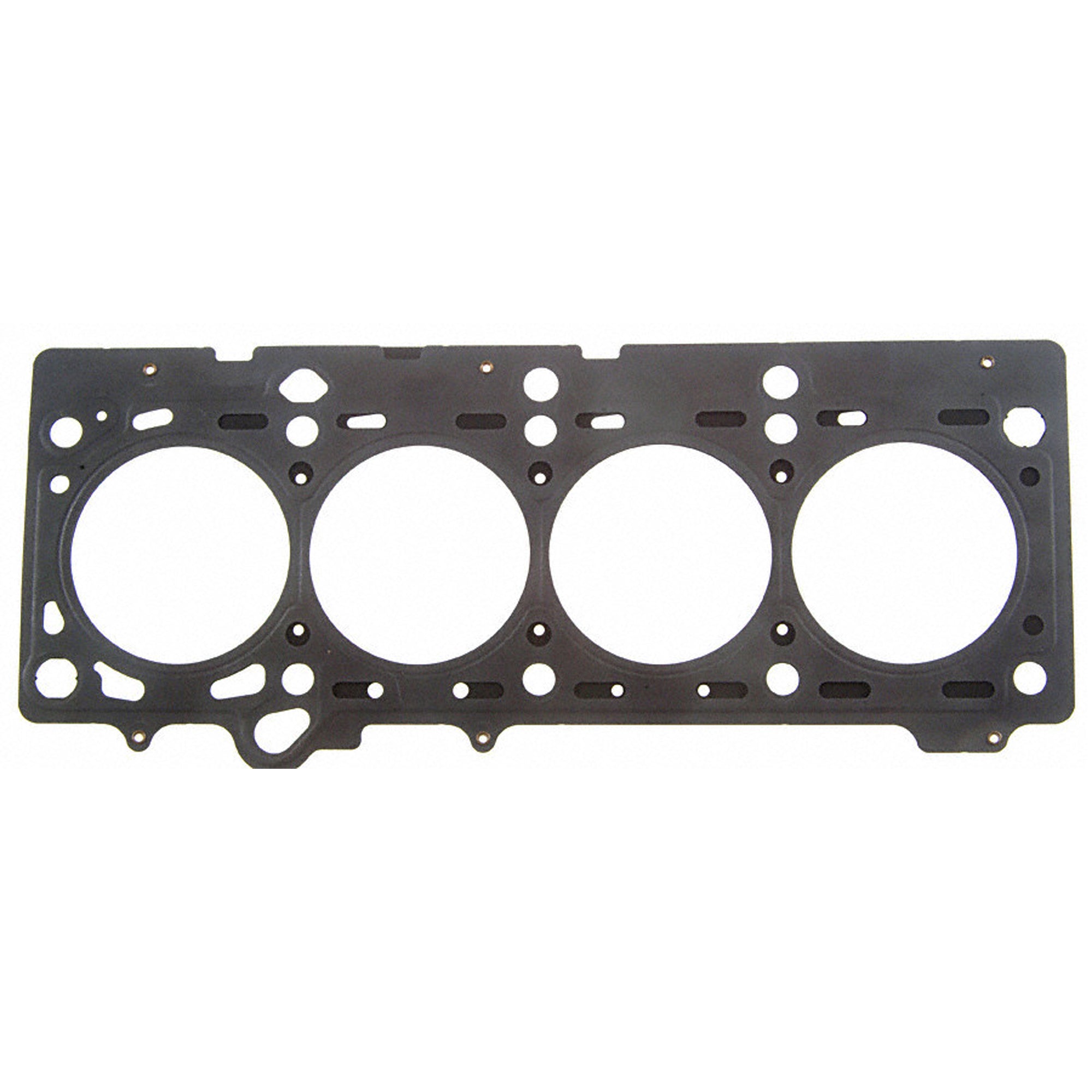

Fel-Pro Chrysler PT Cruiser 26202 PT PermaTorque Engine Cylinder Head Gasket - 26202PT

FEL-PRO 26202 PT PermaTorque Engine Cylinder Head Gasket for Chrysler PT Cruiser

Features

• PROPRIETARY COATING -- Exclusive coating helps withstand rougher sealing surface finishes up to 80 Ra
• UNIQUE COMBUSTION SEAL -- Exclusive LaserWeld stopper layer technology reduces gasket damage from blow out and helps ensure a stronger combustion seal
• MULTI-LAYERED STEEL CONSTRUCTION -- Multiple layers of stainless steel maintain sealing stress and accommodate head lift
• SUPERIOR SEAL -- Precise embossed sealing beads at all vital areas to eliminate leak paths
• HANDLES EXTREME ENGINE CONDITIONS -- Engineered and manufactured to inhibit over-compression of embossments to maintain a superior seal under peak combustion pressures and temperatures
• DESIGNED FOR IMPERFECT SEALING SURFACES -- Engineered and manufactured specifically for the repair environment to help seal imperfect sealing surfaces

Specifications

• Material: PermaTorque MLS
• Thickness: 0.028 IN
• Grade Type: Premium
• Cylinder Bore Diameter: 3.460 IN
• Gasket Sealant Included: No
• Head Gasket Bore: 3.46 IN
• Head Gasket Manufactured Thickness: 0280"

Application

• 2002-2010 Chrysler PT Cruiser (Liter: 2.4 & Engine(cc): 2429 & Engine(ci): 148 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.98 & Stroke(mm): 101.0 & Engine VIN: G, B, 8); 2002-2006 Chrysler Sebring (Liter: 2.4 & Engine(cc): 2429 & Engine(ci): 148 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.98 & Stroke(mm): 101.0); 2002-2003 Chrysler Voyager (Liter: 2.4 & Engine(cc): 2429 & Engine(ci): 148 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.98 & Stroke(mm): 101.0); 2002-2007 Dodge Caravan (Liter: 2.4 & Engine(cc): 2429 & Engine(ci): 148 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.98 & Stroke(mm): 101.0); 2003-2005 Dodge Neon (Liter: 2.4 & Engine(cc): 2429 & Engine(ci): 148 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.98 & Stroke(mm): 101.0); 2002-2006 Dodge Stratus (Liter: 2.4 & Engine(cc): 2429 & Engine(ci): 148 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.98 & Stroke(mm): 101.0); 2002-2005 Jeep Liberty (Liter: 2.4 & Engine(ci): 148 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.98 & Stroke(mm): 101.0); 2003-2006 Jeep Wrangler (Liter: 2.4 & Engine(ci): 148 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.98 & Stroke(mm): 101.0); 2003-2006 Jeep TJ (Liter: 2.4 & Engine(ci): 148 & Cylinder: 4 & Block: L & Bore(in): 3.44 & Bore(mm): 87.5 & Stroke(in): 3.98 & Stroke(mm): 101.0)
