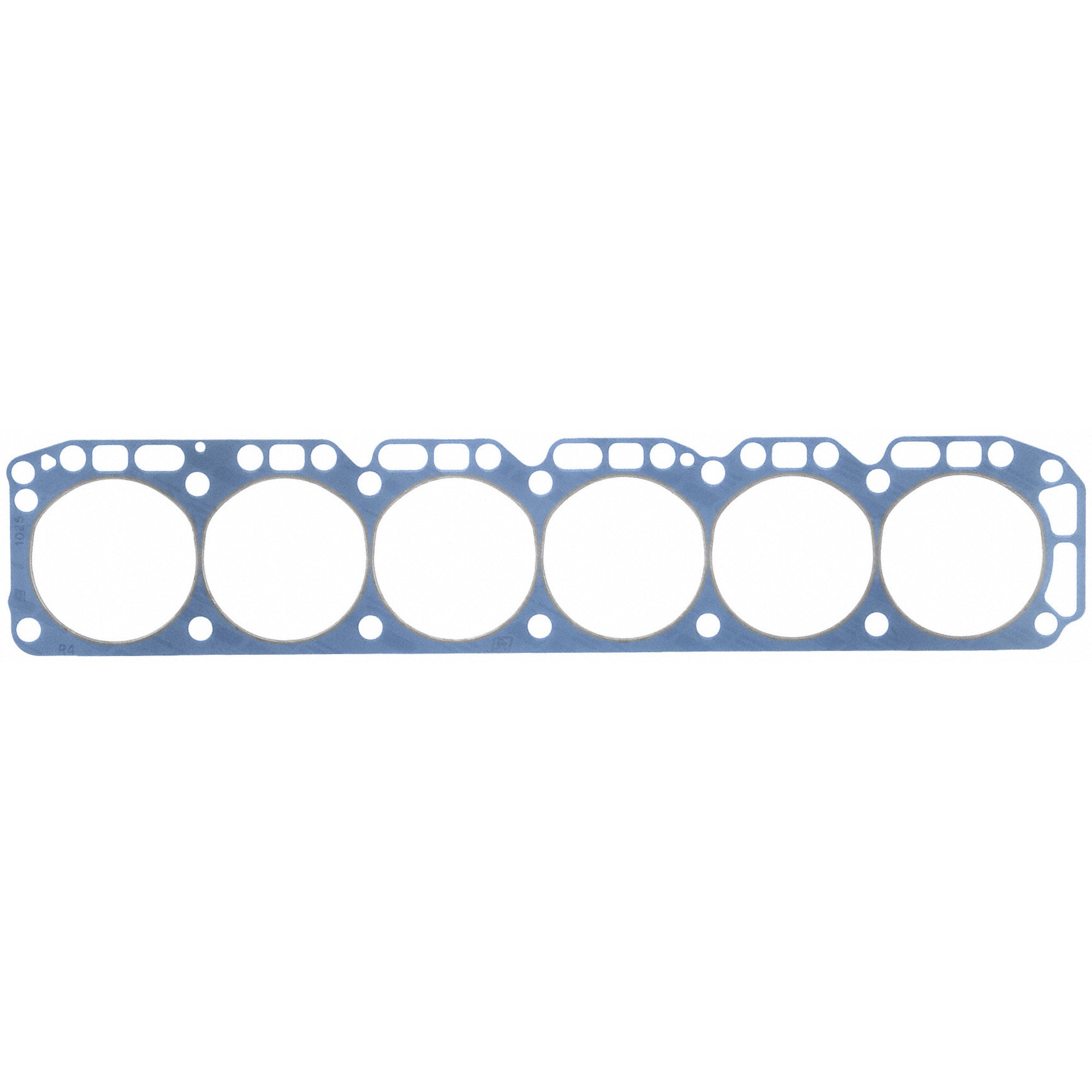

Fel-Pro 1025 Steel core laminate Engine Cylinder Head Gasket

FEL-PRO 1025 Steel core laminate Engine Cylinder Head Gasket

Features

• Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines
• Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber
• Raises combustion sealing force to roughly three times that of standard head gaskets
• Steel wire rings for the greatest combustion seal strength
• Not intended for use in emission controlled vehicles

Specifications

• Material: Steel core laminate
• Thickness: 0.041 IN
• Grade Type: Performance
• Cylinder Bore Diameter: 4.166 IN
• Gasket Sealant Included: No
• Engine Displacement: 194, 230, 250, 292
• Combustion Chamber Volume (CC): 9.100
• Application Notes: 1962-84
• Product Notes: Minimal brinelling of aluminum heads
• Engine Family: Chevrolet L6
• Manufacturer: GM Performance
• Bore Size (in.): 4.166 IN
• Combustion Seal Design: Pre-flattened steel wire

Application

• GMP Performance L6, 194 (3.2L), 230 (3.8L), 250 (4.1L), 292 (4.8L); Steel wire
