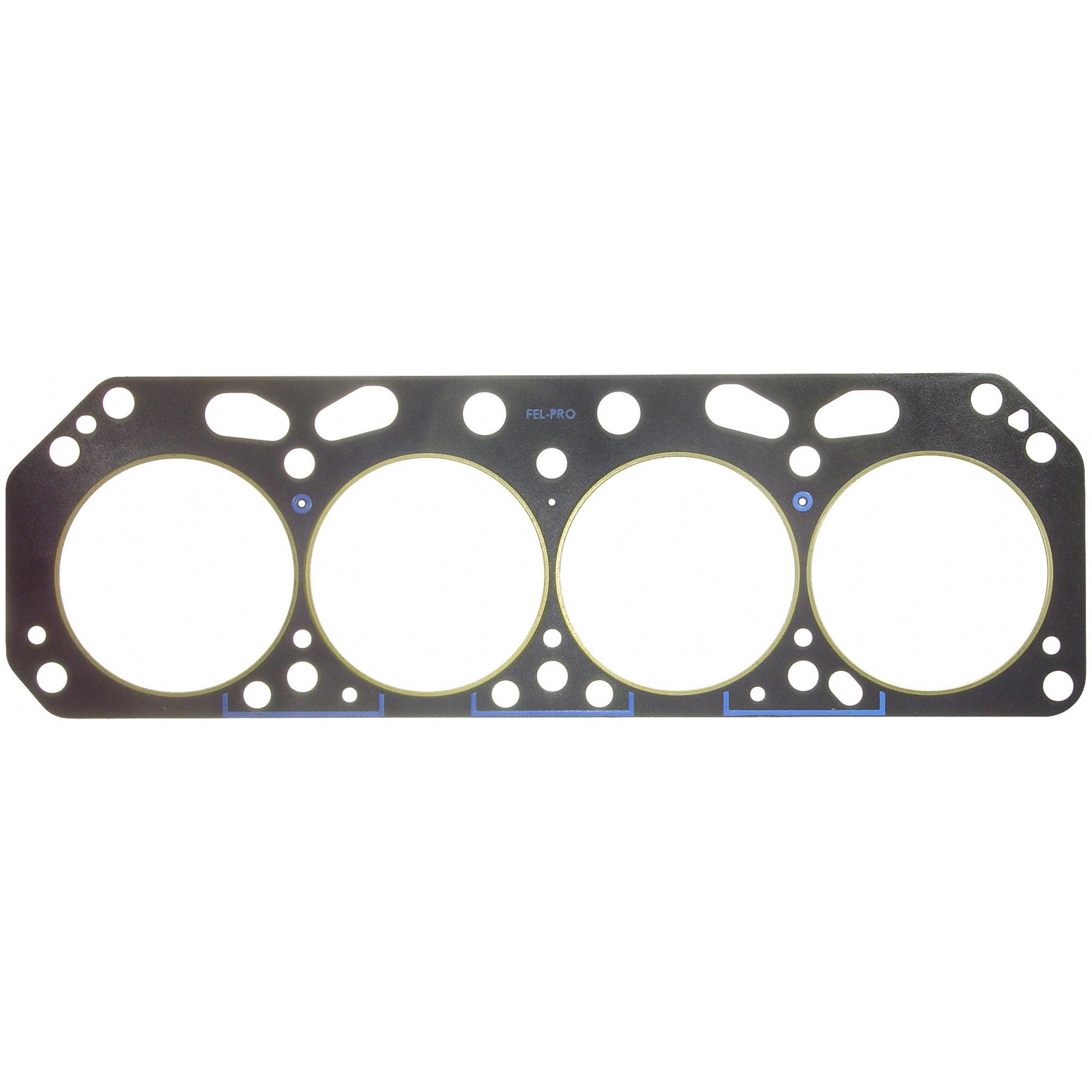

Fel-Pro 1015-1 Steel core laminate Engine Cylinder Head Gasket - 10151

FEL-PRO 1015-1 Steel core laminate Engine Cylinder Head Gasket

Features

• Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines
• Inserted within a stainless steel armor surrounding each cylinder, wire ring design provides highly concentrated sealing around the combustion chamber
• Raises combustion sealing force to roughly three times that of standard head gaskets
• Copper wire rings to essentially eliminate head brinelling and bending
• Not intended for use in emission controlled vehicles

Specifications

• Material: Steel core laminate
• Thickness: 0.039 IN
• Grade Type: Performance
• Cylinder Bore Diameter: 4.100 IN
• Gasket Sealant Included: No
• Engine Displacement: 151 (2.5L) Crossflow
• Combustion Chamber Volume (CC): 8.500
• Application Notes: 1979-83 All - 1984-86 Exc. Super Duty Engs
• Product Notes: No brinelling of aluminum heads
• Engine Family: Pontiac L4
• Manufacturer: GM Performance
• Bore Size (in.): 4.100 IN
• Combustion Seal Design: Pre-flattened copper wire

Application

• GMP Performance L4, 151 (2.5L); Copper wire
