FAST Part # FST730-0060

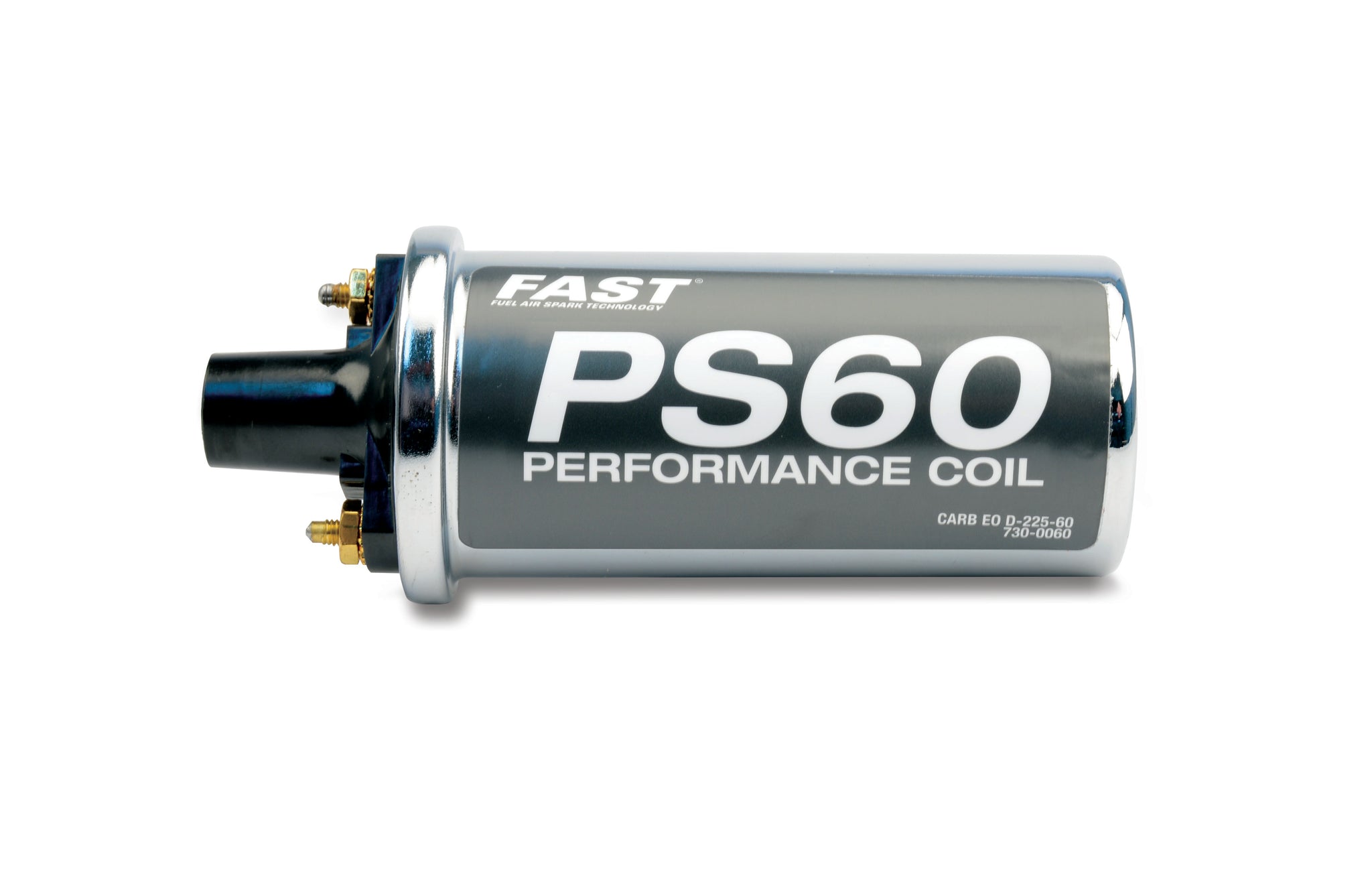

FAST PS60 Canister Style Coil - 730-0060

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

The PS50 and PS60 Coils are ideal for street cars packing a little more power and are running a FAST 6I Ignition, XR700 or 3000 Breakerless Conversion Ssystem or the E6 CD Ignition Controls. These coils feature lower resistance windings to ensure the most voltage possible is brought into the coil with an optimized turns ratio for the best output. This combination is ideal for engines that endure higher RPM and performance such as circle track, road racing and off-road racing. The coils are filled with oil for optimum cooling are housed in a sturdy steel canister that can handle the abuse of racing. They’re topped off with an alkyd molded top and brass, screw-type terminals.

Nickel Plated

  • Terminal Quantity: 2
  • Spark Duration: 385 uS
  • Secondary Resistance: 3.8K ohms
  • Secondary Inductance: 15 H
  • Primary Resistance: .40 ohms
  • Primary Inductance: 5.3 mH
  • Peak Current: 160 mA
  • Oil Filled: Yes
  • Mounting Position: Upright
  • Mount Type: Bracket
  • Leakage Inductance: .5 mH
  • Height: 5.75 in.
  • Diameter: 2.125 in.
  • Coil Wire Terminal Quantity: 1
  • Coil Wire Attachment: Female/Socket
  • Coil Shape: Round
  • Coil Internal Construction: Oil-Filled
  • Turns Ratio: 54:1
