FAST Part # FST730-0192

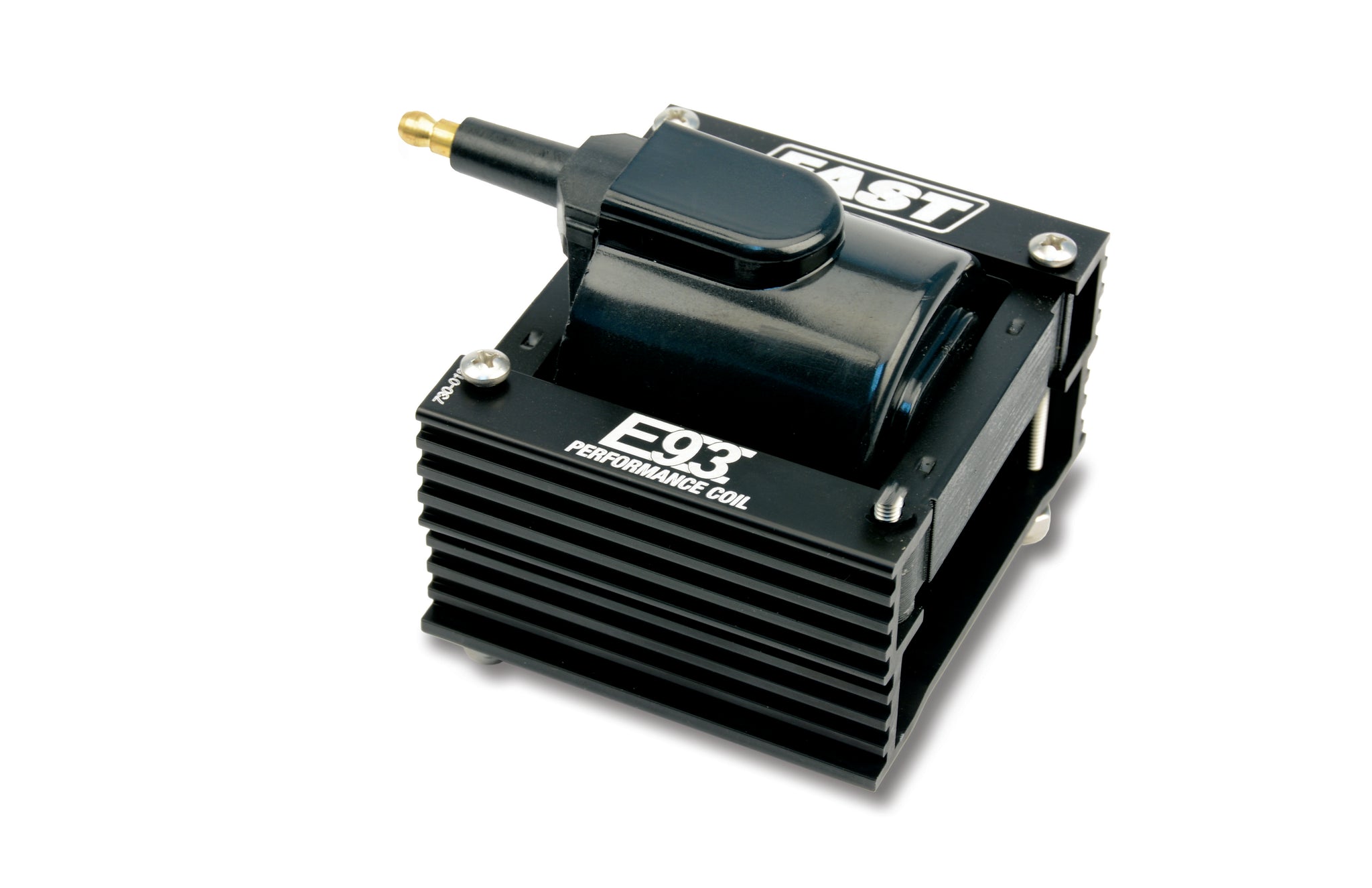

FAST E93 Racing Ignition Coil - 730-0192

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

When it comes to high compression and cylinder pressures with redline revving RPM, the E93 Coil is the best choice. This coil was engineered from the inside out to handle the needs of race engines. Inside the low profile coil housing is heavy gauge wiring for use on both sets of windings resulting in a highly effective turns ratio of 60:1. The internals are encapsulated in urethane for protection against extreme vibration and abuse from racing environments. The secondary tower is also lengthened to aid in spark isolation and terminal connection.

E93 Racing Coil is designed for use with E7 Ignition Control or E6 Ignitions in Racing Applications.

  • Mounting Bracket Included: Yes
  • Terminal Quantity: 2
  • Spark Duration: 245 uS
  • Secondary Resistance: 820 ohms
  • Secondary Inductance: 6.8 H
  • Primary Resistance: .20 ohms
  • Primary Inductance: 1.9 mH
  • Peak Current: 615 mA
  • Mounting Position: Any
  • Mount Type: Integral
  • Length: 4.25 in.
  • Leakage Inductance: .14 mH
  • Height: 3.25 in.
  • Coil Wire Terminal Quantity: 1
  • Coil Wire Attachment: Male/HEI
  • Coil Style: E-Core
  • Coil Shape: Square
  • Coil Internal Construction: Epoxy
  • Coil Color: Black
  • Width: 3.5 in.
