FAST Part # FST307037

Fast Air Temperature Sensor w/ 12-5 Volt Output Converter Kit - 307037

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

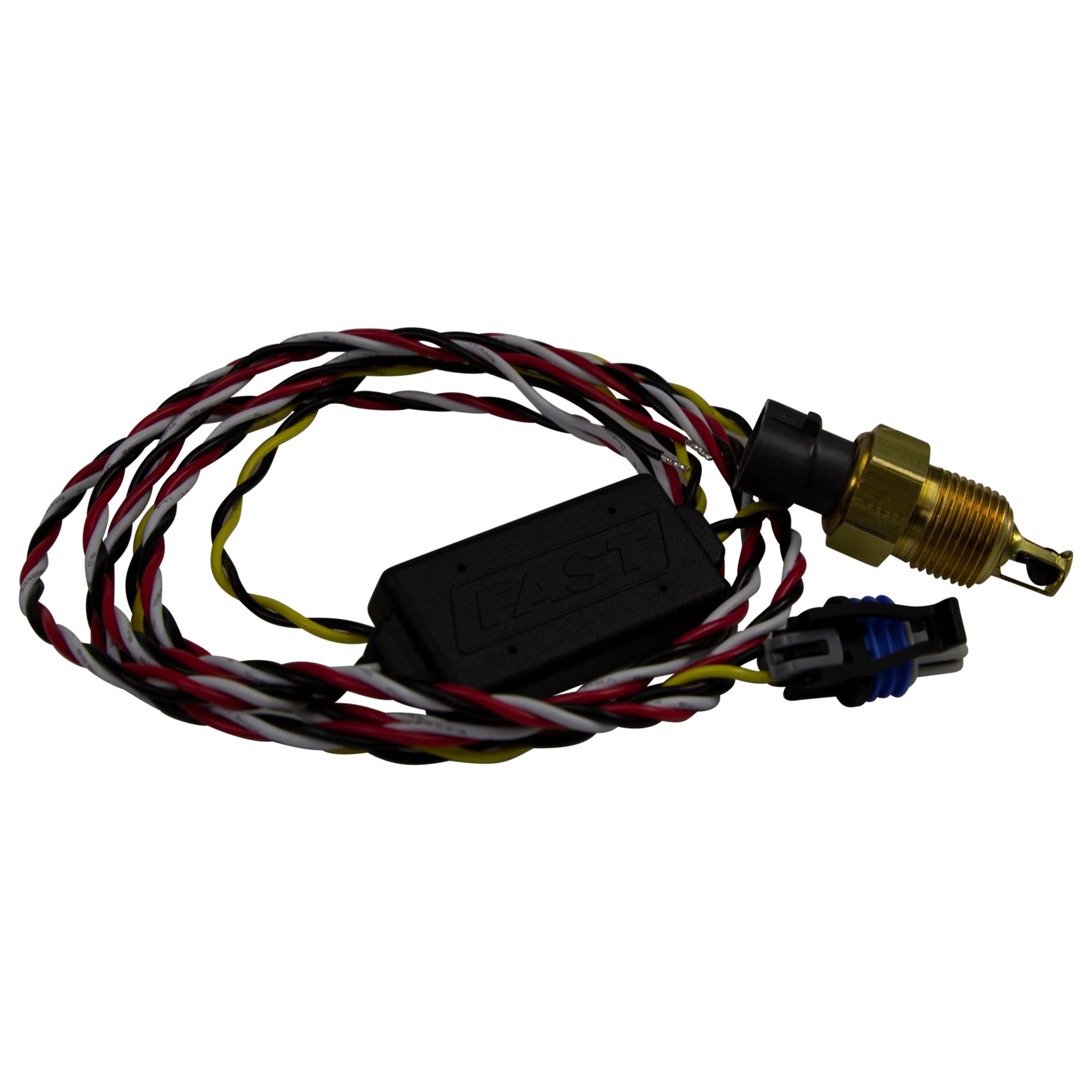

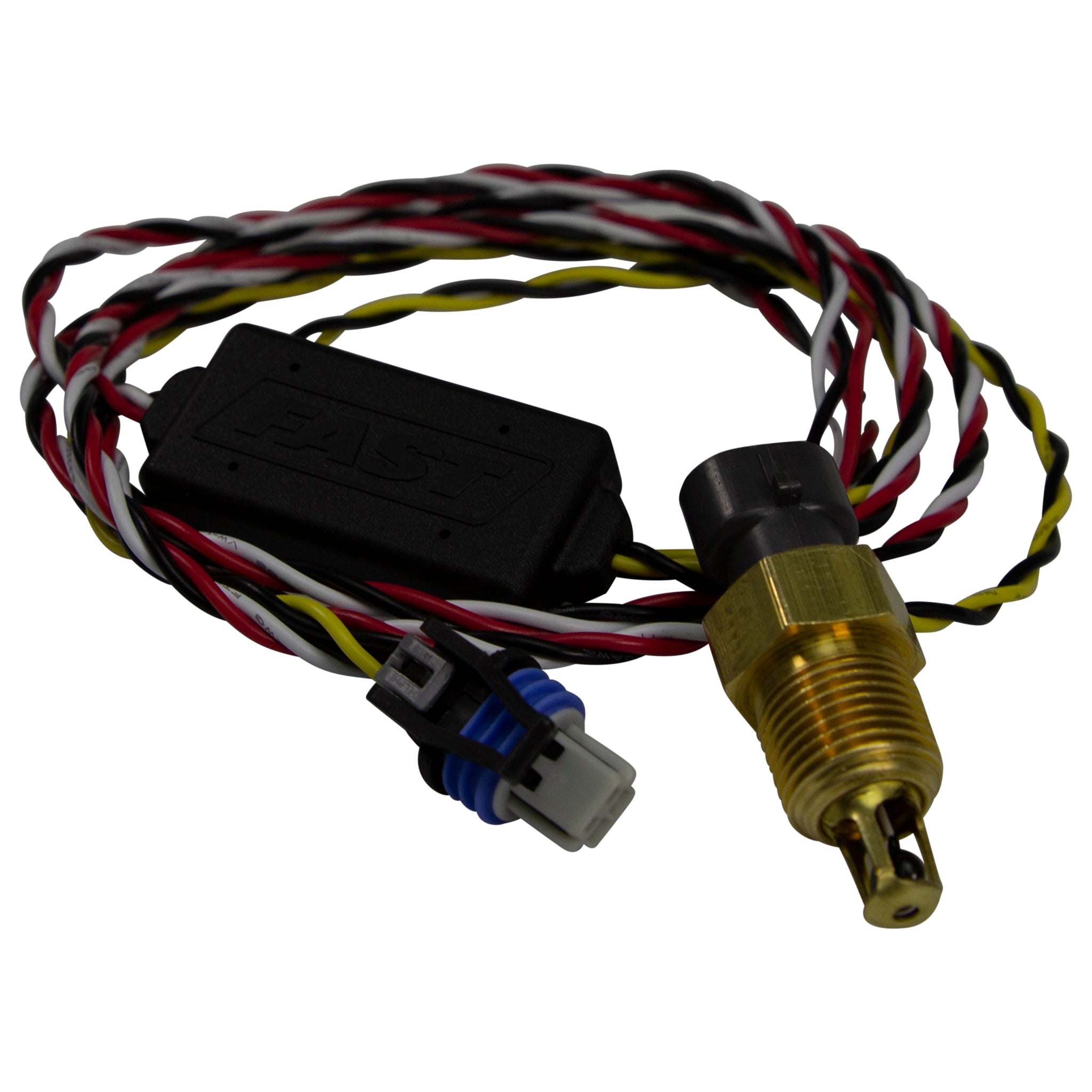

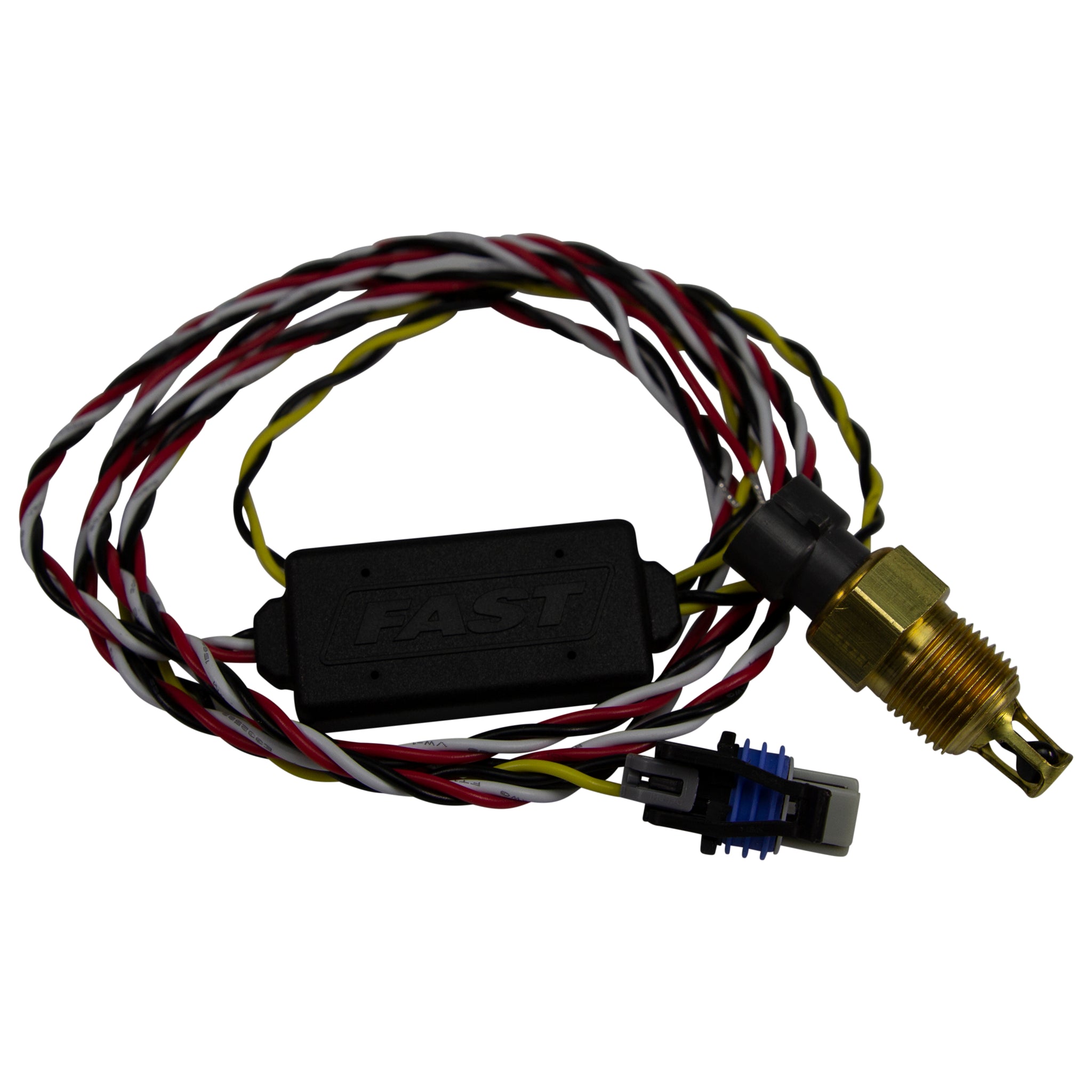

The FAST Digital Air Temperature Sensor Kit provides a simple and cost effective way to measure air temperatures and then convert to a universal 0-5V output, perfect for any data logger or engine computer. Designed around the widely available GM style Intake Air Temperature Sensor, the kit is ideal when trying to measure parameters such as engine inlet air, temps before and after intercooler/heat exchangers or even brake duct temps. Kit comes complete with heavy duty air temp sensor and pre-terminated sensor module. Installation is simple, with only 3 wires to connect

The FAST Digital ATS (Air Temperature Sensor) Kit is a great way to measure the temperature of engine intake air, before or after aftercoolers, as well as brake ducts. Outputs a 0-5V signal for use with EFI systems.

Fitment: Universal

  • Input Voltage: 12
  • Sensor Part Number: 307039
  • Sensor Thread Pitch: 3/8 NPT
  • Temperature Range: -40 to 275
  • Module Size: 2.5x1.0x.5 in.
  • Wire Gauge: 20 AWG
  • Sensor Included: Yes
  • Sensor Wire Length: 24 in.
  • Twisted Triple Wire Length: 48 in.
  • Sensor Output Voltage Range/Reference: 0-5
  • Electrical Connector Type: Metri-pack
  • Sensor Wires Pre-Terminated?: Yes
  • Sensor Side Connector Included?: Yes
