FAST Part # FST307071

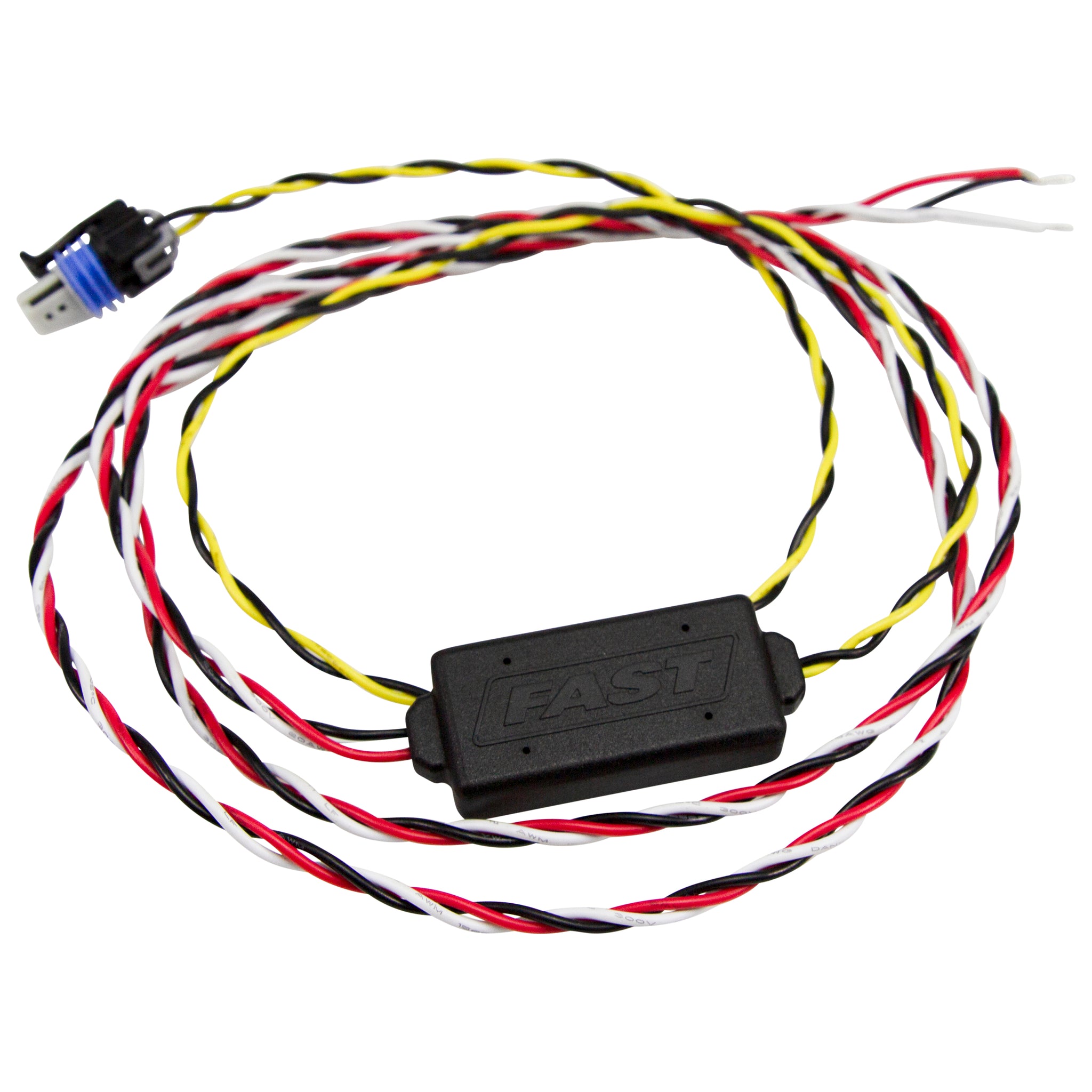

Fast Air Temperature Sensor Voltage Conversion Module - 307071

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Designed to funtion in conjunction with the widely available GM style Intake Air Temperature Sensor, the module is ideal when trying to measure parameters such as engine inlet air, temps before and after intercooler/heat exchangers or even brake duct temps. Module comes pre-terminated. Installation is simple, with only 3 wires to connect

Designed to be used with our 307039 Air Temperature Sensor or purchased in a kit with the sensor under 307037, this converter is designed to provide a 0-5 V signal output. Ideal for adding additional air temp inputs to dataloggers and EFI.

  • Designed to be used with our 307039 Air Temperature Sensor or purchased in a kit with the sensor under 307037, this converter is designed to provide a 0-5 V signal outputIdeal for adding additional air temp inputs to dataloggers and EFI

Fitment: Universal

  • Input Voltage: 12
  • Module Size: 2.5x1.0x.5 in.
  • Sensor Output Voltage Range/Reference: 0-5
  • Electrical Connector Type: Metri-pack
  • Sensor Wires Pre-Terminated?: Yes
  • Sensor Side Connector Included?: Yes
  • Sensor Thread Pitch: 3/8 NPT
  • Temperature Range: -40 to 275
  • Wire Gauge: 20 AWG
  • Sensor Wire Length: 24 in.
  • Twisted Triple Wire Length: 48 in.
