Edelbrock Part # EDE2814

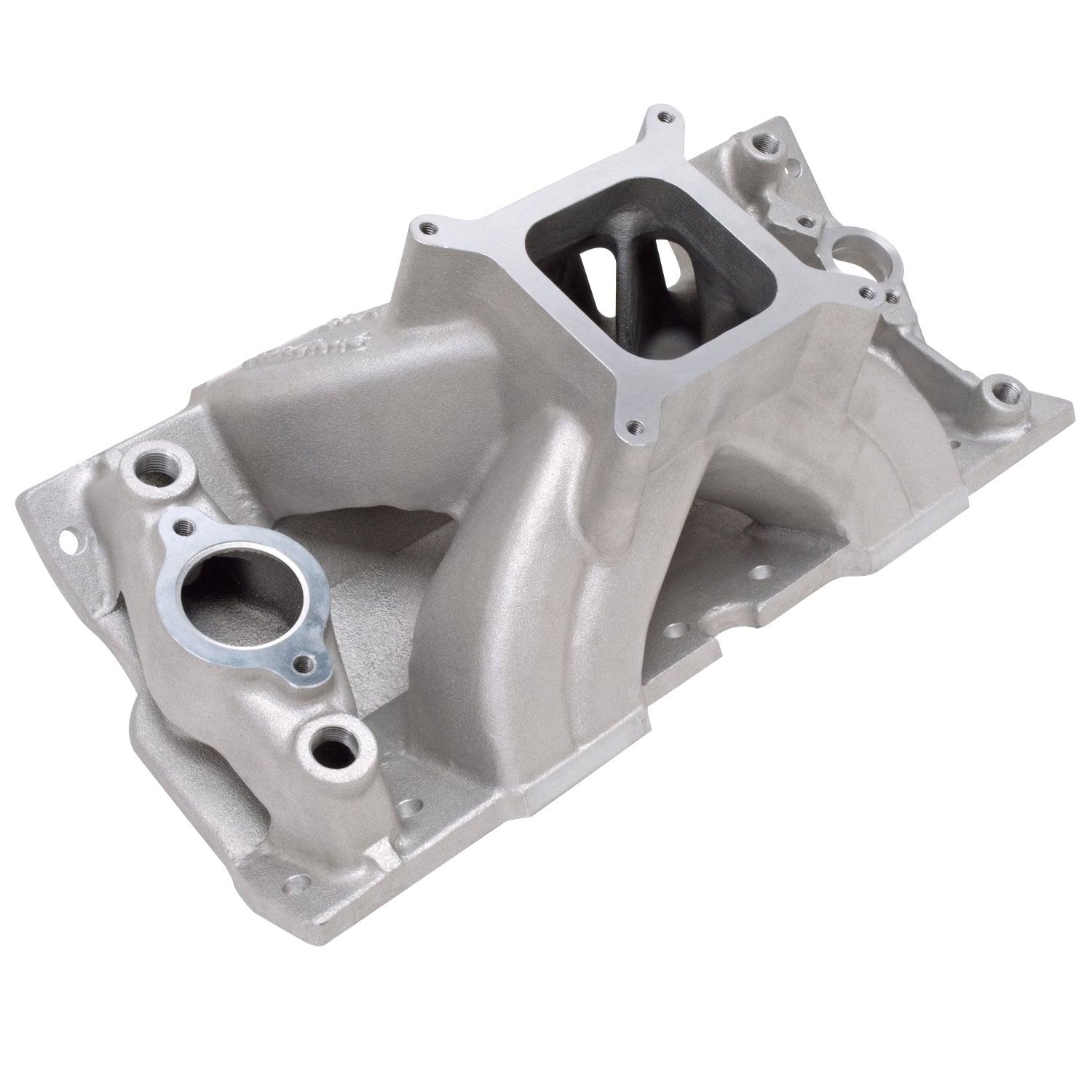

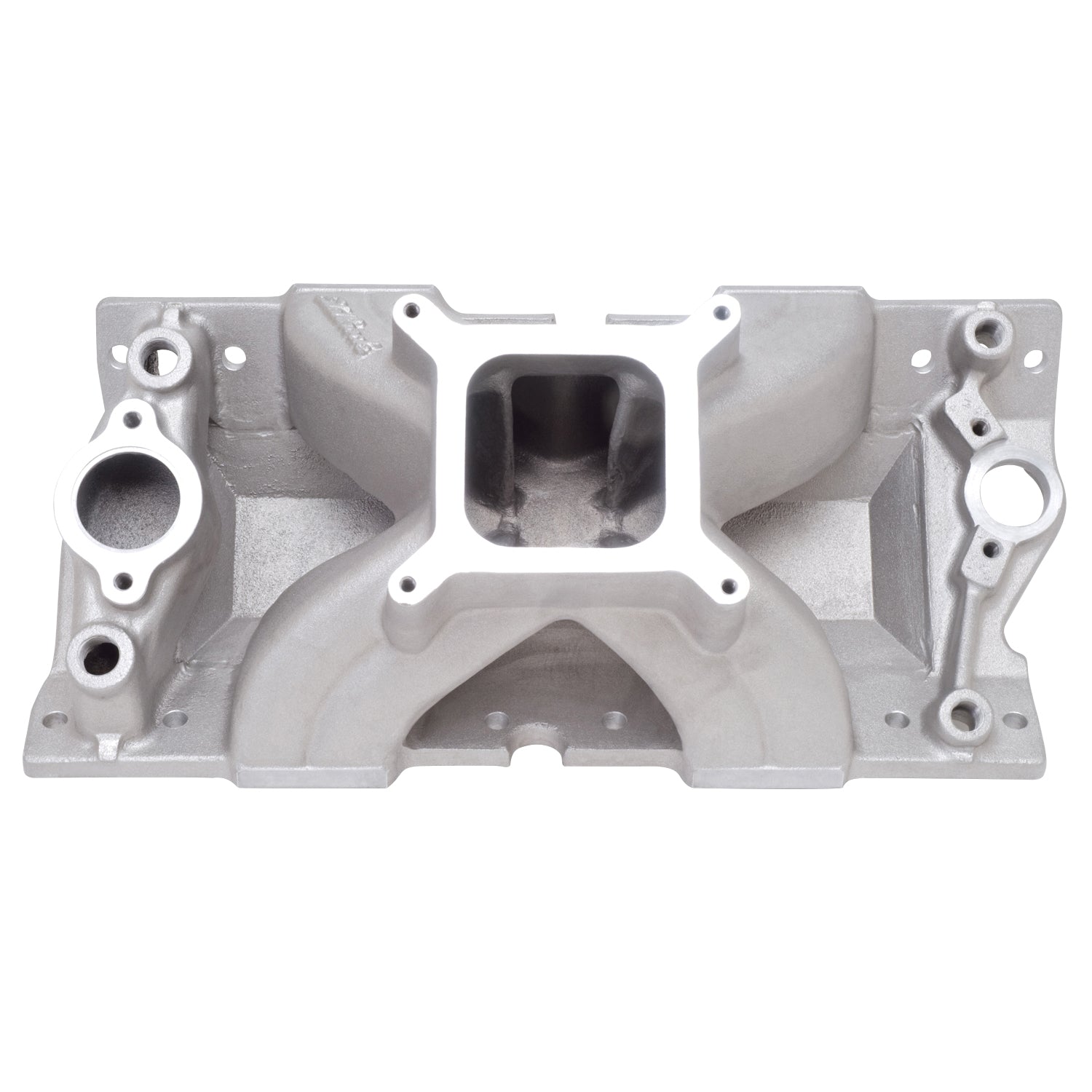

Edelbrock Super Victor SBC Manifold for GM Cast Iron Vortec Heads (Race Manifold) - 2814

Before you order

Customers also viewed

Trusted since 2005 Questions? Email sales@raptorracing.com

Edelbrock part #2814 Super Victor Vortec Bowtie intake manifold is designed specifically for use with GM cast-iron Vortec Bowtie cylinder heads #25534351 (185cc) and #25534371 (215cc). It features raised runners that closely match the port shape and location of these heads and is the best choice for racing classes that prohibit modification to the manifold. It features the original 6-bolt pattern and 7/8" inch of additional carb pad height (compared to previous raised-runner manifolds such as #2926).

Edelbrock Super Victor Vortec Bowtie Intake Manifold for Small-Block Chevrolet 350 is Designed for used on GM Cast Iron Bowtie Vortec Cylinder Heads Only. Accepts a 4150-Style Square-Bore Carburetor. Non-EGR.

Specifications

Basic Operating RPM Range 4000-8000 R3
Rear Maximum Height 6.770 IN
Flange Type 4150
Series Victor
Vehicle Model Chevrolet
Grade Type Performance
CNC Ported No
Front Maximum Height 6.770 IN
EGR Port No
Material Aluminum
Finish Satin
Single Or Dual Plane Type Single
Gasket Or Seal Included No
Center Maximum Height 6.770 IN

California Prop 65 Warning: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
