Edelbrock Single Perf Pontiac Semi Finshed Head - 60509
Edelbrock Single Perf Pontiac Semi Finshed Head - 60509
Edelbrock Single Perf Pontiac Semi Finshed Head - 60509
Edelbrock Single Perf Pontiac Semi Finshed Head - 60509
User 4
Photo - out of package
Photo - Unmounted
Photo - Unmounted
Photo - out of package
Photo - Unmounted
User 3

Edelbrock Part # EDE60509

Edelbrock Single Perf Pontiac Semi Finshed Head - 60509

$1,066.95 USD

Before you order

Customers also viewed

4.8 on Google964 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter
Questions?Send us a message

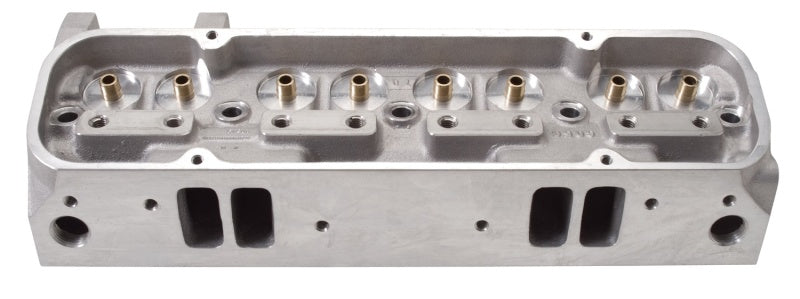

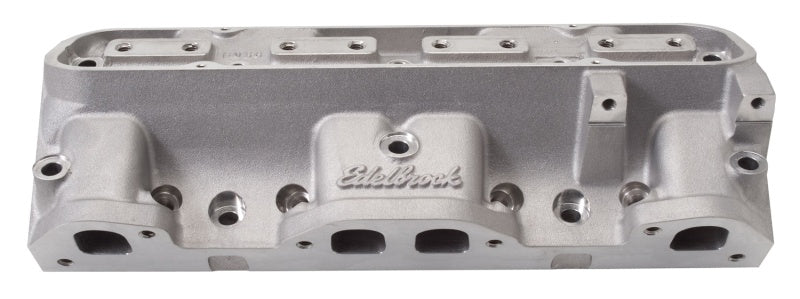

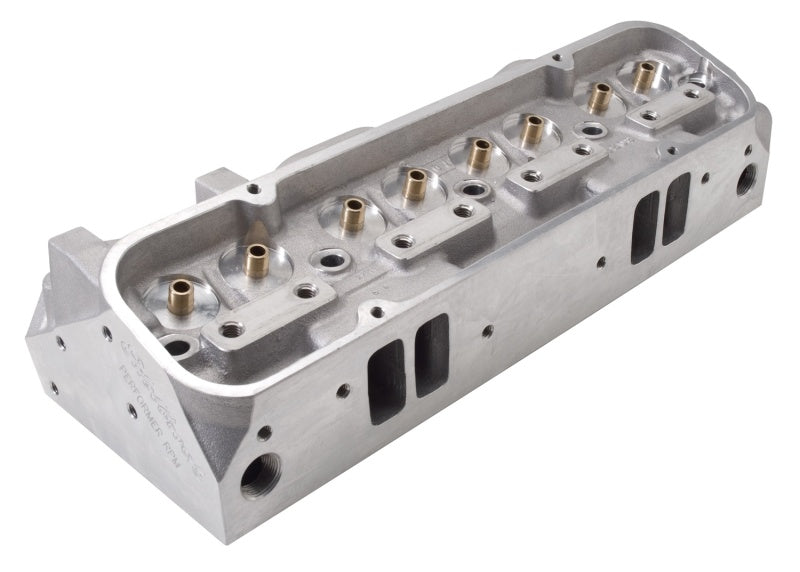

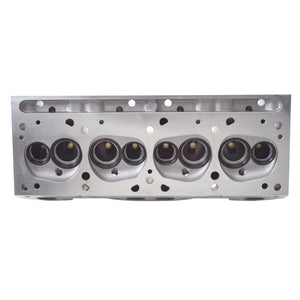

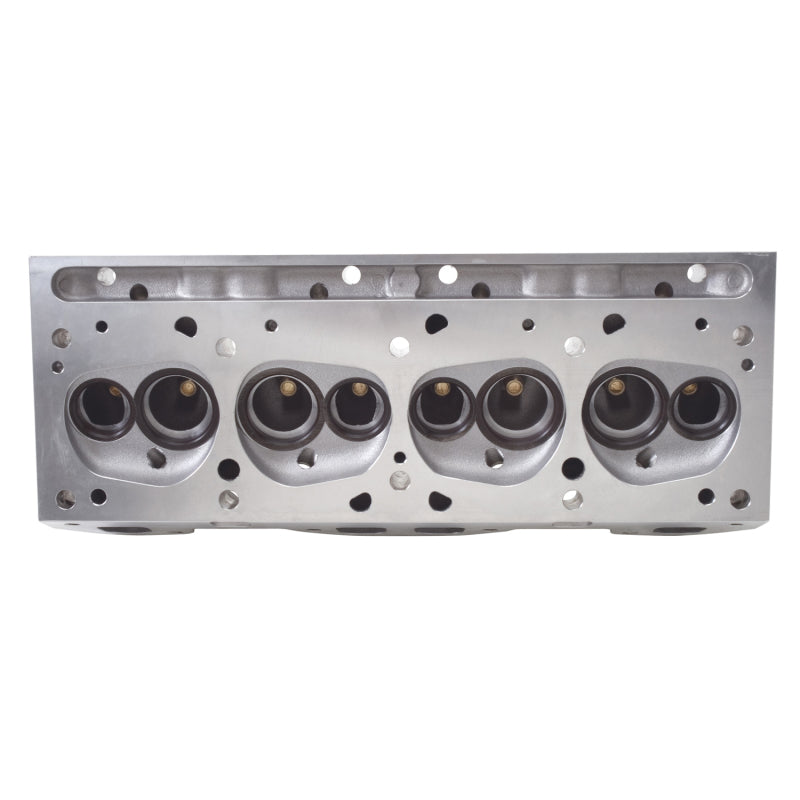

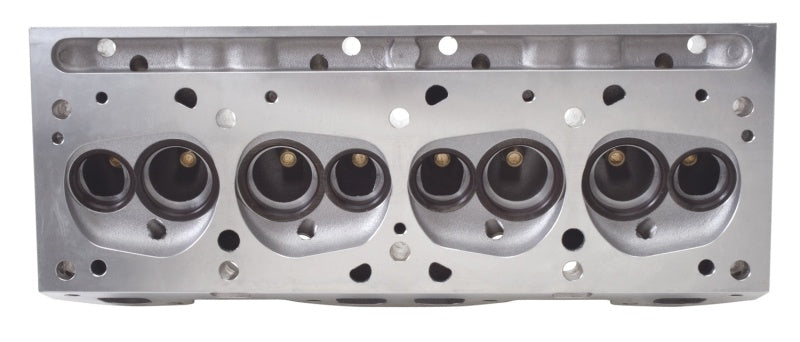

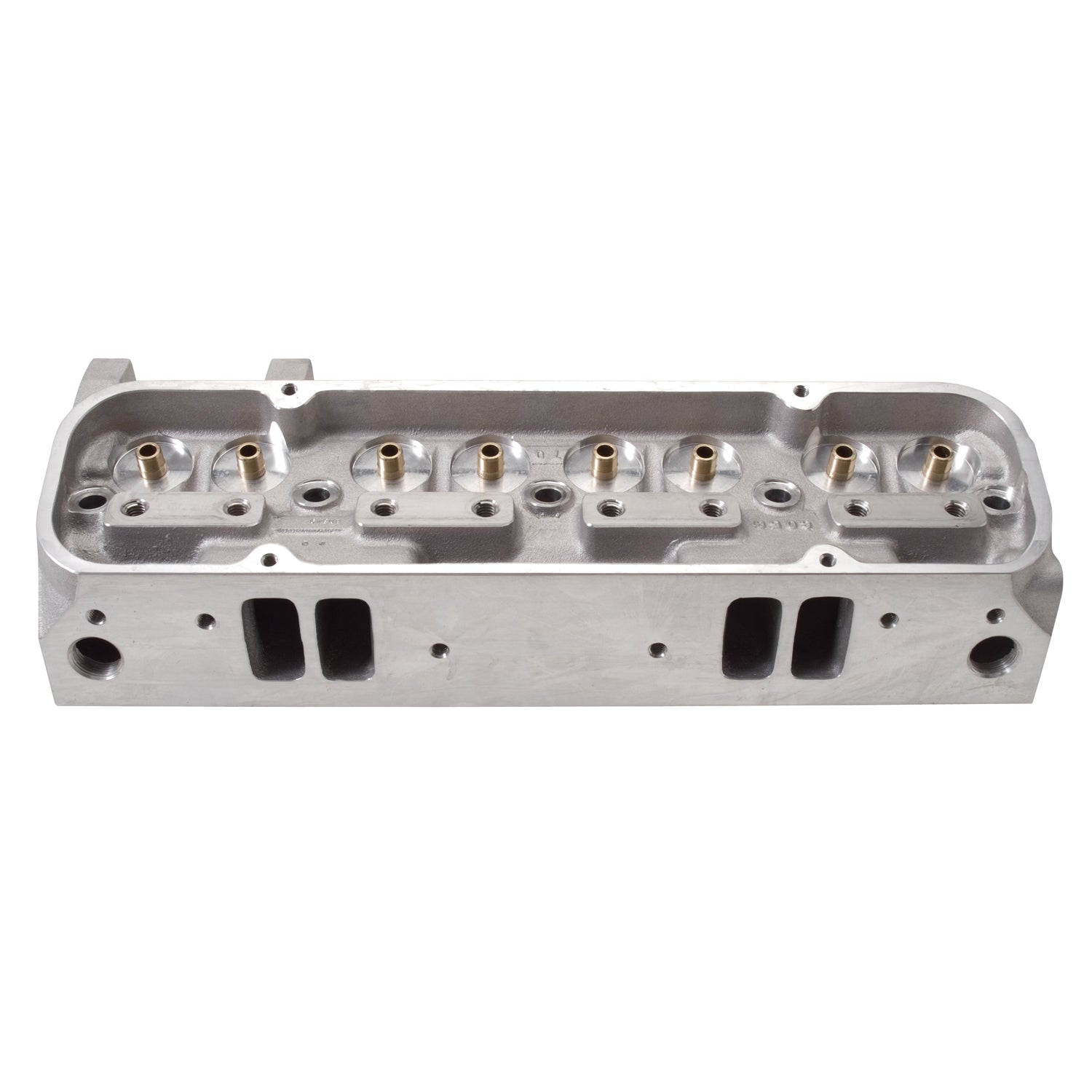

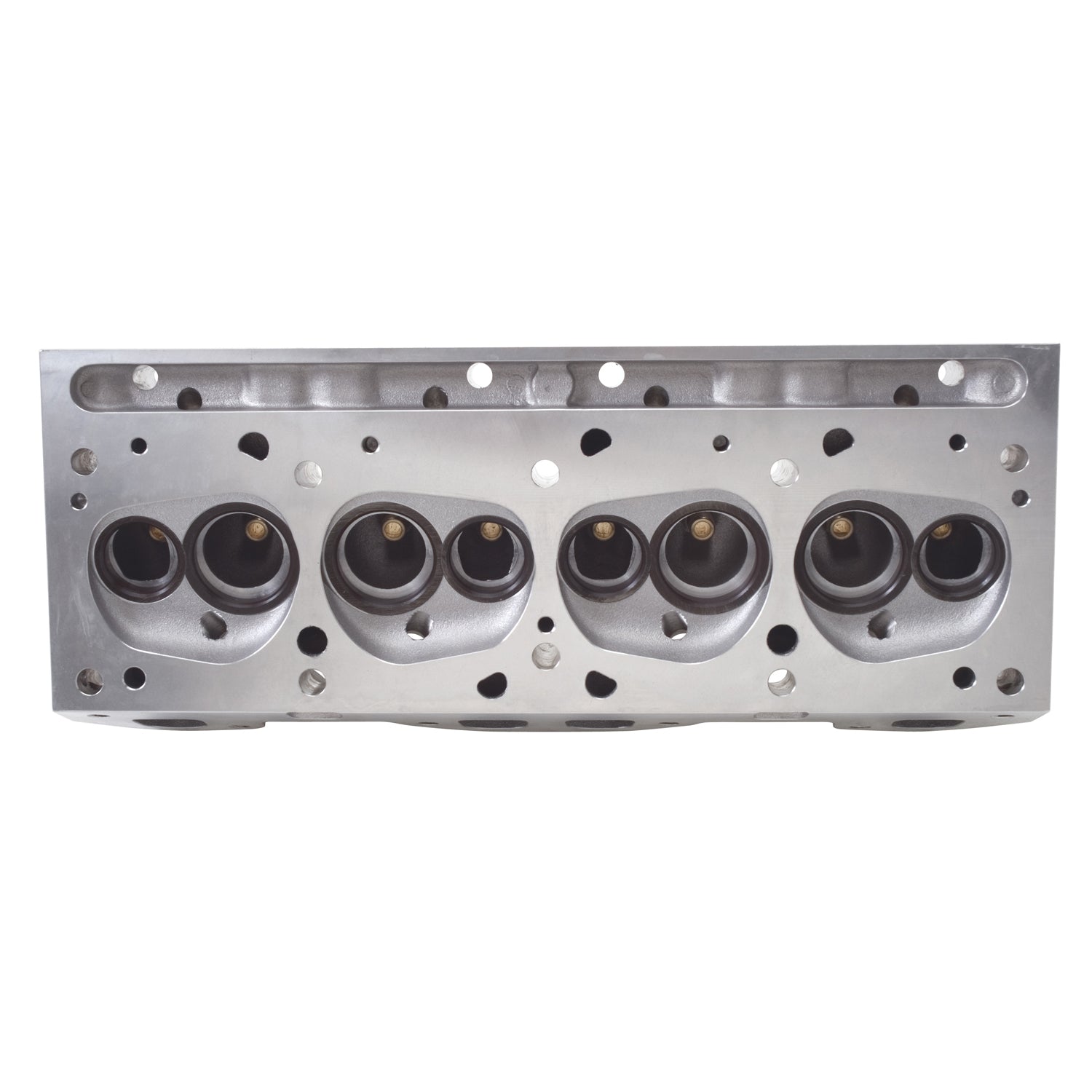

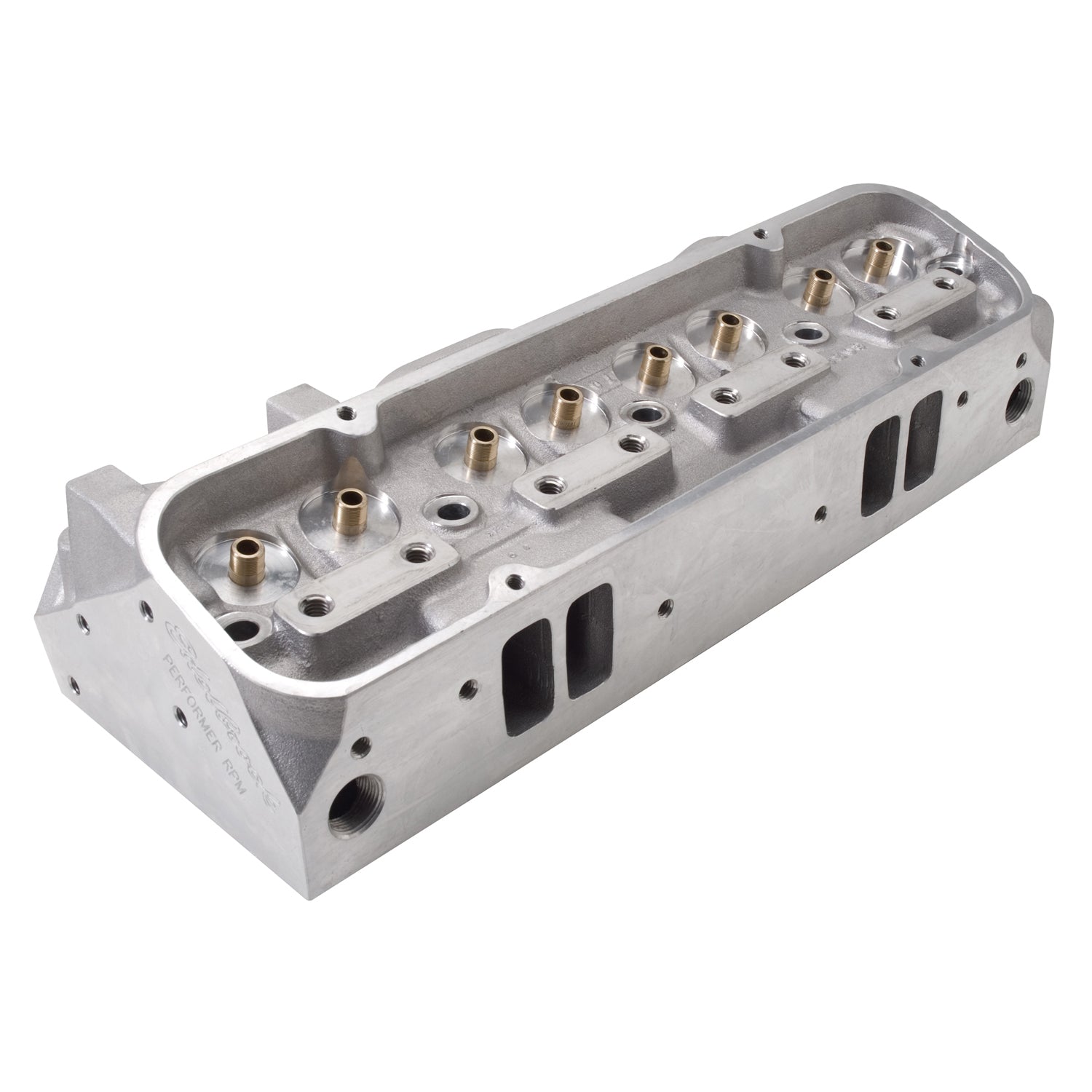

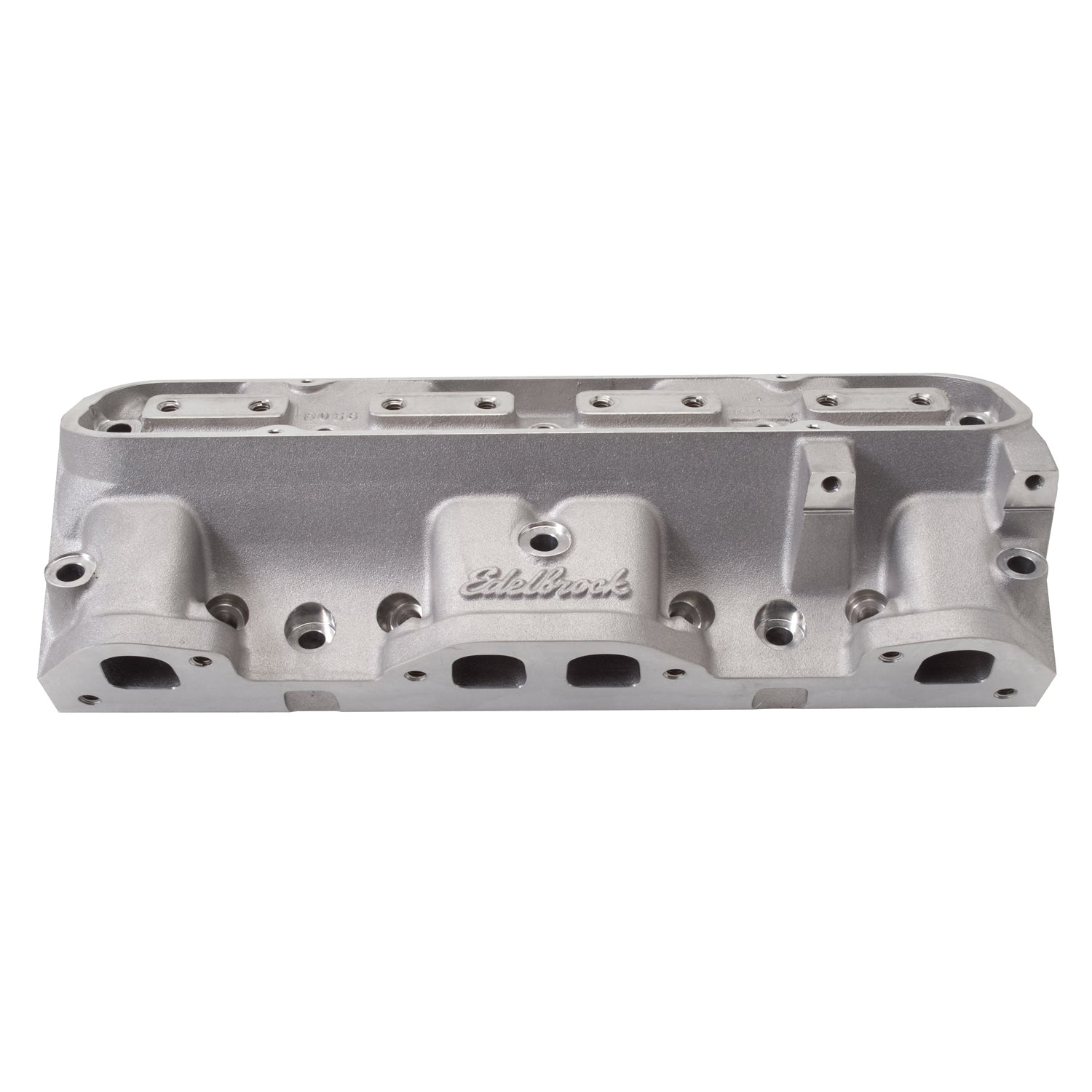

The Edelbrock #60509 Performer RPM cylinder head is designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. The Edelbrock #60509 Performer RPM head with the 72cc combustion chamber are for higher compression engines. Performer RPM #60509 is semi-machined and must be finished by a professional cylinder head porter. They include valve guides and seats installed with no intake pushrod holes.

The Edelbrock #60509 Performer RPM cylinder heads are designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head.

Specifications

Exhaust Valve Diameter (Suggested) 1.46 in x 1.40 IN
Exhaust Port Entry 1.46 in x 1.40 IN
8788 No
10024 No
8789 No
10025 No
10583 No
10261 No
10671 No
30 No
10 Aluminum
6627 215 CCM
6635 31-6056
6634 No
3390 Performance
6621 10.25 IN
10582 No
6626 72 CCM
306 No
9799 No
Intake Valve Pierce Points (X,Y)(C) 0.880 in, 0.000 IN
Specialty Hot Isostatic Pressing (HIP) Processing
Valve Angle 14 DD
Seat Angle Exhaust 45 deg/Intake 45 DD
Exhaust Valve Pierce Points (X,Y)(C) 1.150 in, 0.000 IN
Valve Seats Included Yes
Quantity Sold Individually
Series Pro-Port
Construction Type Pro-Port Raw
EGR Port No
Intake Port Entry 1.10 in x 2.02 IN
Family Performer RPM
Seat Material Ductile Iron
Deck Thickness 0.625 IN
Valve Guides Included Yes
Valve Spacing 2.030 IN
Intake Valve Diameter (Suggested) 2.11 IN
Retainer Included No
Combustion Chamber Volume Possible 72 CCM
CNC Ported No
Guide Material Manganese Bronze

California Prop 65 Warning: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
