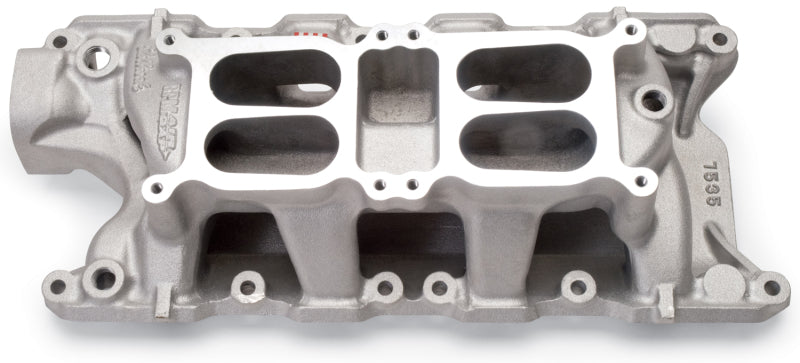

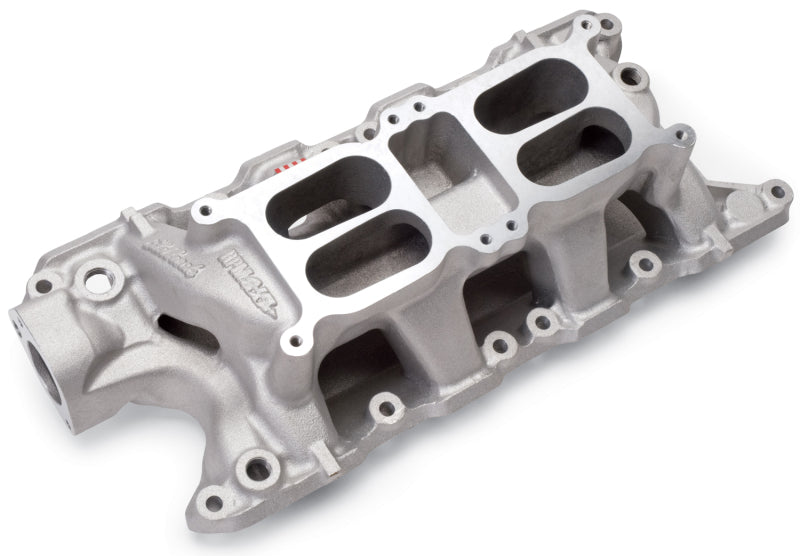

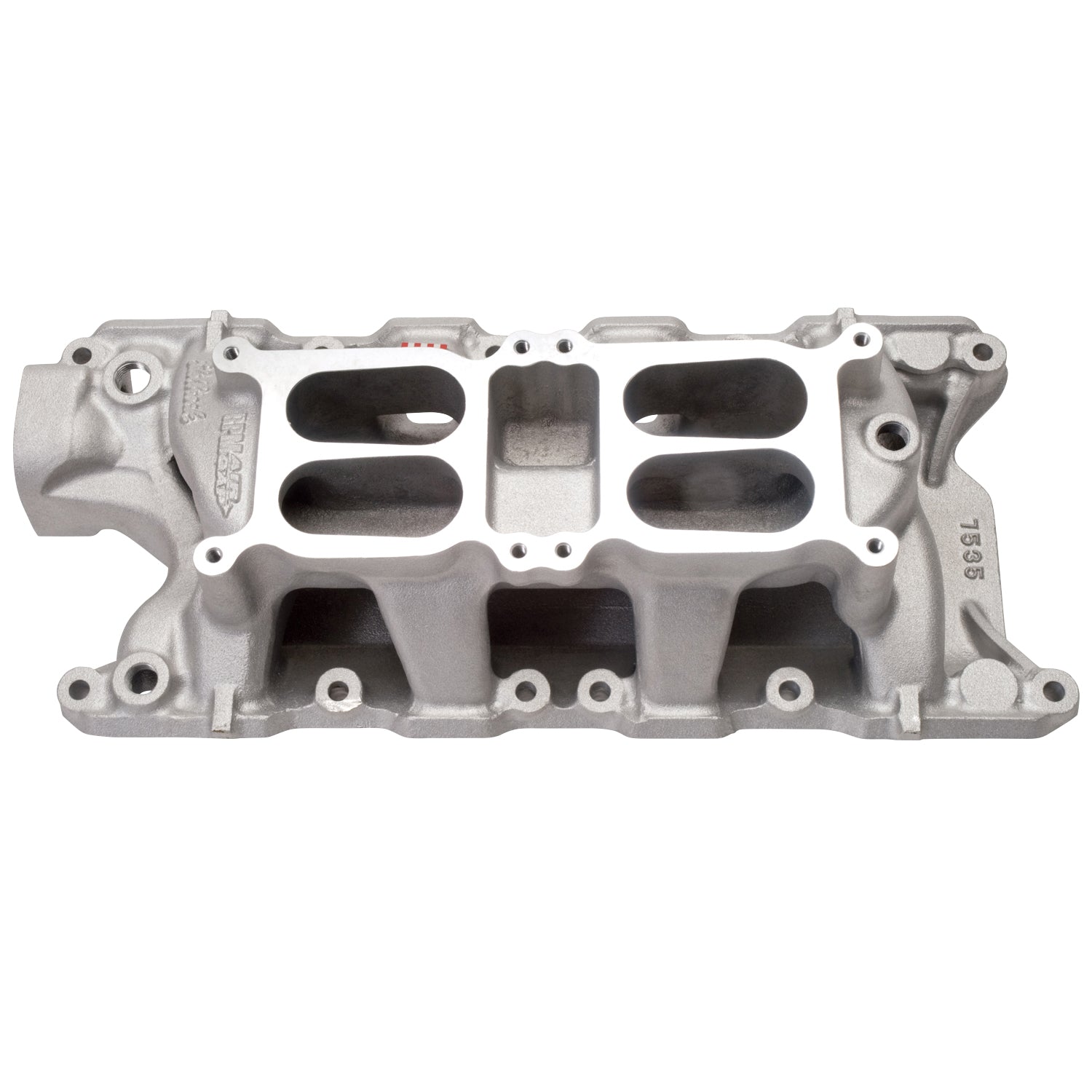

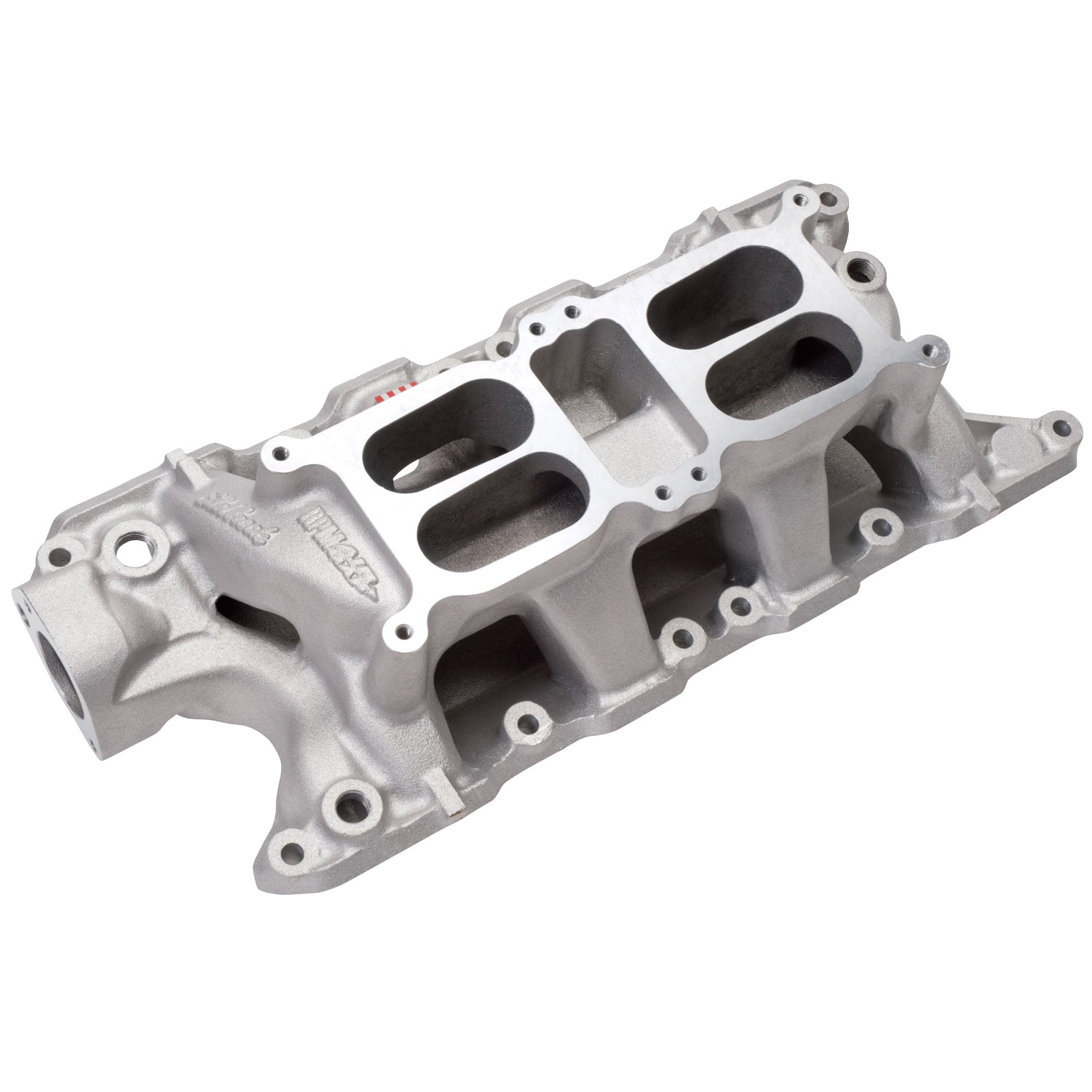

Edelbrock part #7535 RPM Air-Gap Dual-Quad is designed for 289-302-347 c.i.d. small-block Fords. This is a dual plane intake manifold which combines dual four-barrel excitement with a well-mannered street manifold. This intake is taller than the low-profile F-28 intake and offer performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Carb center to carb center is 6-7/16".
Edelbrock RPM Air-Gap Dual Quad Intake Manifold for Ford 289-347 Small-Block V8
| Material | Aluminum |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Ford |
| Gasket Or Seal Included | No |
| Series | RPM Air-Gap |

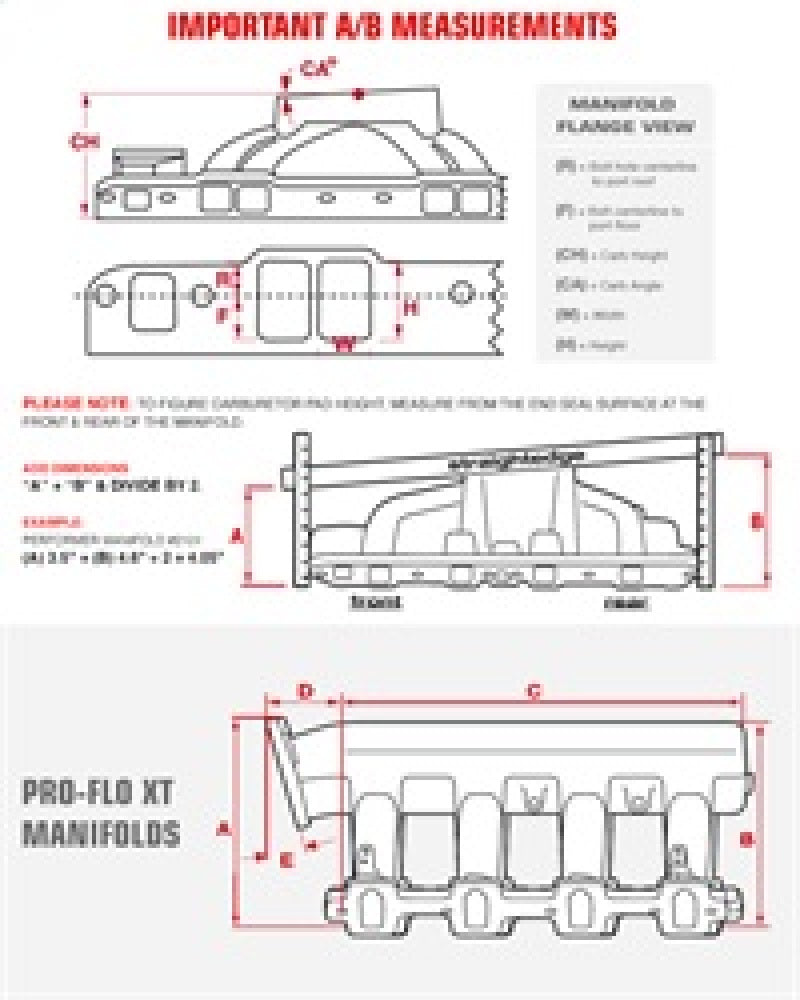

| Center Maximum Height | 5.280 IN |
| Rear Maximum Height | 5.700 IN |
| EGR Port | No |
| Flange Type | 4150 Dual-Quad (4-Barrel Square Bore) |
| Finish | Satin |
| CNC Ported | No |
| Basic Operating RPM Range | 1500-6500 R3 |
| Grade Type | Performance |
| Front Maximum Height | 4.850 IN |
California Prop 65 Warning: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
