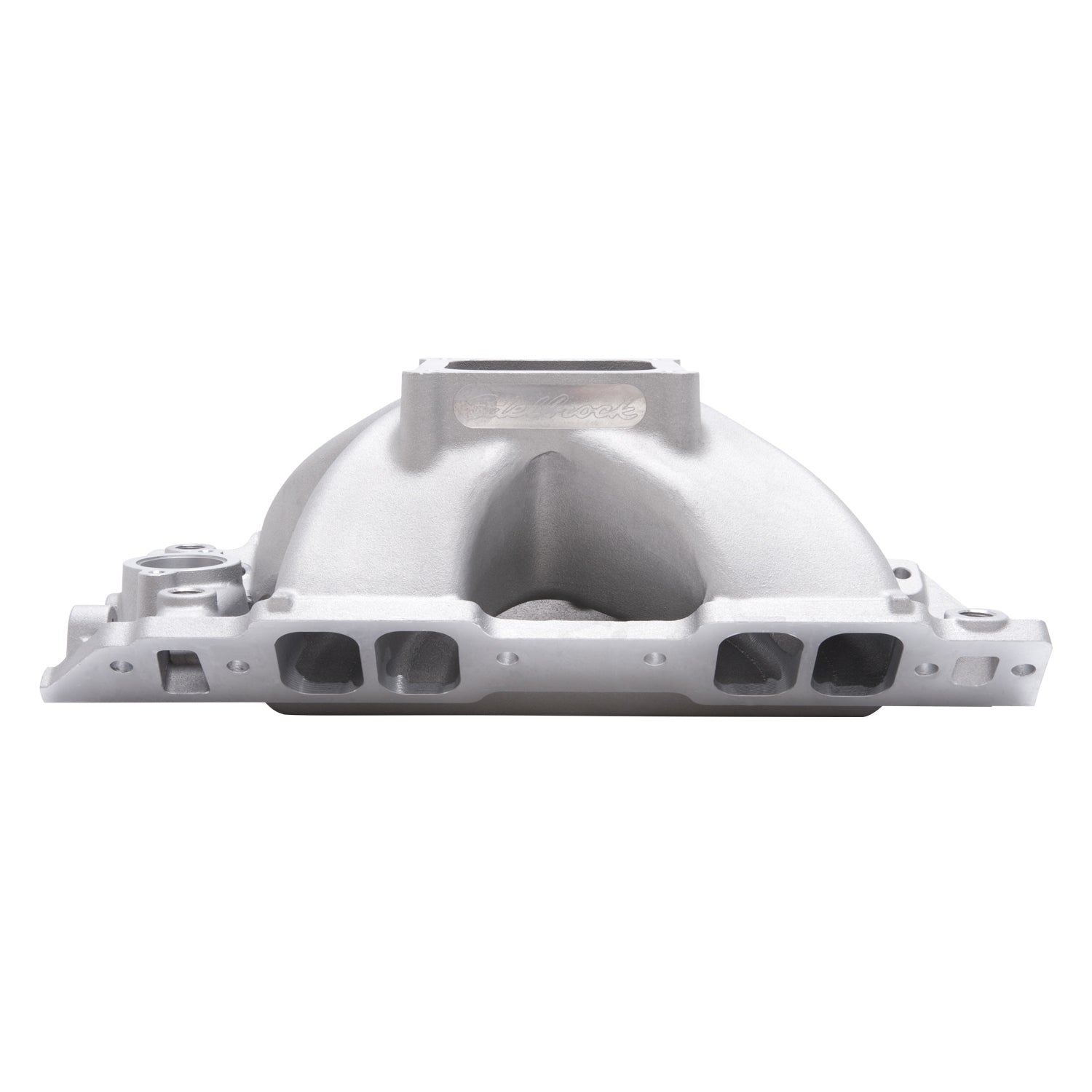

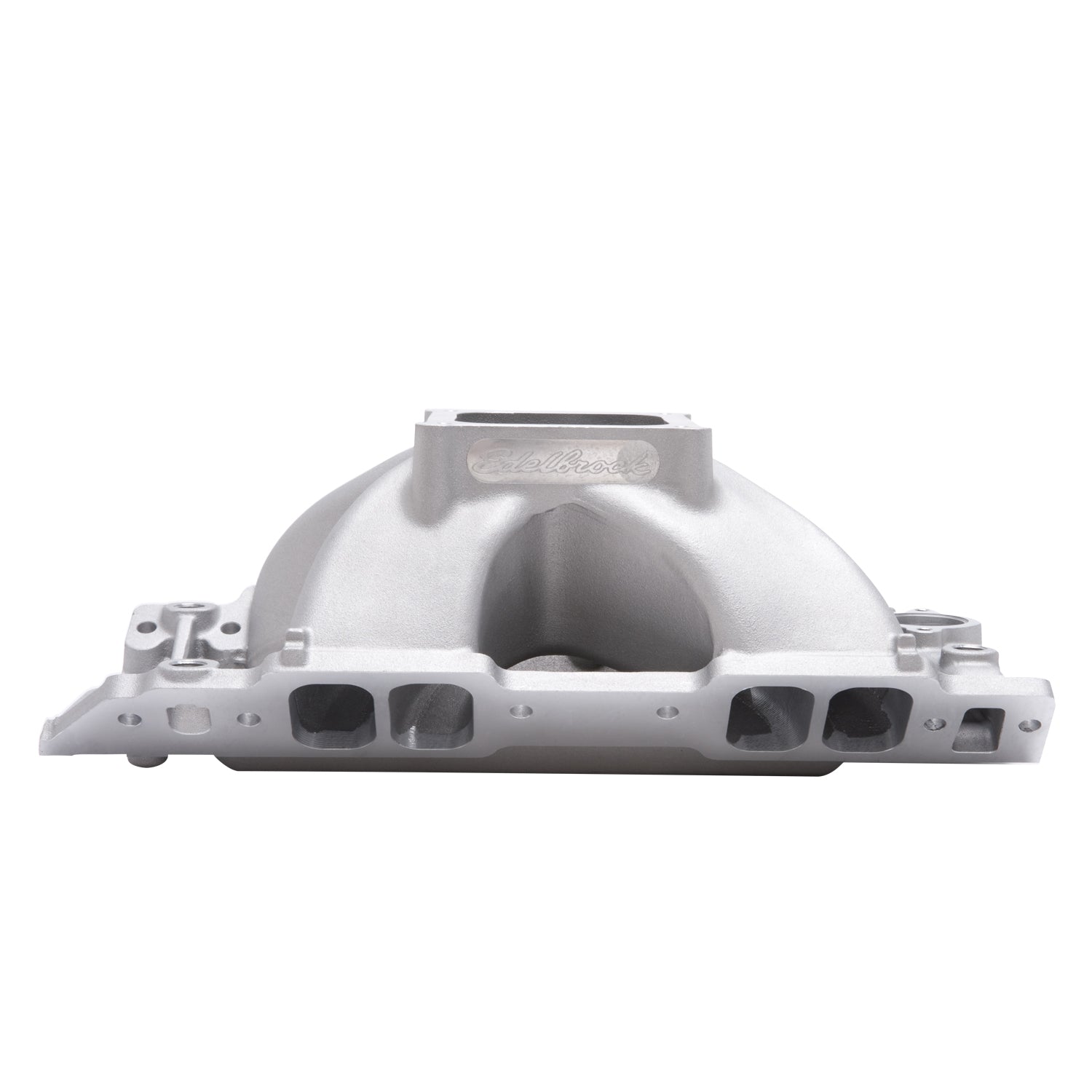

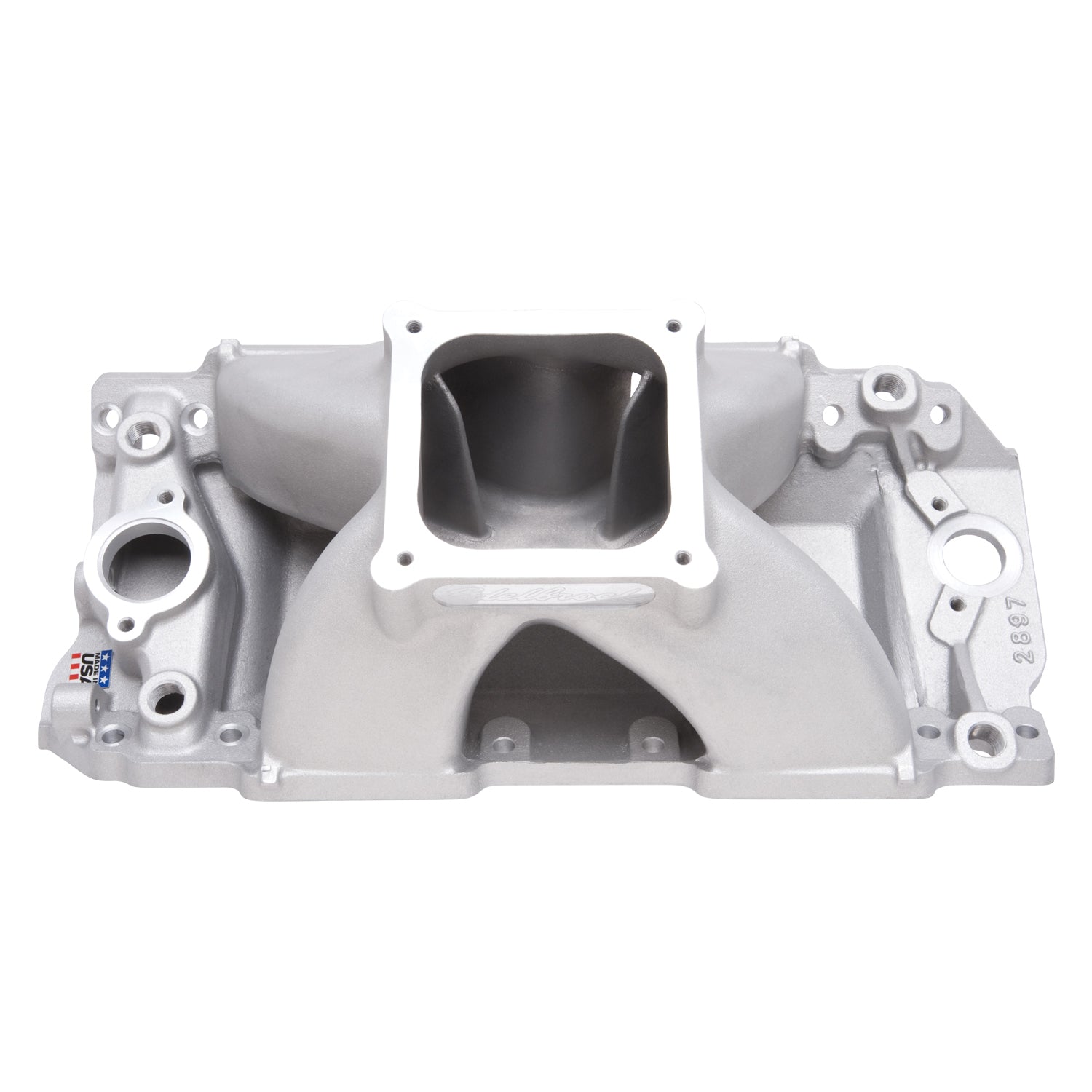

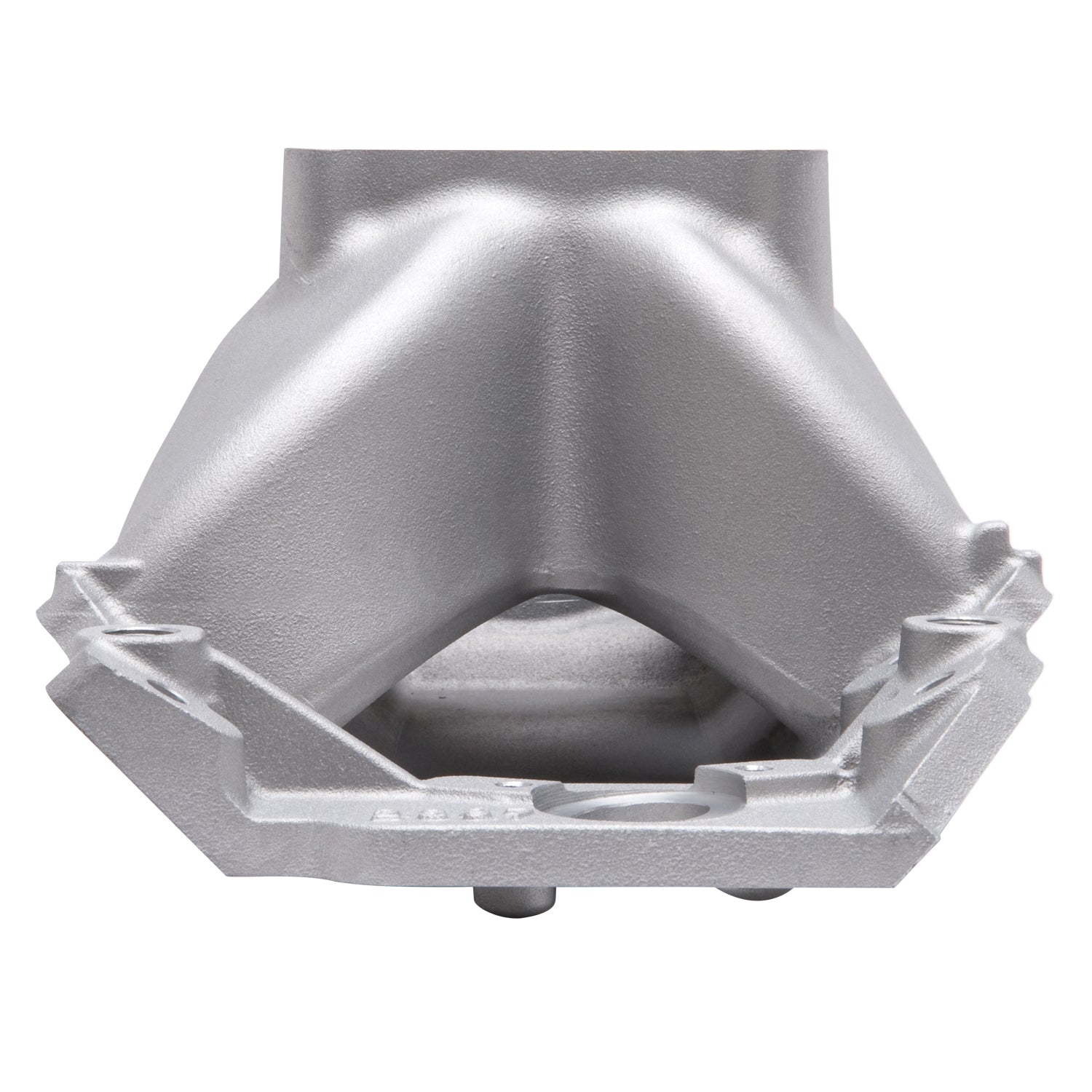

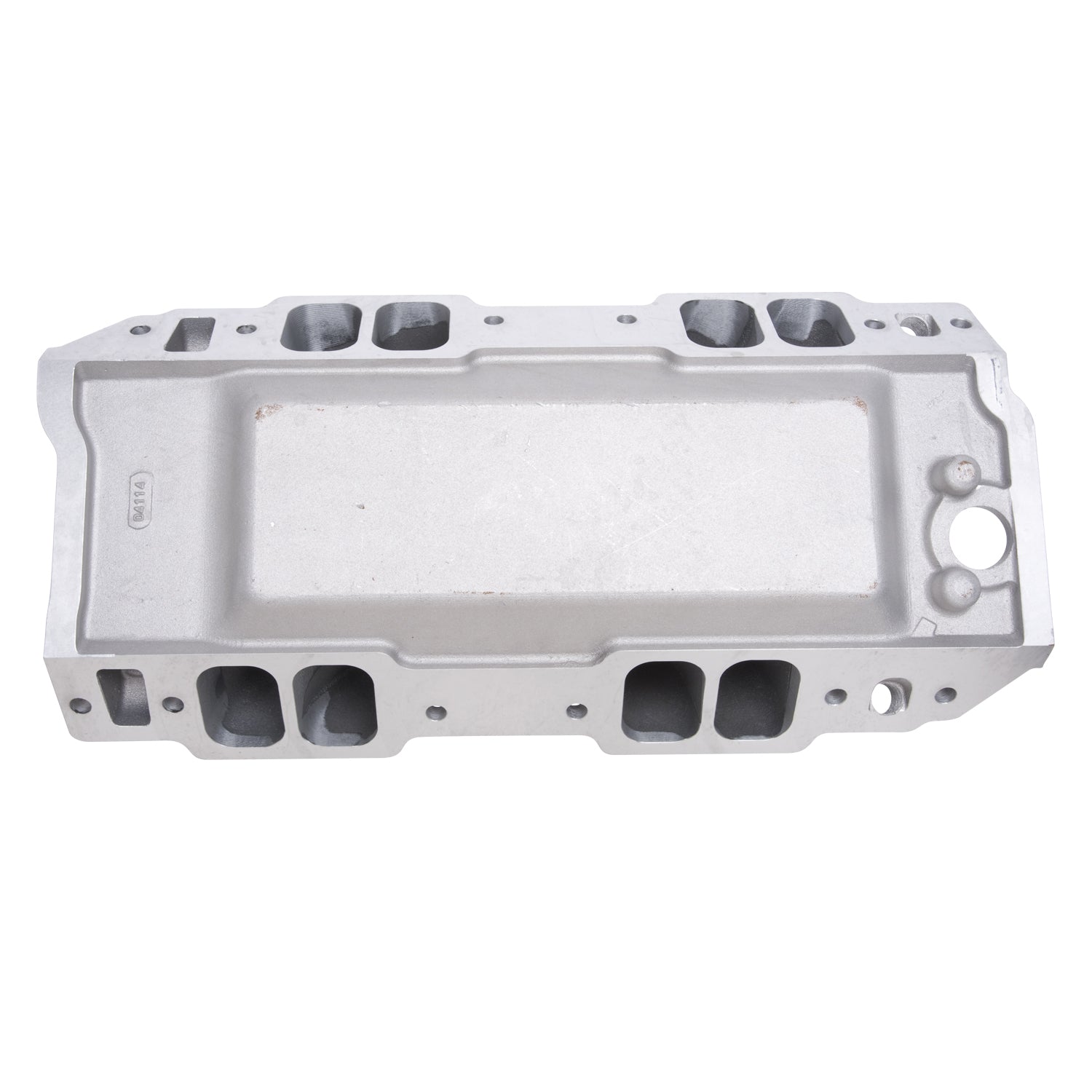

Edelbrock part #28972 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy Tall-Deck (10.2") engines using the latest design conventional port heads. These single-plane intake manifolds are ideal for any 1,000+ horsepower drag race engine with high air flow requirements. This manifold is CNC port matched for use with cylinder head #61409 and features 5.38 square inches of runner area at the plenum. This manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.

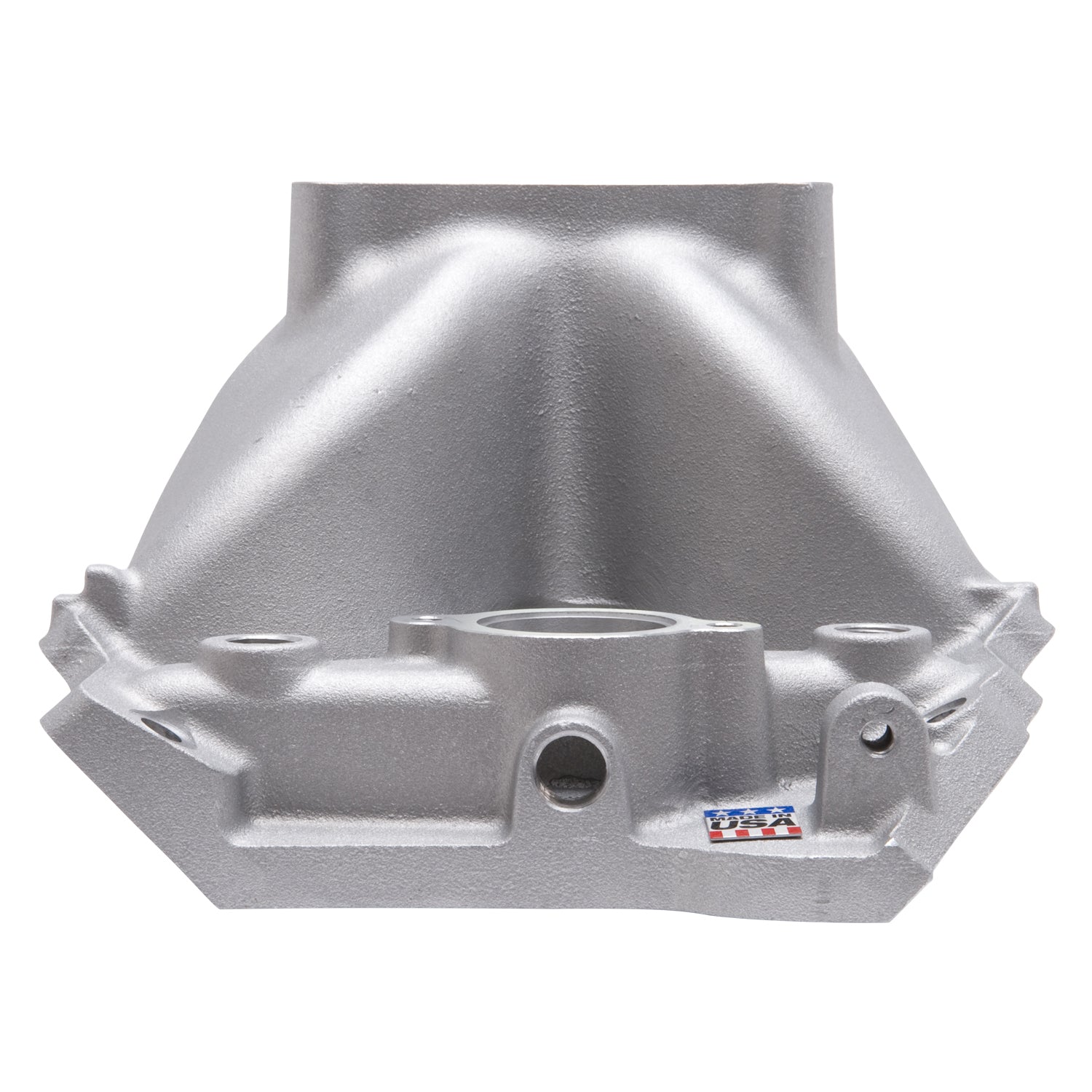

Edelbrock Super Victor II Tall Deck CNC Intake Manifold for Chevrolet Big-Block V8
Specifications
| Series |
Victor |
| Vehicle Model |
Chevrolet |
| CNC Ported |
Yes |
| Gasket Or Seal Included |
No |

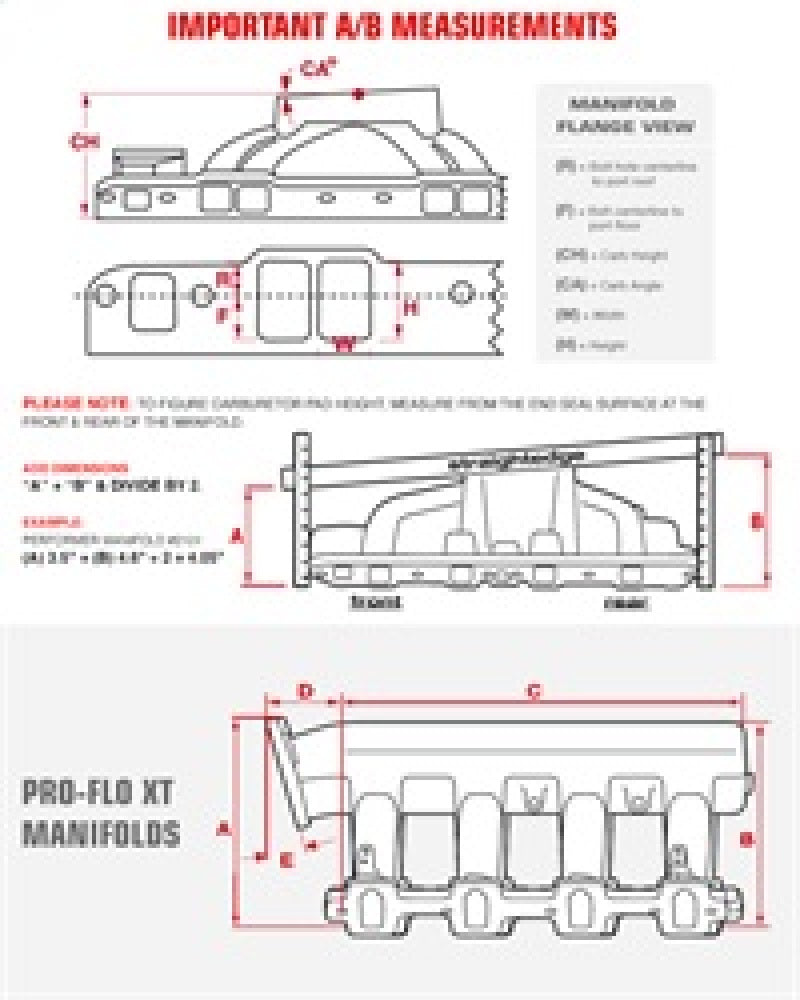

| Center Maximum Height |
7.500 IN |
| Front Maximum Height |
7.500 IN |
| Grade Type |
Performance |
| Basic Operating RPM Range |
3500-8500 R3 |
| Flange Type |
4500 |
| Material |
Aluminum |
| Finish |
Satin |
| Single Or Dual Plane Type |
Single |
| Rear Maximum Height |
7.500 IN |
| EGR Port |
No |
