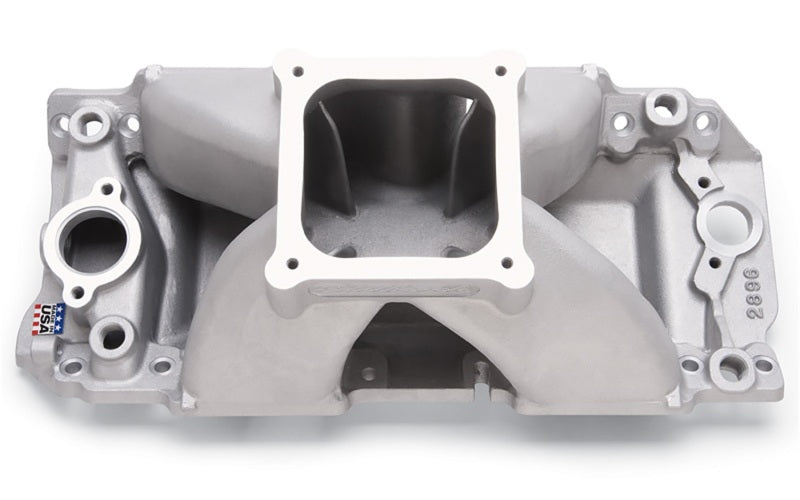

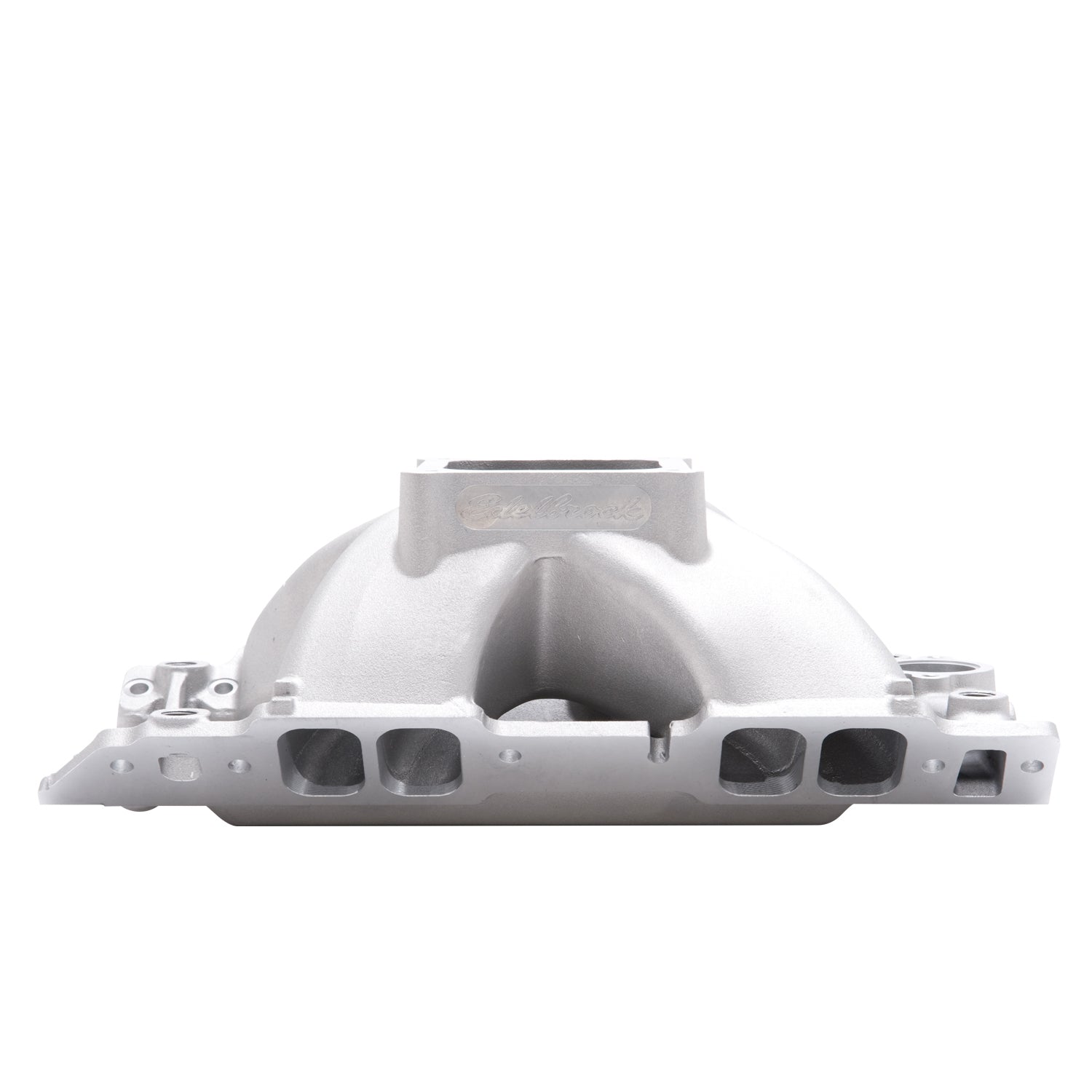

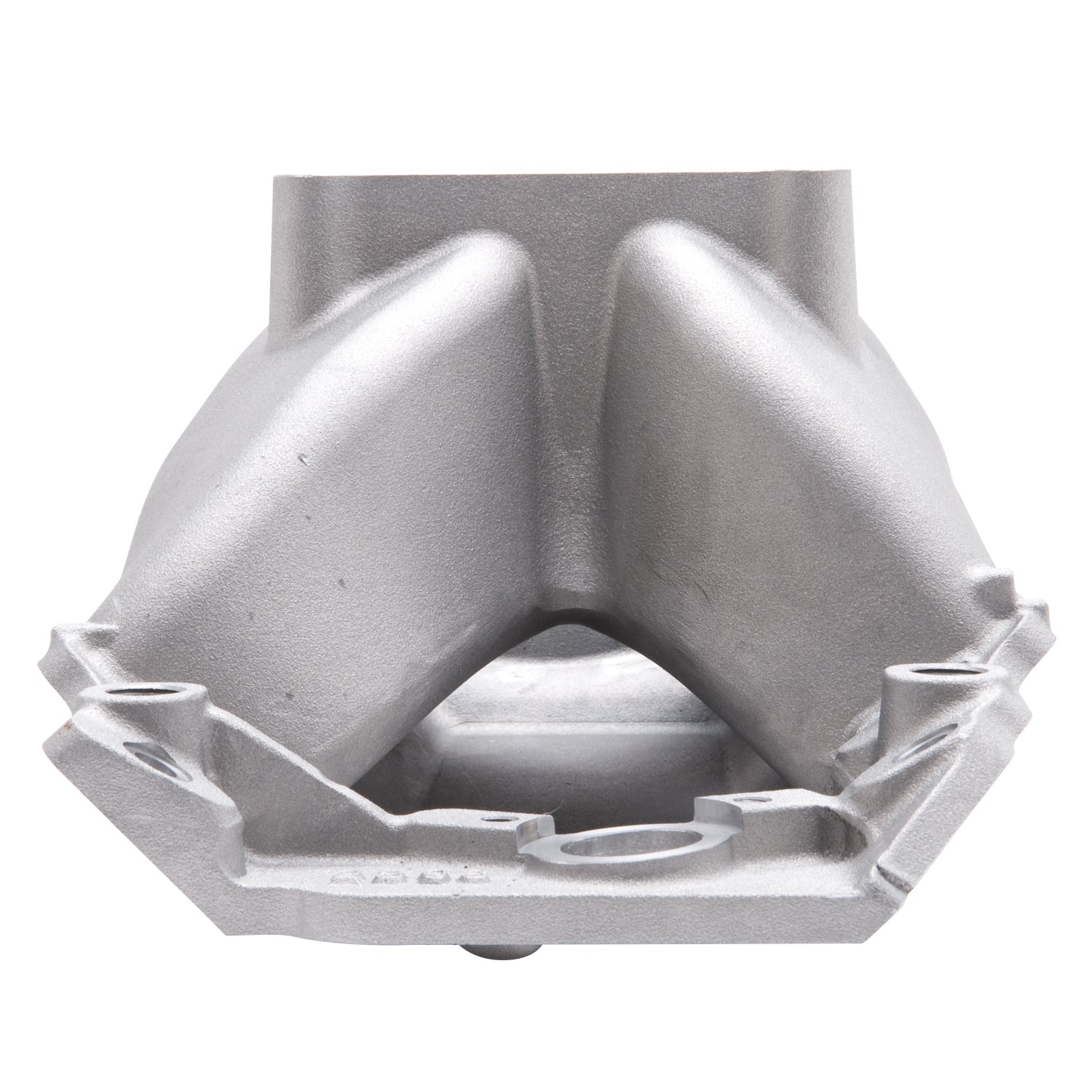

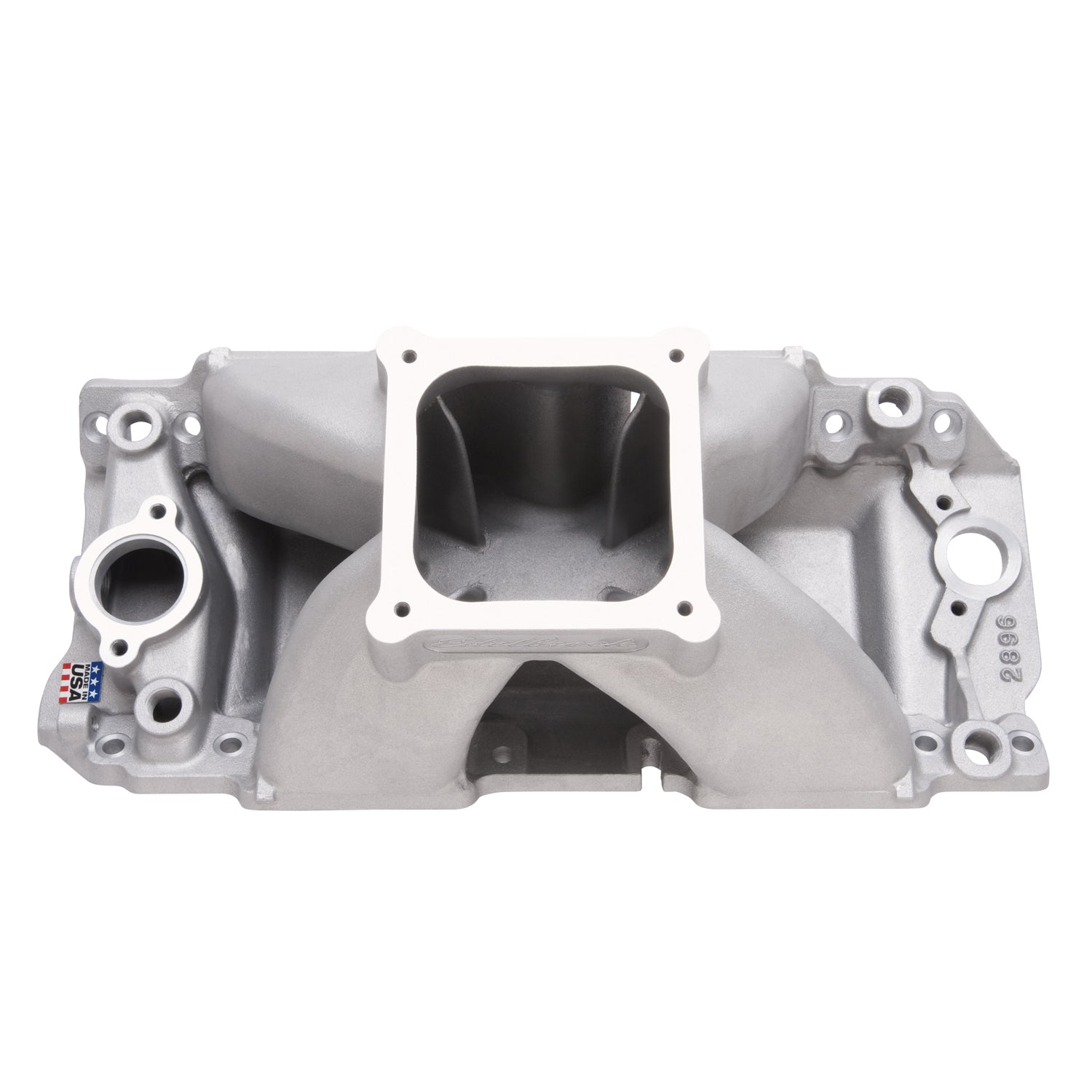

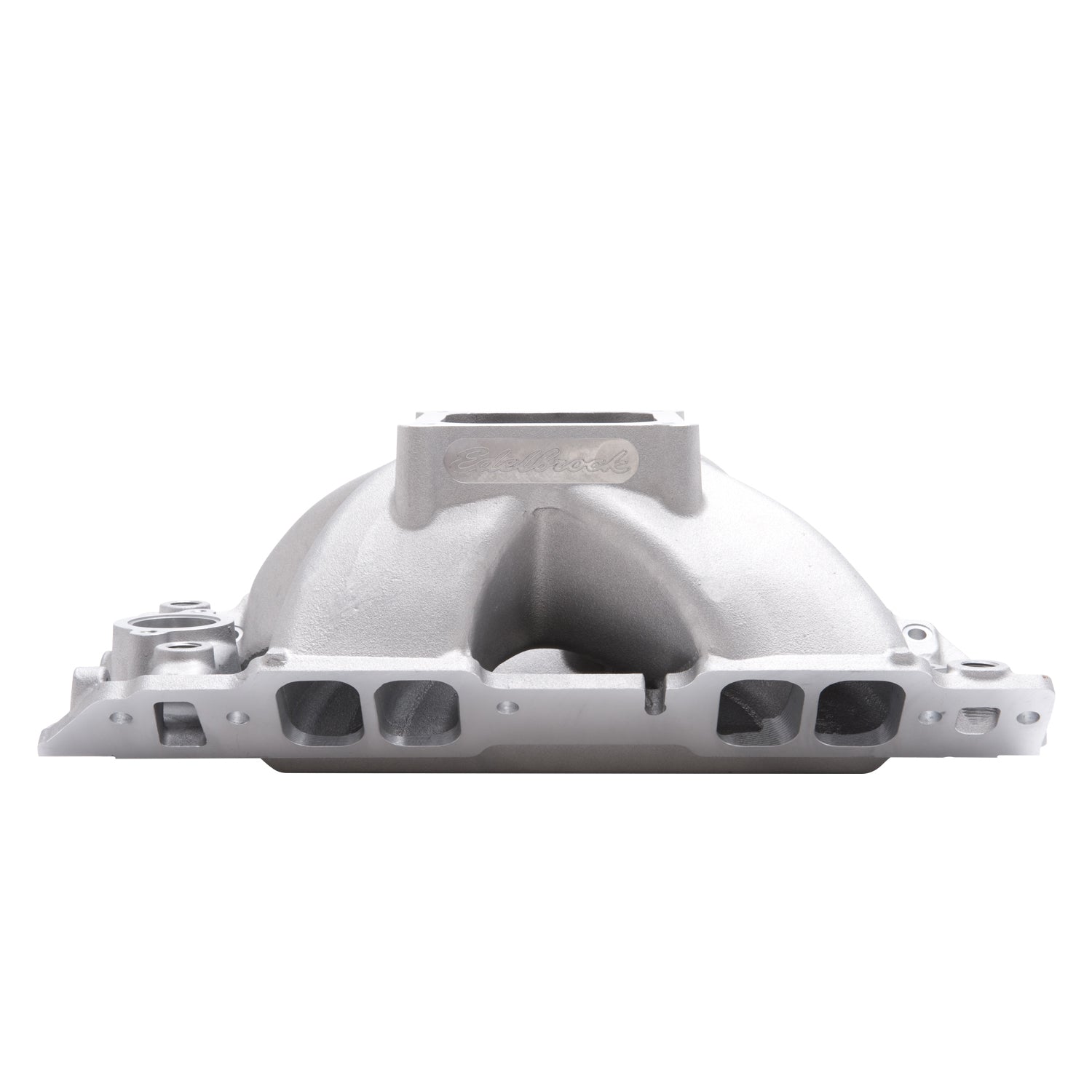

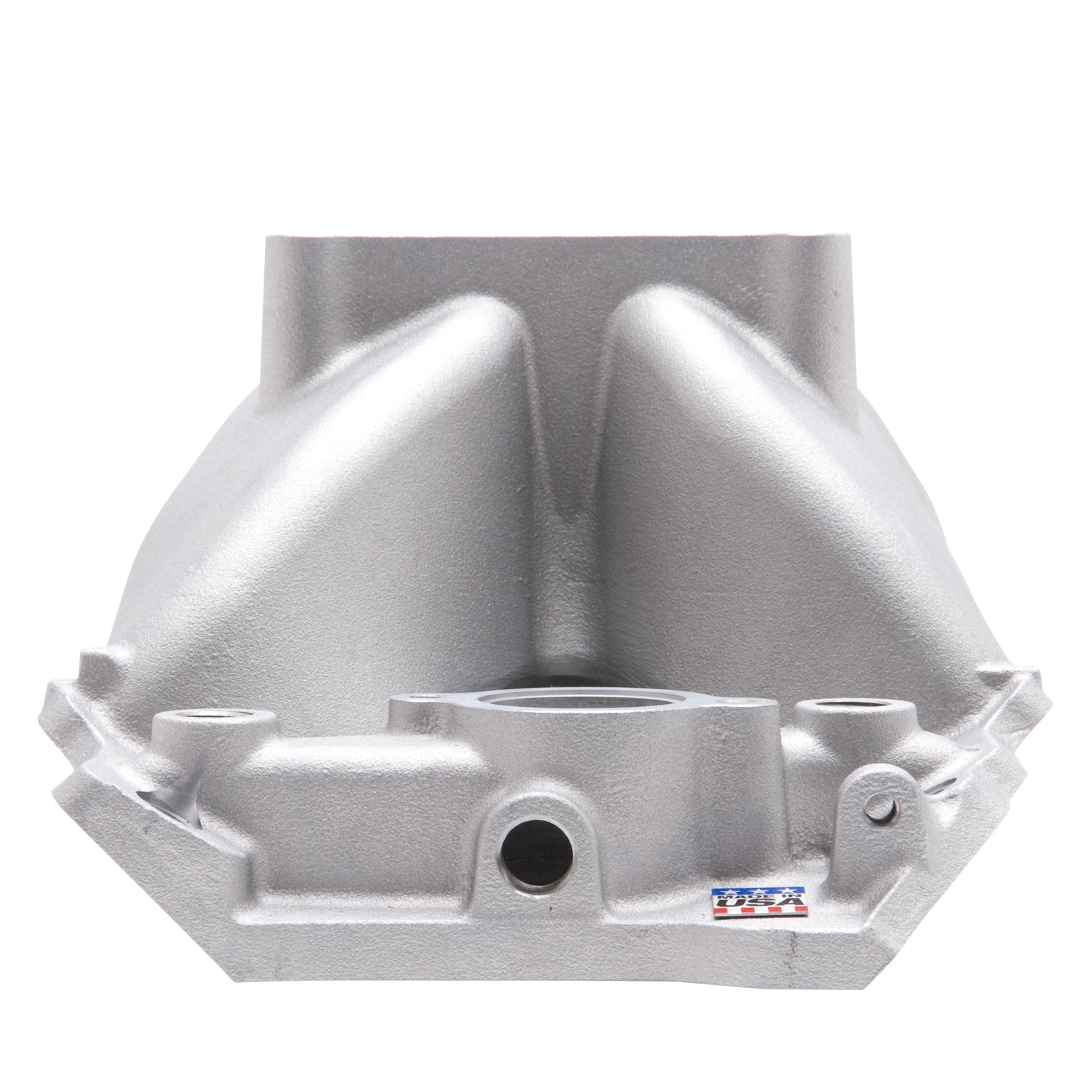

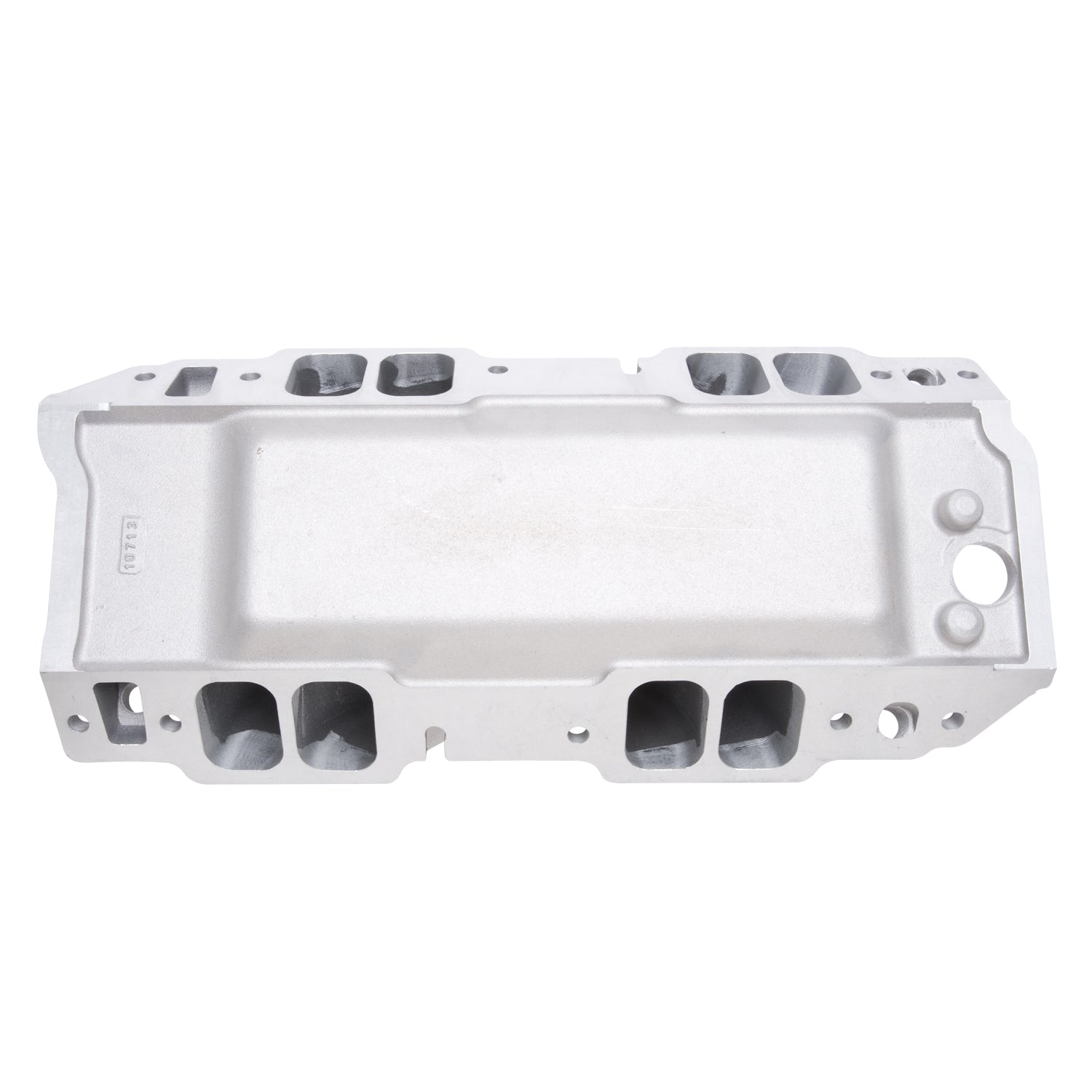

Edelbrock part #28962 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy engines using the latest design conventional rectangular port heads. This single-plane intake manifolds is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Super Victor II intake manifold is CNC port matched for Edelbrock/Musi Victor 24 degree CNC 377cc cylinder heads #61409. Accepts standard height distributors. The manifold has an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.
Edelbrock Super Victor II CNC Intake Manifold for Standard Deck Chevrolet Big-Block V8
Specifications
| Gasket Or Seal Included |
No |
| Rear Maximum Height |
7.560 IN |
| Finish |
Satin |
| Front Maximum Height |
7.560 IN |
| EGR Port |
No |
| Series |
Victor |
| Vehicle Model |
Chevrolet |
| Material |
Aluminum |
| Basic Operating RPM Range |
3500-8500 R3 |
| Single Or Dual Plane Type |
Single |
| Flange Type |
4500 |
| CNC Ported |
Yes |
| Grade Type |
Performance |
| Center Maximum Height |
7.560 IN |
