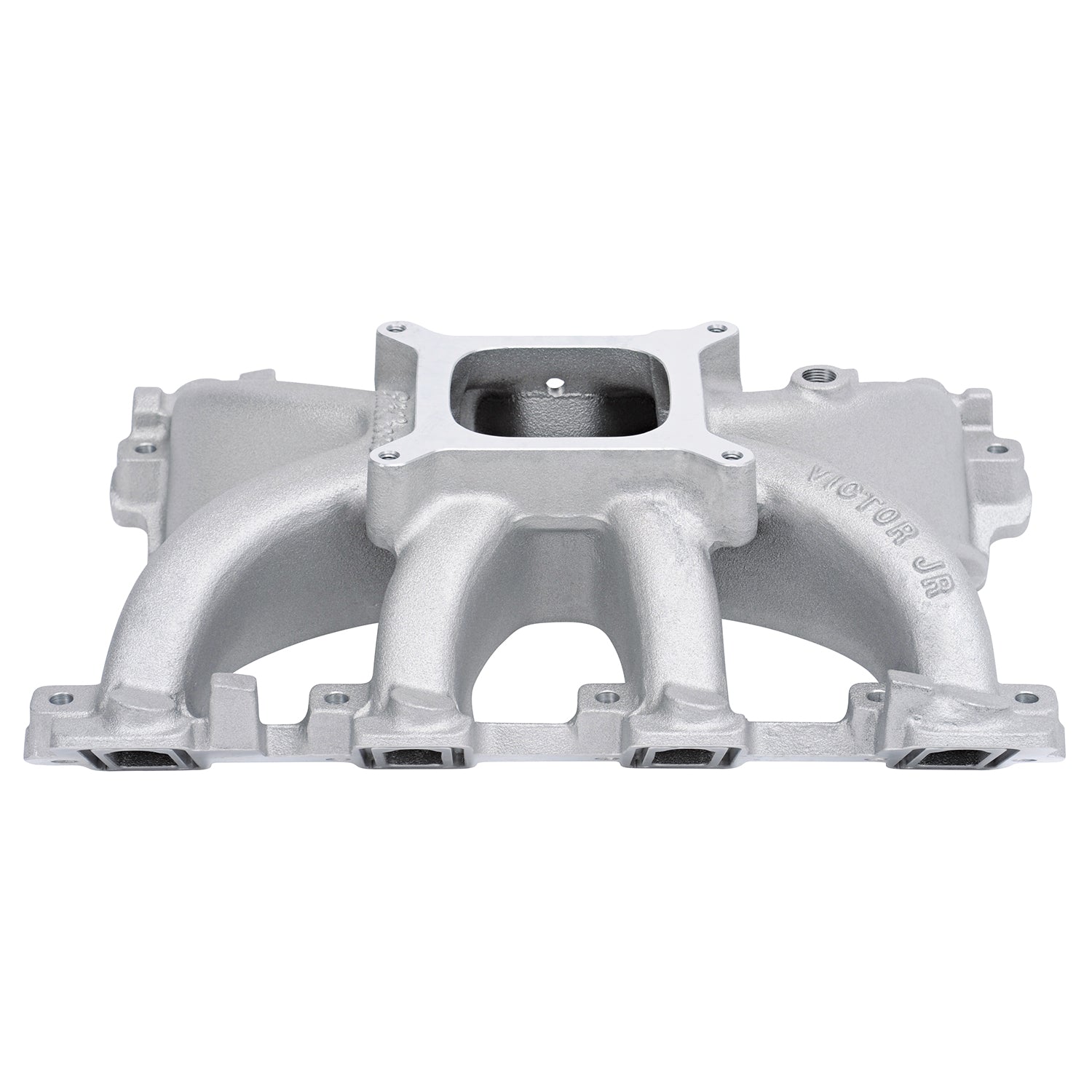

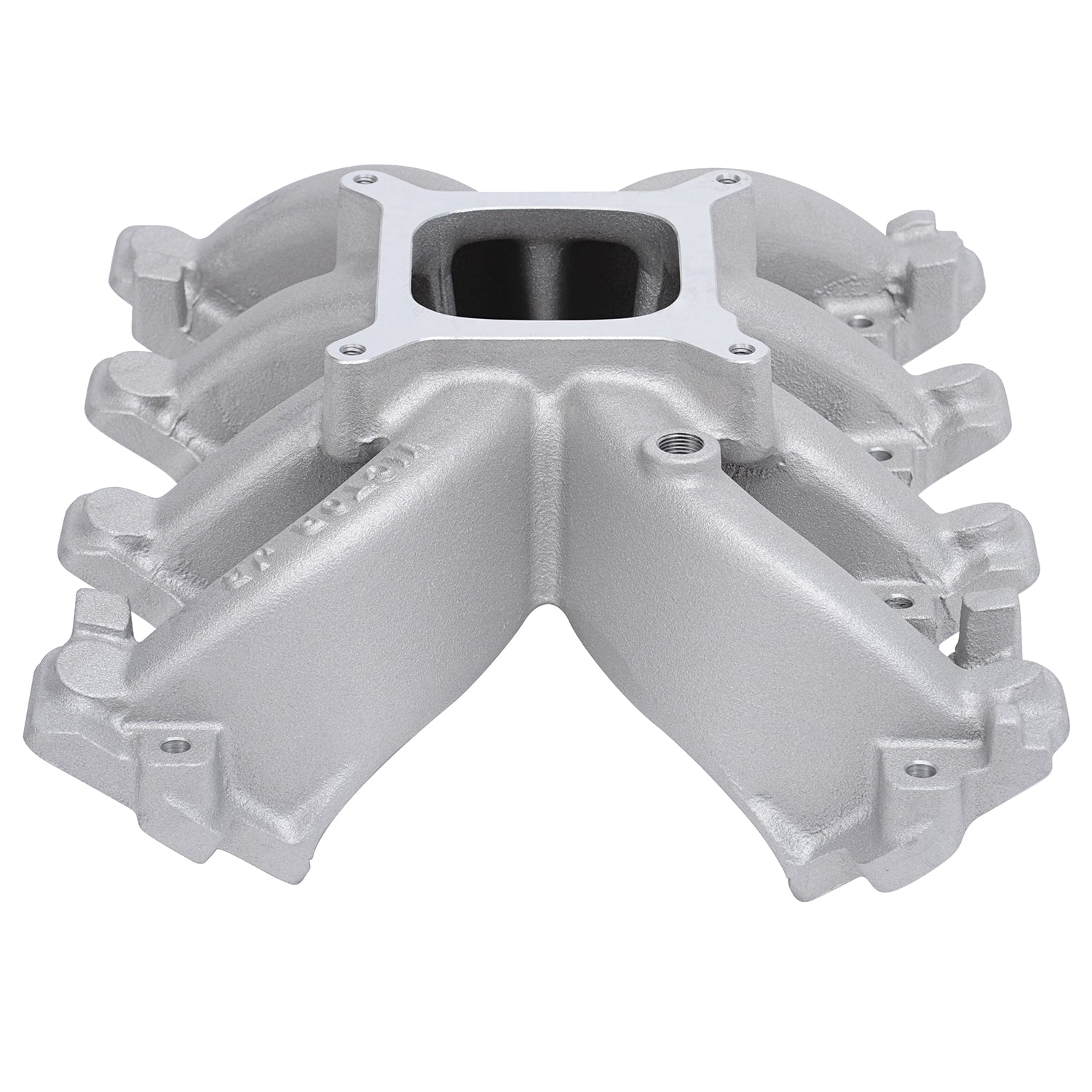

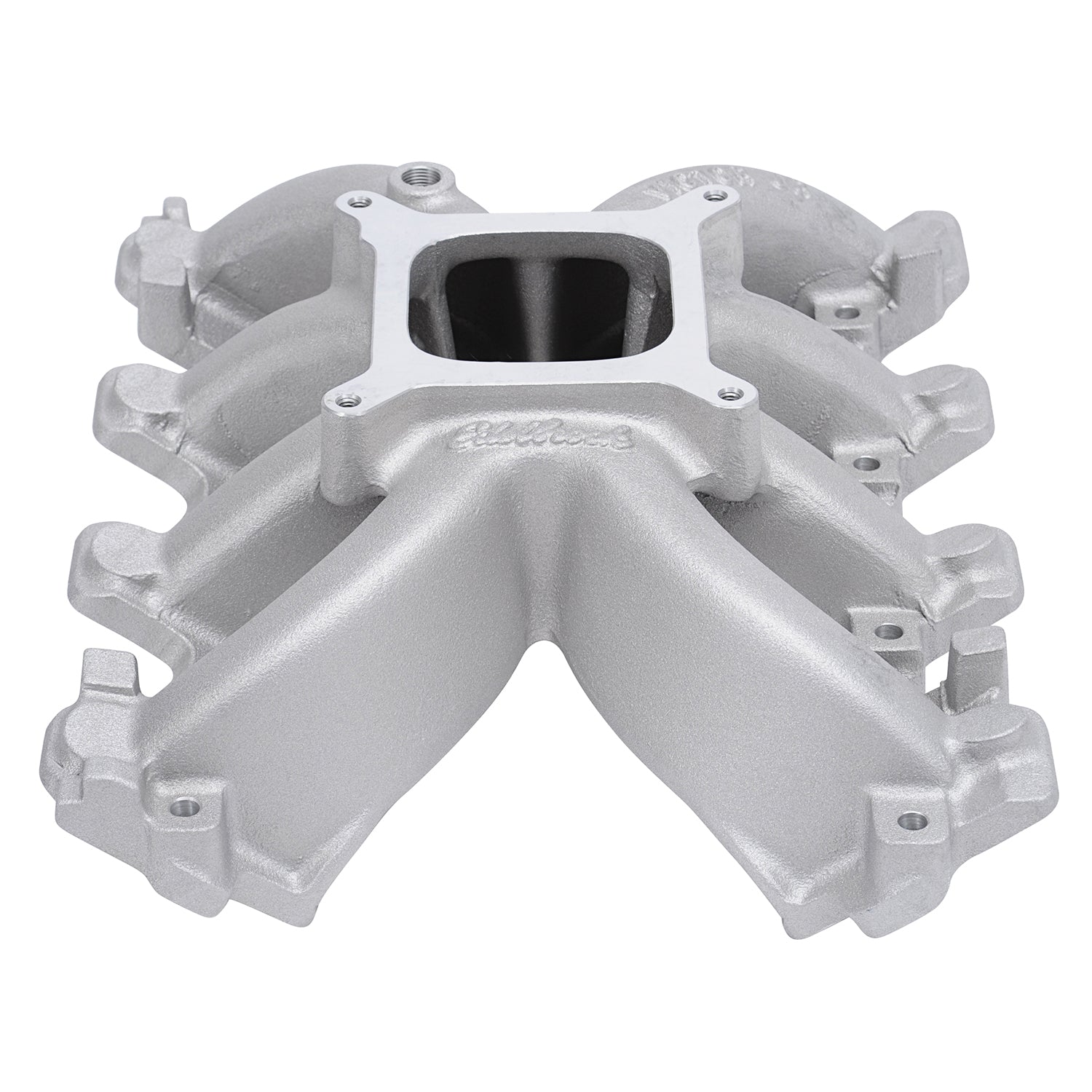

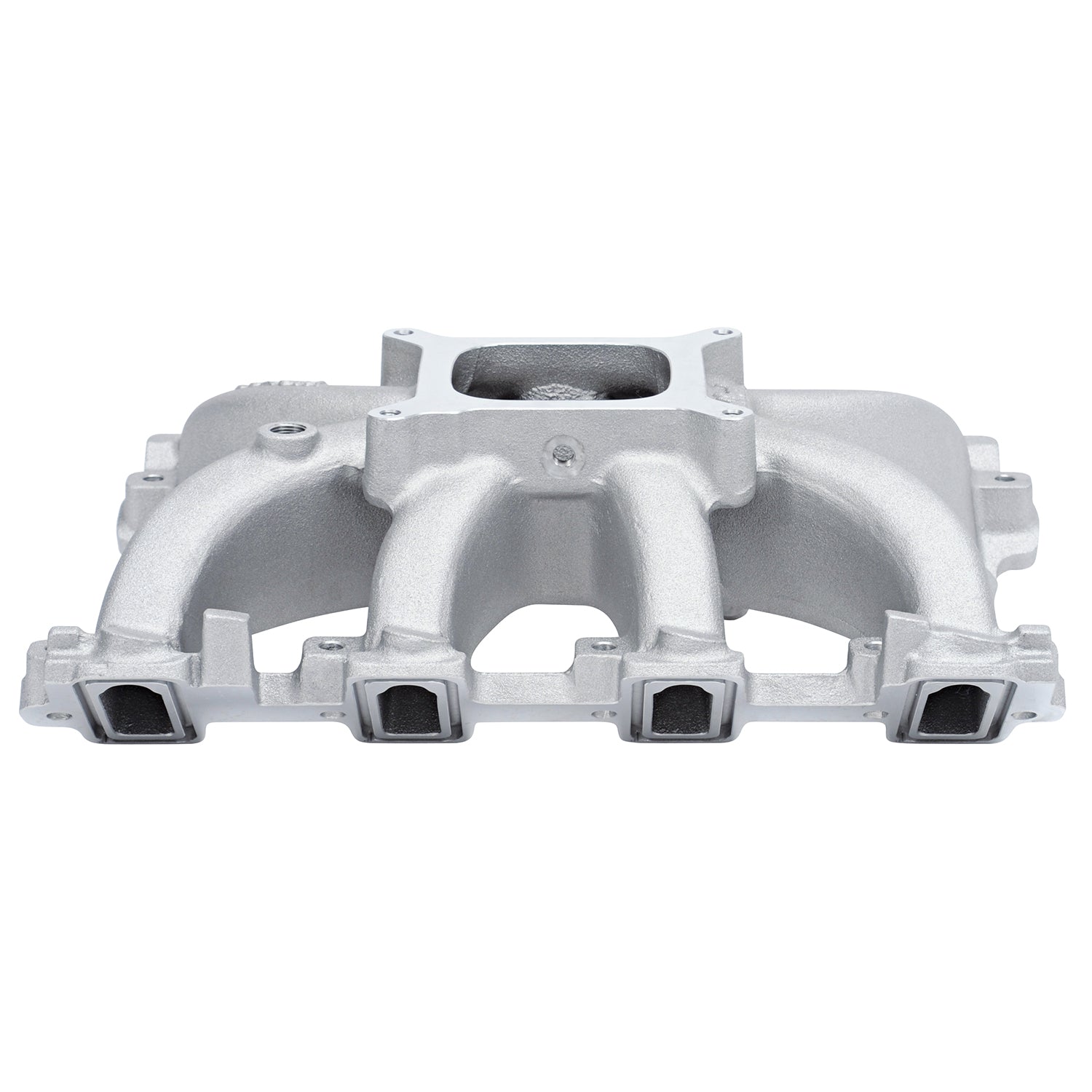

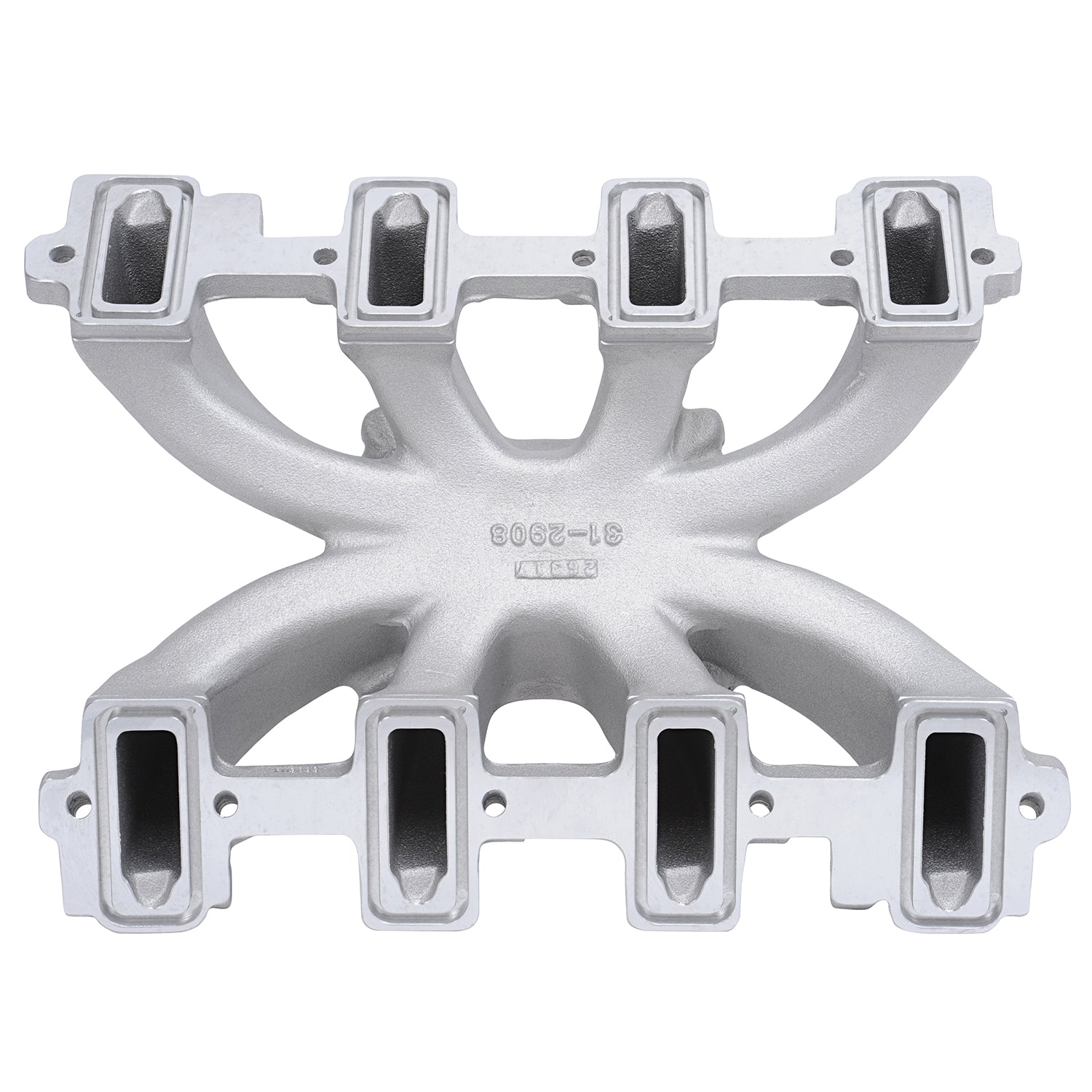

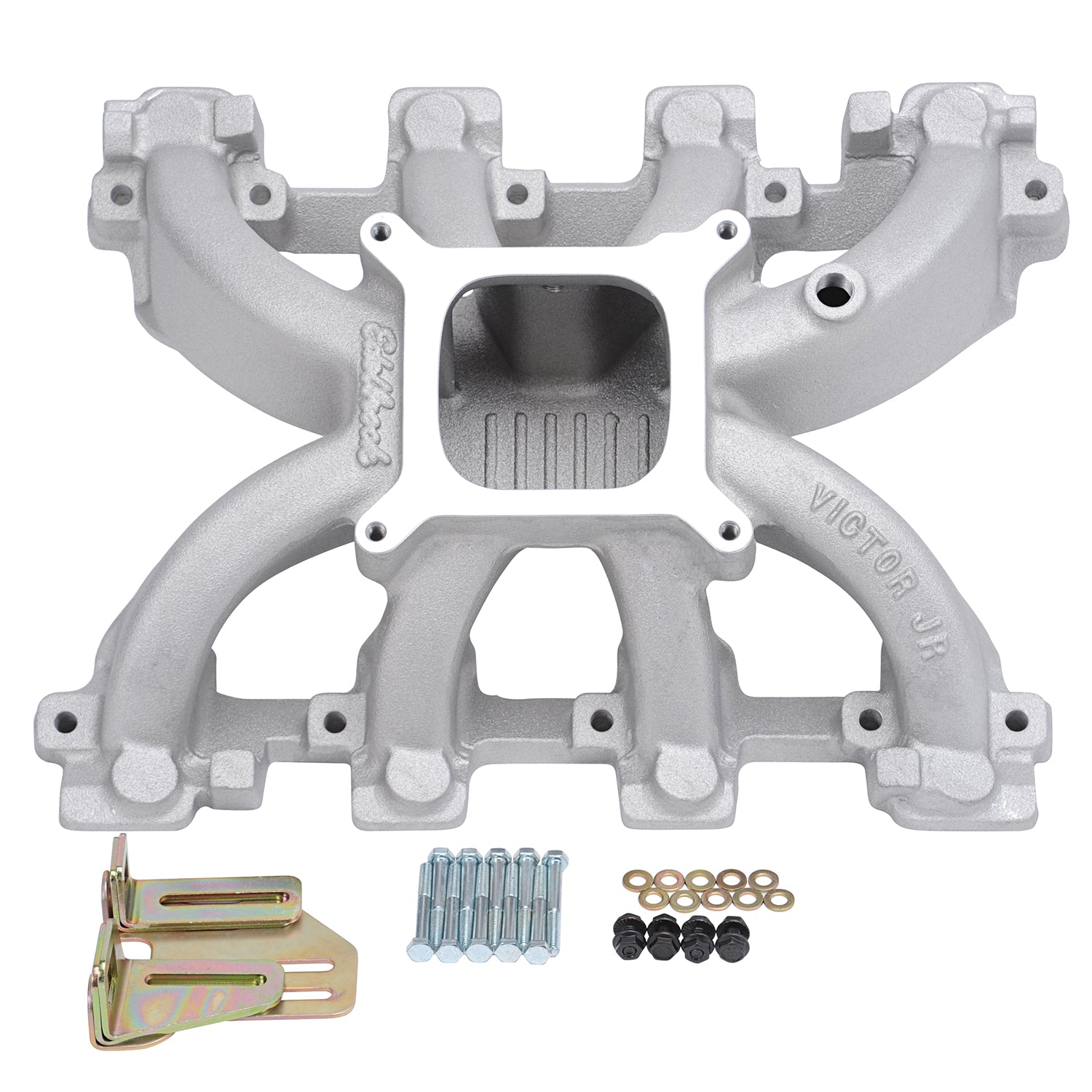

Edelbrock part #29087 Victor Jr. LS1 intake manifold is a high-rise single-plane intake capable of supporting up to 600 hp. The Victor Jr. LS1 features a flange that accepts a square-bore carburetors. It can be used on LS2 applications when matched with MSD's #6012 LS2 ignition controller (available through MSD Performance). Includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Most applications will require hood modification.
Edelbrock Victor Jr. LS1 Carbureted Intake Manifold Only For Chevrolet LS Gen III
Specifications
| Gasket Or Seal Included |
No |
| Rear Maximum Height |
4.950 IN |
| EGR Port |
No |
| Basic Operating RPM Range |
3500-7500 R3 |
| Front Maximum Height |
4.950 IN |
| Material |
Aluminum |
| Finish |
Satin |
| Center Maximum Height |
4.950 IN |
| Flange Type |
4150 |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Series |
Victor |
| Vehicle Model |
Chevrolet |
| CNC Ported |
No |
