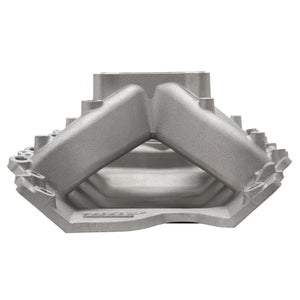

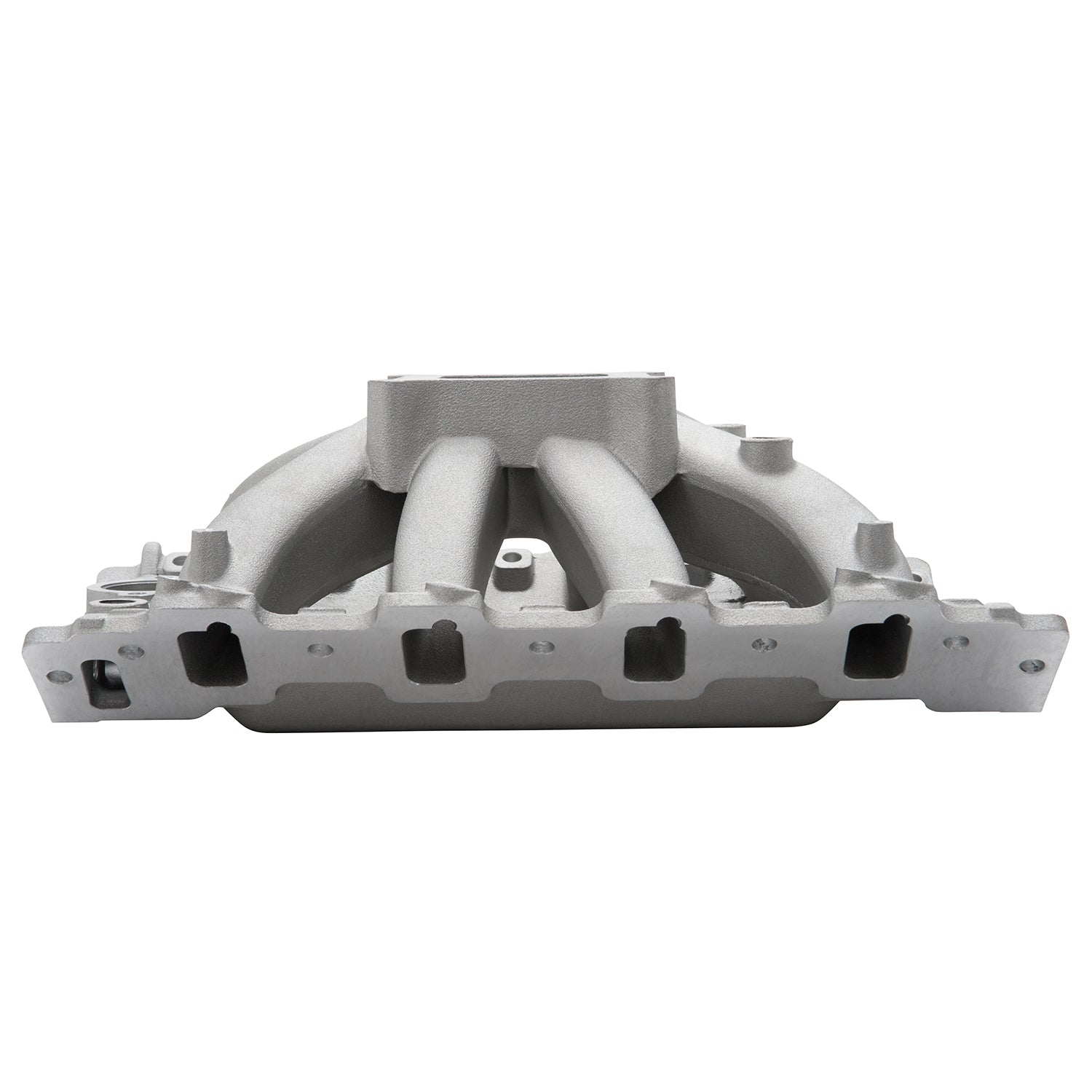

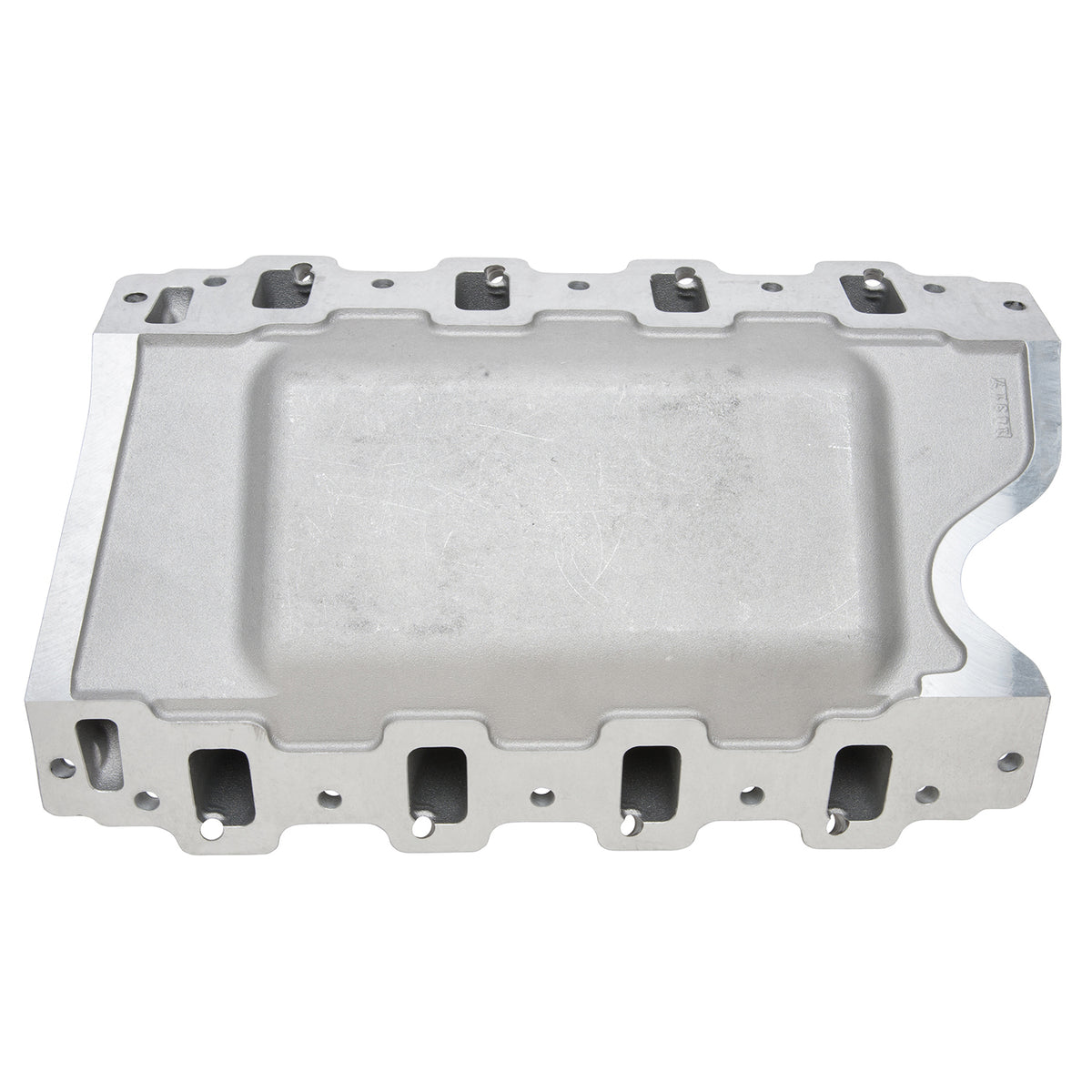

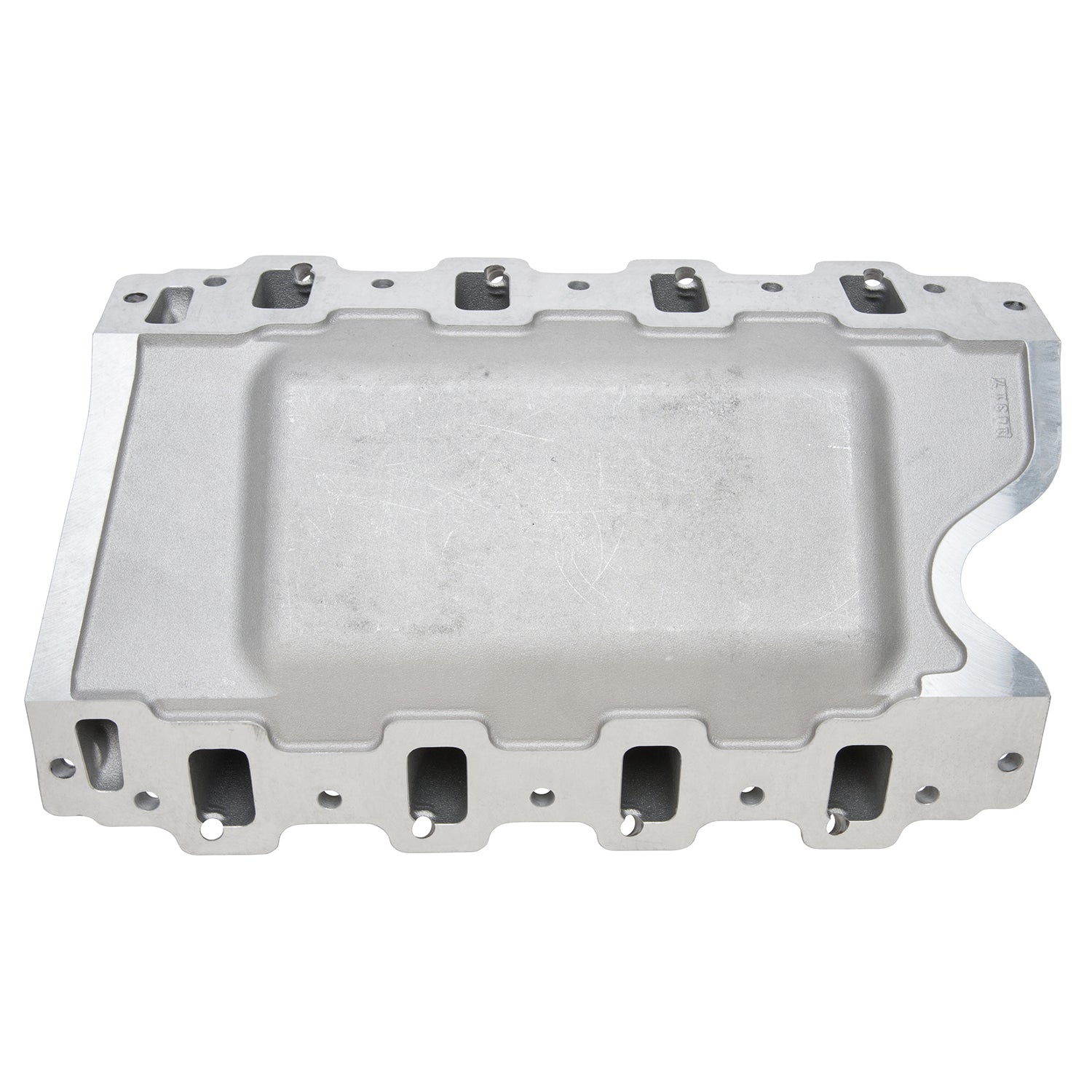

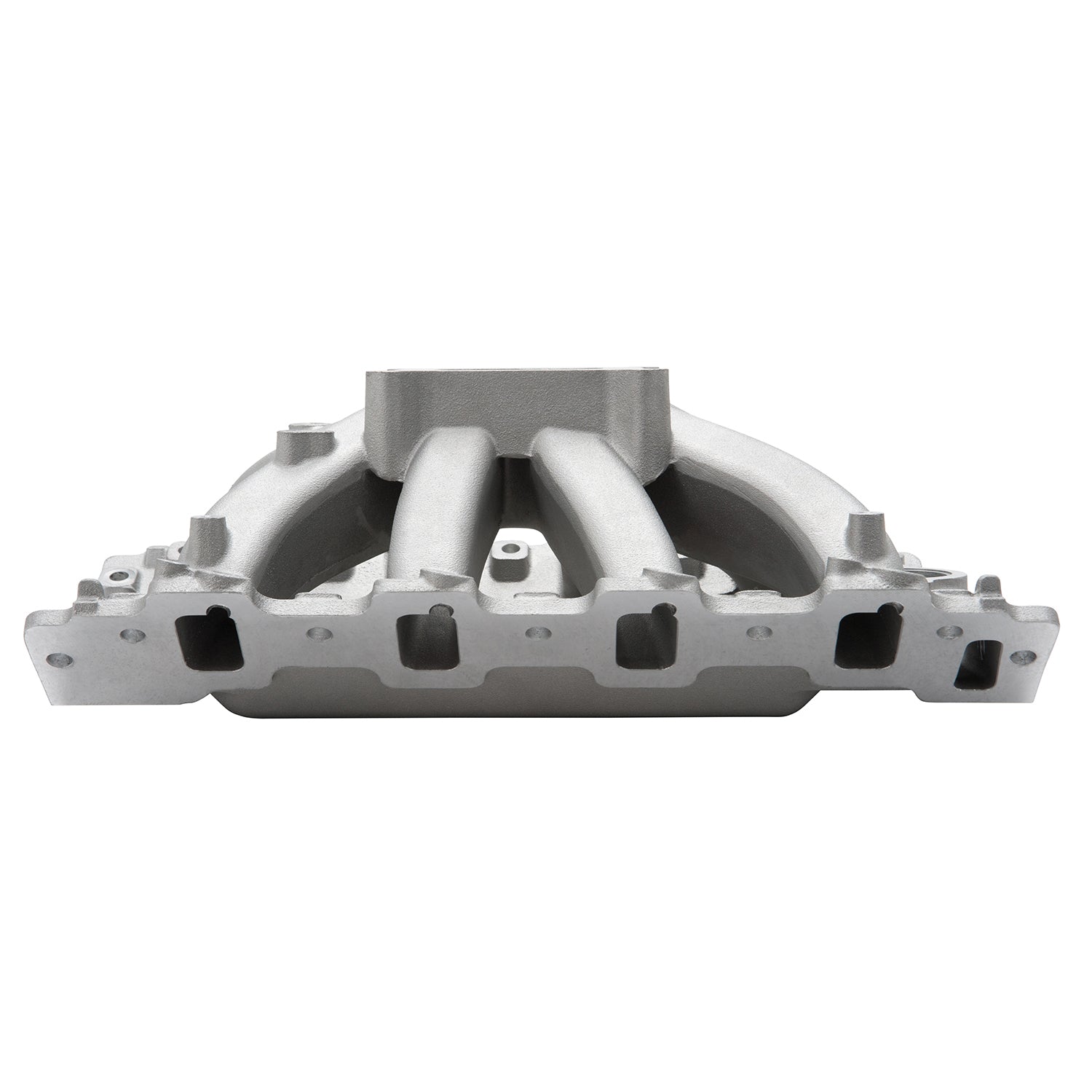

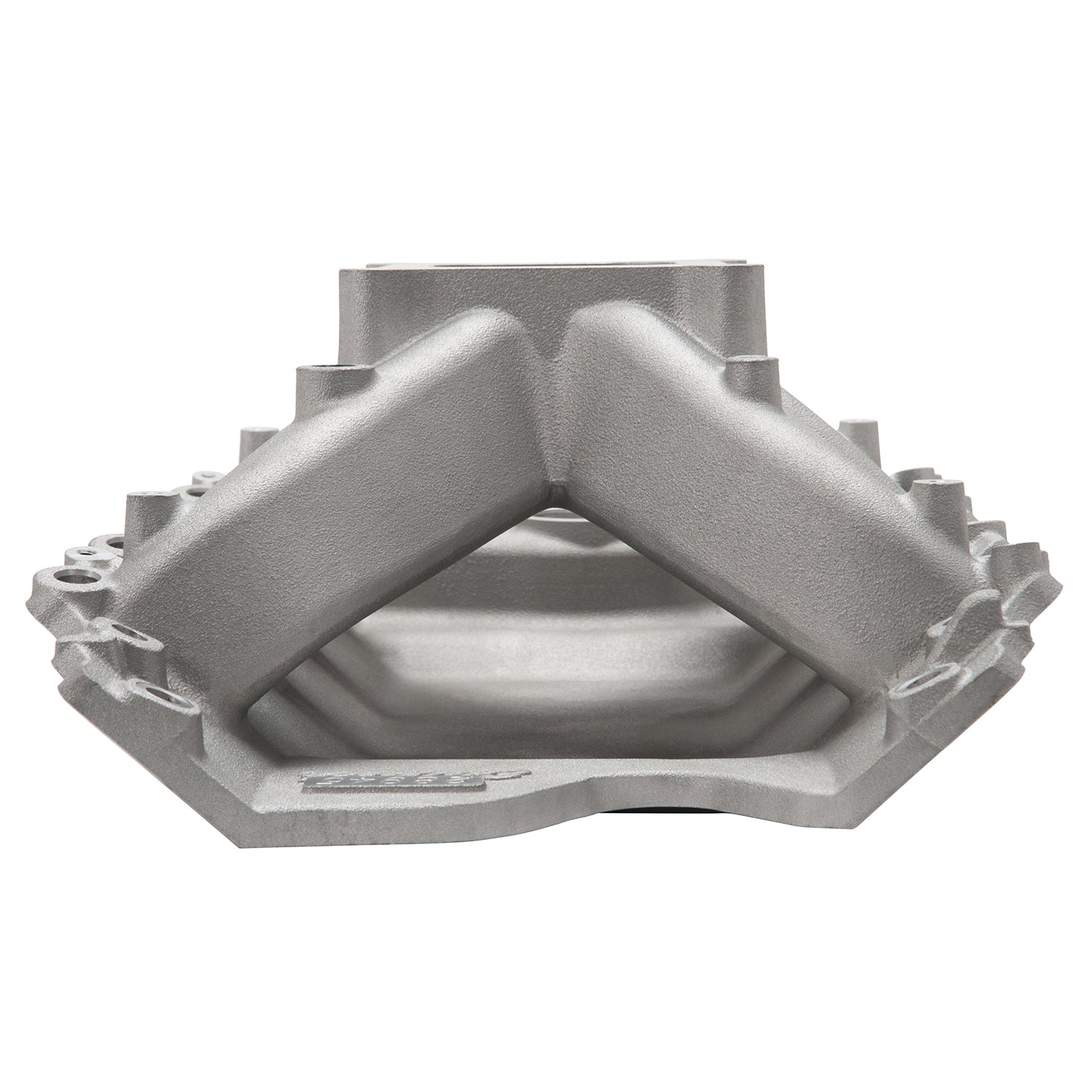

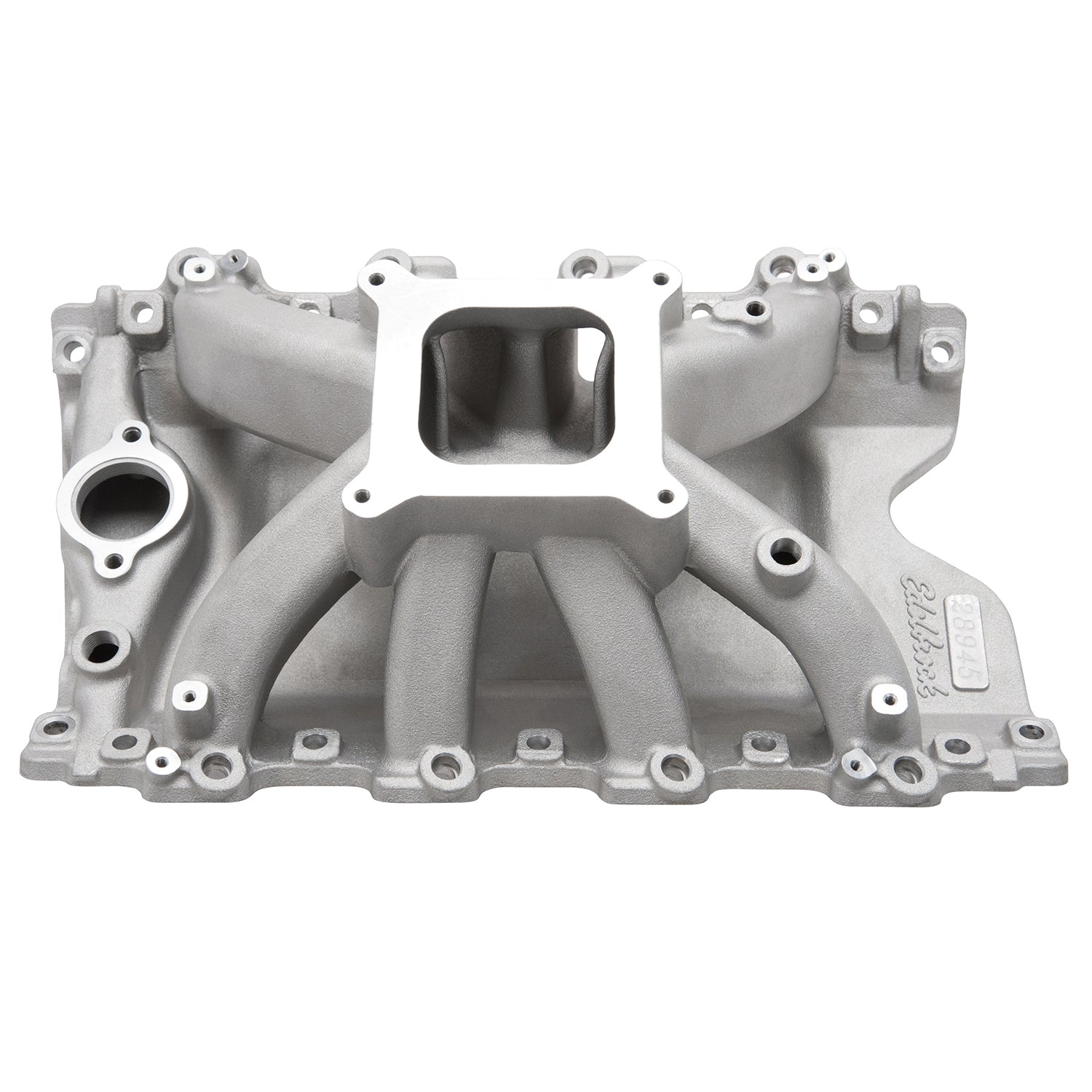

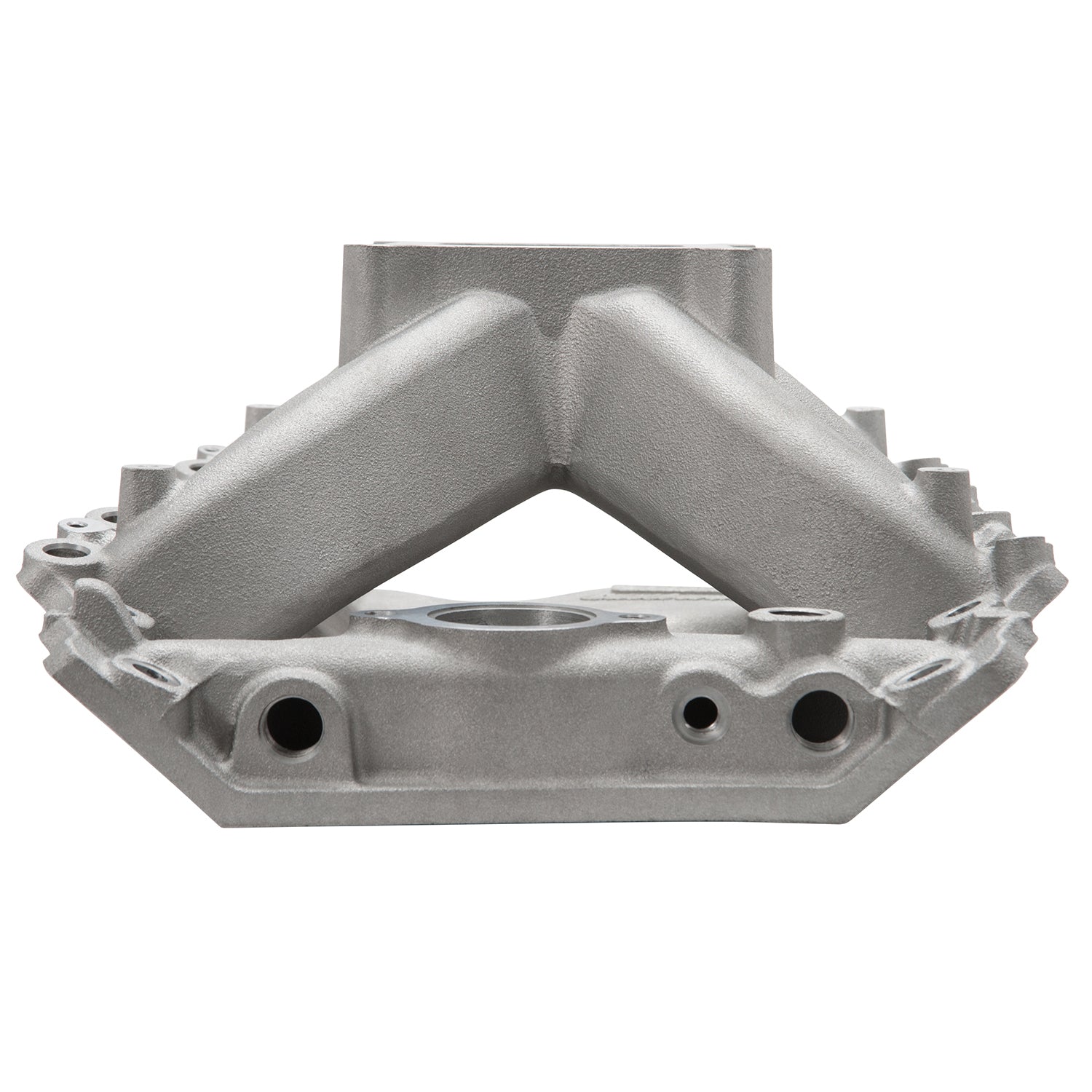

Edelbrock part #28945 Victor Jr. Holden EFI intake manifold is for use with competition 355+ c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. The Victor Jr. Holden is a single-plane design that is tuned for maximum air flow from 3500 to 7500 rpm. It features a taller design with long tapered runners for a broad operating rpm range. Will fit both stock 1988-1998 EFI style cylinder heads and the Edelbrock Holden VN RPM cylinder heads. It also features a 4150 flange for use with square-bore carburetors and throttle bodies. Includes extra material for porters to modify for use with 4500 series applications. The water outlet is machined for use with a small-block Chevy waterneck.
Edelbrock Victor Jr Holden Intake Manifold EFI
Specifications
| Gasket Or Seal Included |
No |
| Basic Operating RPM Range |
3500-7500 R3 |
| Material |
Aluminum |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| Center Maximum Height |
6.950 IN |
| CNC Ported |
No |
| Vehicle Model |
Holden |
| Rear Maximum Height |
6.950 IN |
| Finish |
Satin |
| Flange Type |
4150 |
| Series |
Victor |
| Front Maximum Height |
6.950 IN |
| EGR Port |
No |
