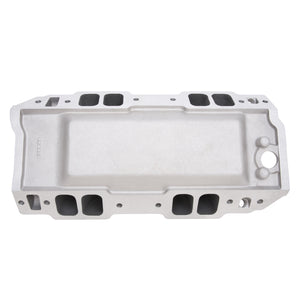

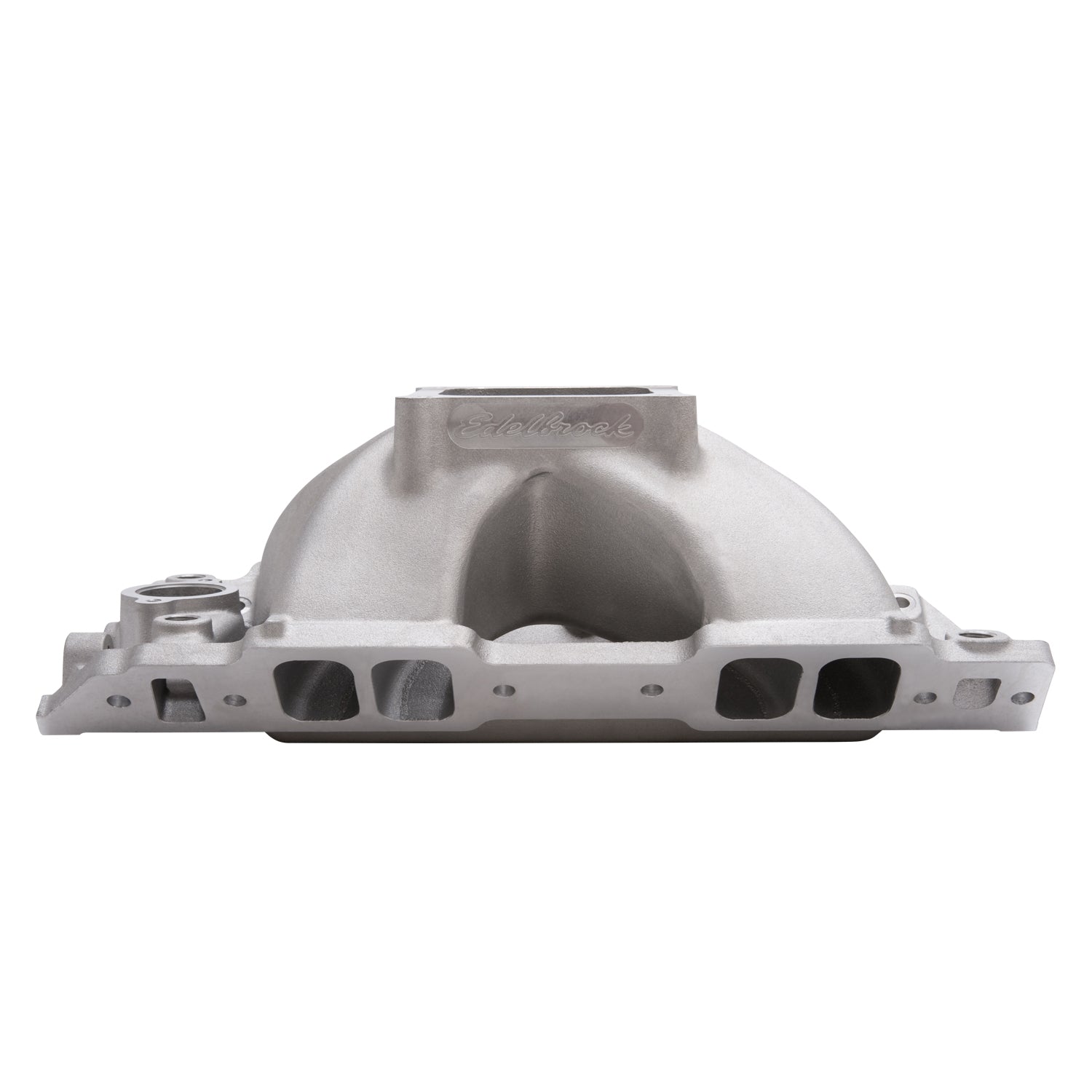

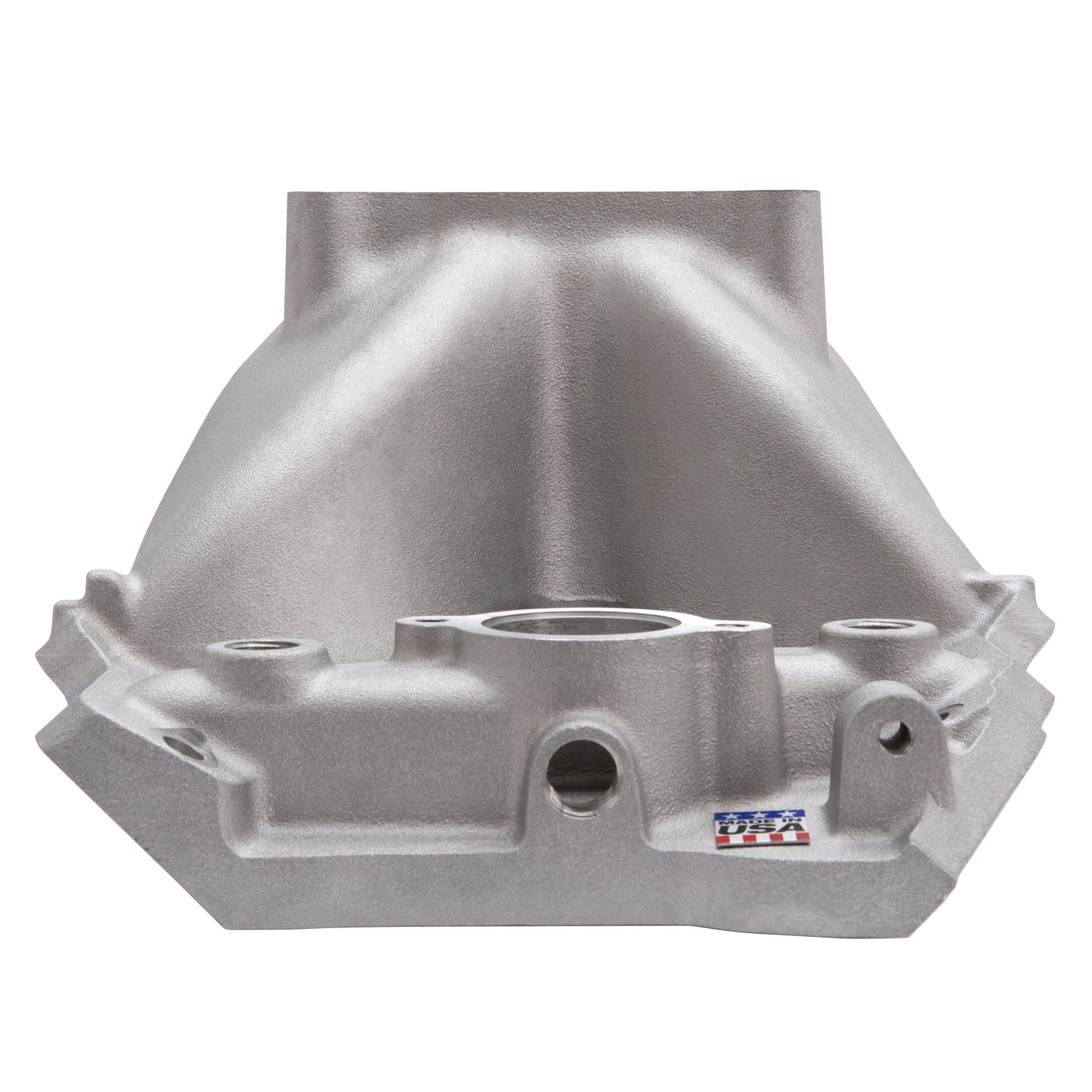

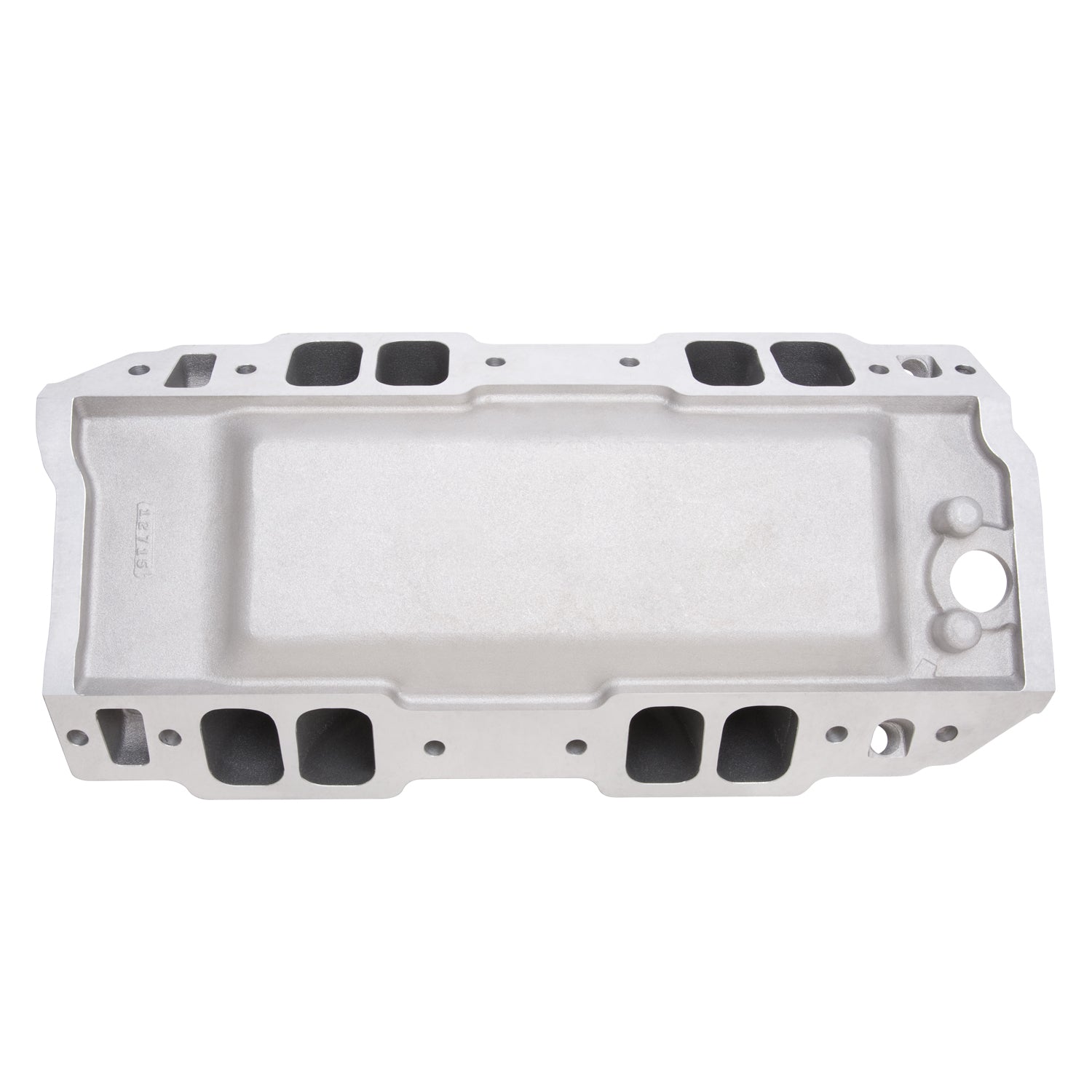

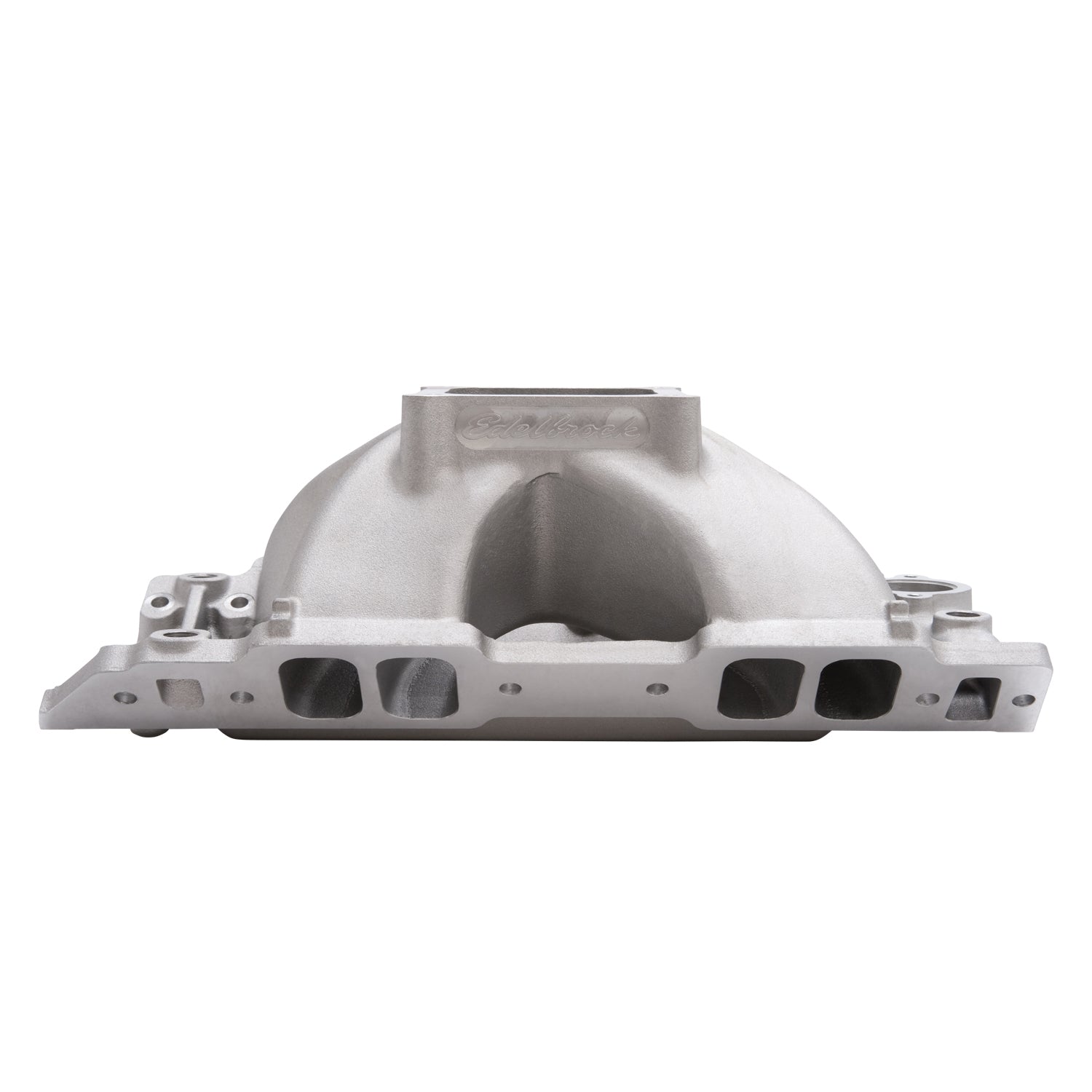

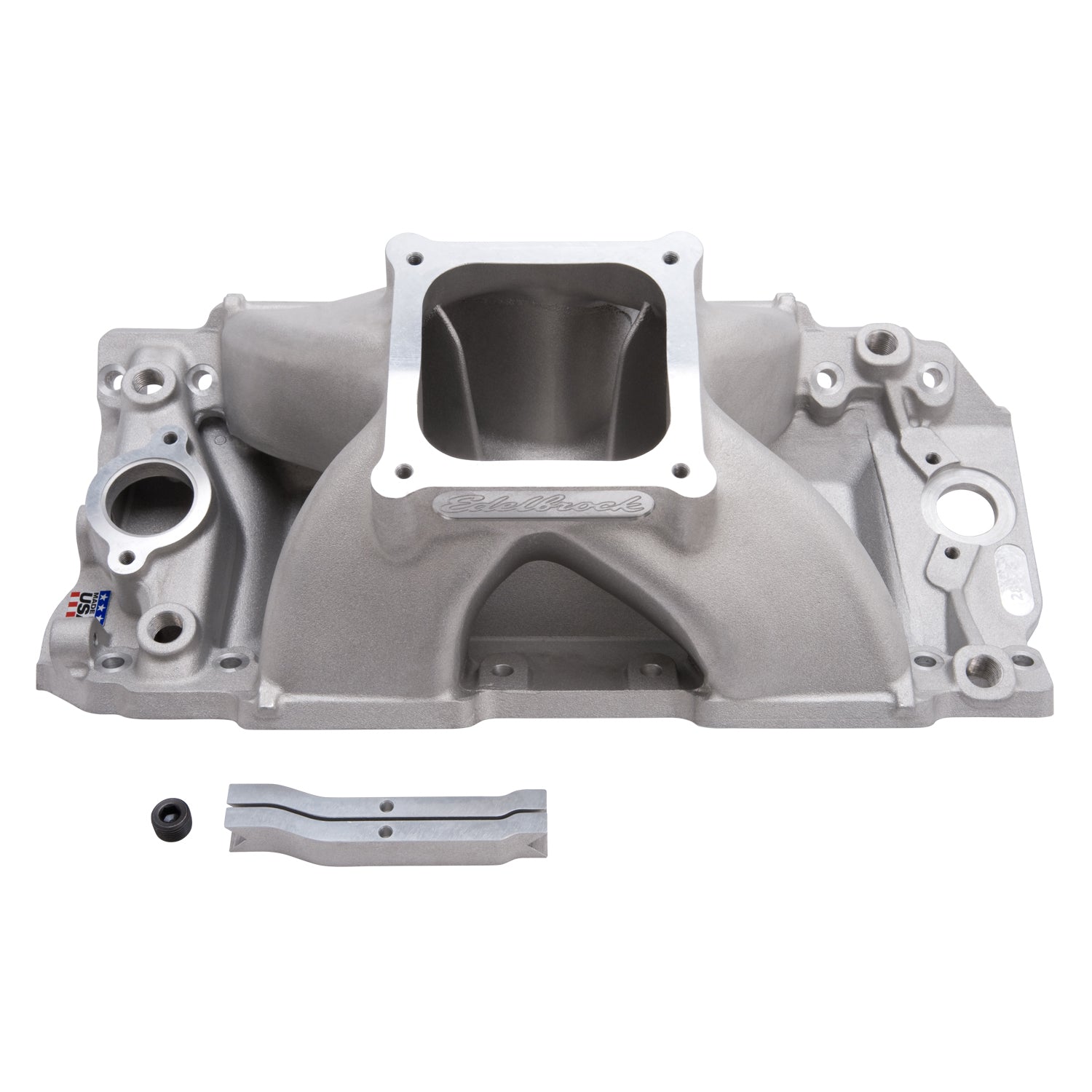

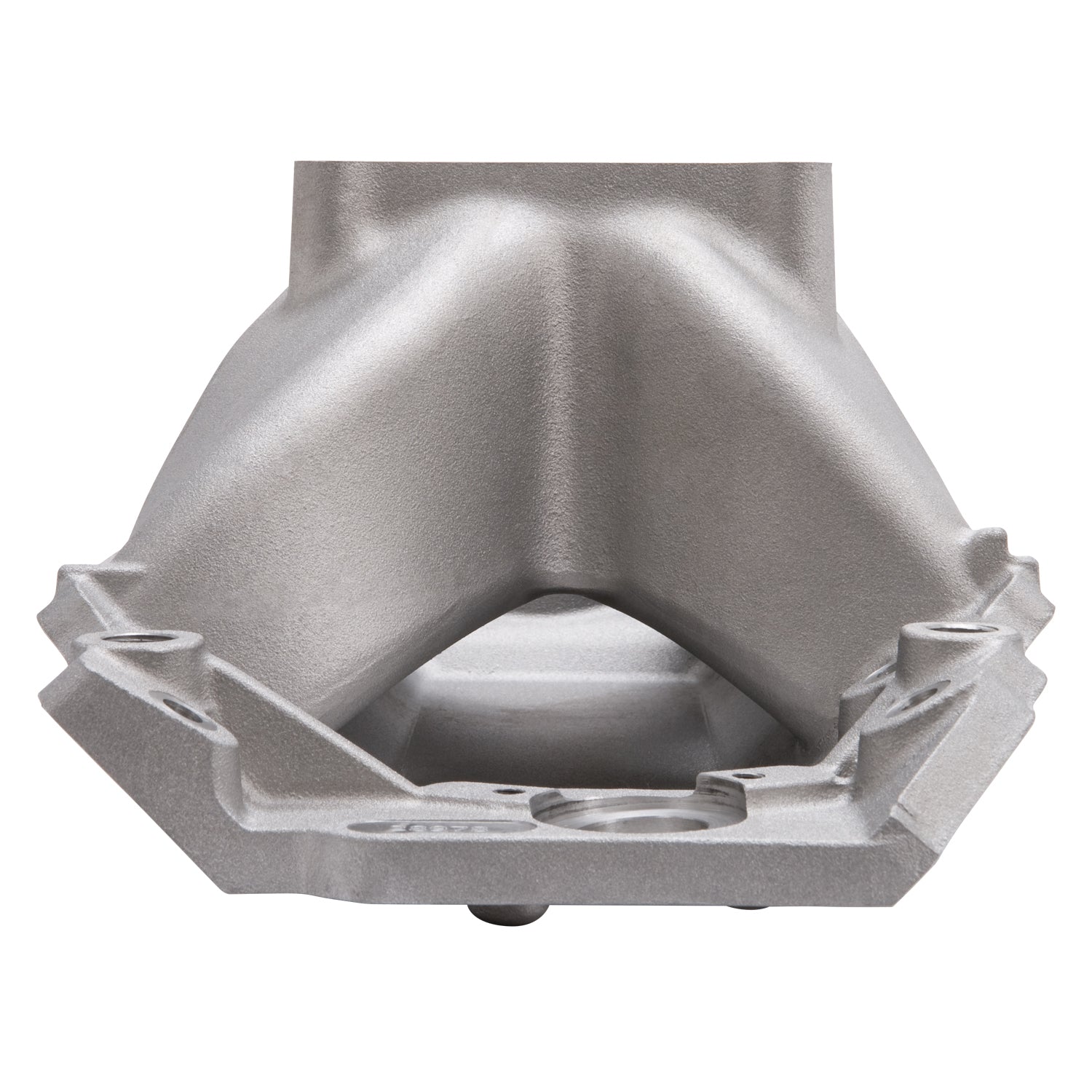

Edelbrock part #28978 Super Victor II intake manifold is designed for use with large cubic inch big-block Chevy Tall-Deck engines using the latest design conventional rectangular port heads. This single-plane intake manifold is ideal for any 1,000+ horsepower drag race engine with high air flow requirements. The Super Victor II intake manifold is machined for use on tall-deck (10.2") blocks with Brodix SR20 cylinder heads with no modifications out of the box. Accepts standard height distributors. All manifolds have an extra large carburetor outer flange with a 5" x 5" opening to fit high flow carburetors and throttle stops.
Edelbrock Super Victor II Tall Deck Intake Manifold for use with Brodix SR20 Heads for Chevrolet Big-Block V8
Specifications
| Series |
Victor |
| Vehicle Model |
Chevrolet |

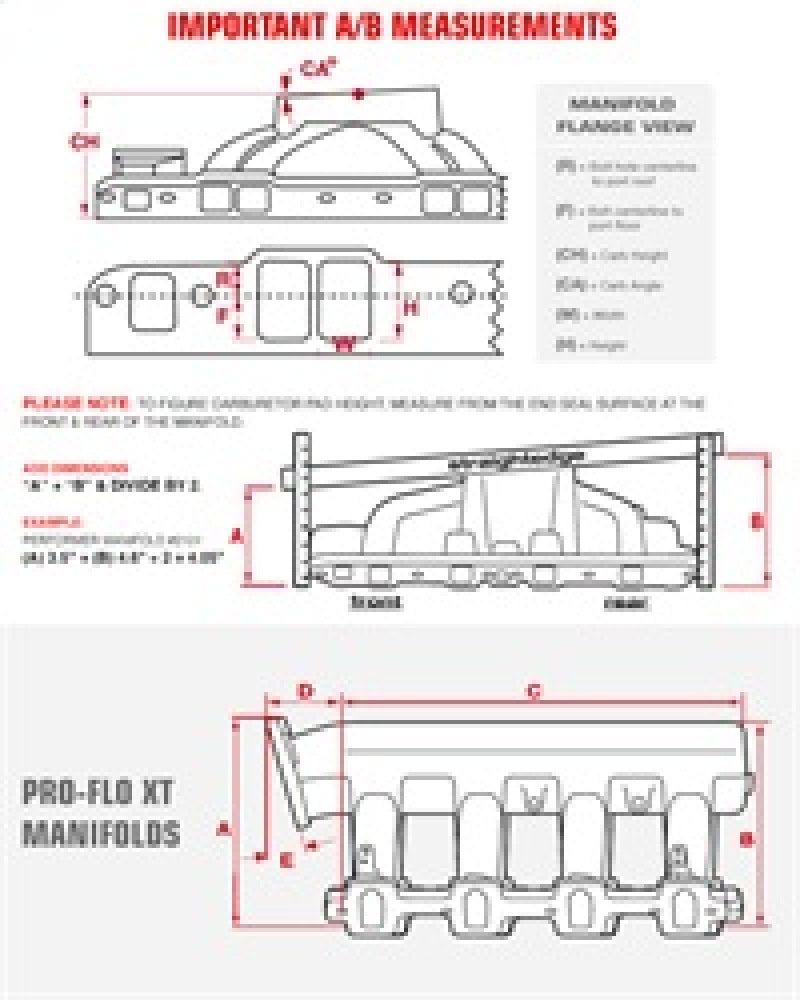

| Rear Maximum Height |
7.280 IN |
| CNC Ported |
No |
| Flange Type |
4500 |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
7.280 IN |
| Front Maximum Height |
7.280 IN |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Single |
| EGR Port |
No |
| Material |
Aluminum |
| Finish |
Satin |
| Basic Operating RPM Range |
3500-8500 R3 |
California Prop 65 Warning: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
