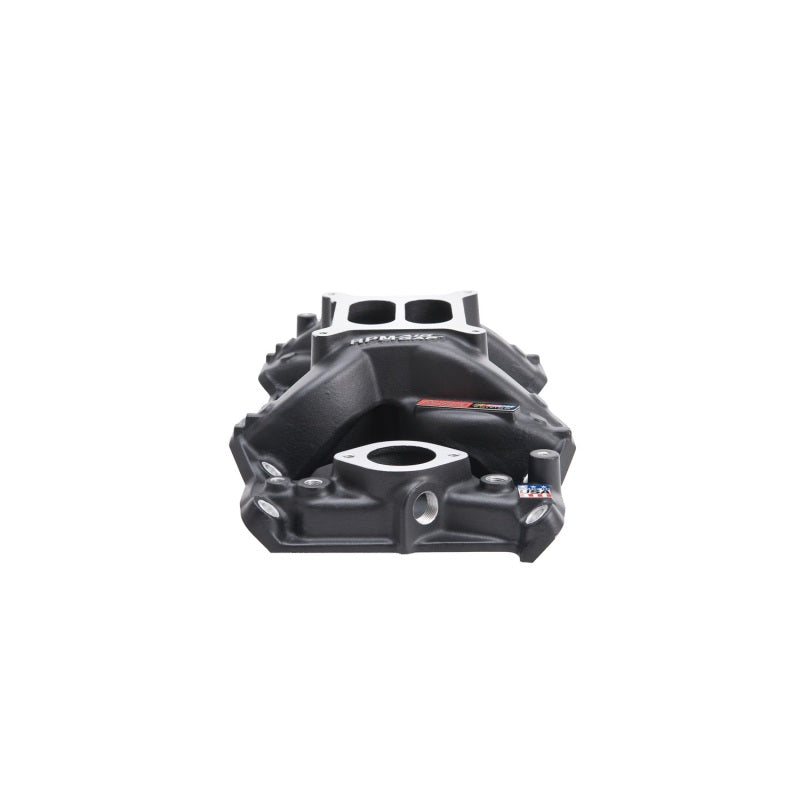

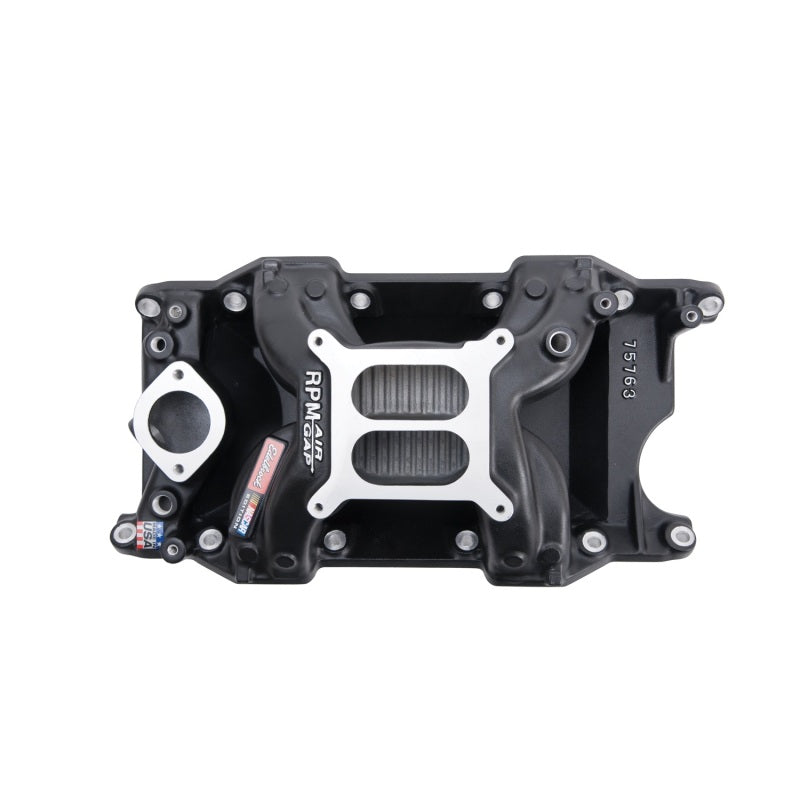

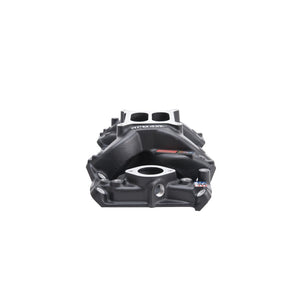

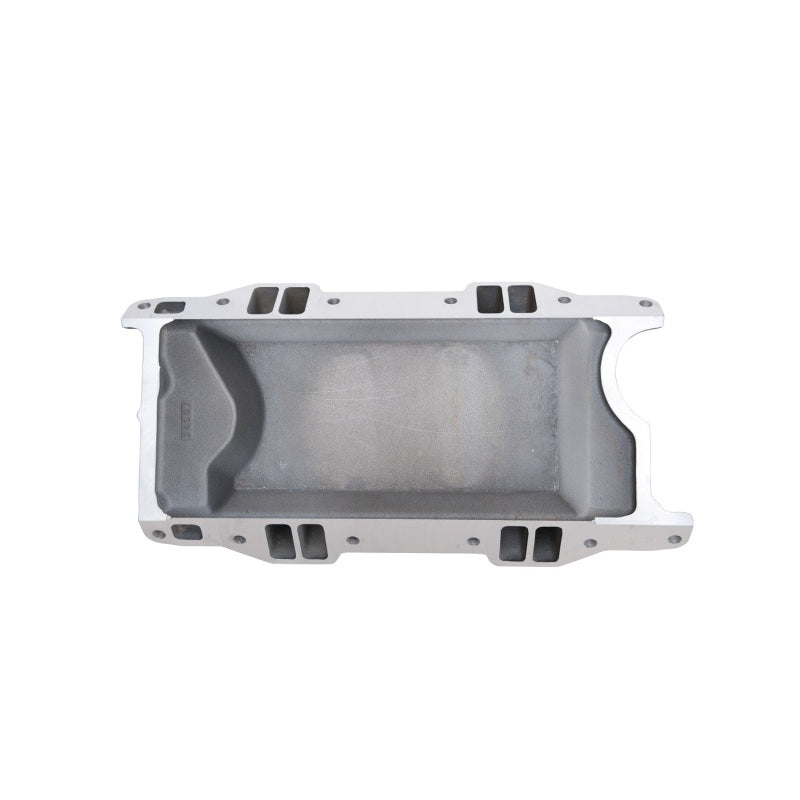

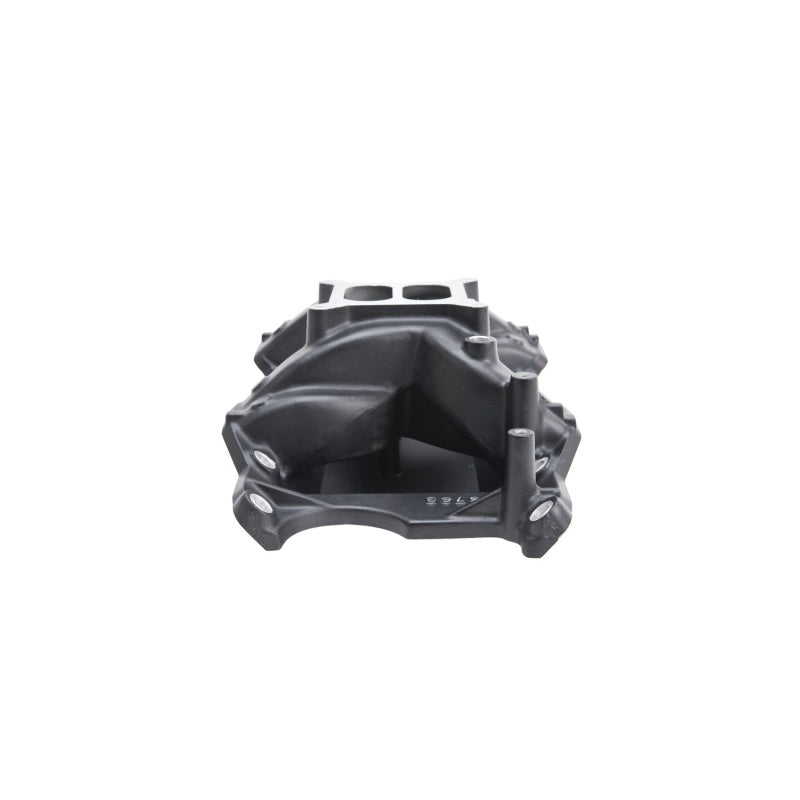

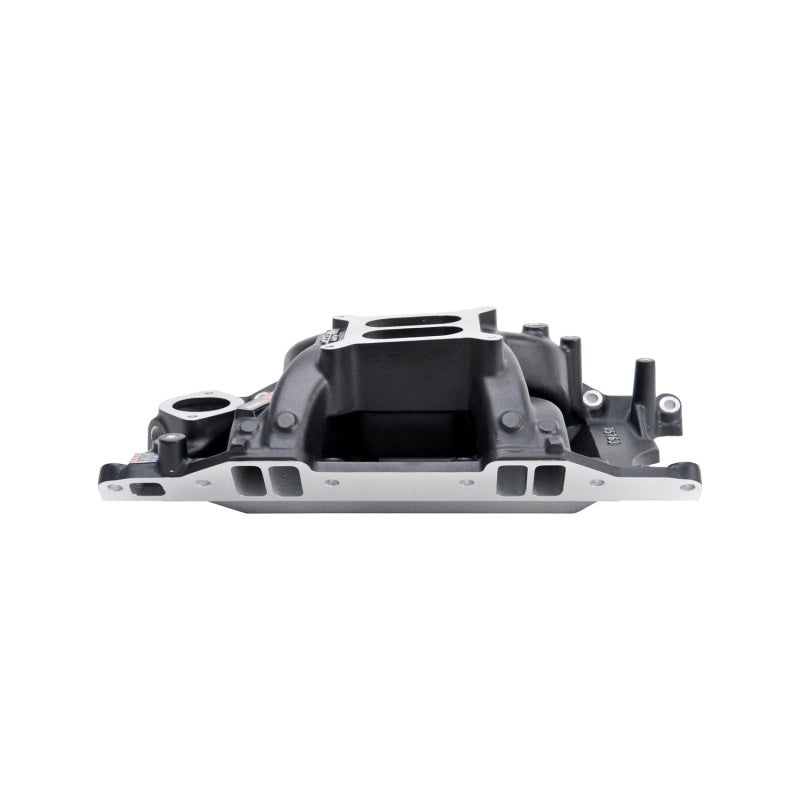

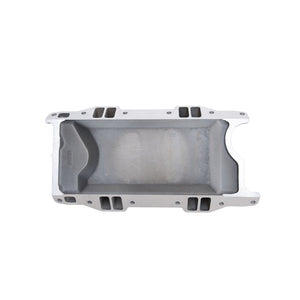

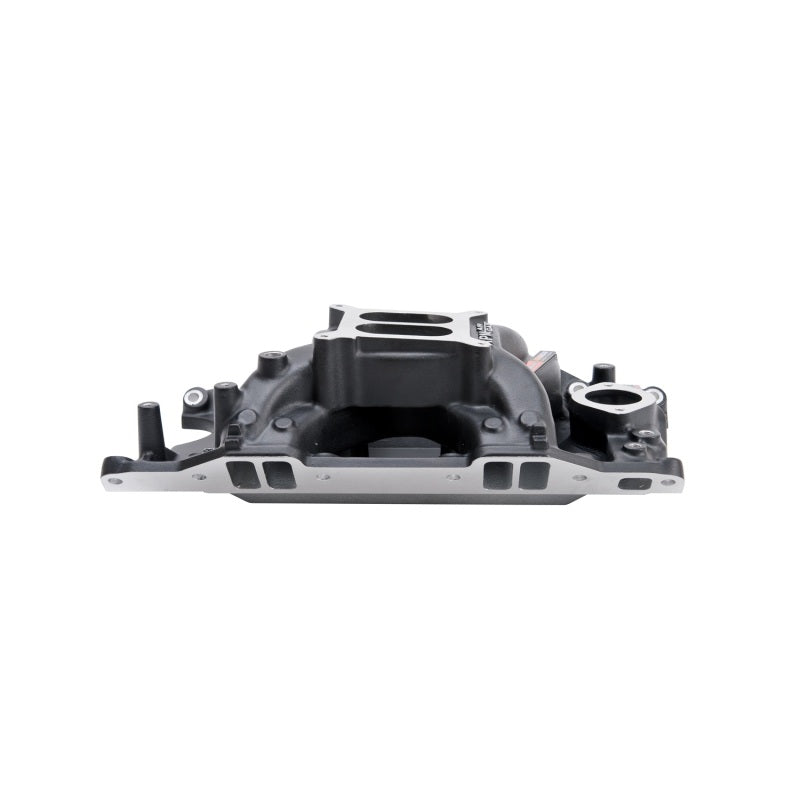

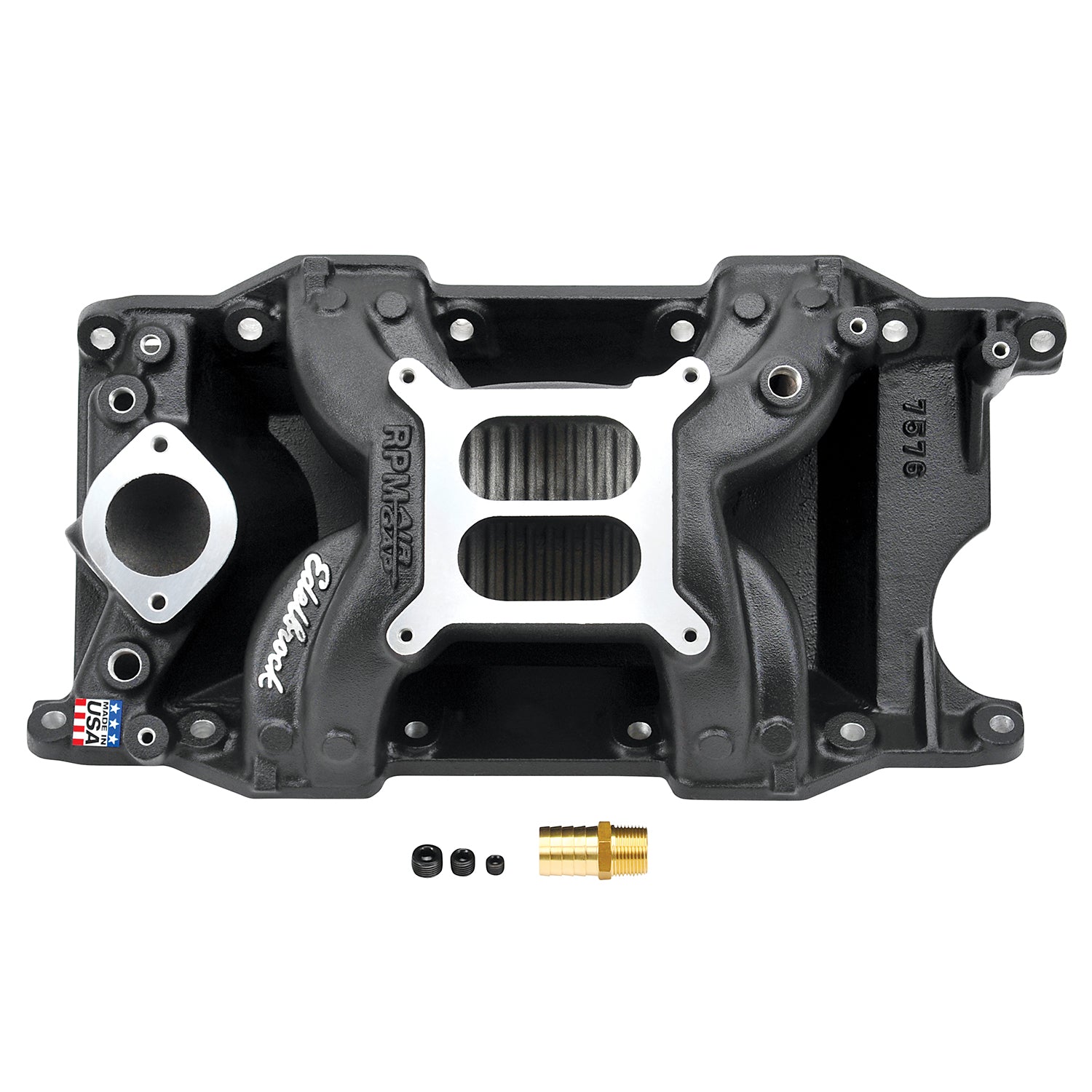

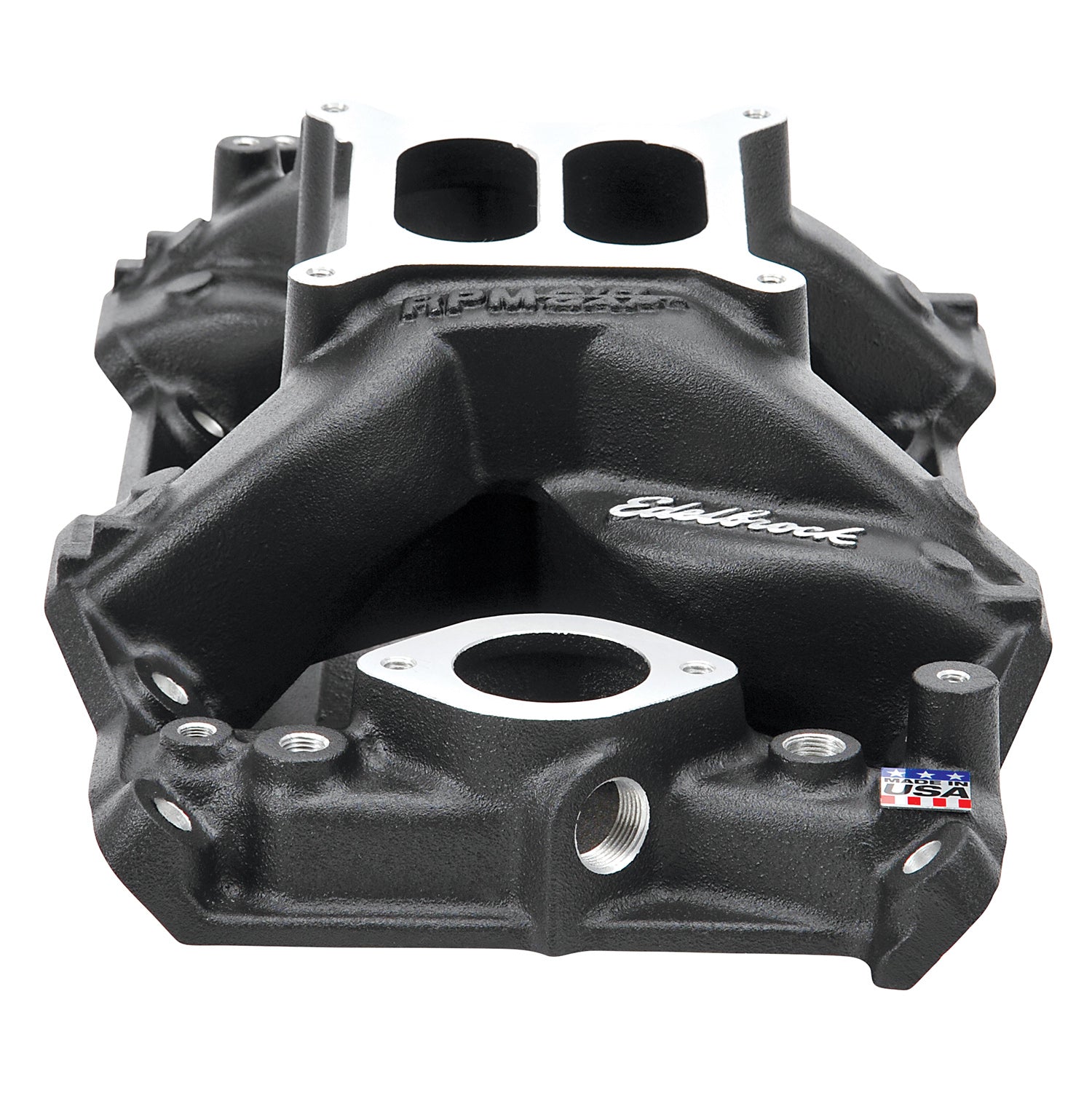

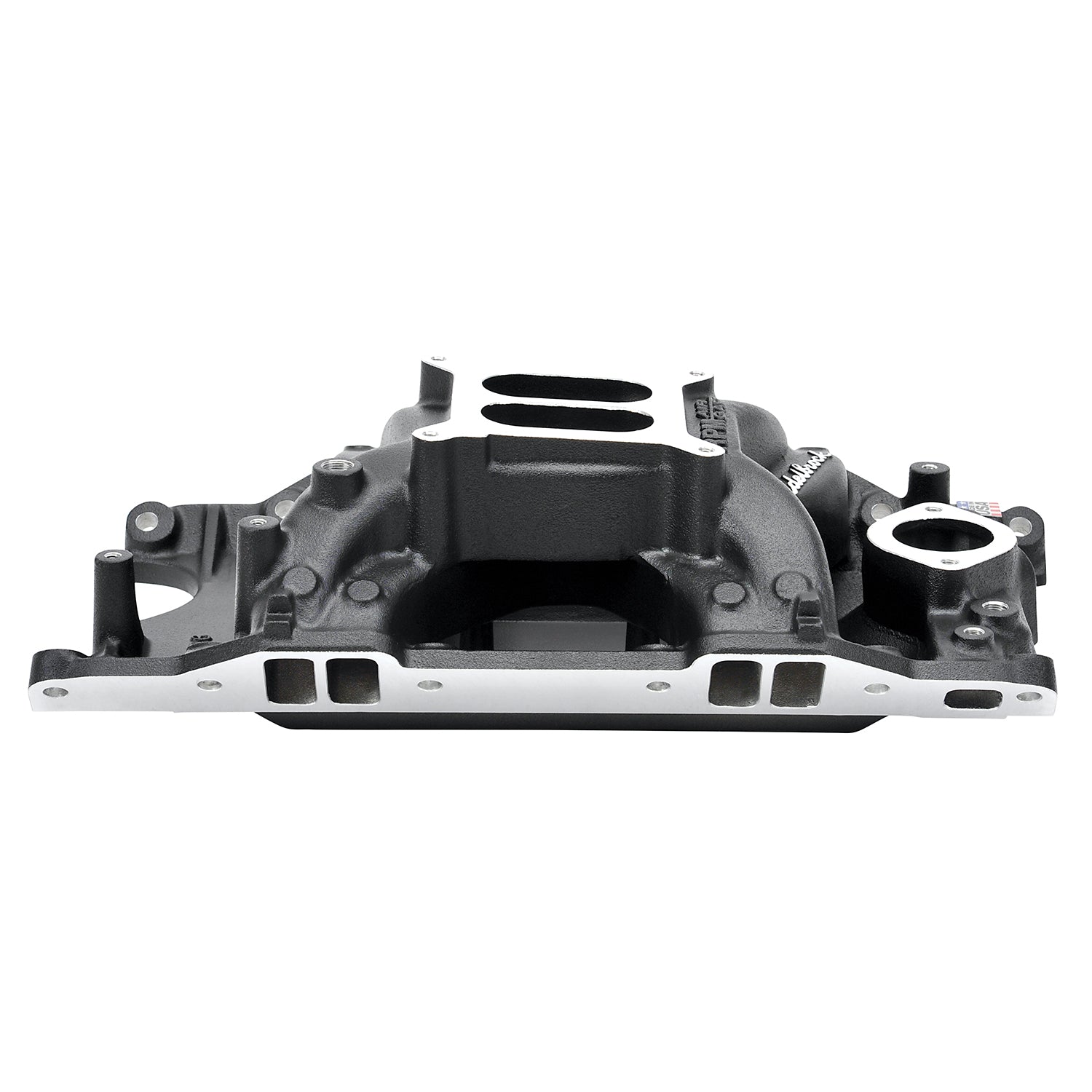

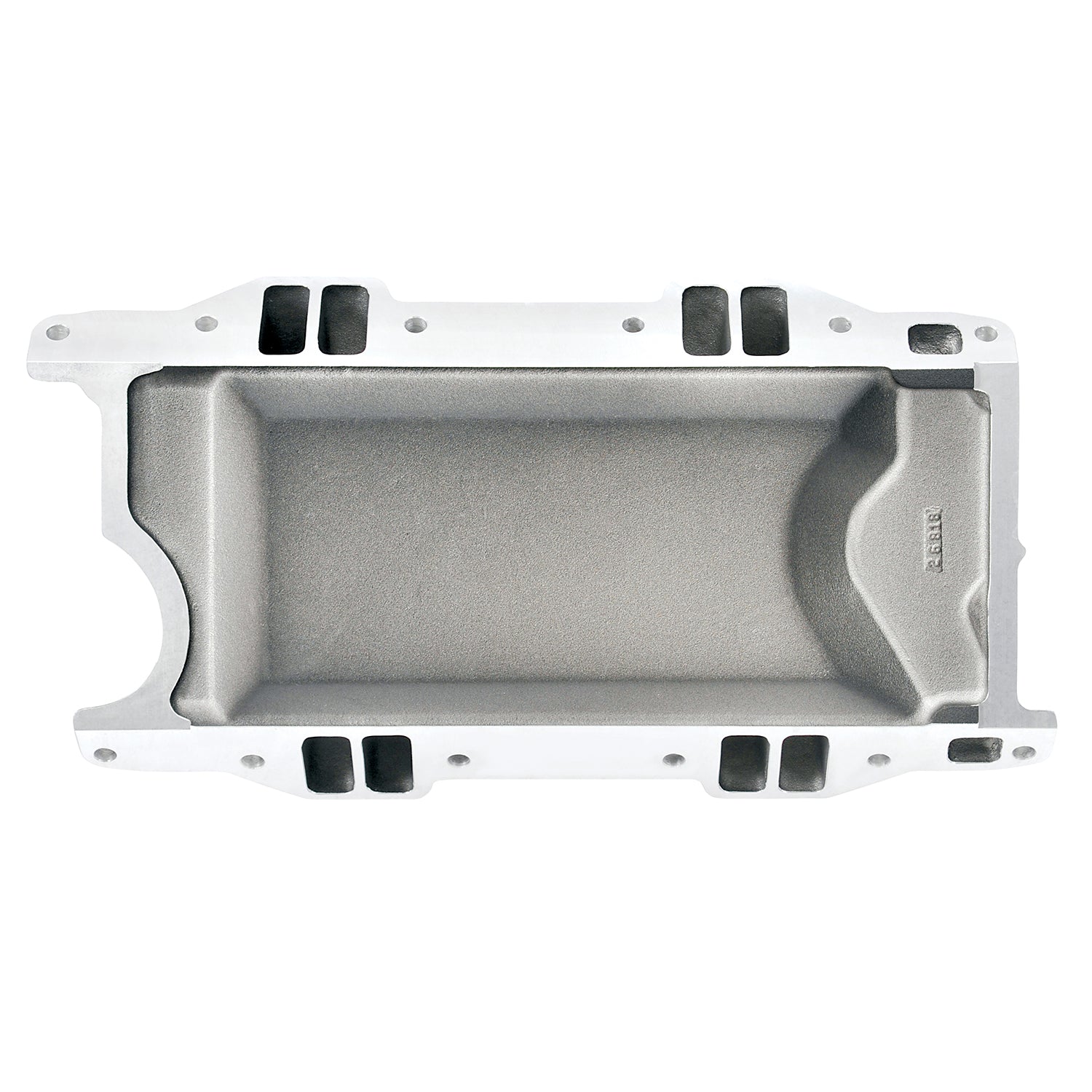

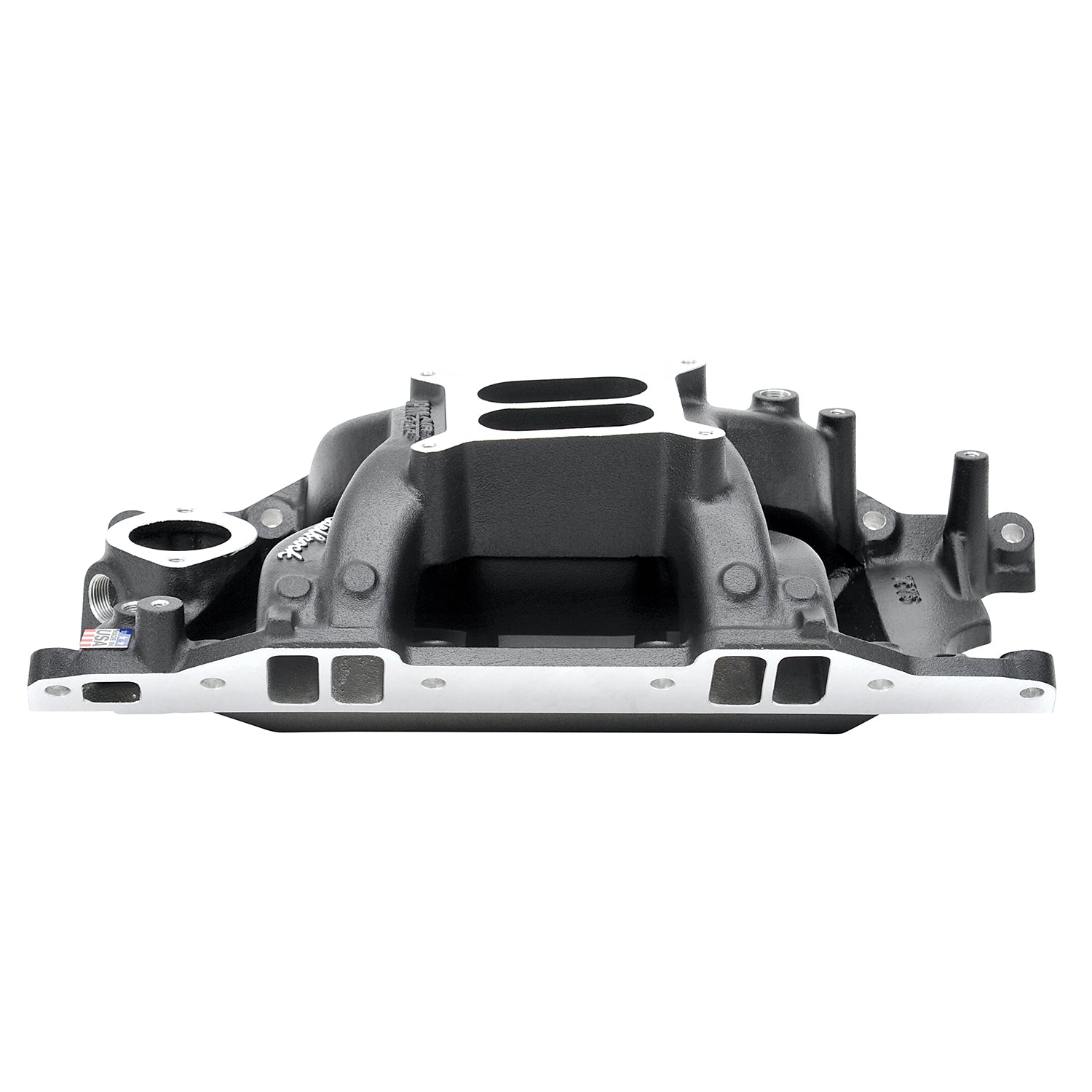

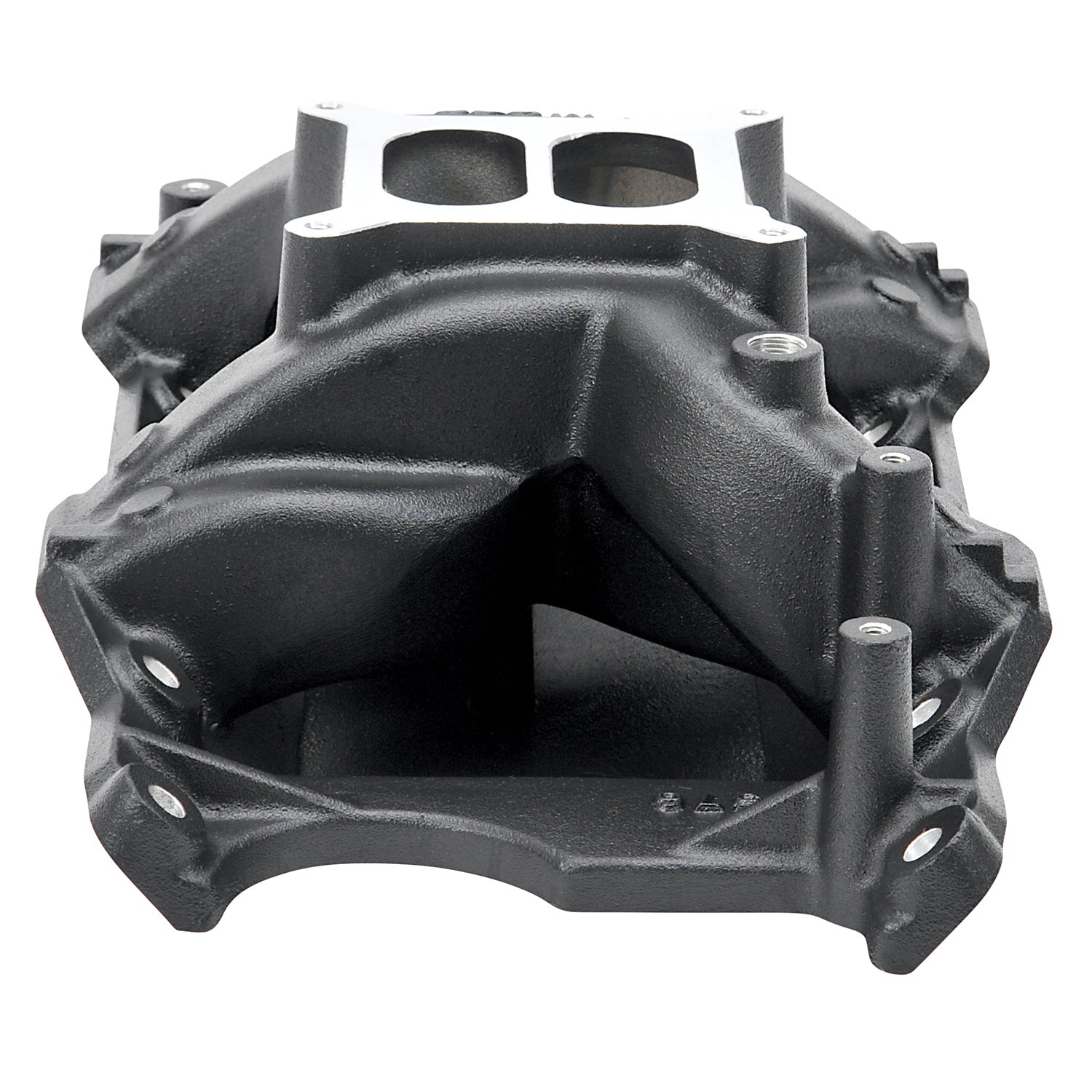

Edelbrock part #75763 RPM Air-Gap intake manifold is designed for 340-360 c.i.d. Chrysler V8's and 318 c.i.d. engines with 340-360 cylinder heads. The RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for years. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Accepts 1975 and earlier waterneck only. No provision for exhaust heated chokes and no exhaust crossover. Will not accept stock Thermo-Quad carburetor. Will not fit 1992 and later Magnum engines. Includes nitrous bosses. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Edelbrock RPM Air-Gap Intake Manifold for 318-340-360 Chrysler Small Block LA engines
Specifications

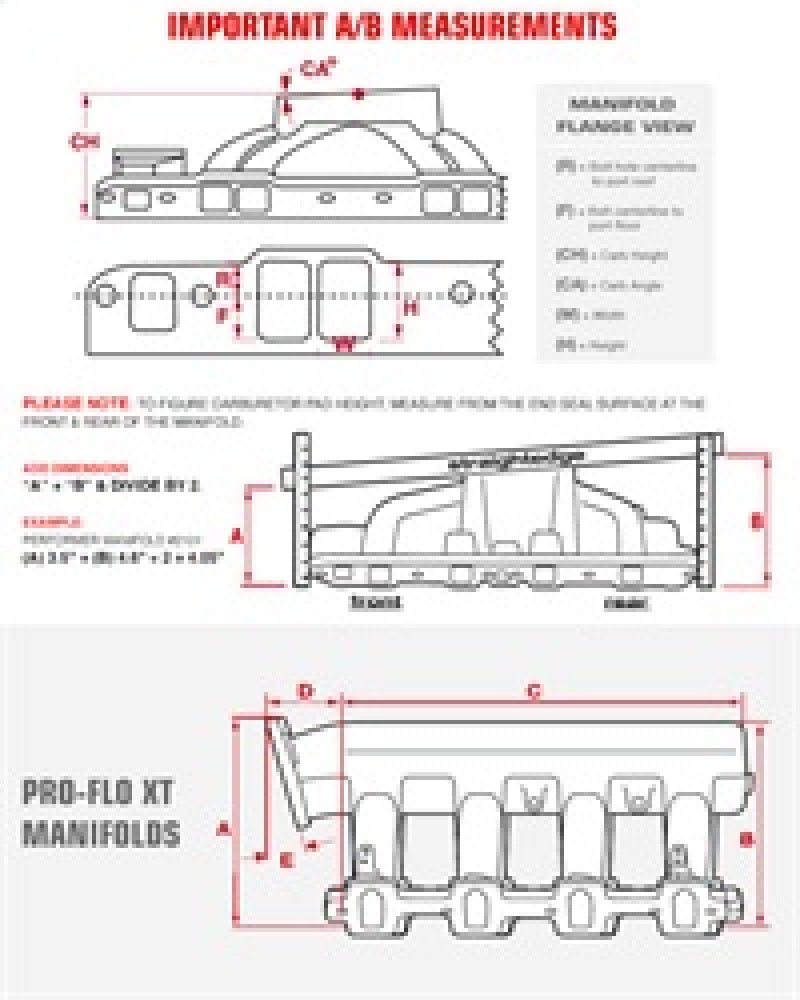

| Rear Maximum Height |
5.800 IN |
| Vehicle Model |
Chrysler |
| Finish |
Black Powder Coated |
| Center Maximum Height |
5.350 IN |
| EGR Port |
No |
| Material |
Aluminum |
| Flange Type |
4150 |
| Series |
RPM Air-Gap |
| Basic Operating RPM Range |
1500-6500 R3 |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Dual |
| CNC Ported |
No |
| Gasket Or Seal Included |
No |
| Front Maximum Height |
4.900 IN |
