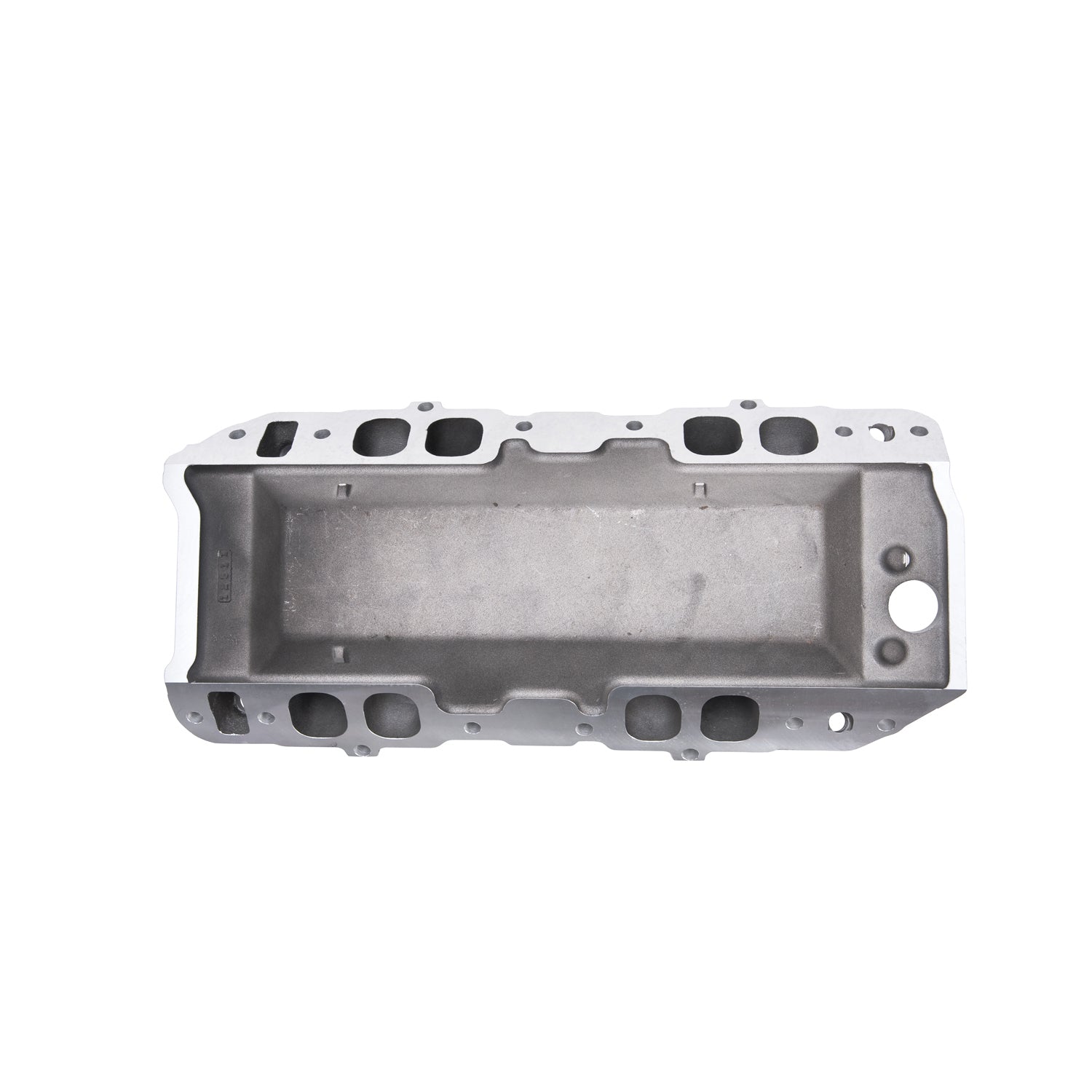

Edelbrock part #75613 RPM Air-Gap 2-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with large oval-port cylinder heads (1975 and earlier) or Edelbrock Performer/Performer RPM heads. The RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Includes rear water outlets, two distributor clamp locations and nitrous bosses. Accepts all late model alternator and A/C brackets for the street. For square bore carburetors only. Will not fit under stock hood of Corvette, 1964-67 Chevelle or 1967-81 Camaro. No provision for exhaust heated chokes and no exhaust crossover. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.

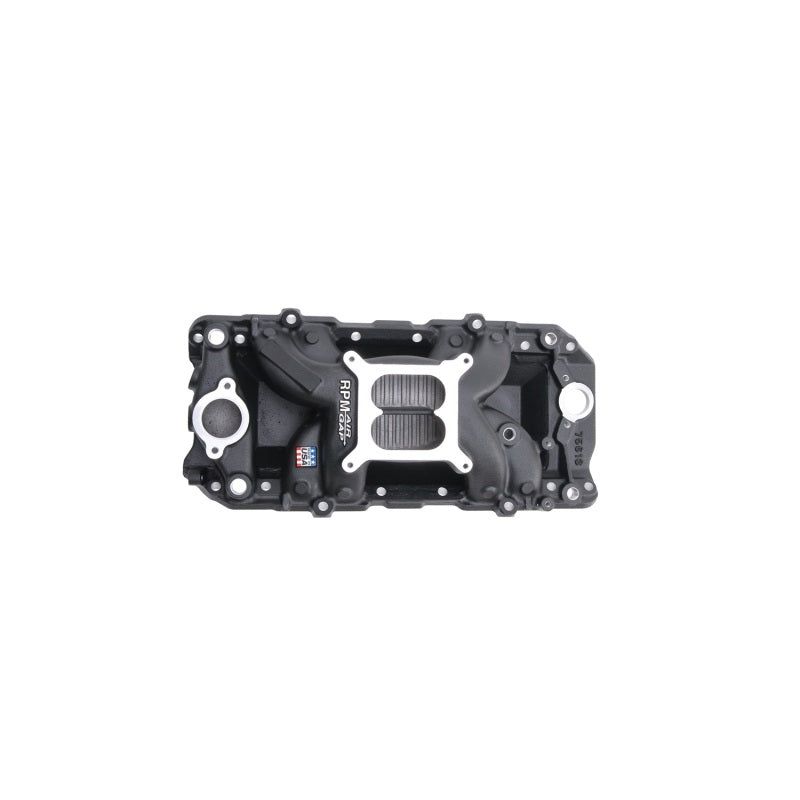

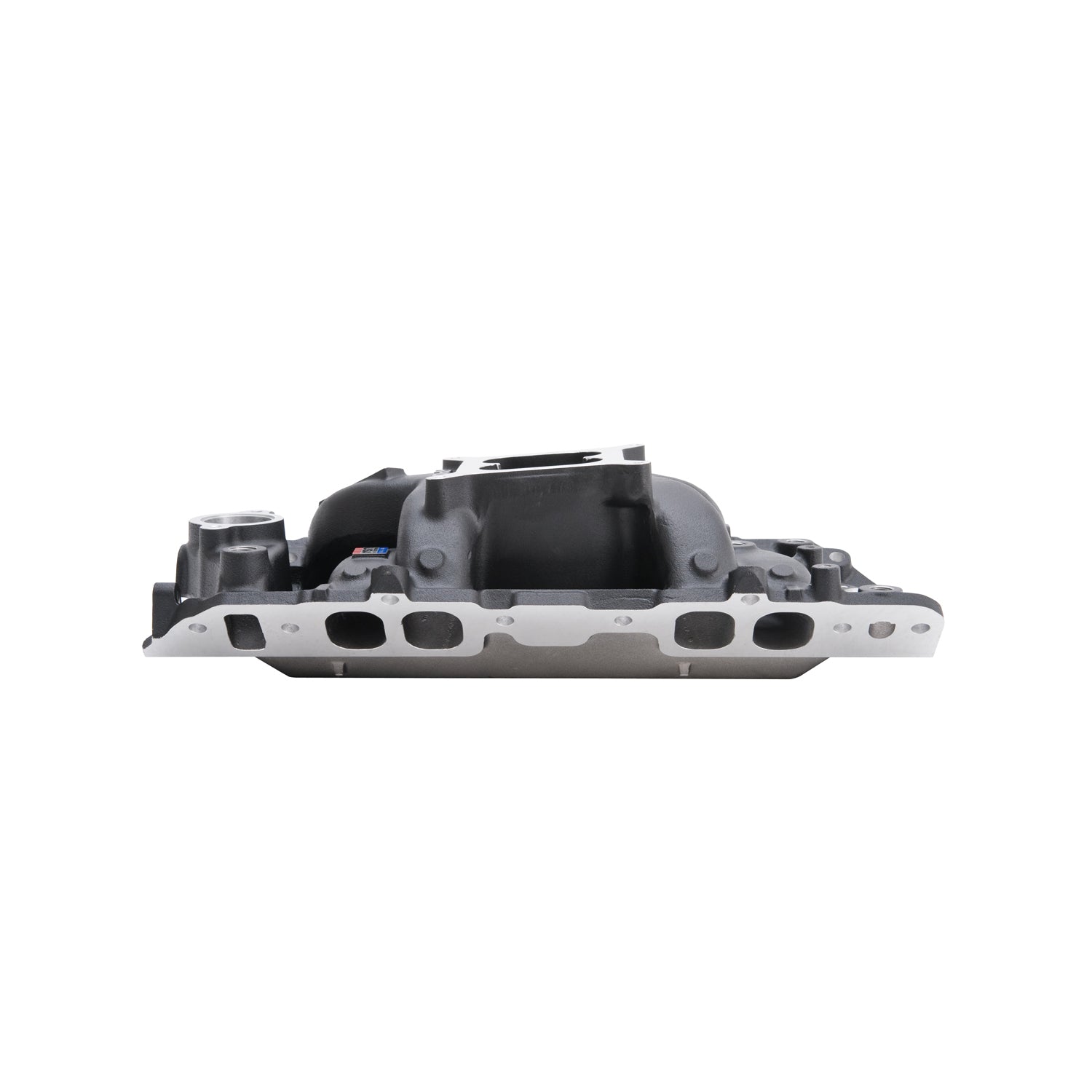

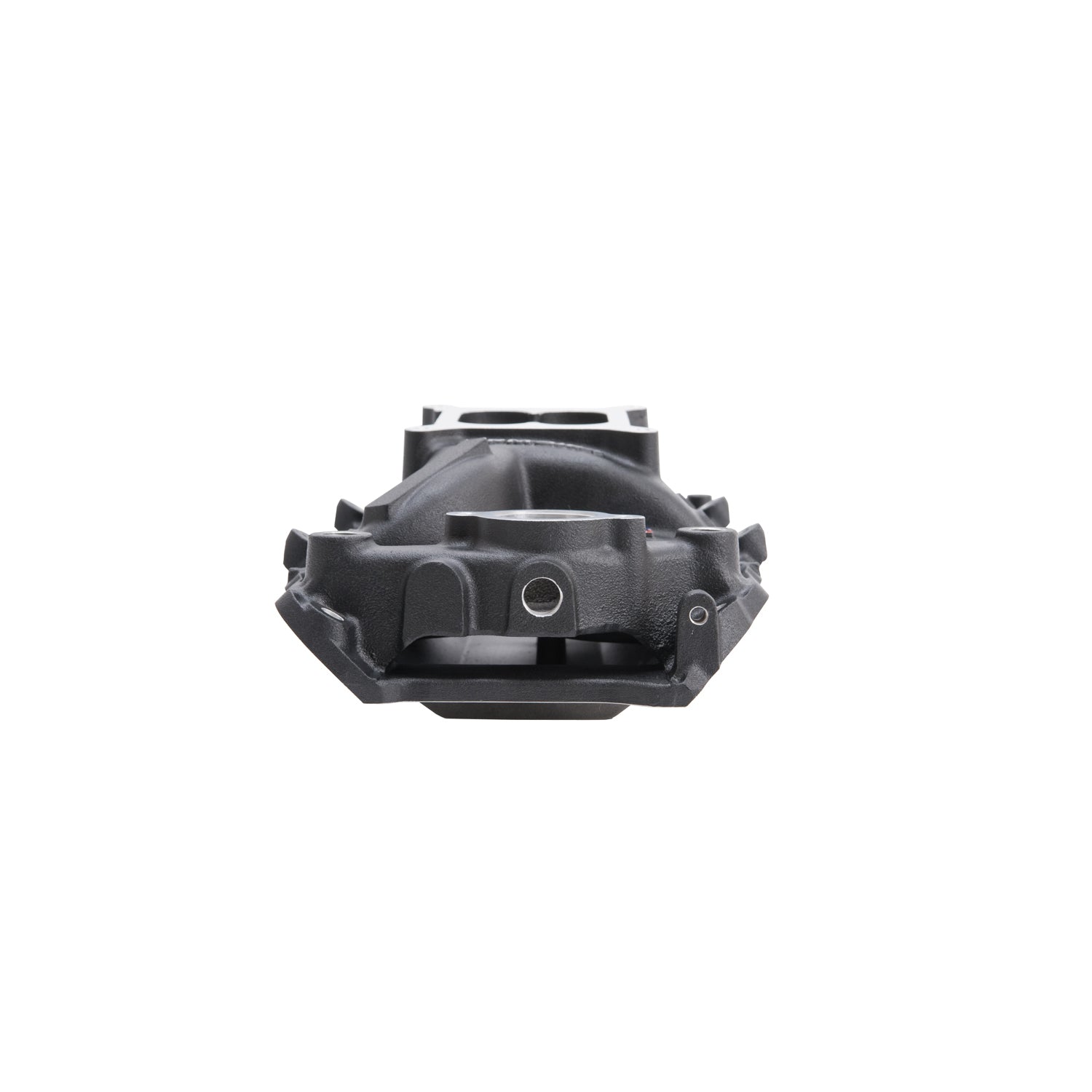

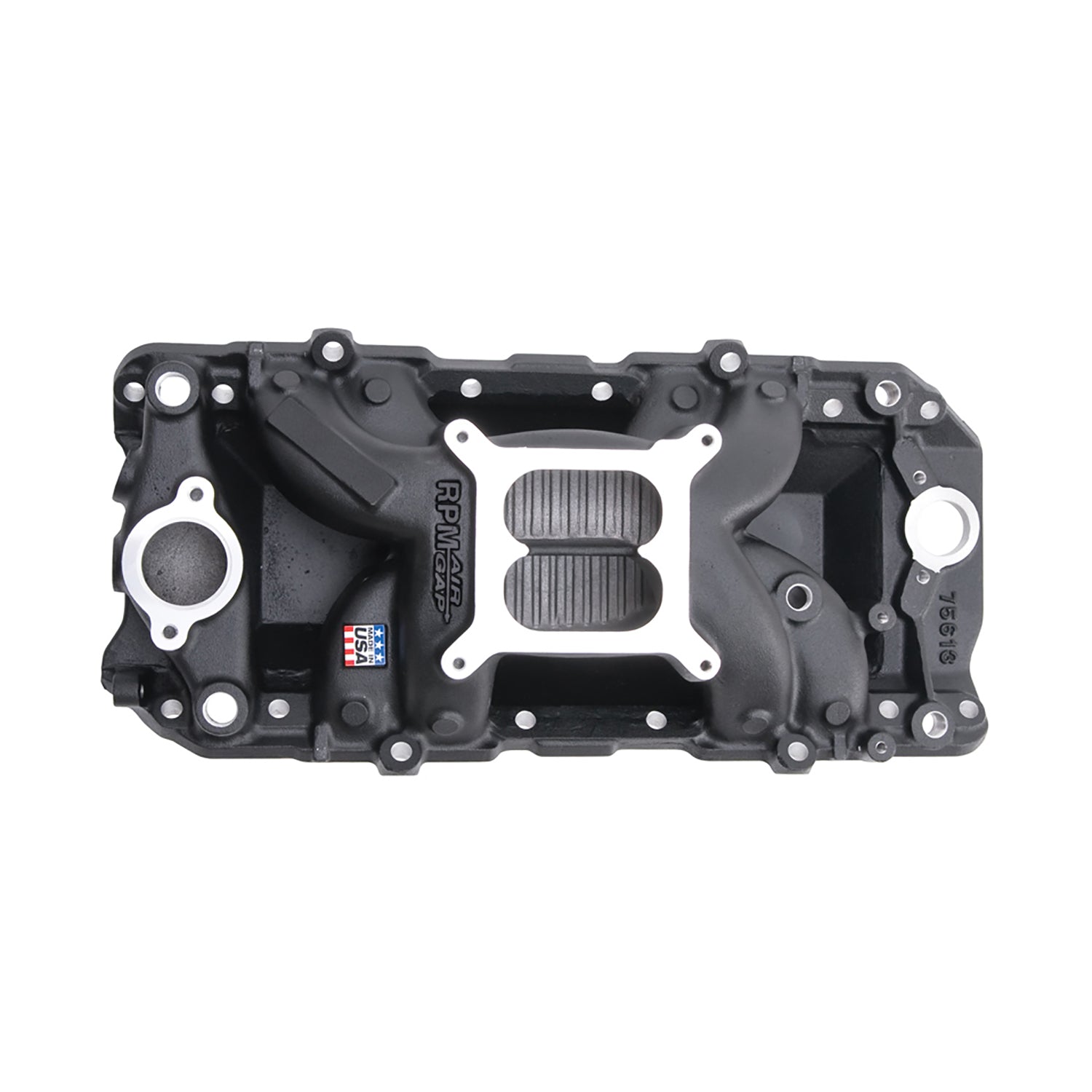

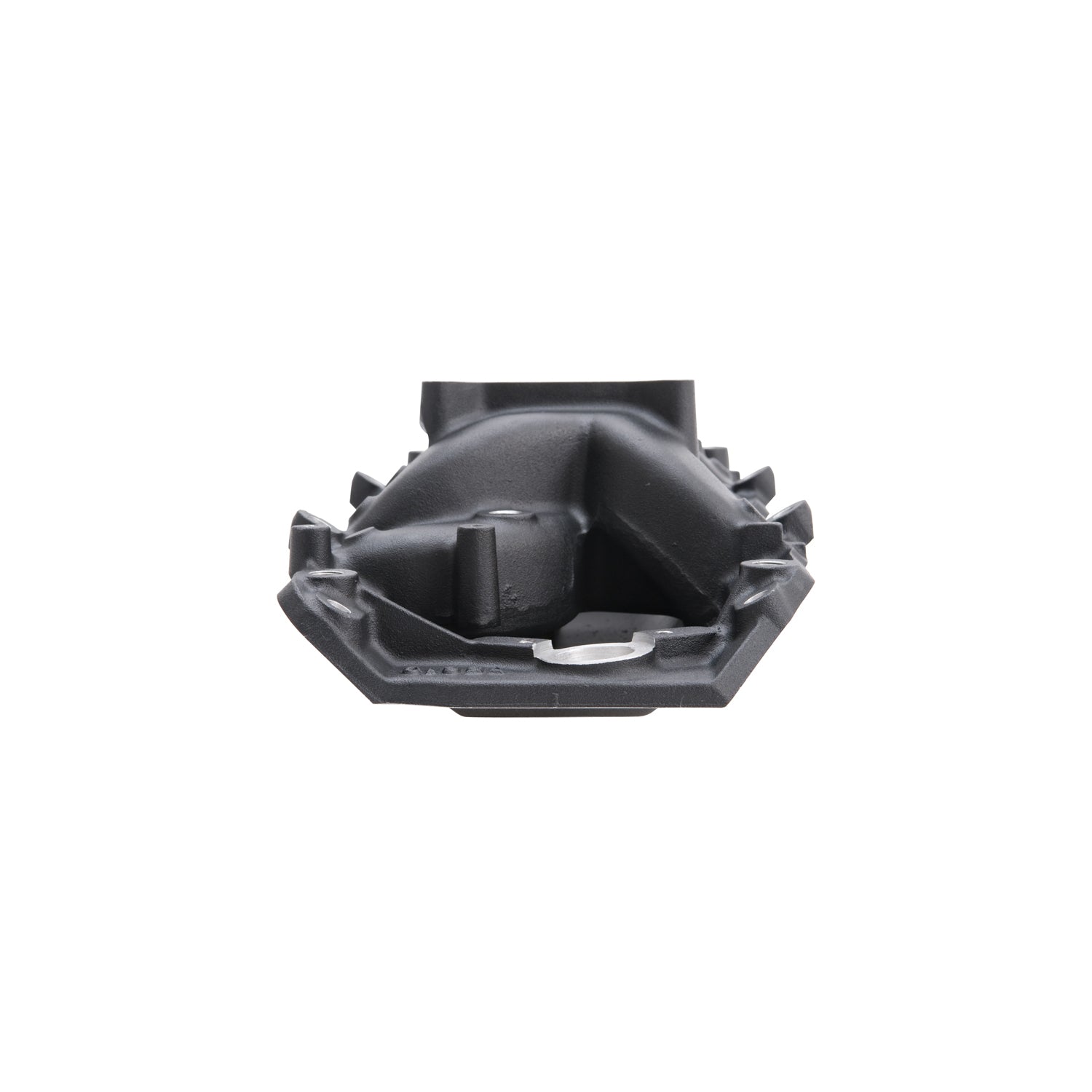

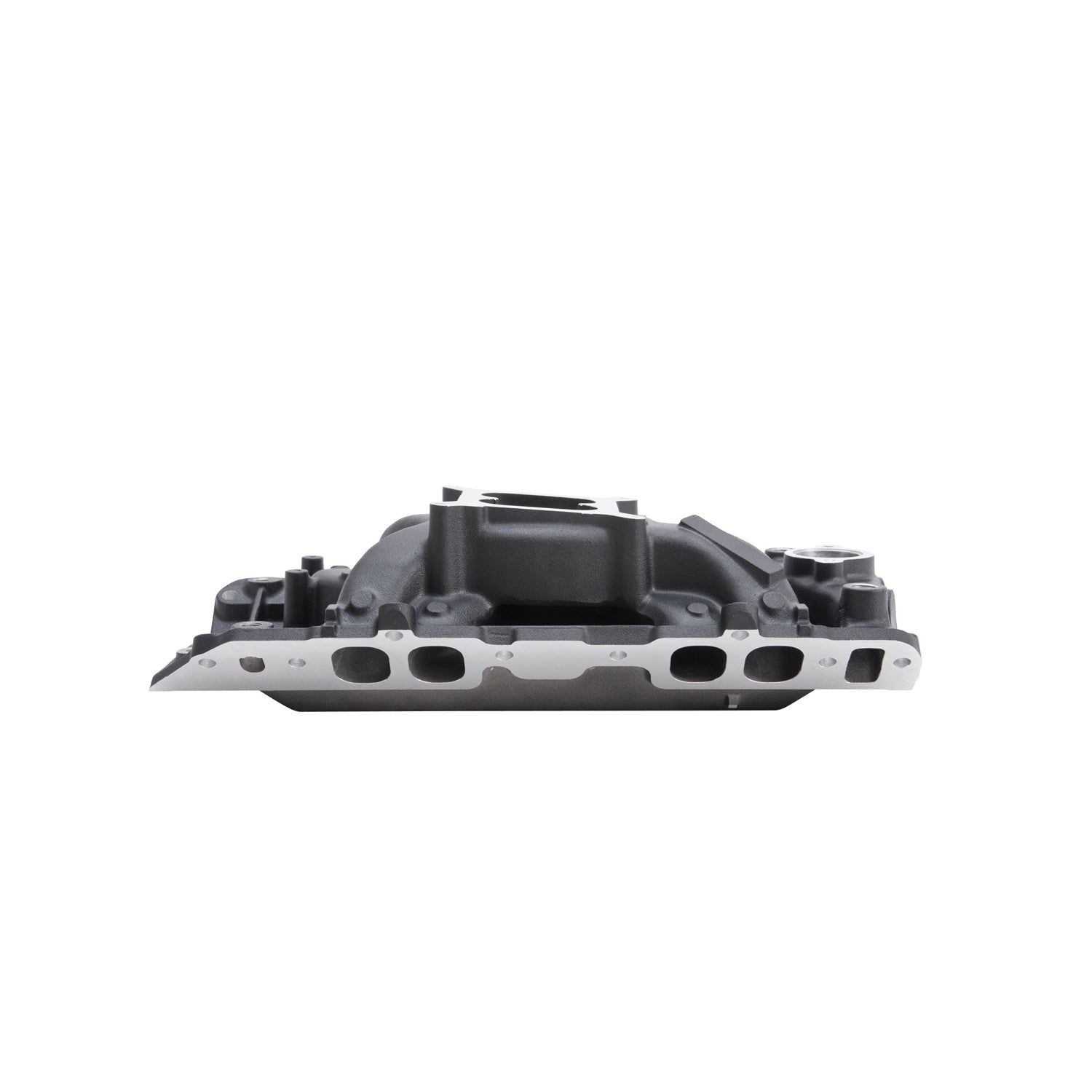

Edelbrock Black RPM Air-Gap BBC Oval Port Intake Manifold
Specifications
| Vehicle Model |
Chevrolet |
| Finish |
Black Powder Coated |
| EGR Port |
No |
| Material |
Aluminum |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Dual |

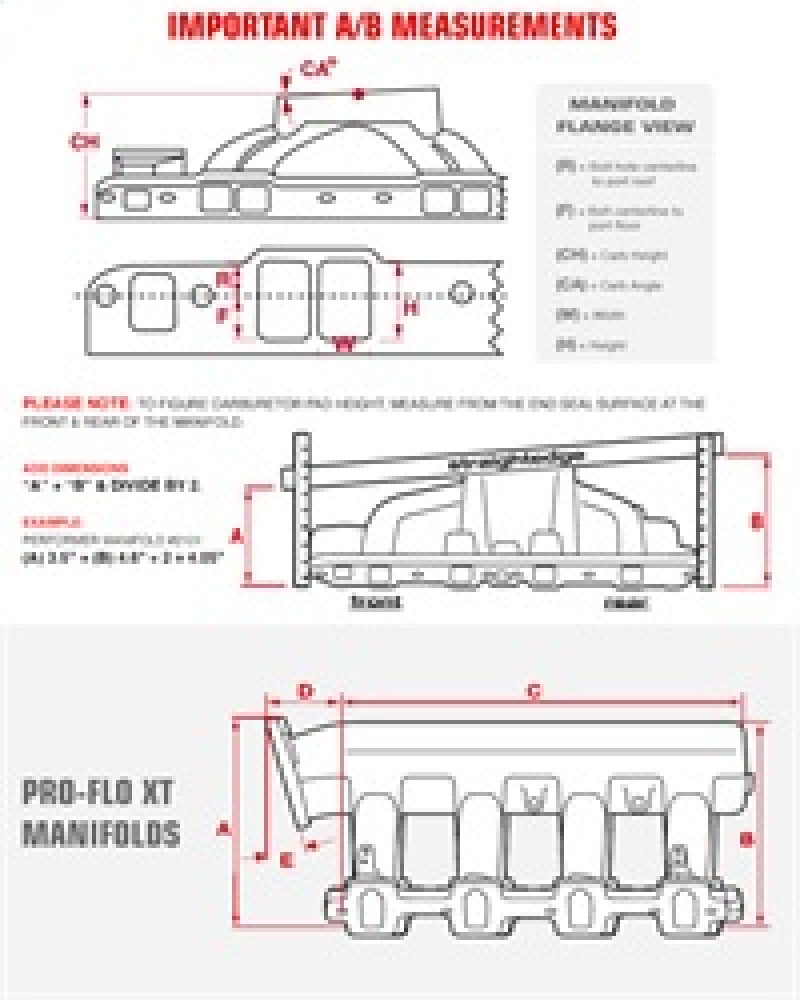

| Center Maximum Height |
5.220 IN |
| Series |
RPM Air-Gap |
| Front Maximum Height |
4.450 IN |
| Gasket Or Seal Included |
No |
| Rear Maximum Height |
6.000 IN |
| Basic Operating RPM Range |
1500-6500 R3 |
| Flange Type |
4150 |
| CNC Ported |
No |
