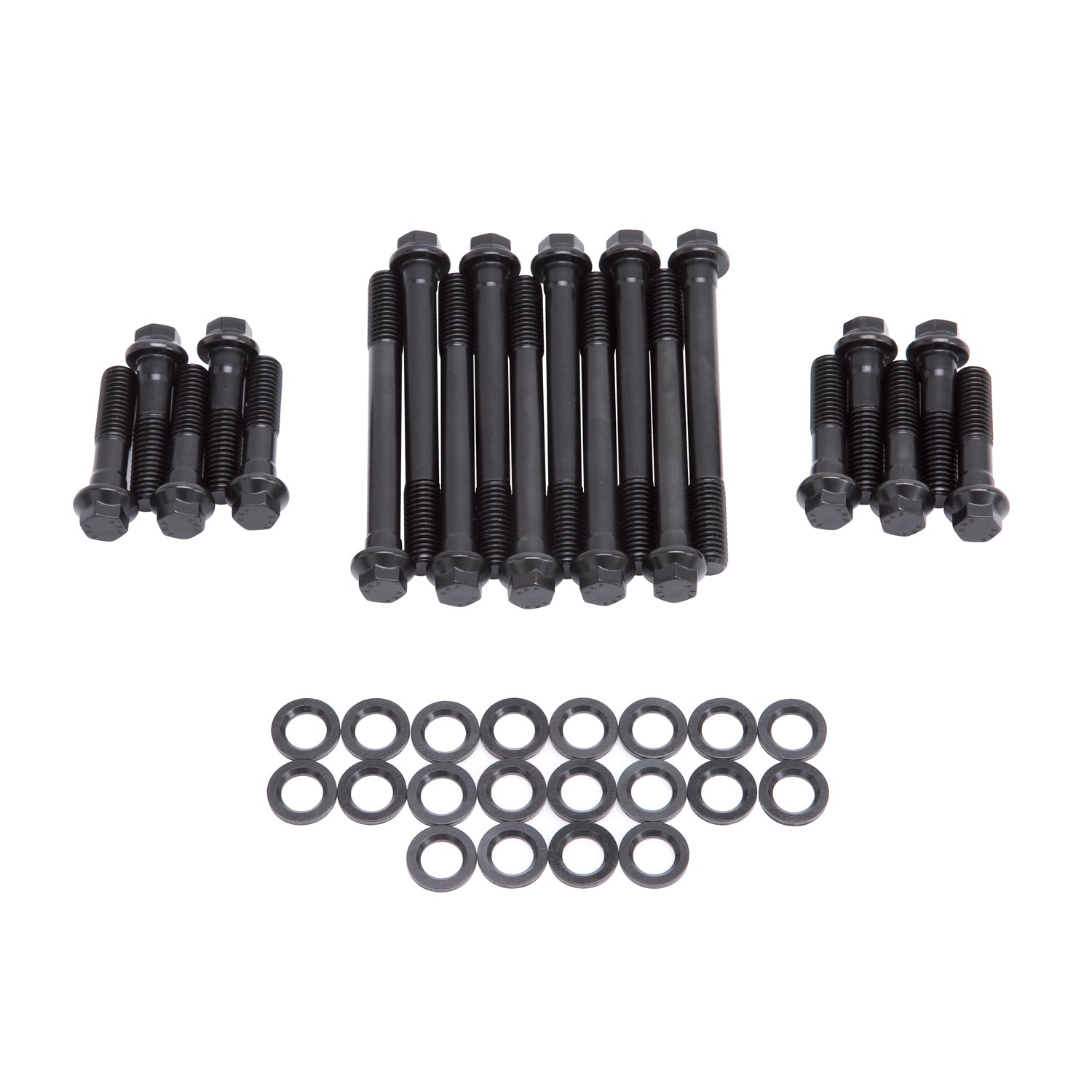

Edelbrock E-Series Cylinder Head Bolt Kit #85772 is a high-quality replacement bolt set for Chrysler 5.2L and 5.9L Magnum engines equipped with Performer RPM #61779 and #61775 aluminum heads. This kit contains all necessary parts to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.
Edelbrock #85772 is a Head Bolt Kit for 1992+ Small-Block Chrysler 5.2L/5.9L "Magnum" Engines with Edelbrock 61767, 61769, 61779, & 61775 Performer RPM Cylinder Heads. Kit contains a complete set of Head Bolts & Washers for a pair of heads.
Specifications
| 9 |
Hex |
| 10 |
8740 Chromoly |
| 546 |
Coarse |
| Thread Diameter |
0.5 IN |
| 2596 |
2.125 IN |
| 3072 |
Yes |
| Finish |
Black Oxide |
| Grade Type |
Performance |
| Quantity |
Kit |
| Length |
(10) 2.125 in, (10) 4.625 IN |
