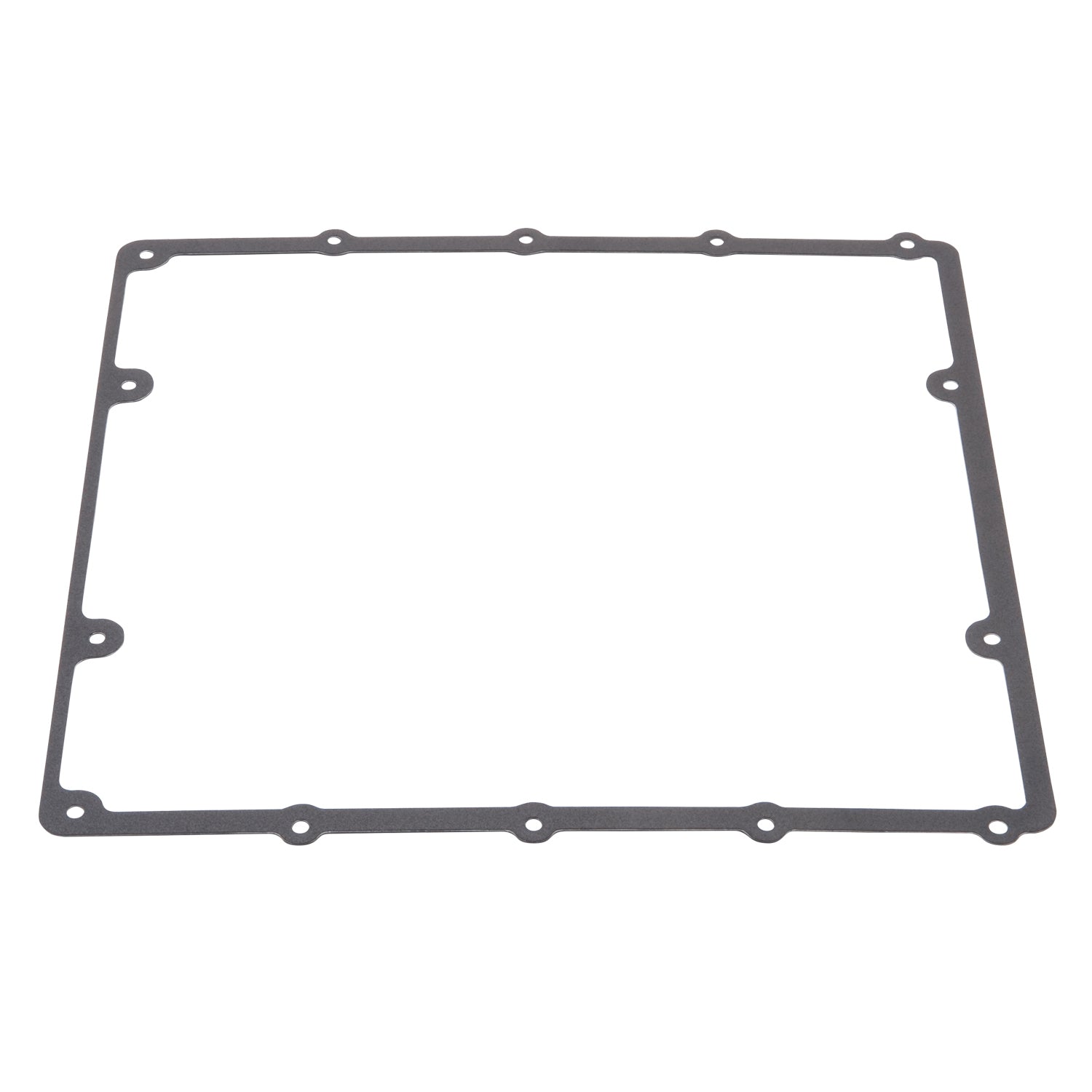

Edelbrock part #7397 is a replacement gasket for the Edelbrock supercharger lid cover. Its designed to fit the following applications: Camaro: #1596, #1597, #1598, #1599
Edelbrock part #7397 is a replacement gasket for the Edelbrock supercharger lid cover. Designed to fit Camaro, Corvette and Truck/ SUV
Specifications
| Port Quantity |
1 |
| Bolt Hole Quantity |
14 |
| Rim Shape |
Flat |
| Gasket Type |
Supercharger Lid Gasket |
| Configuration |
One Piece |
| Recommended Use |
For Use With Camaro Systems 1562, 1563, 1596, 1597, 1598, 1599, 15960, 15990; Corvette Systems 1572, 1573, 1574, 1575, 1576, 1590, 1591, 1592, 1593, 1594, 1595; Truck/SUV Systems 1564, 1567, 1577, 1578, 1579, 15600 |
| Port 1 Inside Diameter |
15.63 x 14.24 IN |
| Thickness |
0.060 IN |
| Material |
Aluminum Foamette |
| Port Shape |
Square |
| Type |
Supercharger Lid Gasket |
| Finish |
Black |
| Quantity |
Sold Individually |
| Mounting Hole Diameter |
0.276 IN |
| Face Width |
16.43 x 15.16 in I.D.; 15.63 x 14.24 in O.D. |
