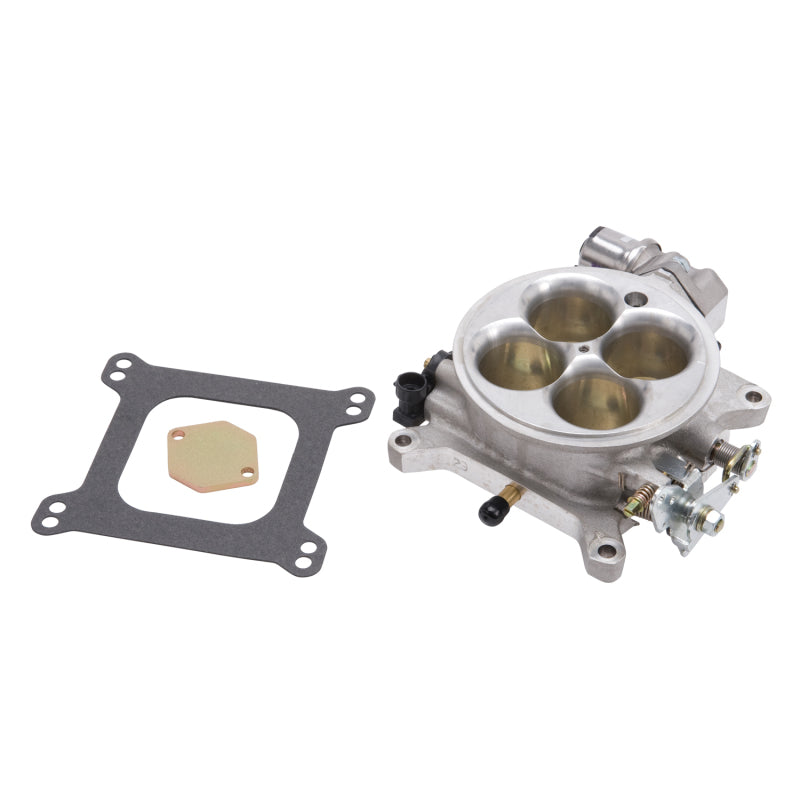

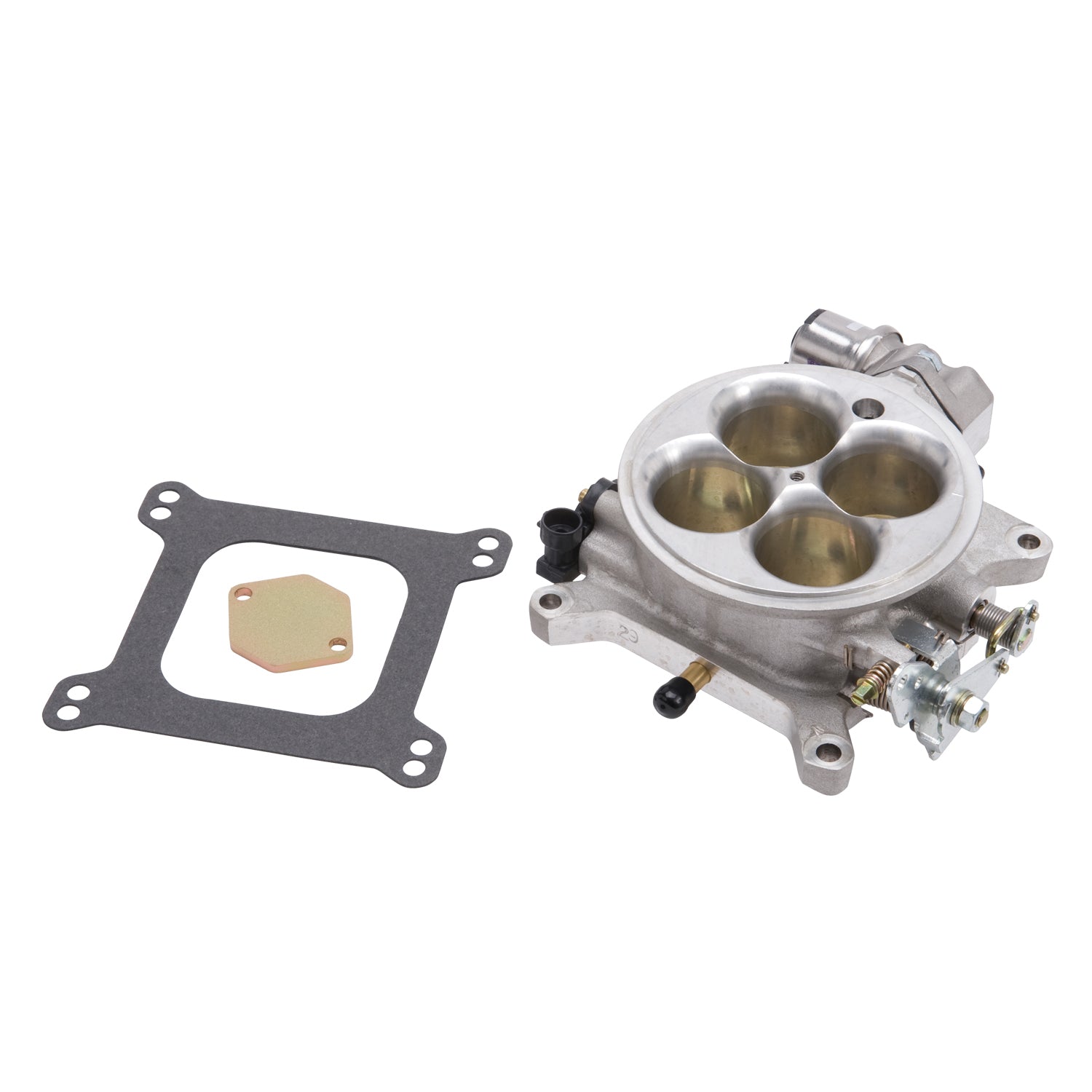

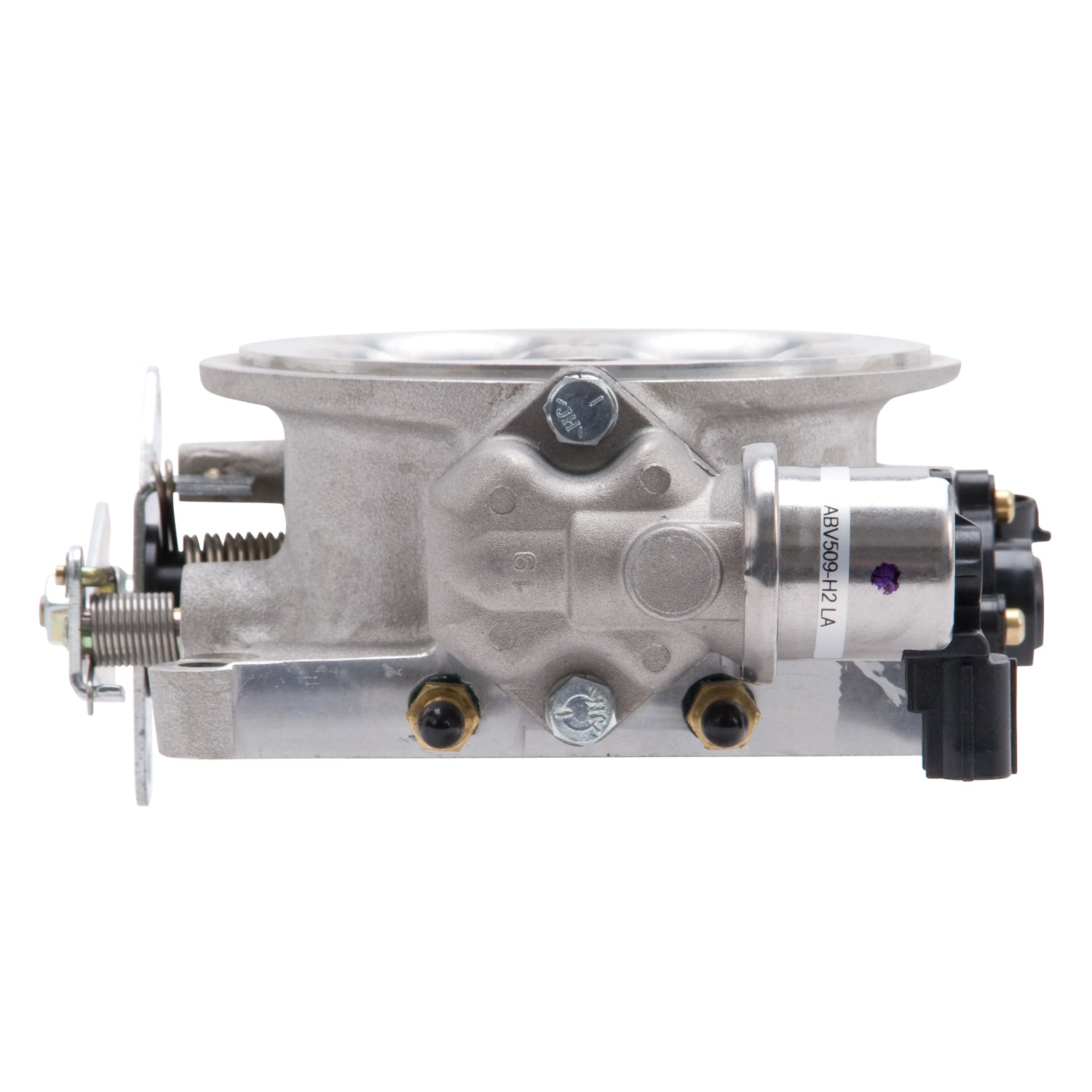

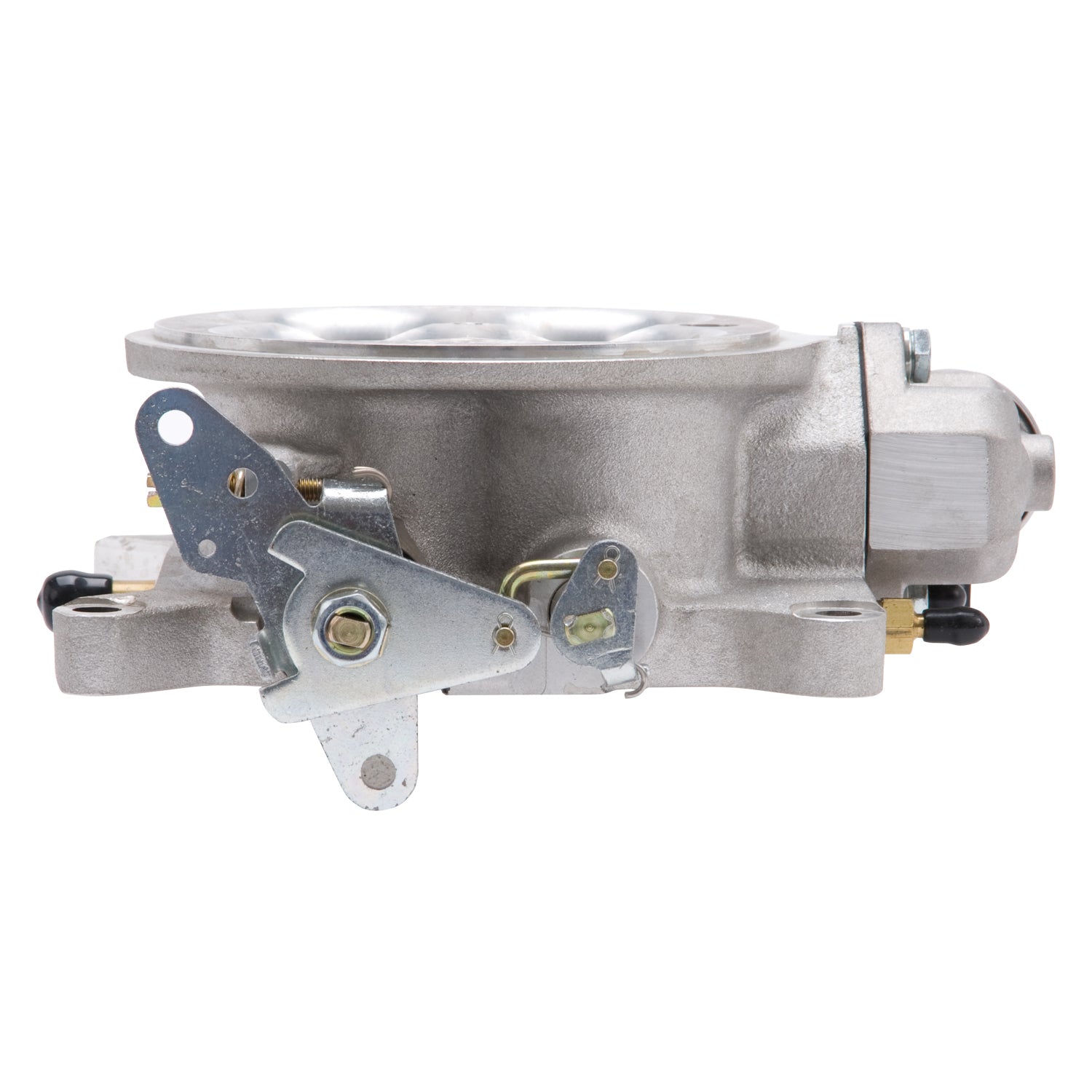

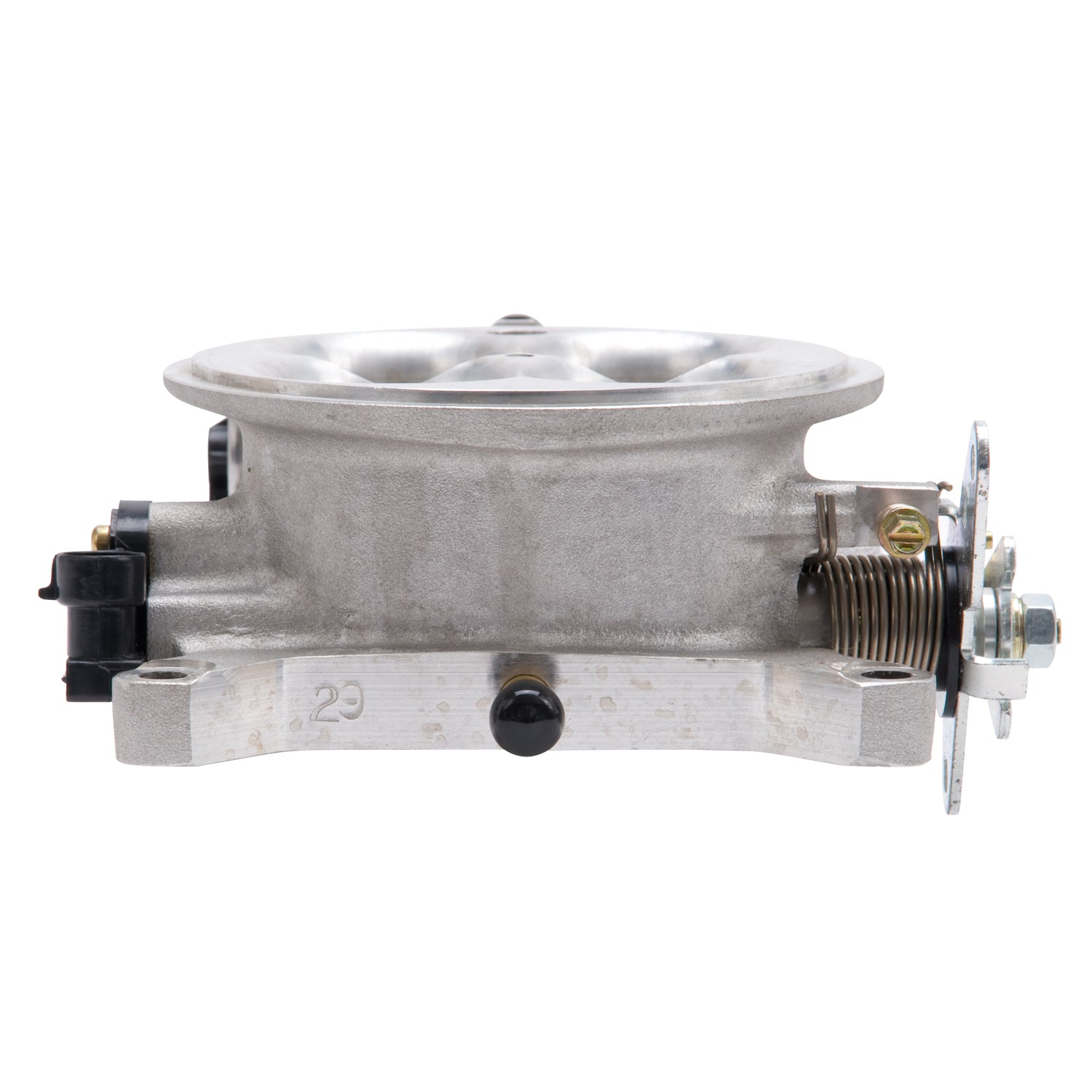

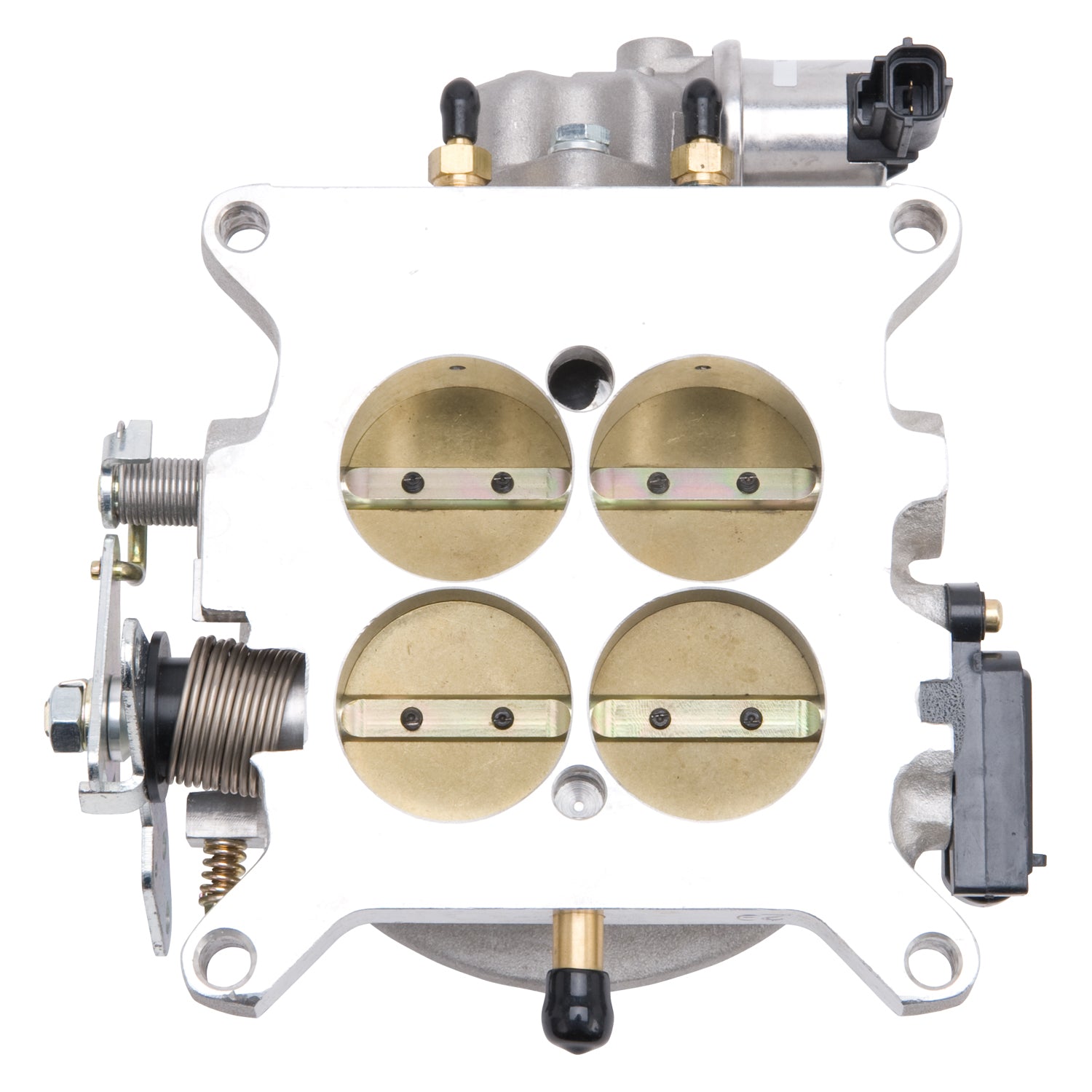

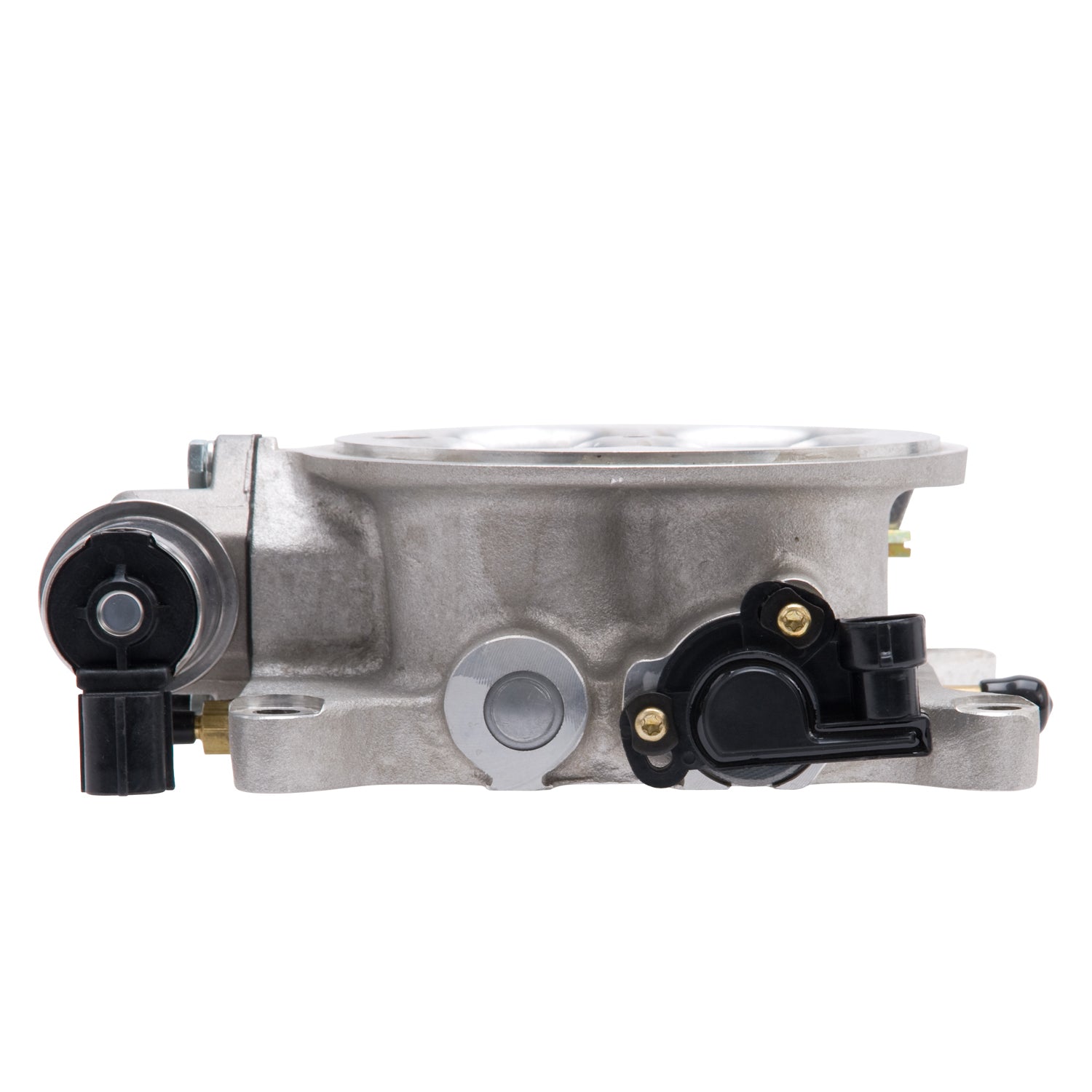

The Edelbrock #38783 Victor EFI 4-Barrel Throttle Body complements our Victor EFI line of manifolds. This throttle body mounts on a standard 4150-style square-bore carburetor bolt spacing. It is sand cast, fully machined, and assembled by Edelbrock. The #38783 has 1.75" Throttle Bores and accepts a Standard (5-1/8" Flange) Air Cleaner assembly. A 2-Pin Hitachi PWM Style IAC Motor and 3-Pin TPS are included. Satin Finish
The Edelbrock #38783 Throttle Body. Victor EFI. 4-Barrel. 4150-Style Mounting Flange. 1.75" Bores. Includes PWM IAC Motor ad TPS. Satin Finish
Specifications
| Type |
4 Barrel |
| Material |
Aluminum |
| Bore Diameter |
1.75 IN |
| Cubic Feet Per Minute Rating |
1000 |
| Throttle Position Sensor Included |
Yes |
| Series |
Universal 4-Barrel |
| Finish |
Satin |
| Idle Air Control Motor Included |
Yes |
| Flange Type |
4150 |
| Gasket Or Seal Included |
Yes |
| Quantity |
Sold Individually |
