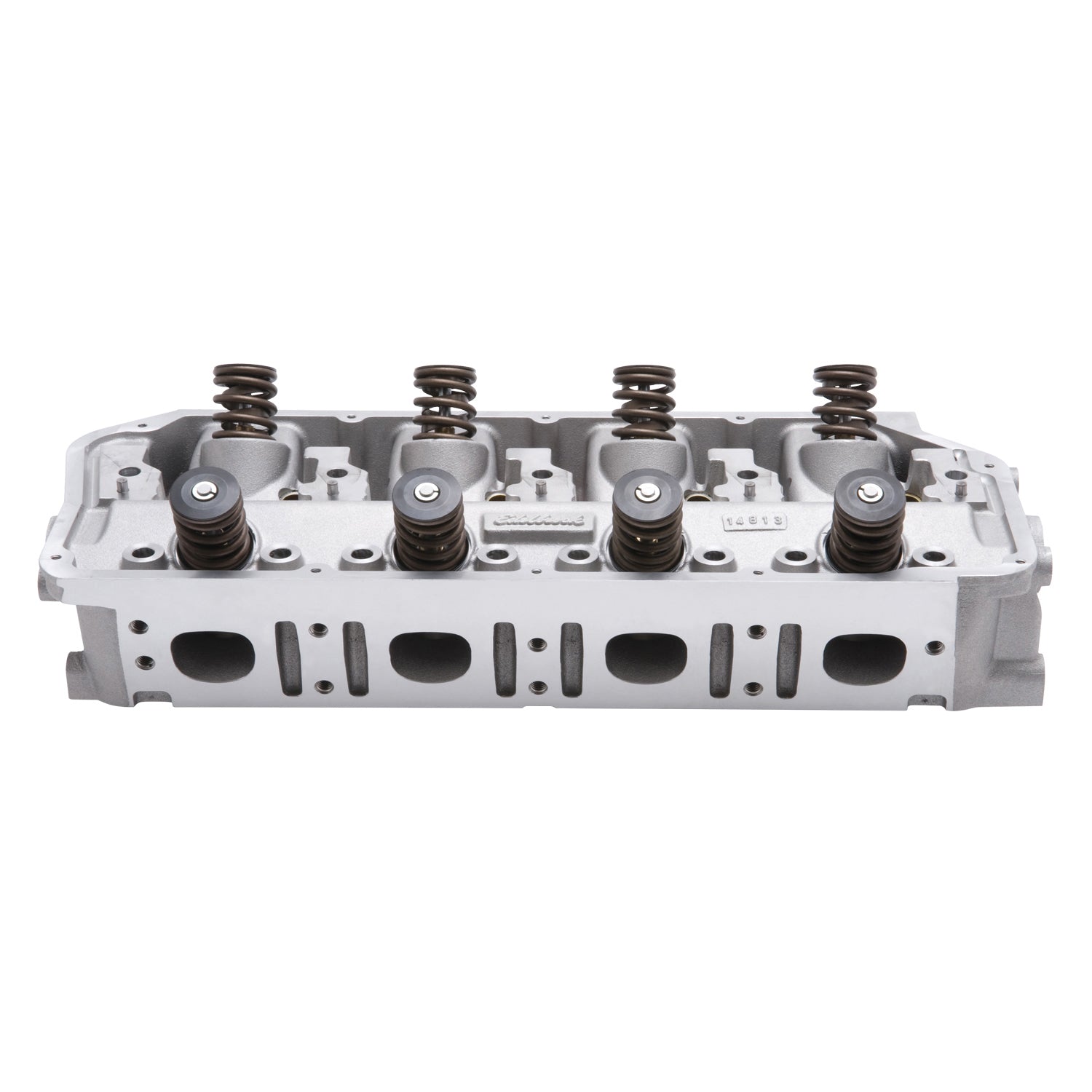

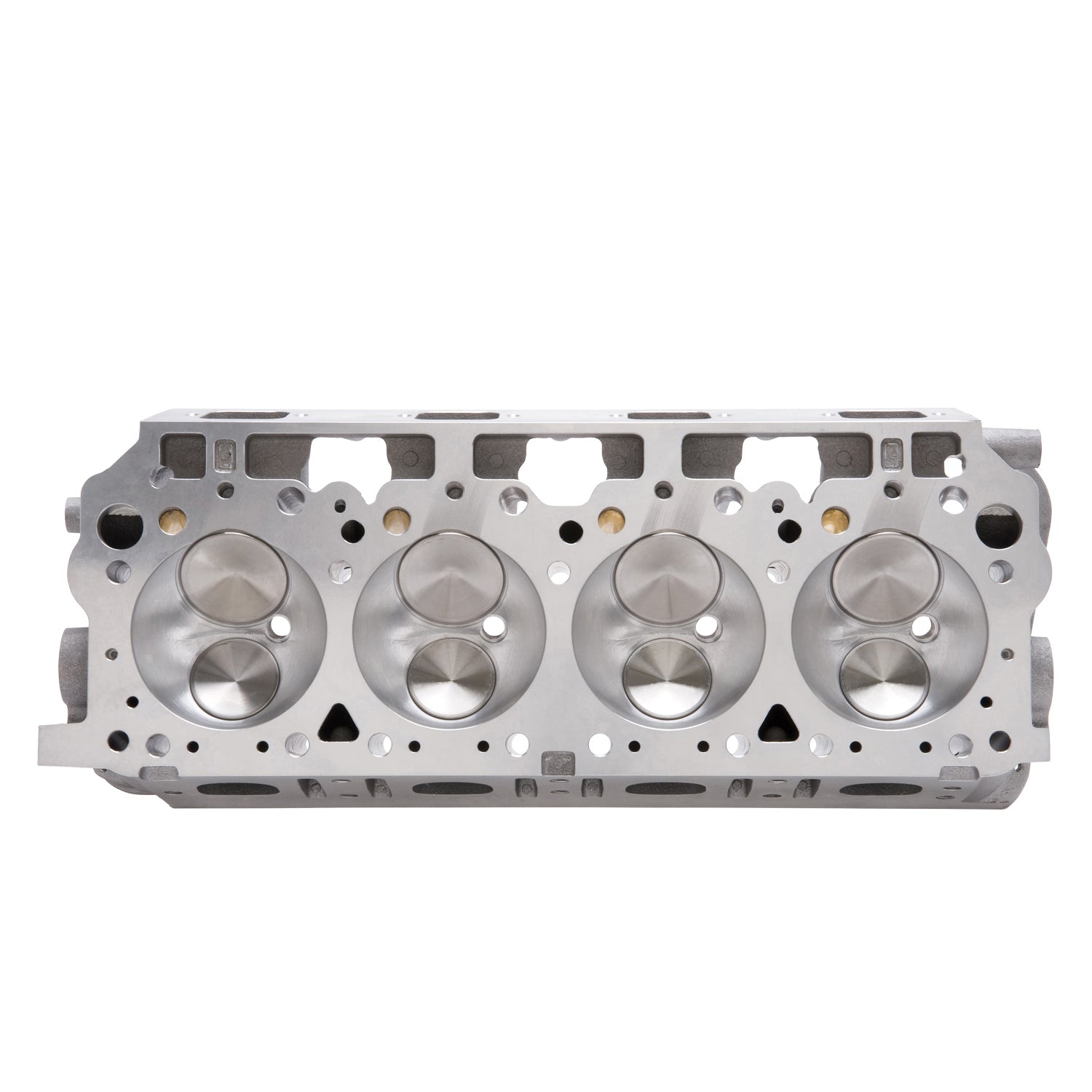

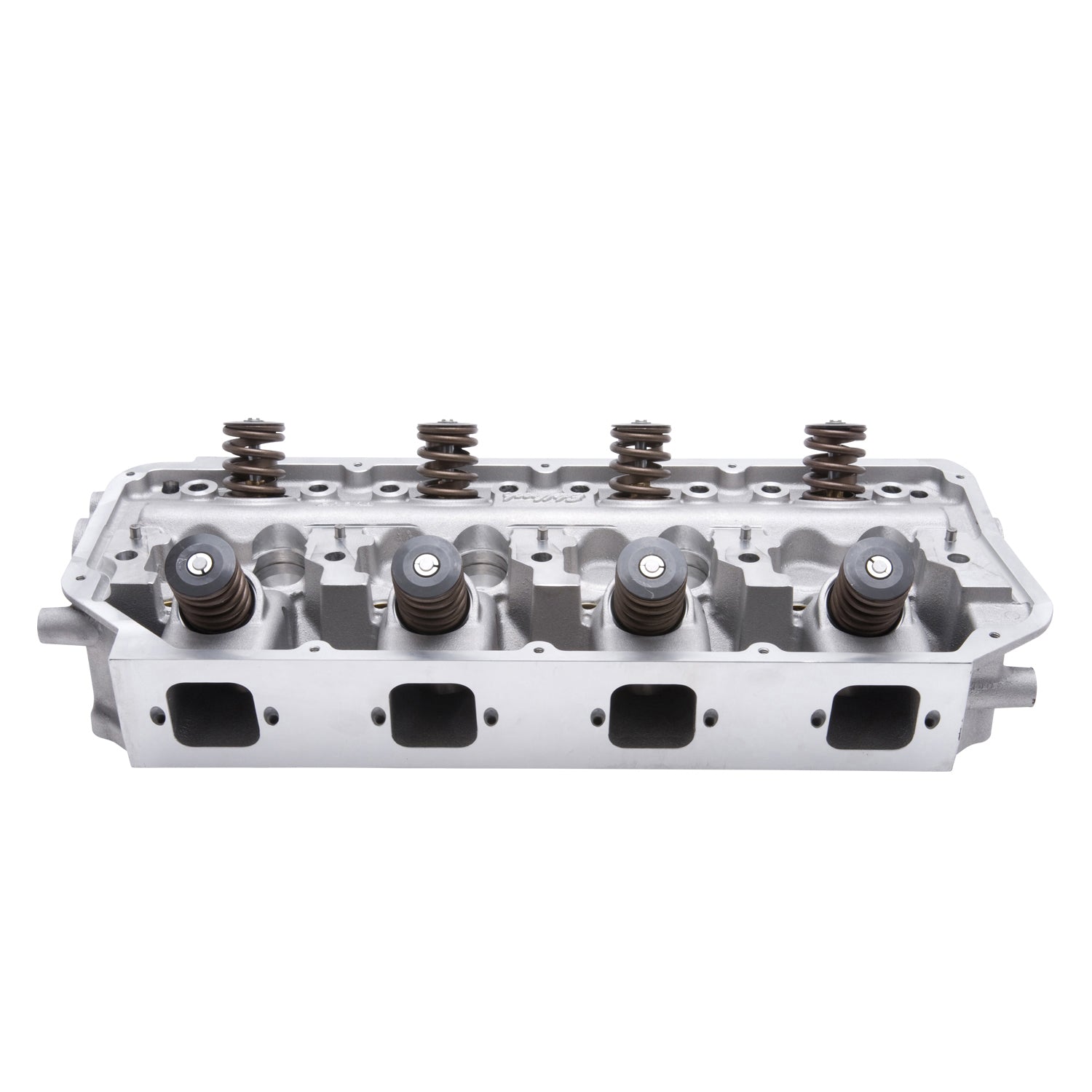

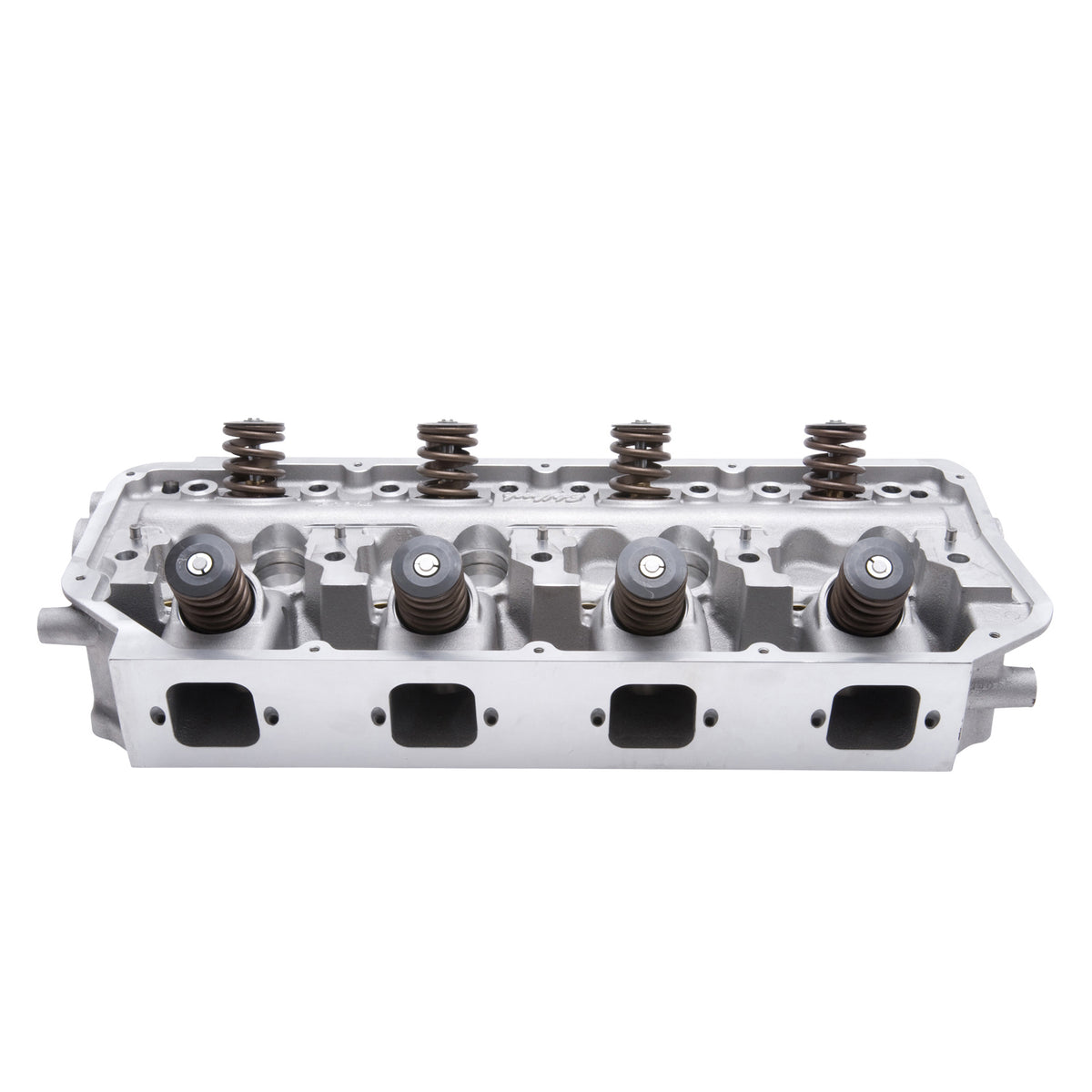

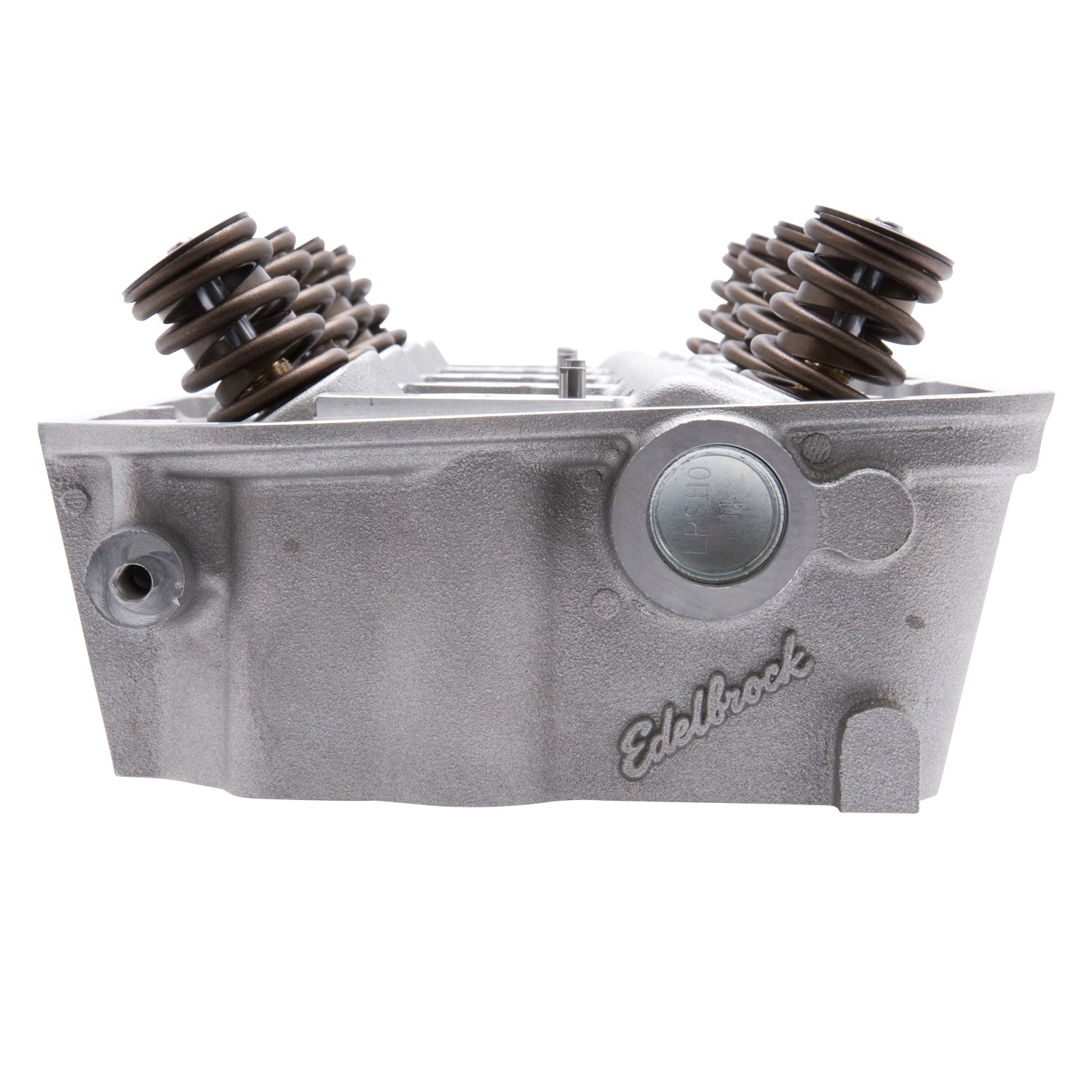

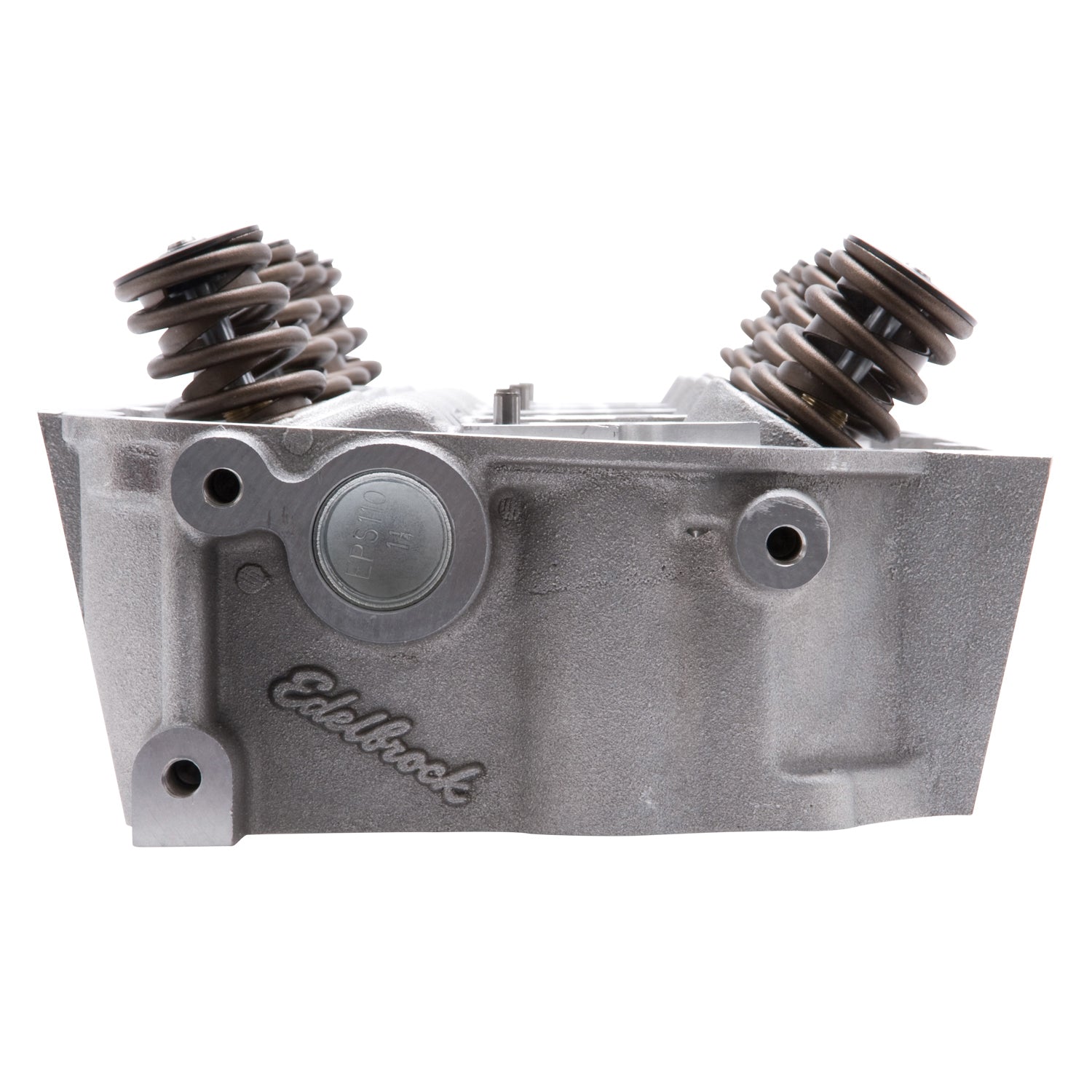

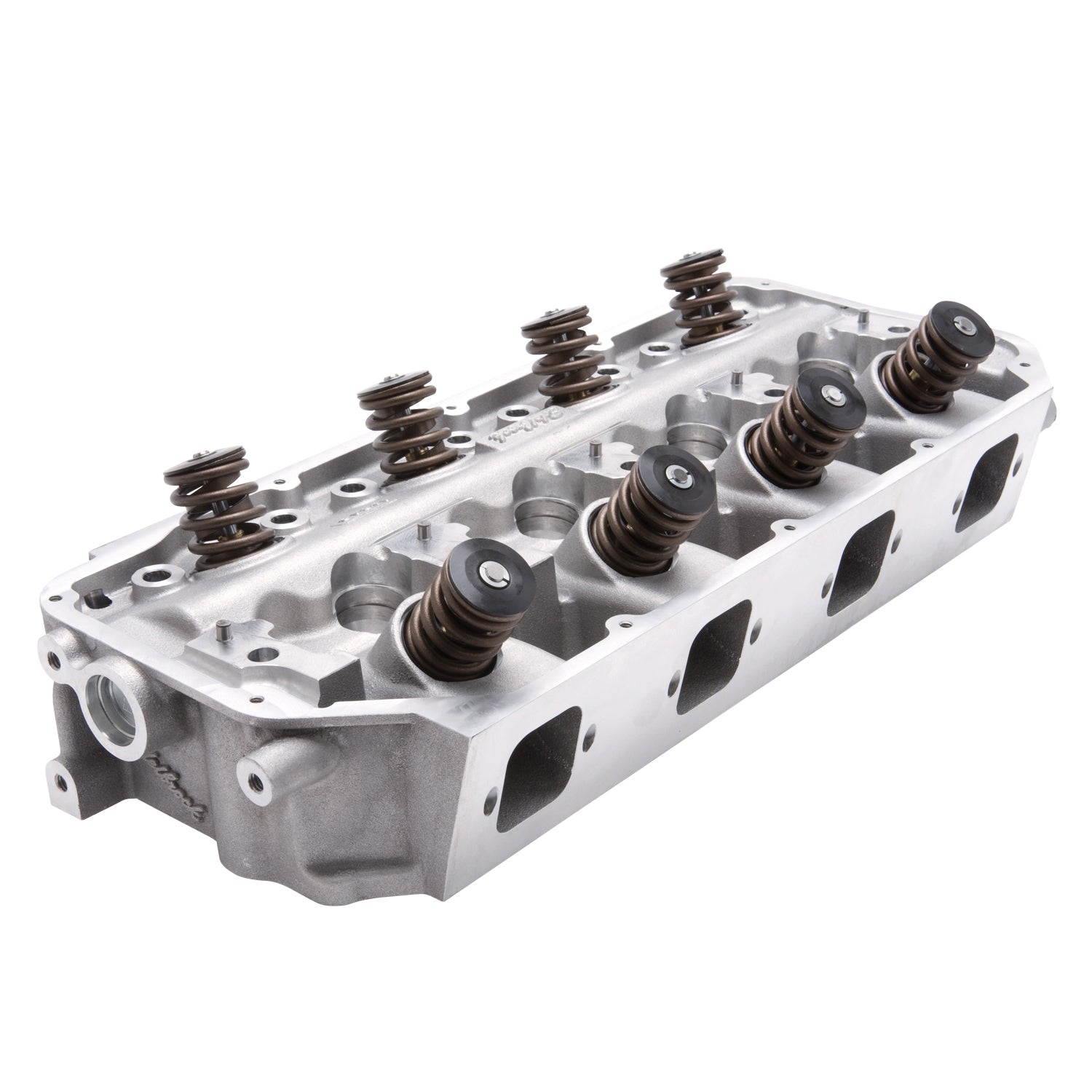

Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Our new Edelbrock #61175 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance.
| Exhaust Valve Diameter | 1.94 IN |
| EGR Port | No |
| Exhaust Port Location | Standard |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| CNC Ported | Yes |
| Exhaust Runner Volume | 105 CCM |
| Horsepower | 550-800 HJ |
| Valve Spring Maximum Lift | 0.700 IN |
| Guide Material | Manganese Bronze |
| Quantity | Sold Individually |
| Valve Stem Diameter | 0.3125 IN |
| Retainer Included | Yes |
| Valve Spring Diameter | 1.54 IN |
| Construction Type | Complete |
| Series | Victor Jr. |
| Family | Victor Jr. |
| 10671 | No |
| 8788 | Yes |
| 10024 | Yes |
| 8789 | Yes |
| 10025 | Yes |
| 10252 | Chromoly Steel |
| 10583 | No |
| 10261 | No |
| 30 | No |
| 306 | Yes |
| 10 | Aluminum |
| 6627 | 245 CCM |
| 6635 | 31-6117 |
| 6634 | No |
| 3390 | Performance |
| 6621 | 10.72 IN |
| 10582 | No |
| 6626 | 170 CCM |
| 9799 | Yes |
| Valve Lock Material | Steel |
| Seat Material | Ductile Iron |
| Deck Thickness | 0.625 IN |
| Valve Angle | Exhaust (Tipped) 1.5-21.5 deg/Intake Stock |
| Camshaft Type | Hydraulic Roller |
| Push Rod Diameter | (Suggested) 0.3125 in Or 0.375 IN |
| Intake Valve Diameter | 2.320 IN |
