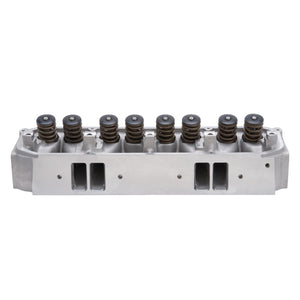

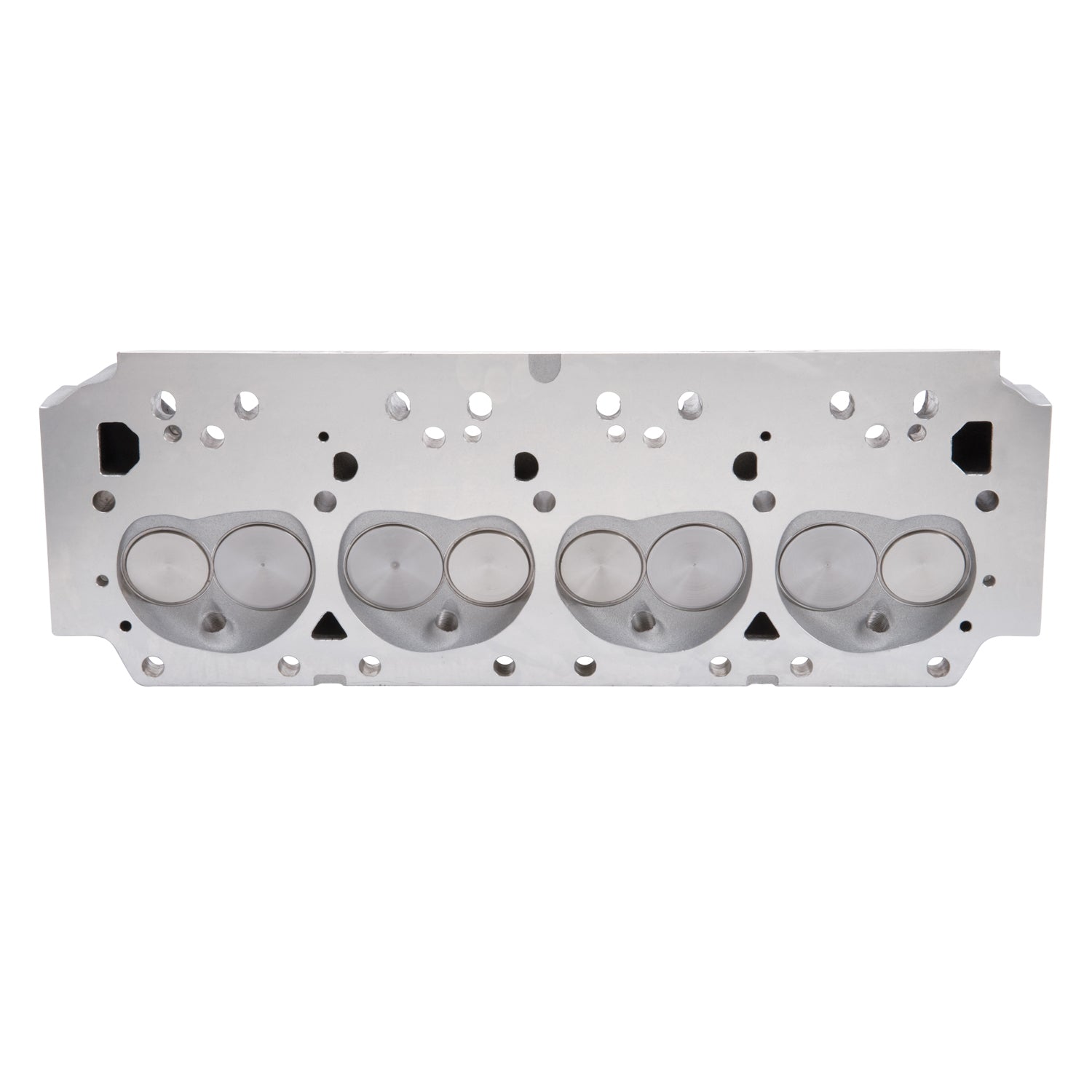

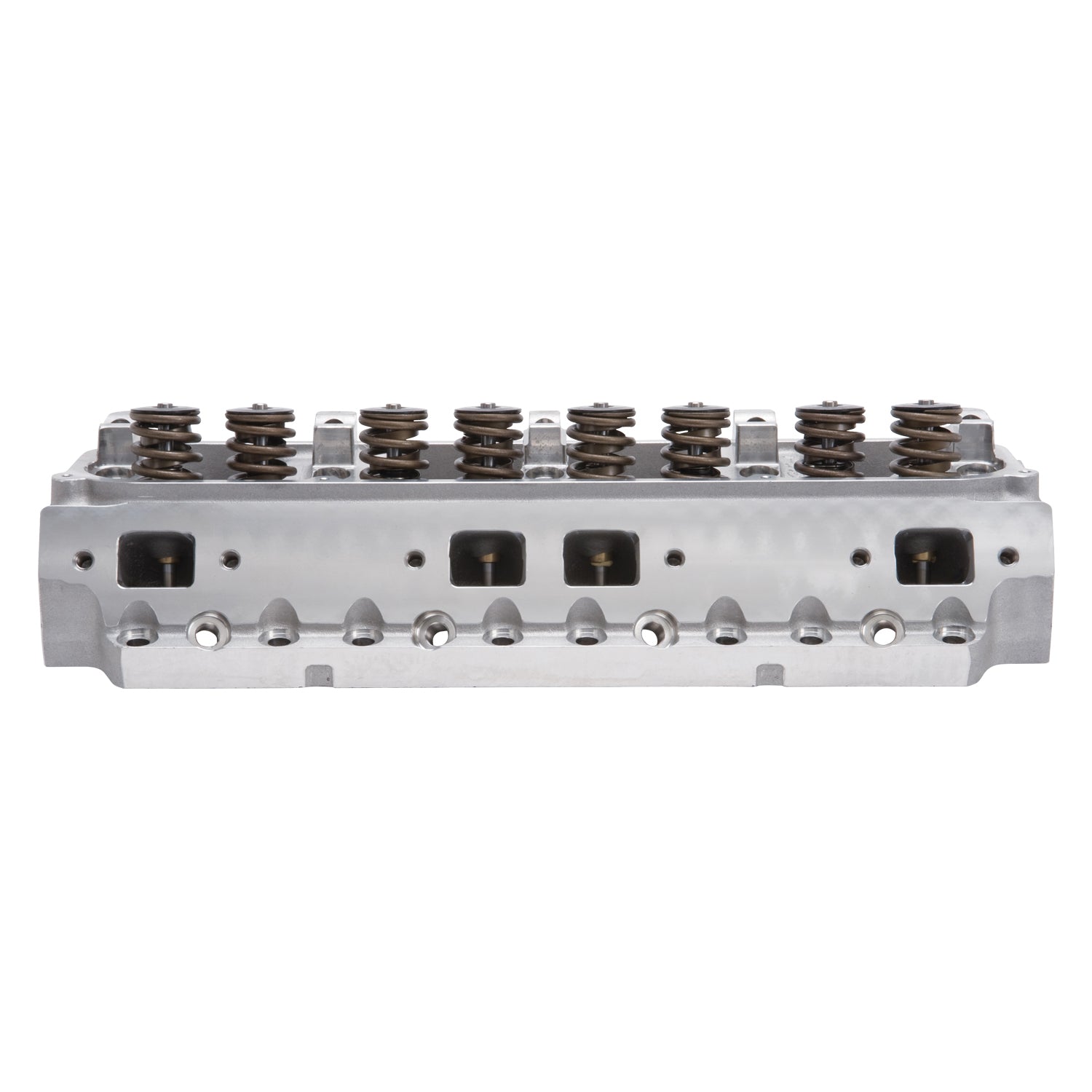

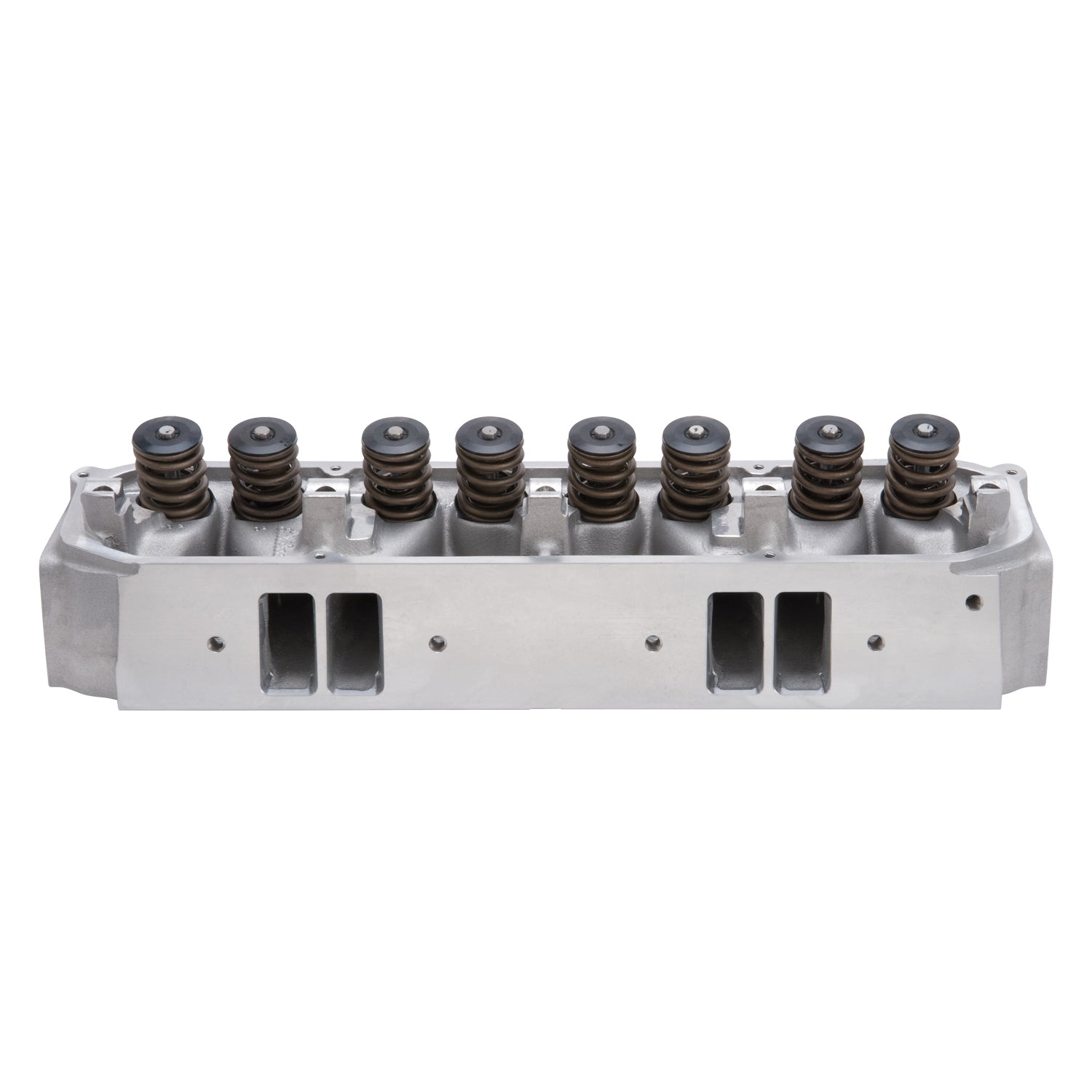

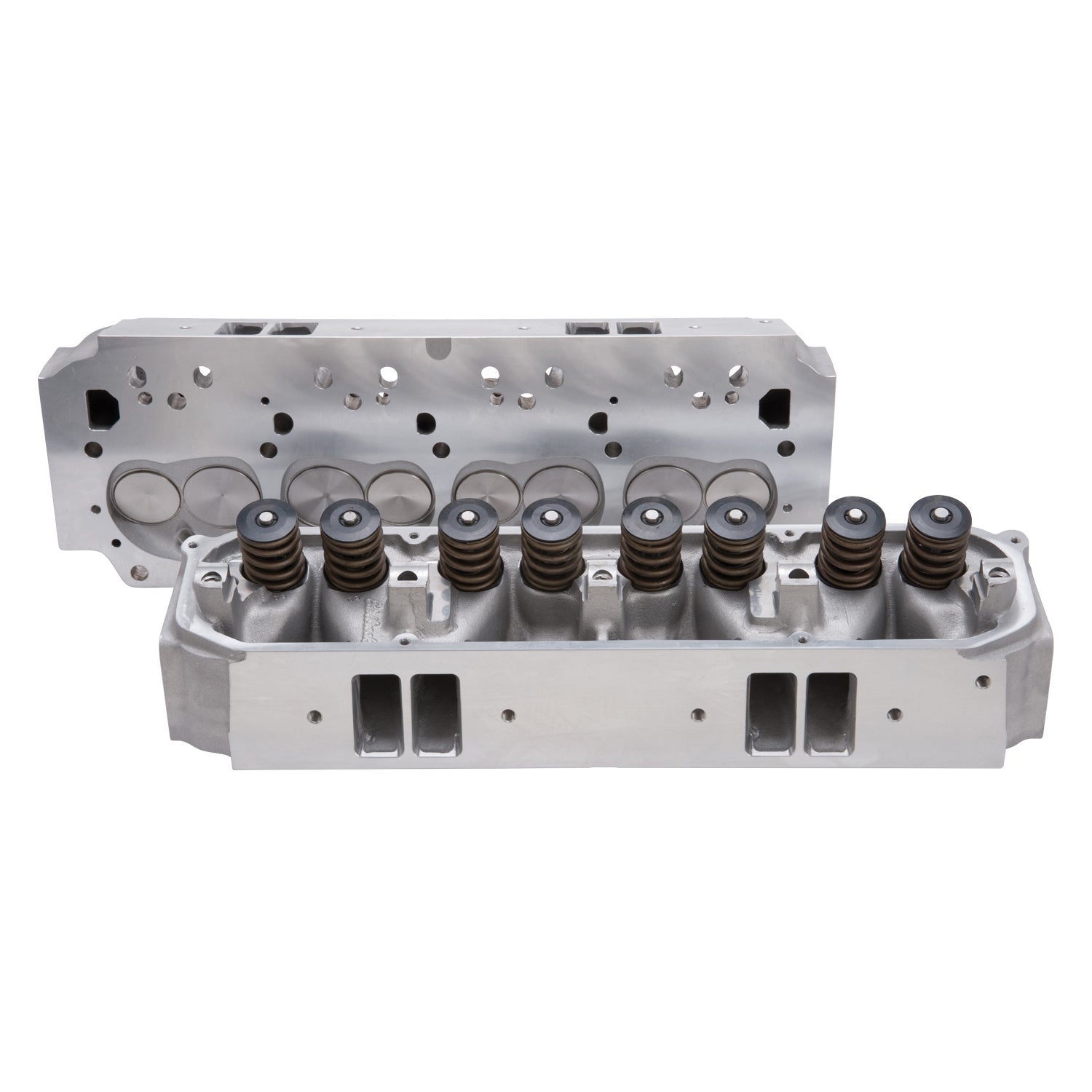

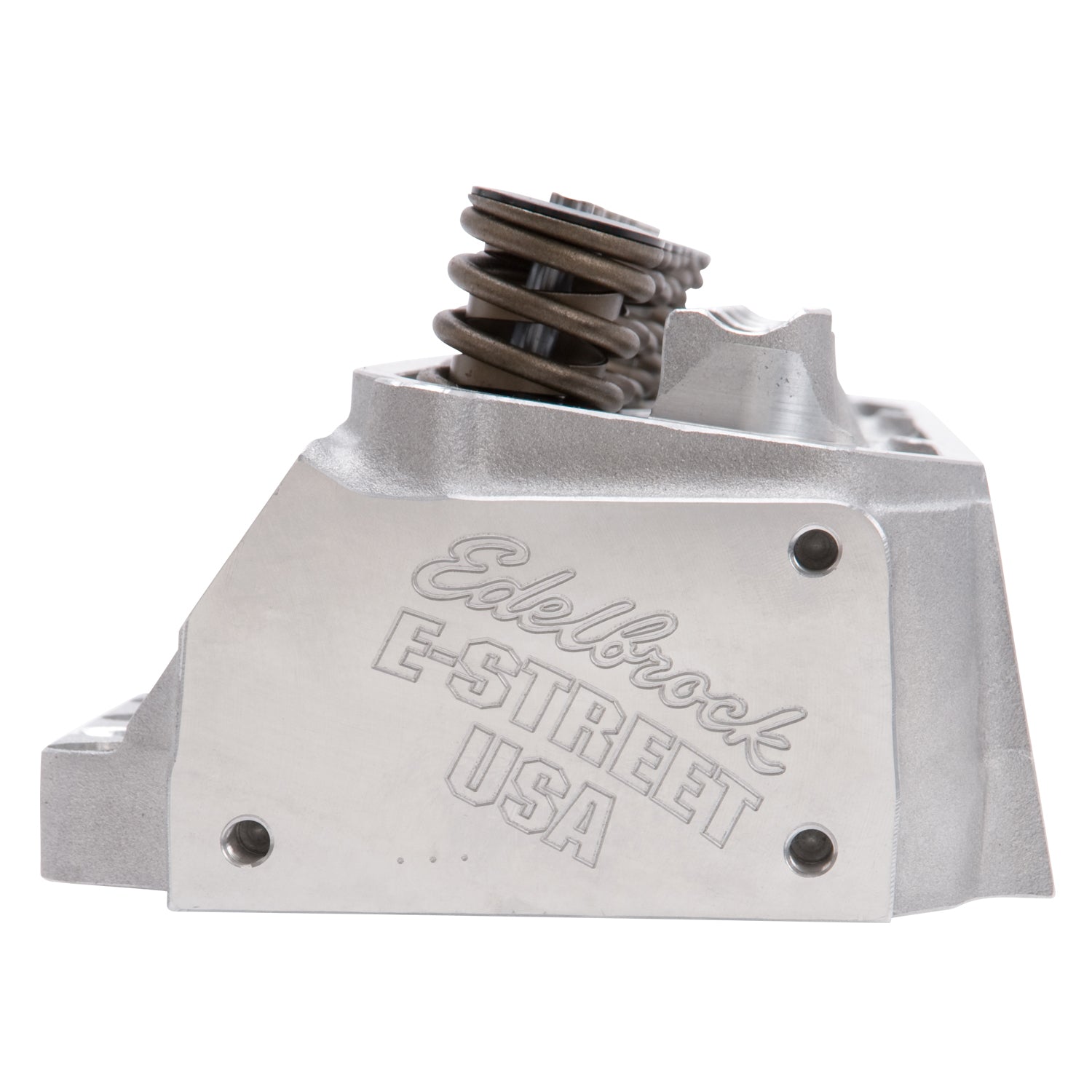

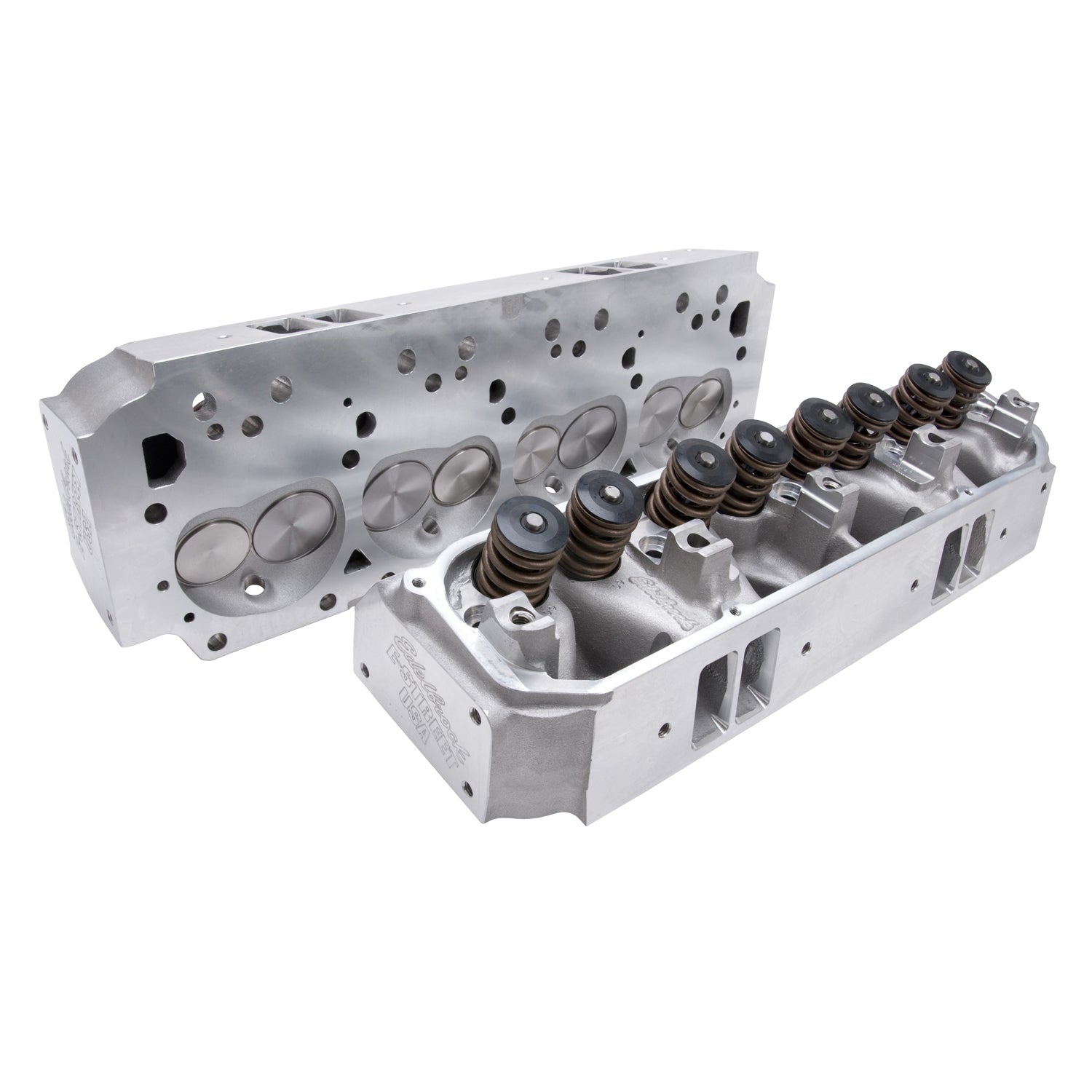

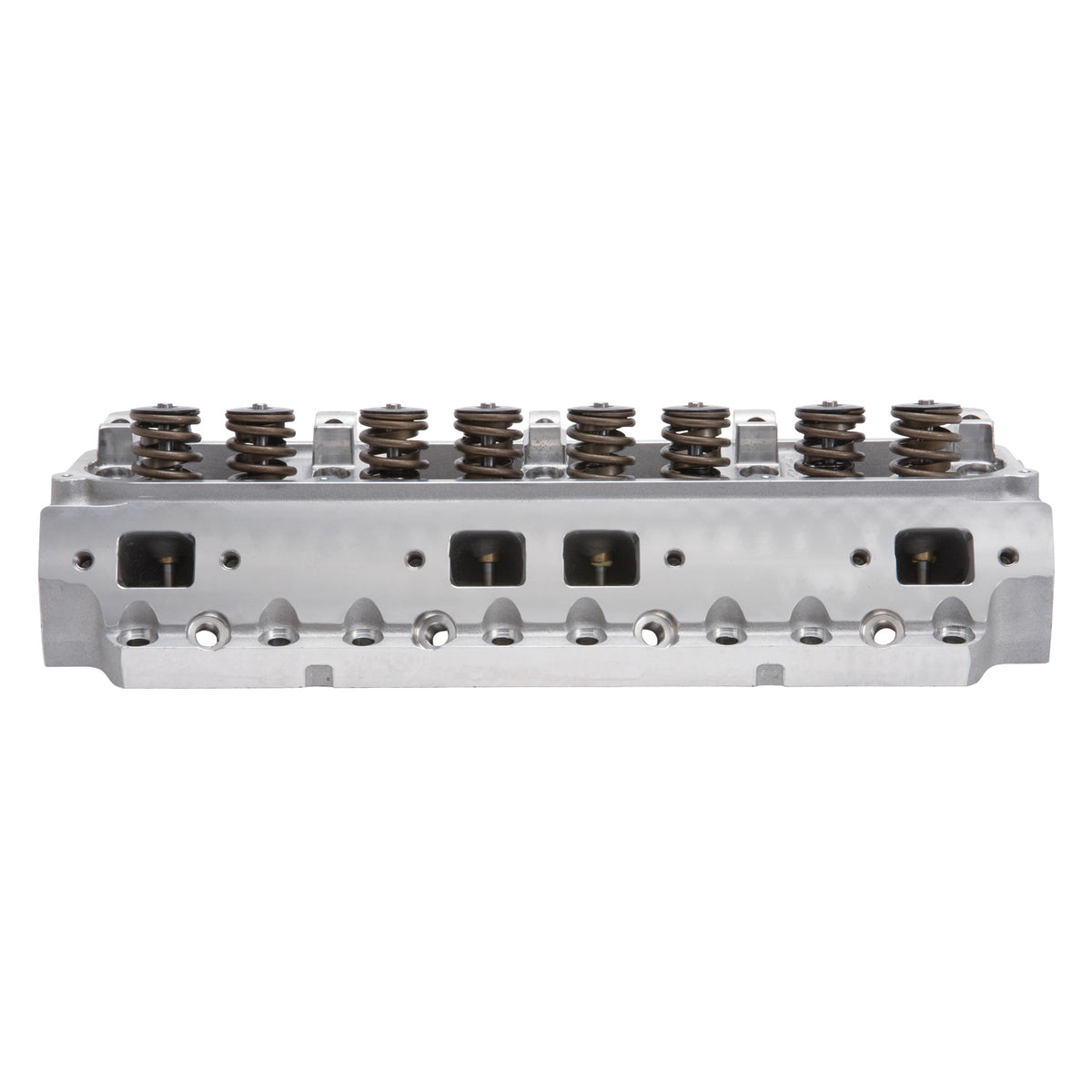

The Edelbrock #5090 E-Street cylinder heads are designed for use with 1961-1979 Chrysler 361-440 c.i.d. Wedge engine applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
The #5090 E-Street cylinder heads are designed for 1961-1979 Chrysler 361-440 Wedge engines. American made affordable power the combustion chamber improves the combustion process, larger than stock intake and exhaust ports move more air.
| Exhaust Runner Volume | 70 CCM |
| Valve Stem Diameter | 0.3438 IN |
| Push Rod Diameter | (Suggested) 0.375 IN |
| Valve Angle | 15 DD |
| Exhaust Port Location | Standard |
| Camshaft Type | Flat Tappet |
| CNC Ported | No |
| Guide Material | Manganese Bronze |
| Quantity | Set of 2 |
| Valve Spring Diameter | 1.55 IN |
| Seat Angle | Exhaust 45 deg/Intake 45 DD |
| Series | E-Street |
| Horsepower | 400-550 HJ |
| Retainer Included | Yes |
| Family | E-Street |
| Intake Valve Diameter | 2.14 IN |
| Exhaust Valve Diameter | 1.81 IN |
| Valve Spring Maximum Lift | 0.600 IN |
| EGR Port | No |
| Seat Material | Ductile Iron |
| Construction Type | Complete |
| Deck Thickness | 0.625 IN |
| 10671 | No |
| 8788 | Yes |
| 10024 | Yes |
| 8789 | Yes |
| 10025 | Yes |
| 10252 | Chromoly Steel |
| 10583 | No |
| 10261 | No |
| 30 | No |
| 306 | Yes |
| 10 | Aluminum |
| 6627 | 210 CCM |
| 6635 | 5090F |
| 6634 | No |
| 3390 | Performance |
| 6621 | 9.98 IN |
| 10582 | No |
| 6626 | 75 CCM |
| 9799 | Yes |
| Valve Lock Material | Steel |
