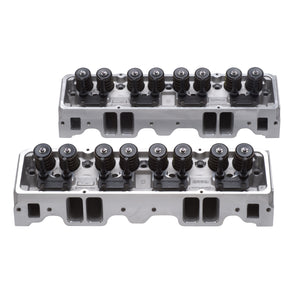

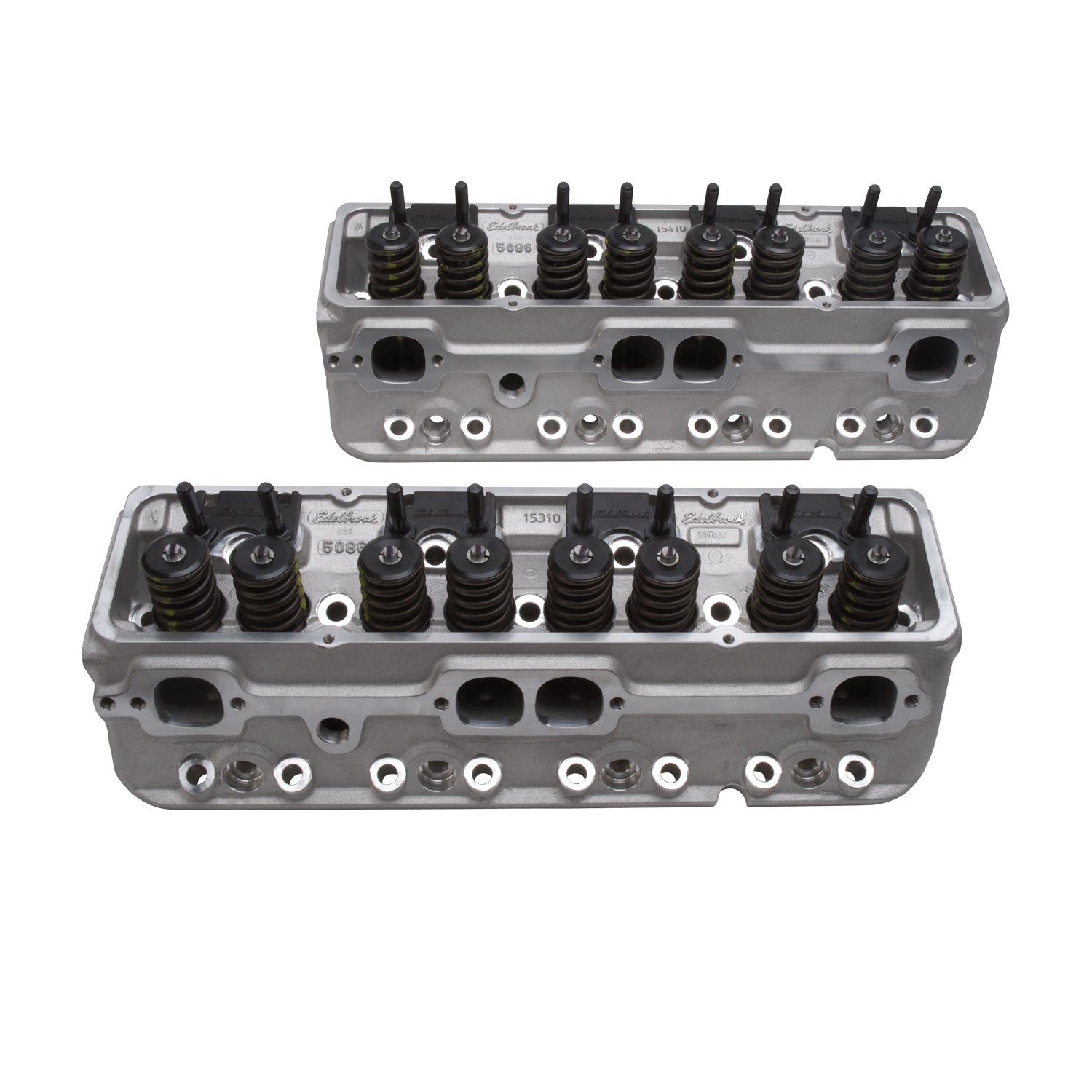

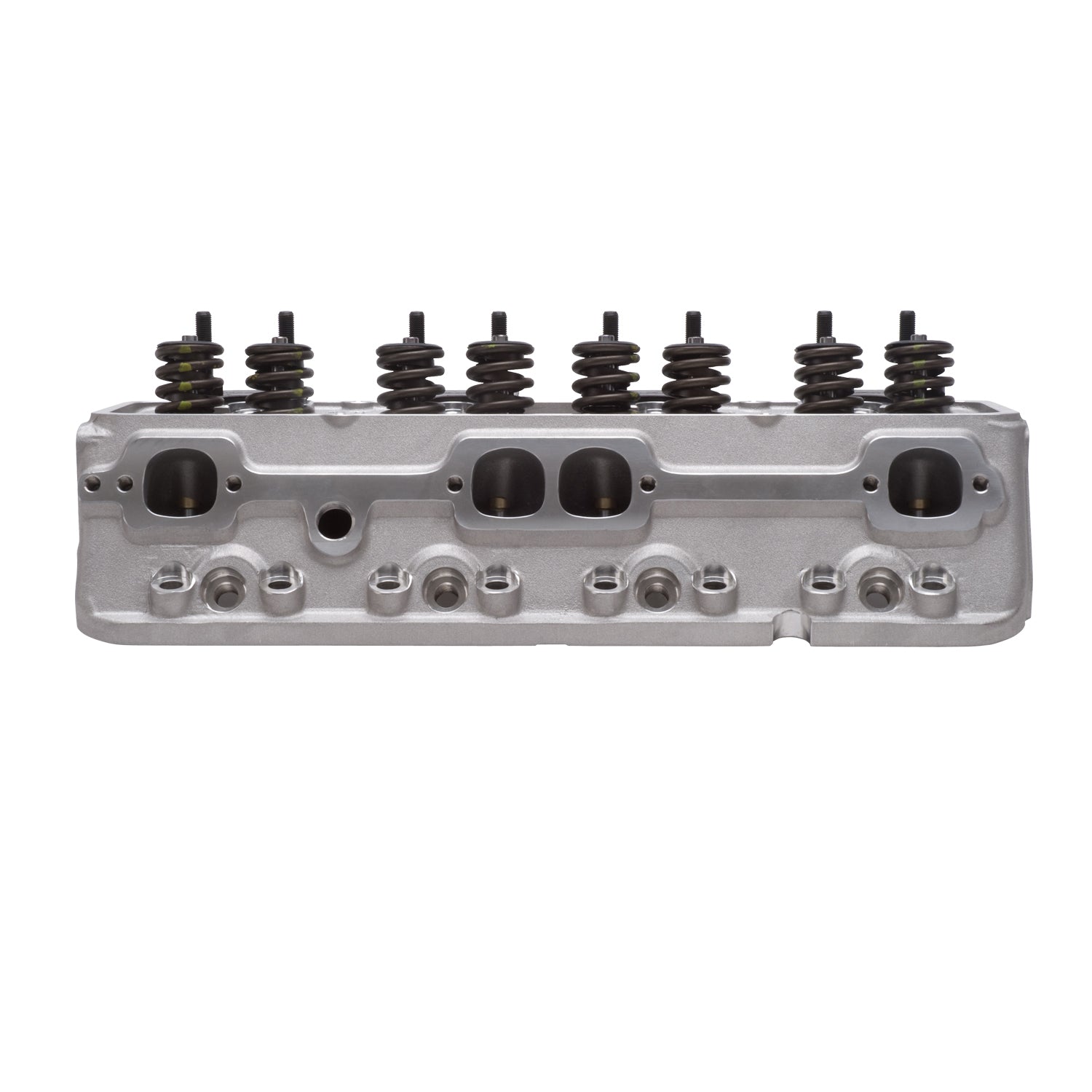

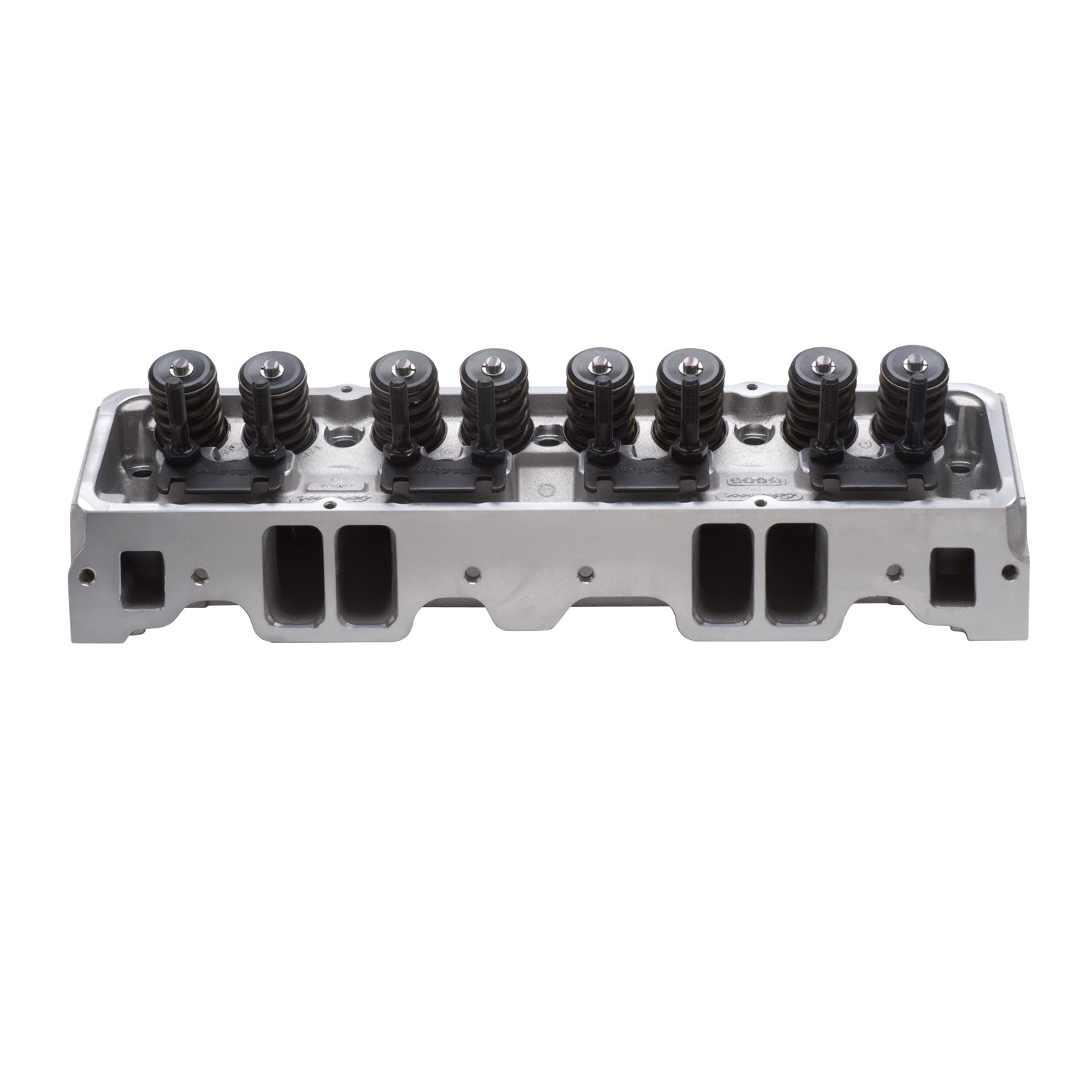

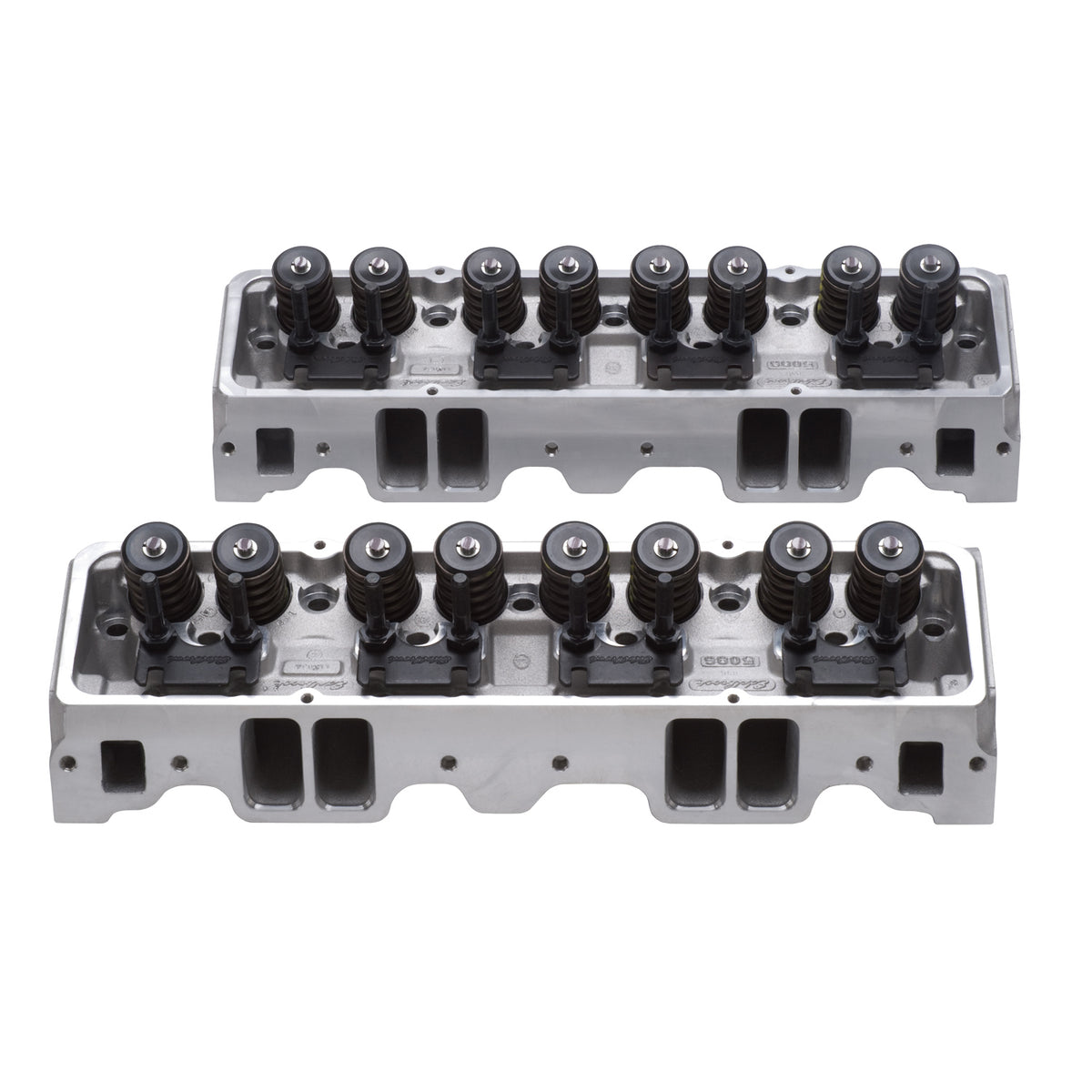

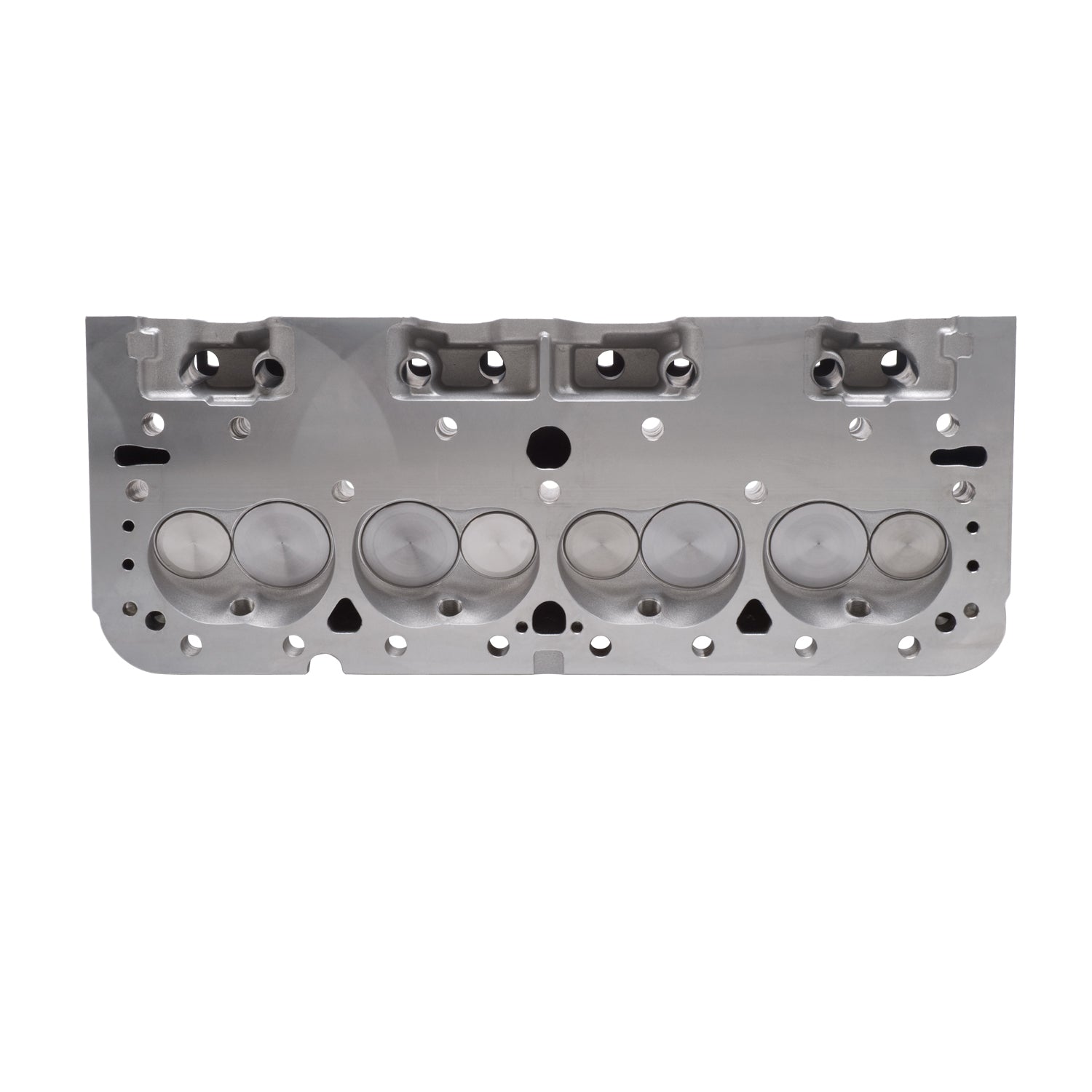

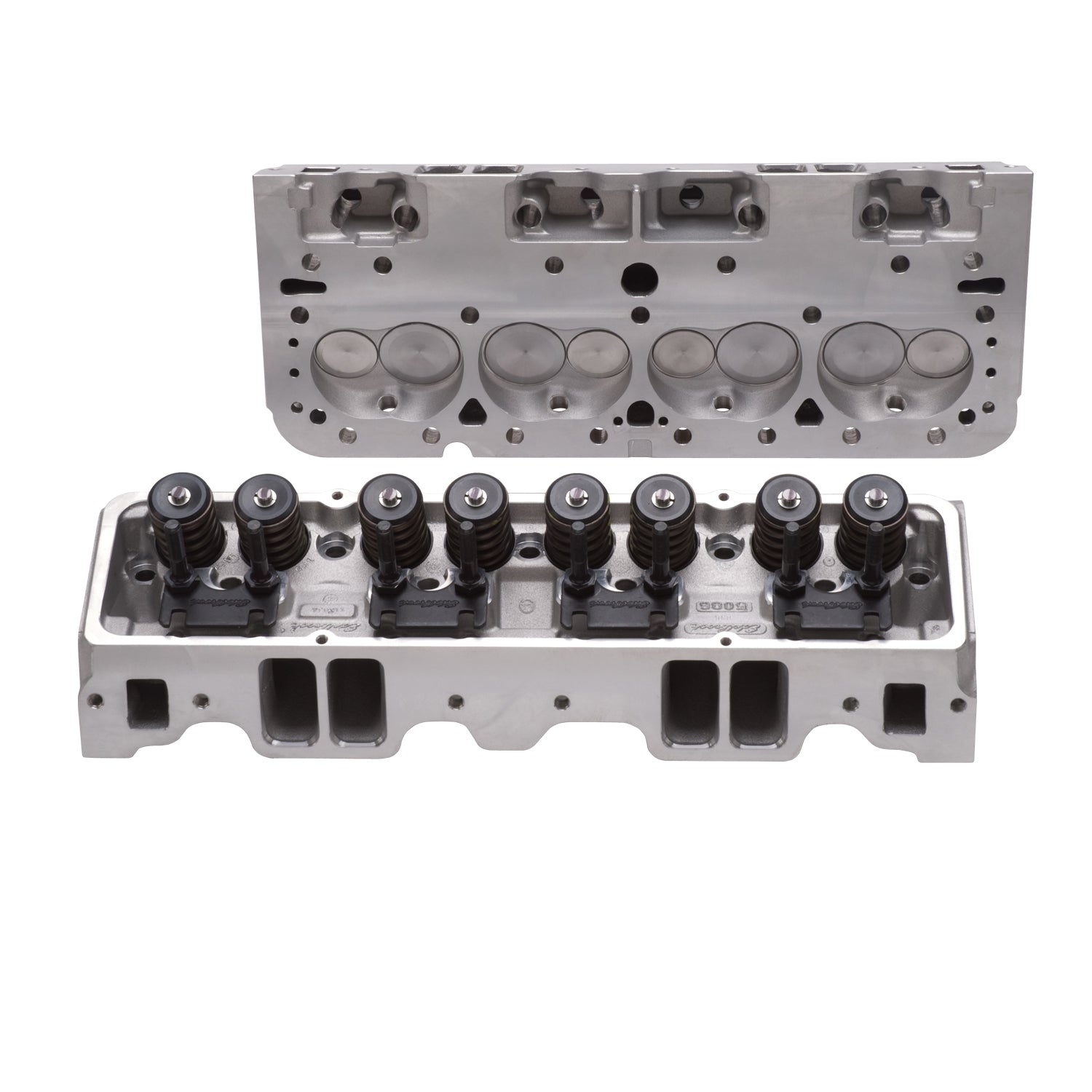

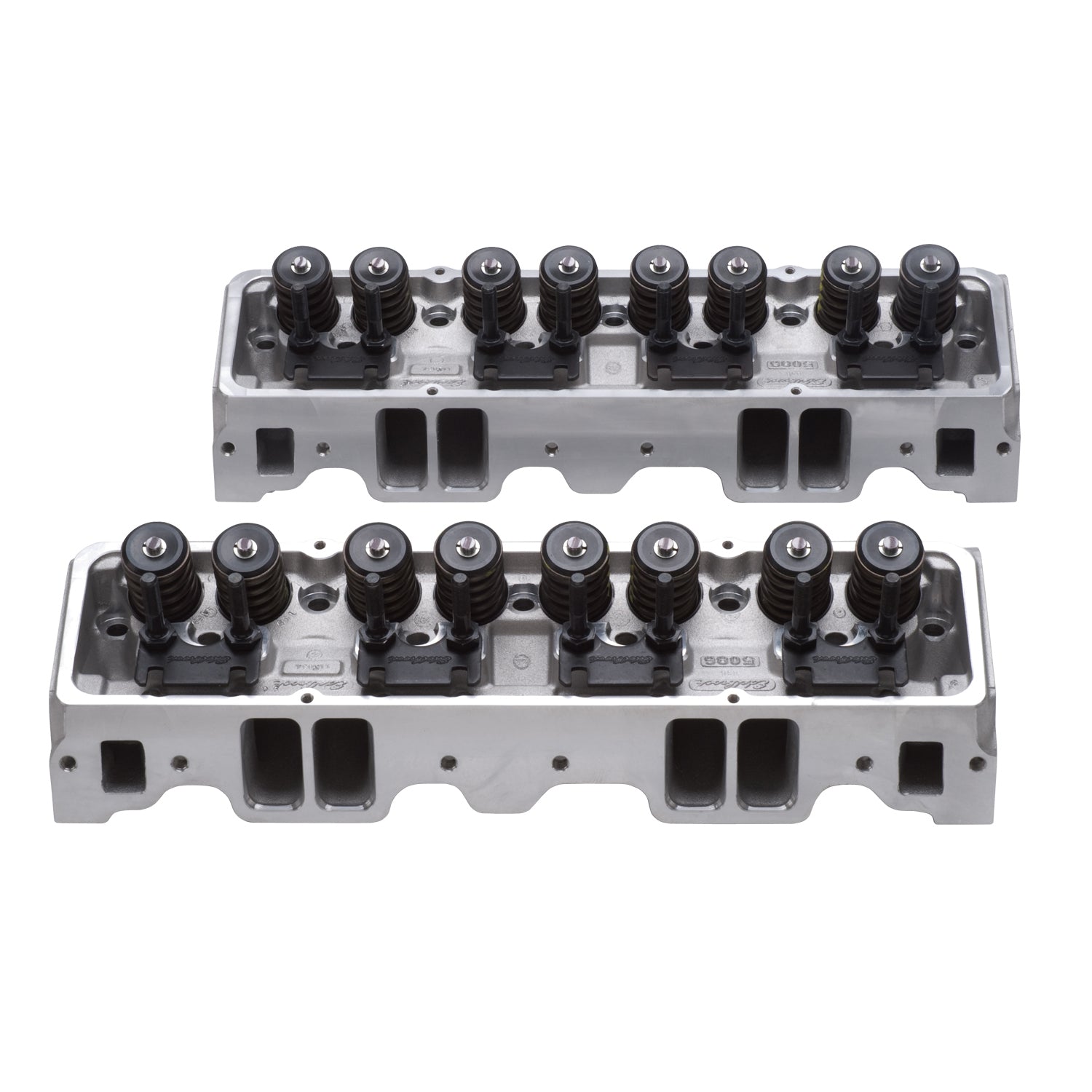

The Edelbrock #5085 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5028 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
The Edelbrock #5085 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts.
Specifications
| Exhaust Valve Diameter |
1.60 IN |
| EGR Port |
No |
| 8788 |
Yes |
| 10024 |
Yes |
| 8789 |
Yes |
| 10025 |
Yes |
| 10252 |
Chromoly Steel |
| 10583 |
No |
| 10261 |
No |
| 10671 |
Yes |
| 30 |
No |
| 10 |
Aluminum |
| 6627 |
210 CCM |
| 6635 |
5086P |
| 6634 |
Yes |
| 6636 |
Chromoly Steel |
| 3390 |
Performance |
| 6621 |
9.025 IN |
| 10582 |
No |
| 6626 |
64 CCM |
| 306 |
Yes |
| 9799 |
Yes |
| Valve Lock Material |
Steel |
| Guide Plate Material |
Hardened Steel |
| Family |
E-Series |
| Rotor Center Bore Inside Diameter |
Straight |
| Seat Angle |
Exhaust 45 deg/Intake 45 DD |
| Valve Stem Diameter |
0.3438 IN |
| Seat Material |
Ductile Iron |
| Rocker Arm Stud Diameter |
0.375 IN |
| Quantity |
Set of 2 |
| Camshaft Type |
Flat Tappet |
| Valve Angle |
23 DD |
| Series |
E-Series |
| Push Rod Diameter |
(Suggested) 0.5625 IN |
| Deck Thickness |
0.5625 IN |
| Valve Spring Maximum Lift |
0.575 IN |
| Exhaust Port Location |
Standard |
| Horsepower |
400-550 HJ |
| Retainer Included |
Yes |
| Valve Spring Diameter |
1.46 IN |
| CNC Ported |
No |
| Exhaust Runner Volume |
75 CCM |
| Construction Type |
Complete |
| Guide Material |
Manganese Bronze |
| Intake Valve Diameter |
2.08 IN |
