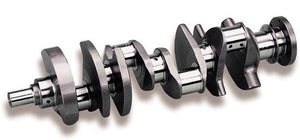

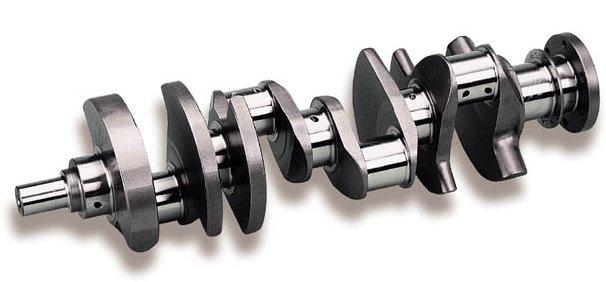

Eagle Pontiac 455 4.210in Stroke Forged 4340 Steel Crankshaft - 445542106625

Eagle forged 4340 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.

Specifications

• Material: forged 4340 steel
• Intended Balance: internal
• Target Bobweight: 2280g
• Stroke: 4.210"
• Rod Journal: 2.249"
• Rod Journal Width: 2.000"
• Main Journals: 3.25"
• Minimum Rod Length: 6.625"
• Typical Weight: 73 lbs.
• Snout Diameter: 1.373"
• Flywheel Bolts: 6
• Pilot Bore Diameter: 1.383"
• Flywheel Register Diameter: 2.75"
