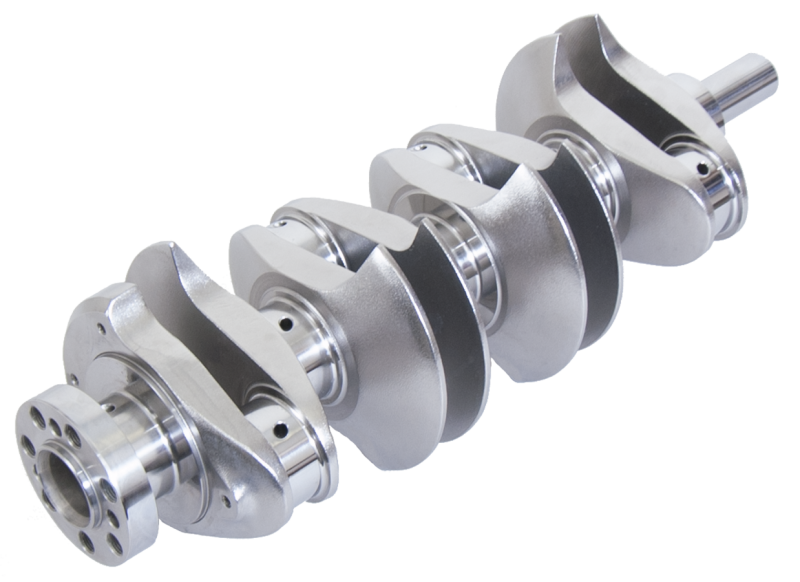

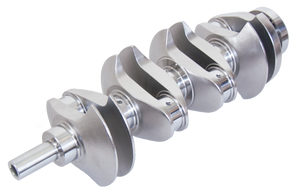

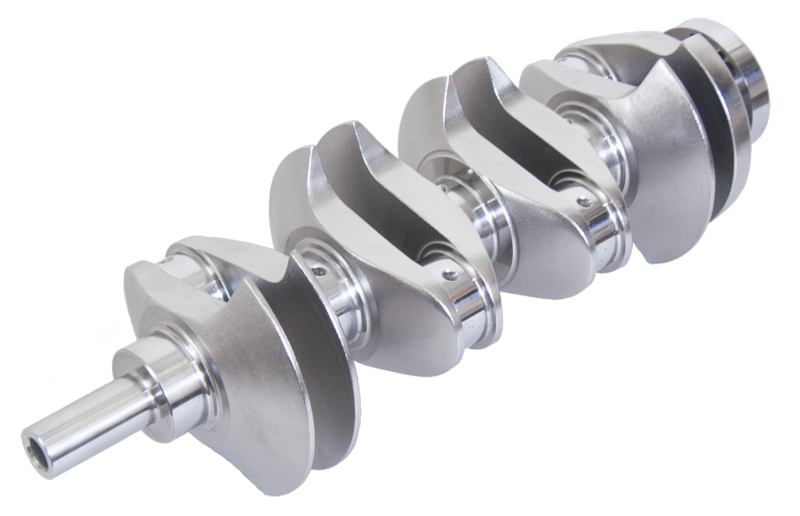

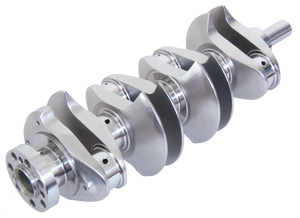

Eagle Mitsubishi 4B11T 4340 Billet Crankshaft - 34B137015659

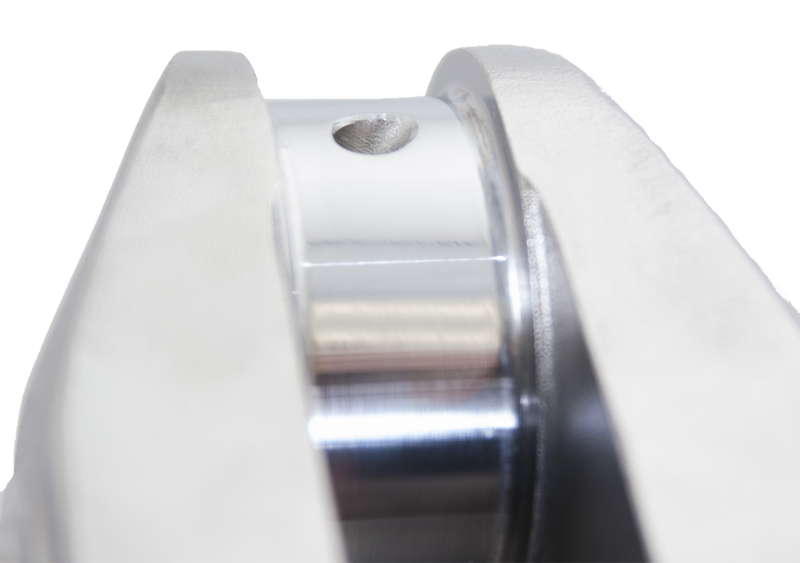

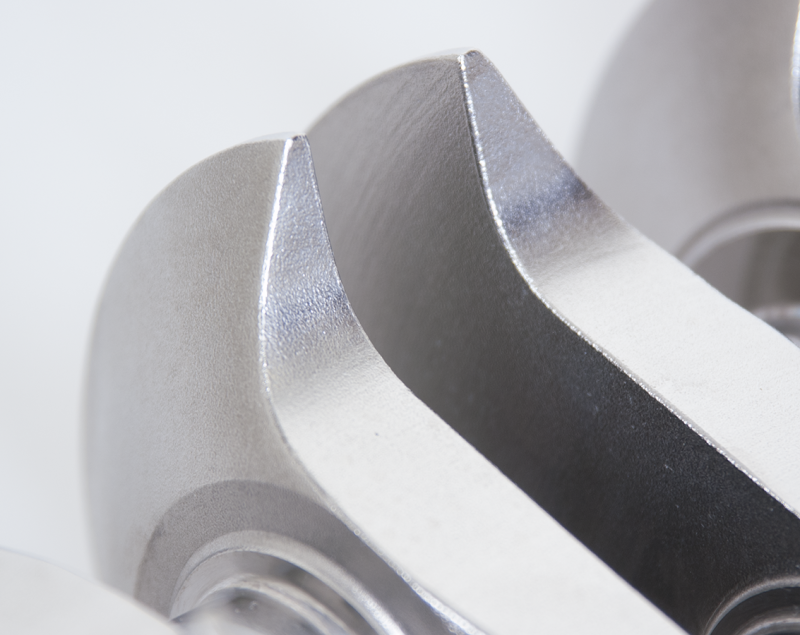

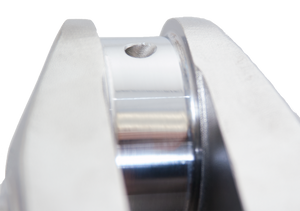

Eagle knife-edged billet 4340 steel cranks feature knife-edged counterweights to dramatically reduce rotating weight, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.

Specifications

• Material: billet 4340 steel
• Intended Balance: internal
• Stroke: 3.700"
• Rod Journal: 2.046"
• Rod Journal Width: 0.876"
• Main Journals: 2.0465"
• Minimum Rod Length: 5.659"
• Typical Weight: 35 lbs.
• Flywheel Bolts: 8
