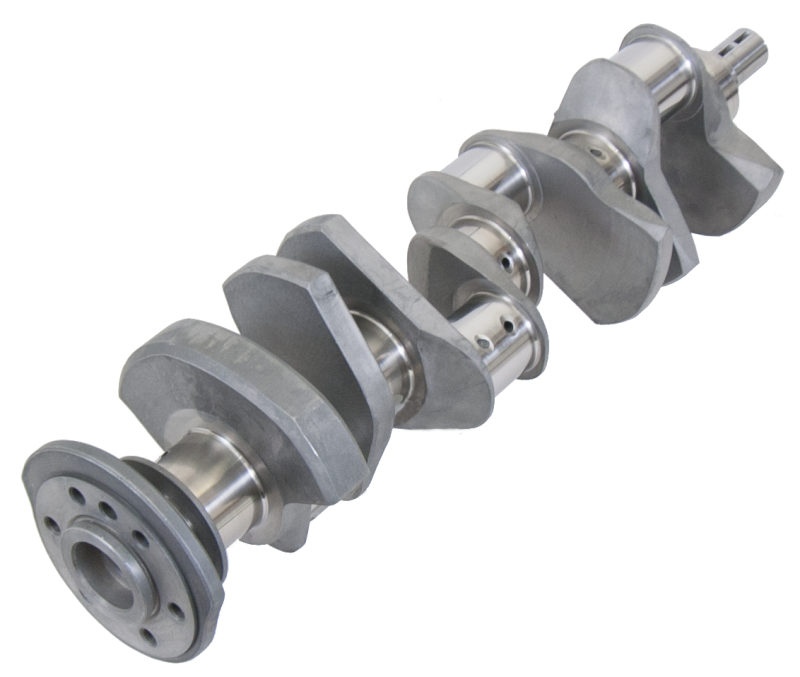

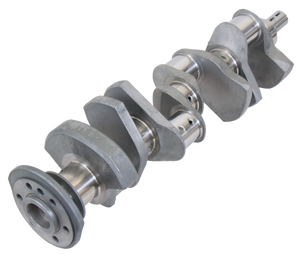

Eagle Ford 5L Coyote V8 3.750in Stroke Internally Balanced Crankshaft - 428236505933

Eagle forged 4340 steel center-counterweighted cranks feature a non-twist forging, center counterweights for added stability at high RPM and high-power applications, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.

Specifications

• Material: forged 4340 steel
• Intended Balance: internal
• Target Bobweight: 1680g
• Stroke: 3.650"
• Rod Journal: 2.086"
• Rod Journal Width: 1.900"
• Main Journals: 2.657"
• Minimum Rod Length: 5.933"
• Typical Weight: 47 lbs.
• Flywheel Bolts: 8
