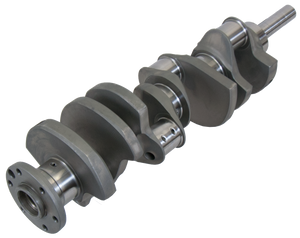

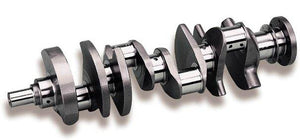

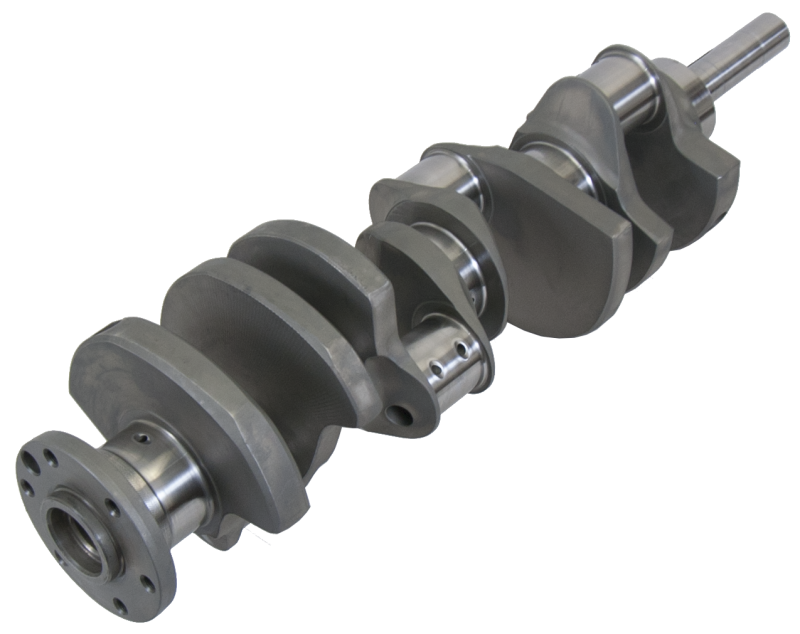

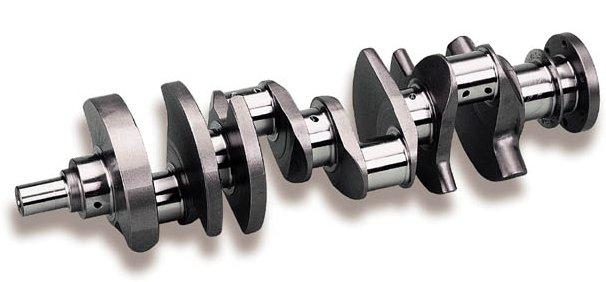

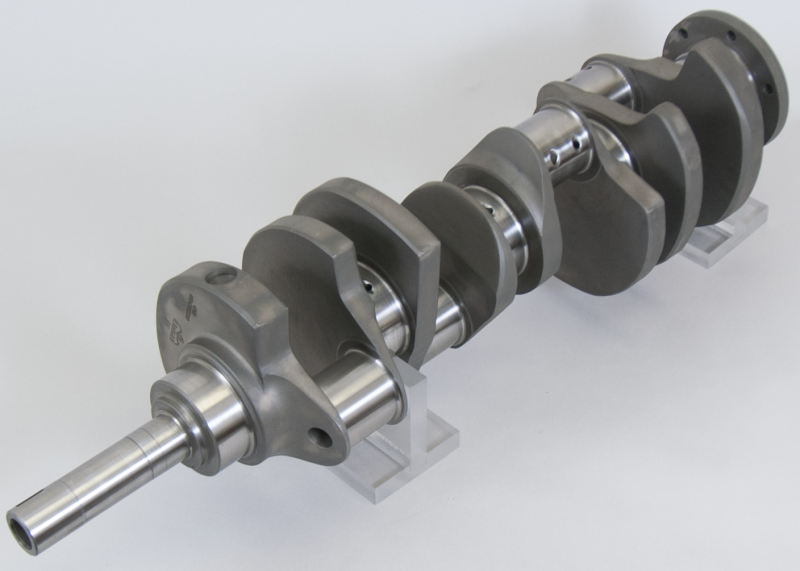

Eagle Ford 460 Stock 4.300in Stroke Internally Balanced Forged 4340 Chromoly Crankshaft - 446043002200

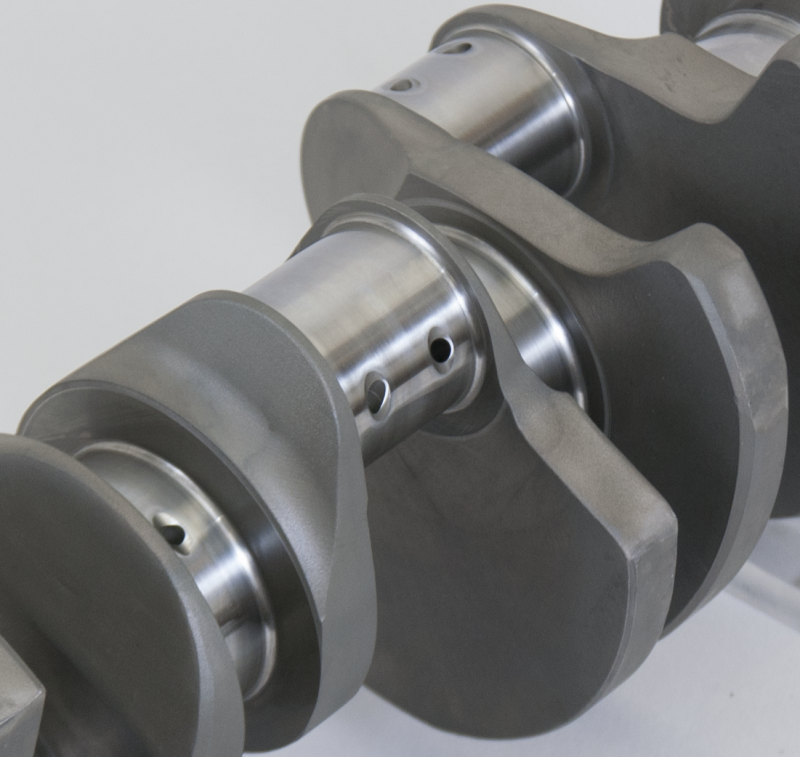

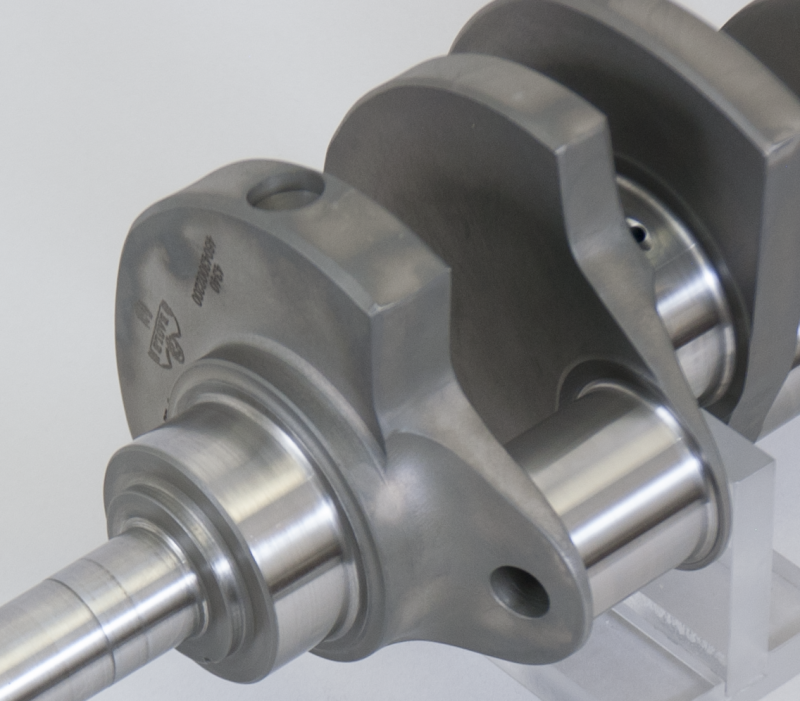

Eagle forged 4340 steel cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface, & micropolished to < 2 ra. Intended for the most demanding applications.

Specifications

• Material: forged 4340 steel
• Intended Balance: internal
• Target Bobweight: 2350g
• Stroke: 4.300"
• Rod Journal: 2.2"
• Rod Journal Width: 2.000"
• Main Journals: 3.000"
• Minimum Rod Length: 6.700"
• Typical Weight: 81 lbs.
• Rear Seal Diameter: 3.141"
• Snout Diameter: 1.373"
• Flywheel Bolts: 6
